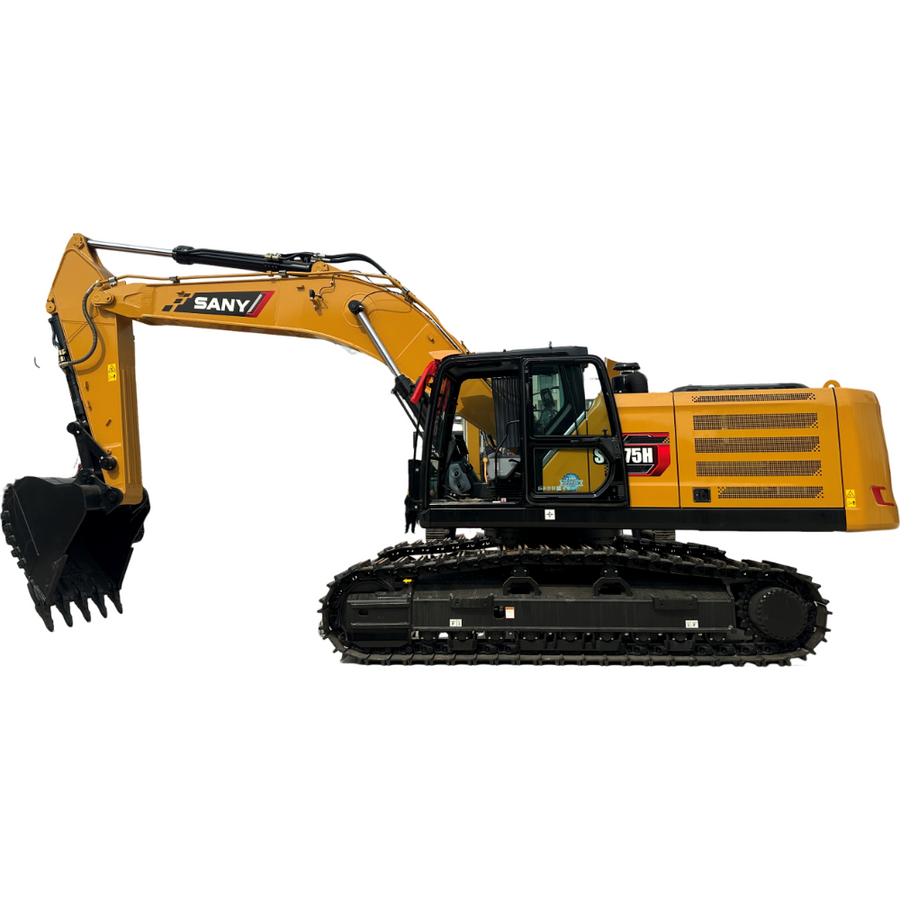

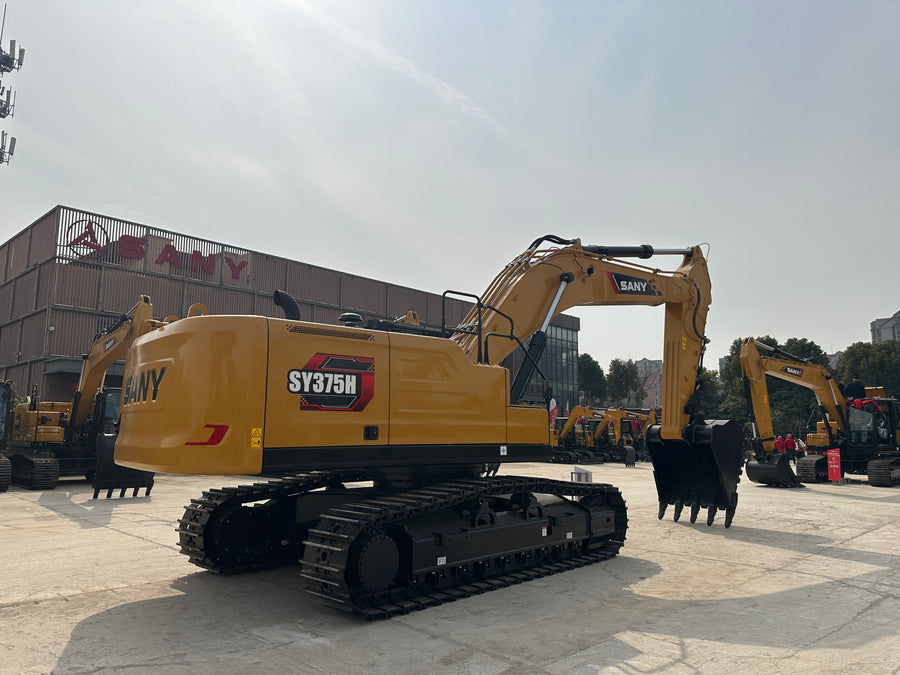

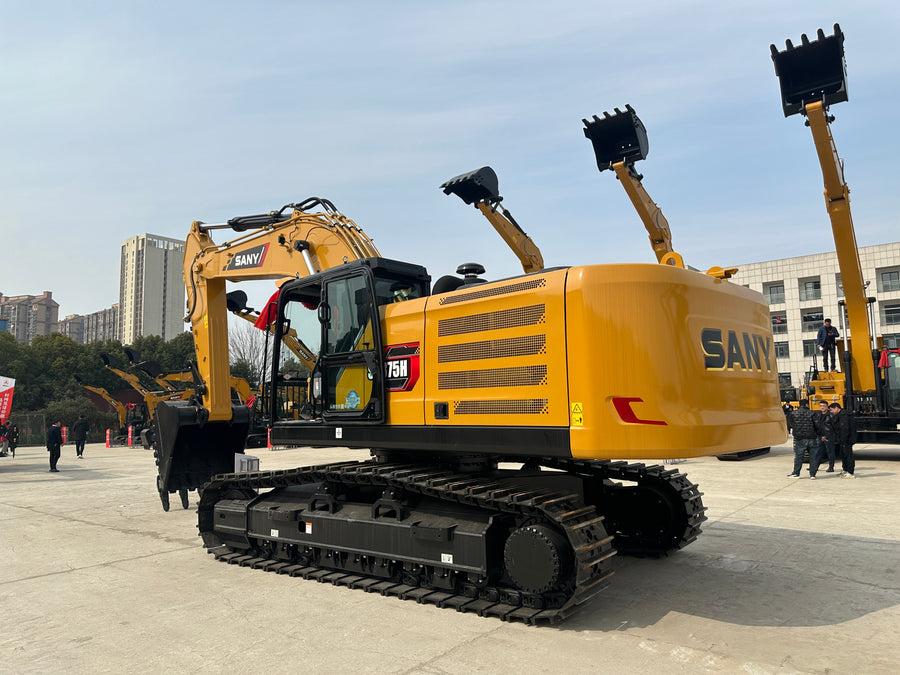

NEW SANY SY375
NEW SANY SY375
Regular price
$82,000.00 USD
Regular price
Sale price
$82,000.00 USD
Quantity
Couldn't load pickup availability
Here are the parameters of the NEW SANY SY375 in a tabular format in English:
| Parameter | Description |
|---|---|
| Model | SY375H |
| Type | Large Excavator |
| Operating Weight | 37,500-37,800 kg (depending on the source) |
| Bucket Capacity | 1.7-2.4 m³ (standard: 1.9 m³) |
| Engine Model | Isuzu 6HK1 or GH-6HK1XKSC (or Cummins QSL9 for some variants) |
| Engine Type | Direct injection, 6-cylinder, 4-stroke, turbocharged intercooler, water-cooled |
| Displacement | 7.79 L (or 8.9 L for Cummins QSL9) |
| Rated Power | 210-212 kW / 1900-2000 rpm (depending on the engine model) |
| Maximum Torque | 1080 N·m / 1500 rpm (or 1526 N·m / 1400 rpm for Cummins QSL9) |
| Emission Standard | China IV (equivalent to EU Stage IV) |
| Fuel Tank Capacity | 540-620 L (depending on the source) |
| Engine Oil Capacity | 36-41 L (depending on the source) |
| Coolant Capacity | 28 L |
| Hydraulic Oil Tank Capacity | 380 L (some sources indicate 420 L) |
| Travel Speed (High/Low) | 5.0-5.5 km/h / 2.7-3.5 km/h (depending on the source) |
| Swing Speed | 8.8-9.2 rpm (depending on the source) |
| Gradeability | 70% (35°) |
| Ground Pressure | 68.5-68.8 kPa (depending on the source) |
| Bucket Digging Force | 235 kN |
| Arm Digging Force | 210 kN |
| Maximum Digging Radius | 10,750-10,875 mm (depending on the source) |
| Maximum Digging Depth | 7,025-7,155 mm (depending on the source) |
| Maximum Digging Height | 9,920-9,985 mm (depending on the source) |
| Maximum Unloading Height | 6,905-7,010 mm (depending on the source) |
| Maximum Vertical Digging Depth | 5,125 mm |

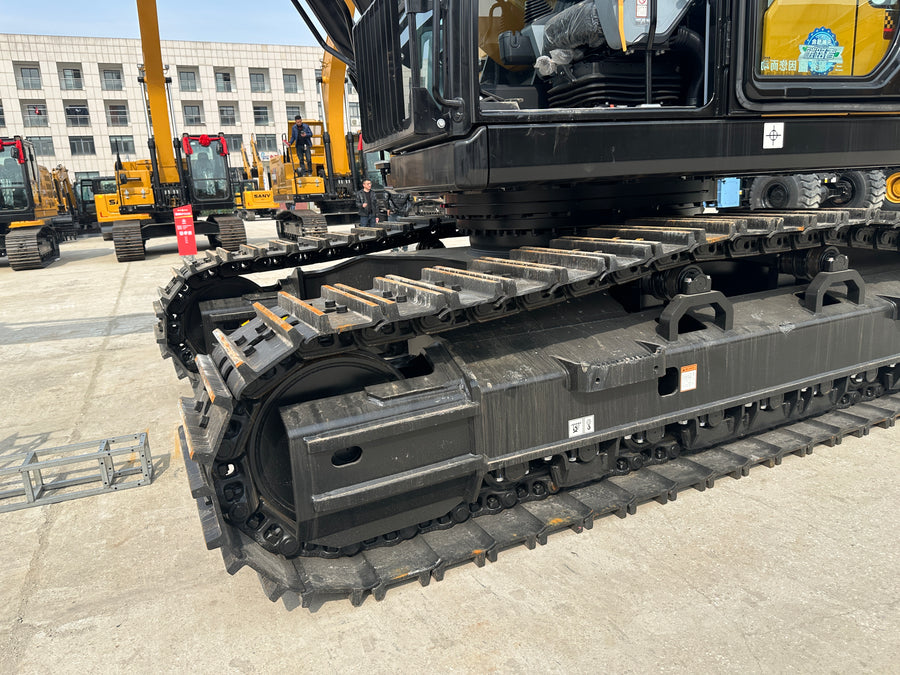

| Track Width | 600 mm |
| Number of Track Shoes | 49 (per side) |
| Number of Support Rollers | 9 (per side) |
| Number of Idler Wheels | 2 (per side) |
