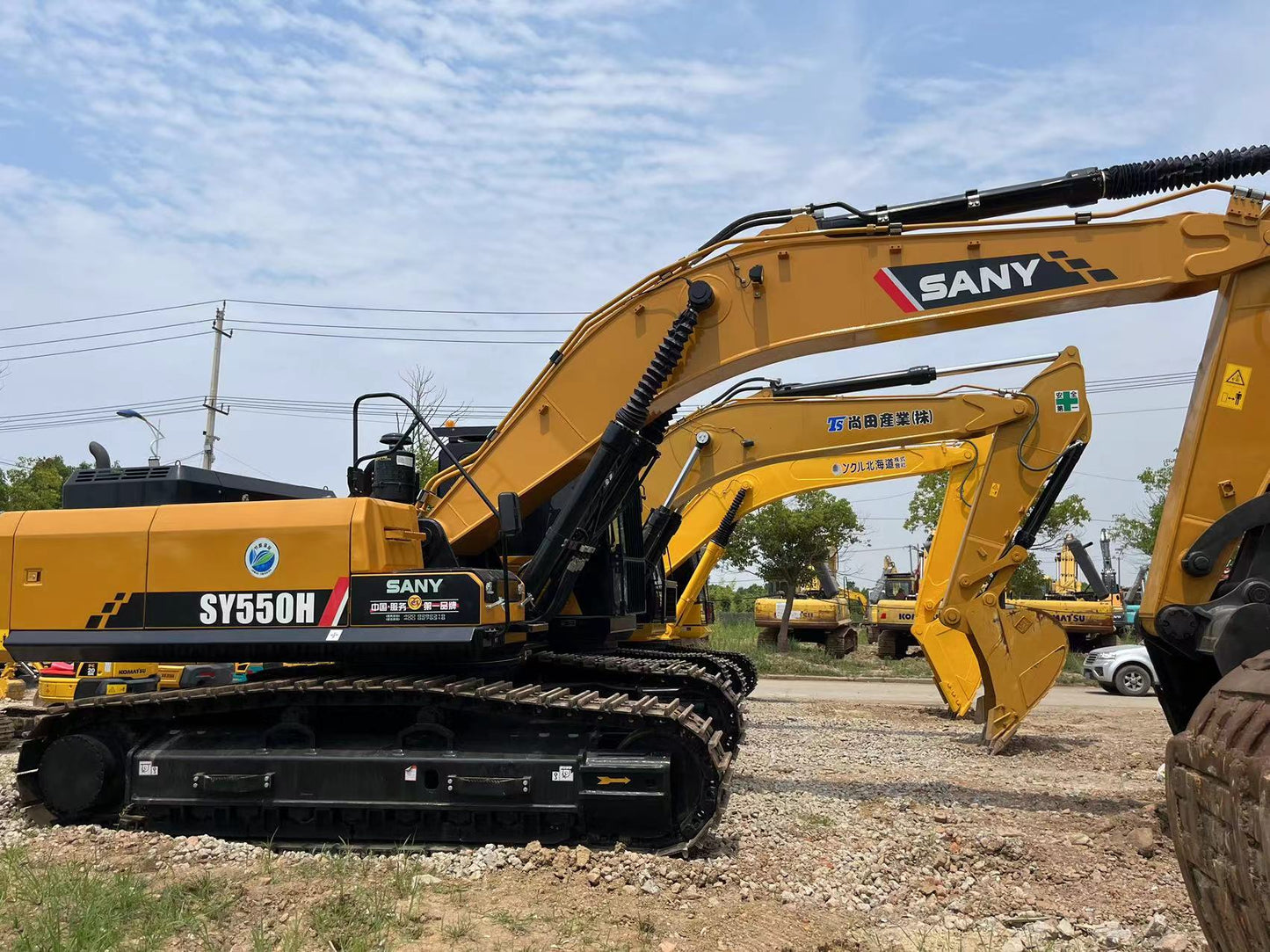

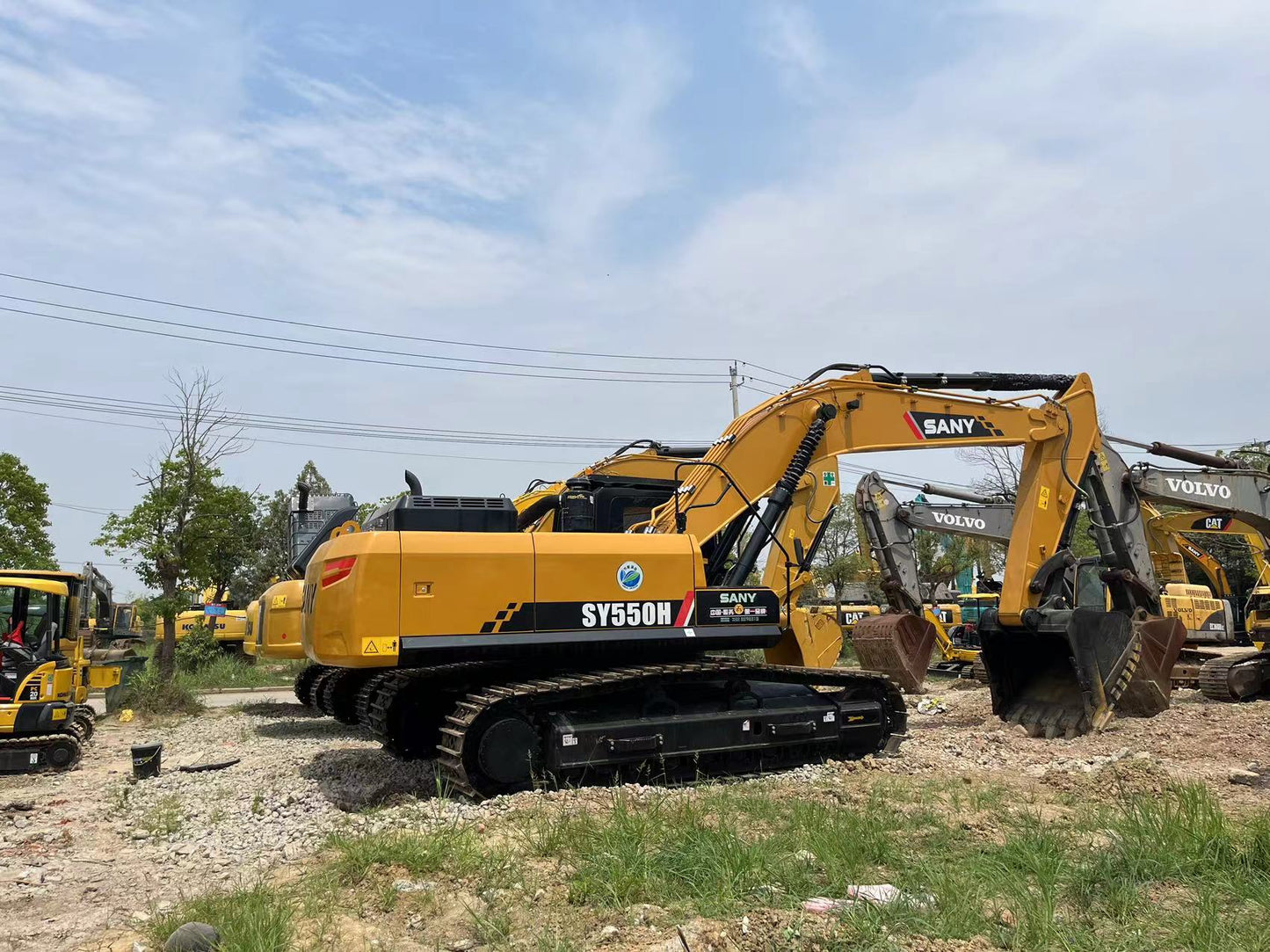

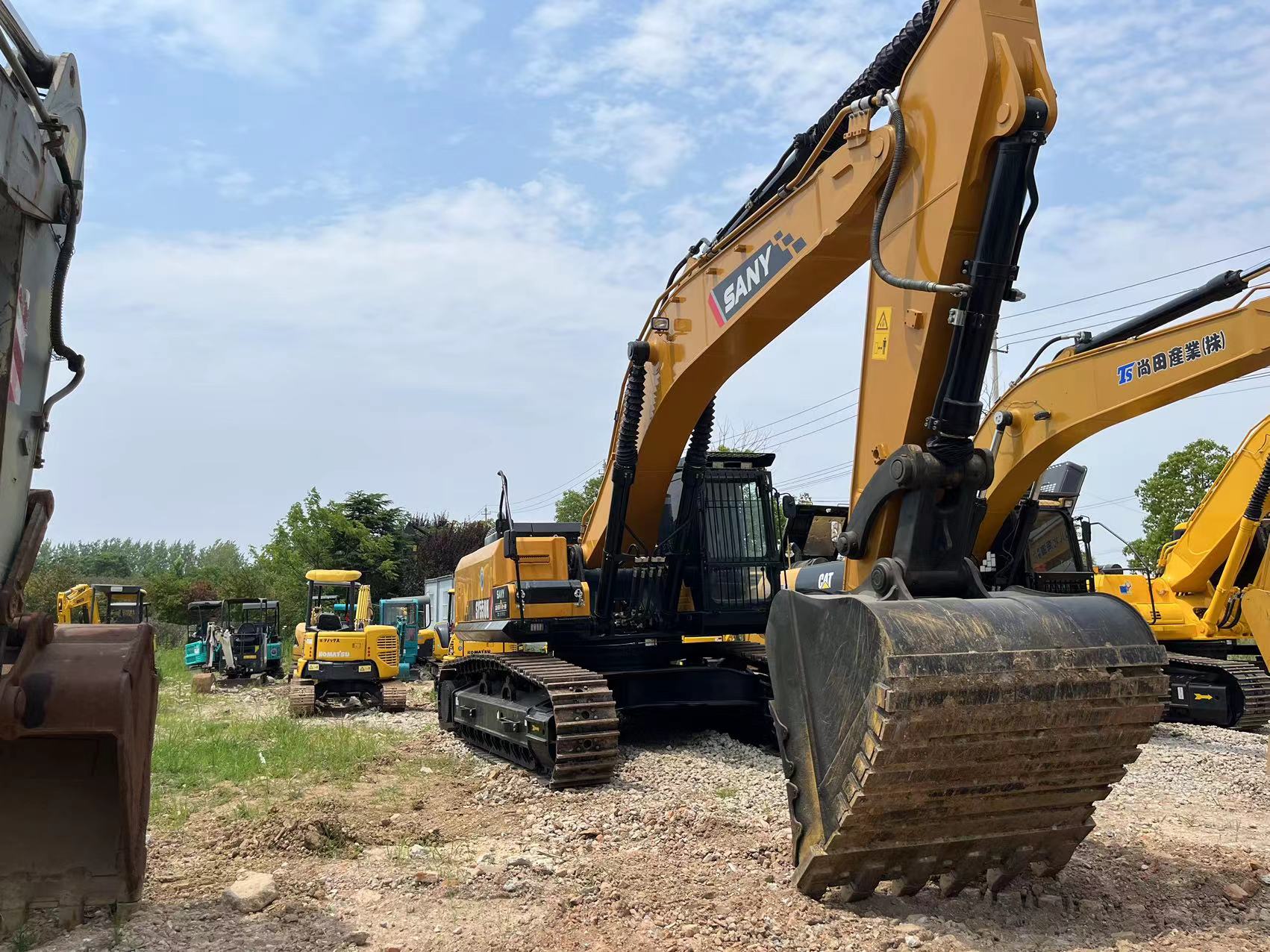

NEW SANY SY550
NEW SANY SY550
Regular price
$10,000.00 USD
Regular price
Sale price
$10,000.00 USD
Quantity
Couldn't load pickup availability
Here are the parameters of the NEW SANY SY550 in a tabular format in English:
| Parameter | Description |
|---|---|
| Model | SY550H (with variations such as SY550H-S, SY550HB, SY550HD, etc.) |
| Type | Large Hydraulic Excavator |
| Operating Weight | 51,000-56,000 kg (depending on the model and configuration) |
| Bucket Capacity | 3.1-3.6 m³ (standard); some models may have different capacities |
| Engine Model | Isuzu 6WG1 (or other models depending on the variant) |
| Engine Type | Direct injection, 6-cylinder, 4-stroke, turbocharged intercooler, water-cooled |
| Displacement | 15.681 L |
| Rated Power | 300-310 kW / 1800 rpm (depending on the engine model) |
| Maximum Torque | 2050 N·m / 1300 rpm (for some models) |
| Emission Standard | China IV (equivalent to EU Stage IV) |
| Fuel Tank Capacity | 540-750 L (depending on the model) |
| Hydraulic Oil Tank Capacity | 400-480 L (depending on the model) |
| Engine Oil Capacity | 50 L (approx.) |
| Coolant Capacity | 50 L (approx.) |
| Travel Speed (High/Low) | 5.3-5.4 km/h / 3.1 km/h (depending on the model) |
| Swing Speed | 8 rpm |
| Gradeability | 70% (35°) |
| Ground Pressure | 80.42-87.1 kPa (depending on the model) |
| Bucket Digging Force | 270-280 kN (depending on the model) |
| Arm Digging Force | 245 kN (approx.) |
| Maximum Digging Radius | 10,655-12,841 mm (depending on the model and configuration) |
| Maximum Digging Depth | 7,025-8,077 mm (depending on the model and configuration) |
| Maximum Digging Height | 9,985-12,279 mm (depending on the model and configuration) |
| Maximum Unloading Height | 6,730-7,400 mm (depending on the model) |
| Track Width | 600 mm |
| Number of Track Shoes (Per Side) | 50 |
| Number of Support Rollers (Per Side) | 9 |
| Number of Idler Wheels (Per Side) | 2 |
