SEM

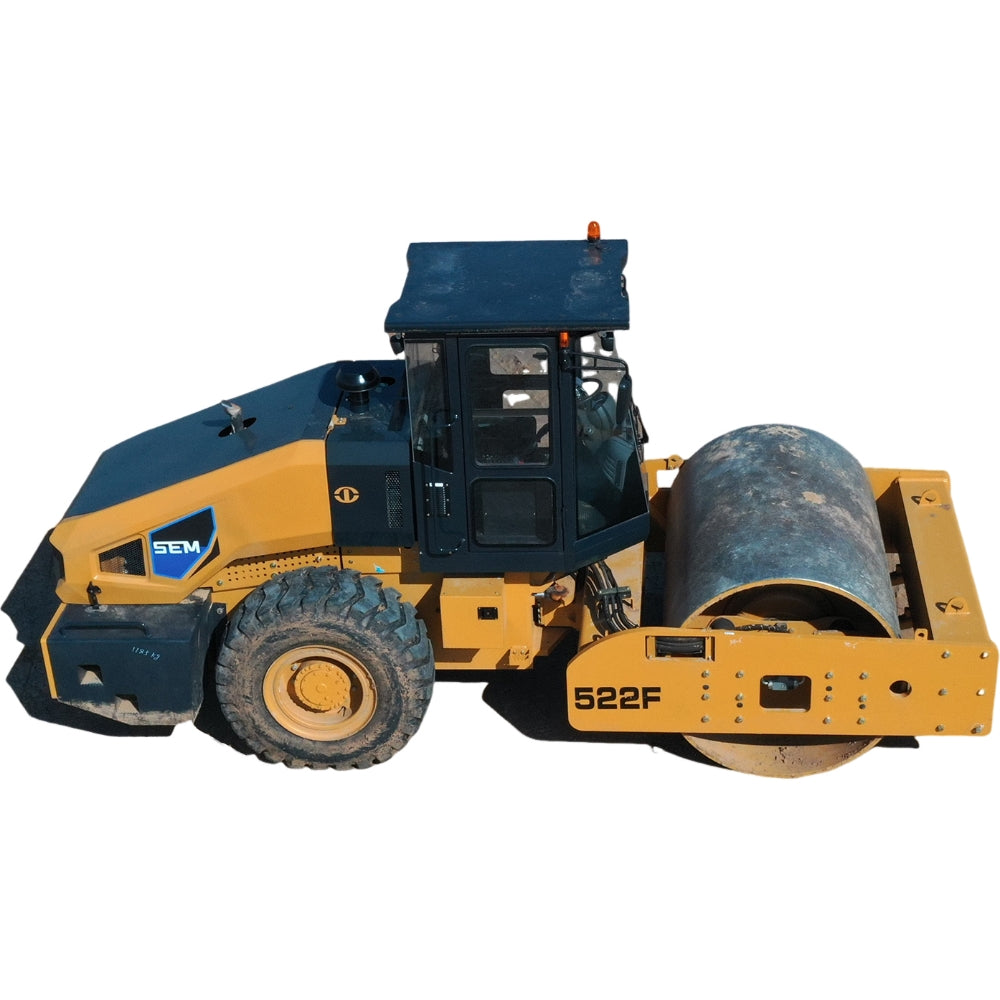

NEW SEM 522F

$40,000.00 USD

Sale Sold out

Item	Parameter	Unit
Model	SEM 522F	-
Operating Weight	22000	kg
Rated Power	140	kW
Rated Speed	2000	r/min
Excitation Force (High/Low)	374/215	kN
Vibration Frequency (High/Low)	30/28	Hz
Amplitude (High/Low)	2.0/1.0	mm
Static Pressure	507	N/cm
Compaction Width	2130	mm
Drum Diameter	1600	mm
Overall Dimensions (L×W×H)	6250×2130×3200	mm
Wheelbase	3100	mm
Min. Ground Clearance	460	mm
Max. Gradeability	34	%
Travel Speed	2.98/5.88/9.6	km/h
Min. Turning Radius	6350	mm
Steering Angle	±33	°
Oscillation Angle	±10	°
Fuel Tank Volume	262	L
Hydraulic Oil Tank Volume	80	L
