SEM

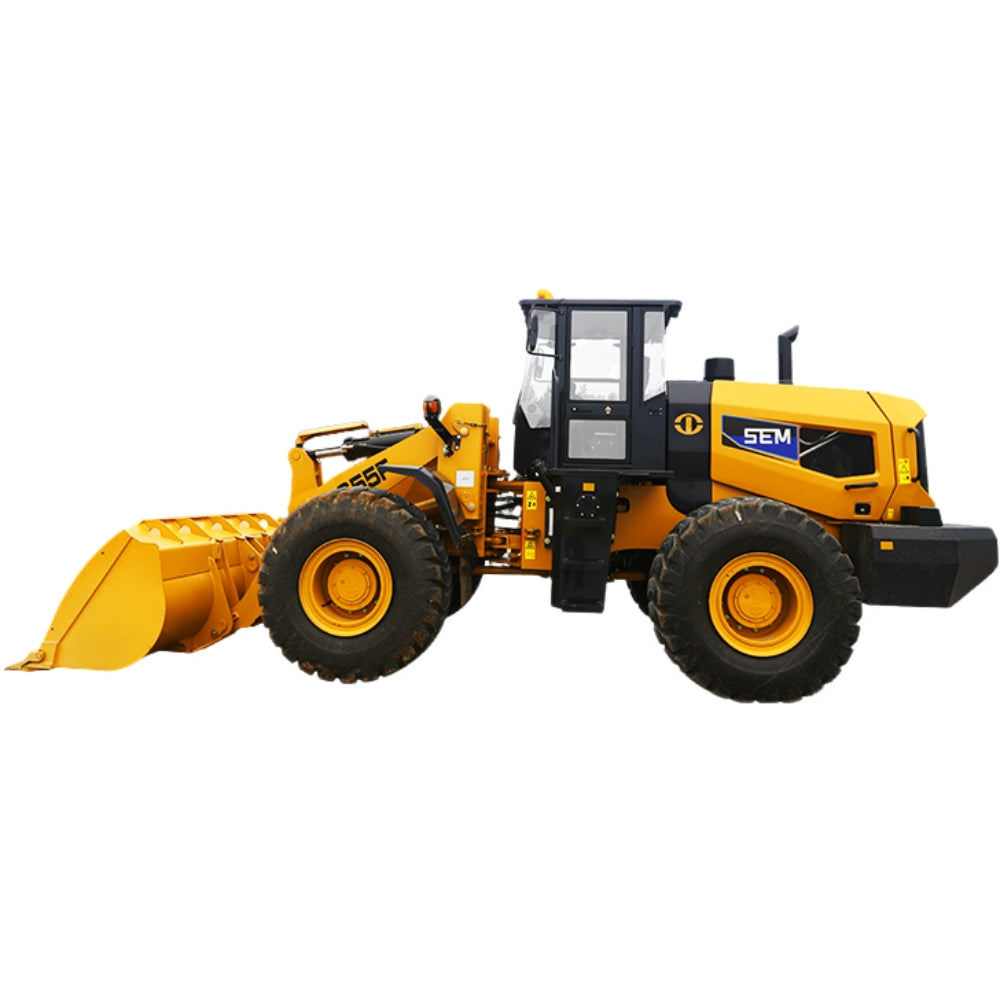

NEW SEM 655F

NEW SEM 655F

$44,000.00 USD
$44,000.00 USD
Sale Sold out
Item Parameter Unit
Model SEM 655F -
Operating Weight 16360 kg
Rated Load Capacity 5000 kg
Bucket Capacity 2.7-4.5 m³
Engine Model WP10HG220E475 -
Rated Power 162 kW
Rated Speed 2200 r/min
Displacement 9.5 L
Transmission Model TR200 -
Transmission Gears Forward 4/Reverse 4 -
Travel Speed (F1/F2/F3/F4/R1/R2/R3/R4) 7.9/14/24.5/38.5/7.9/14/24.5/38.5 km/h
Overall Dimensions (L×W×H) 8209×2963×3408 mm
Wheelbase 3200 mm
Unloading Height (45°) 3100 mm
Min. Turning Radius (Bucket Outer) 5917 mm
Min. Turning Radius (Outer Tire) 6931 mm
Steering Angle ±35 °
Hydraulic System Working Pressure 16 MPa
Brake Type Air-over-oil caliper disc (service), Internal expanding drum (parking) -
Emission Standard China IV -
Cycle Time (Lifting/Tipping/Lowering) 8.8
