SEM

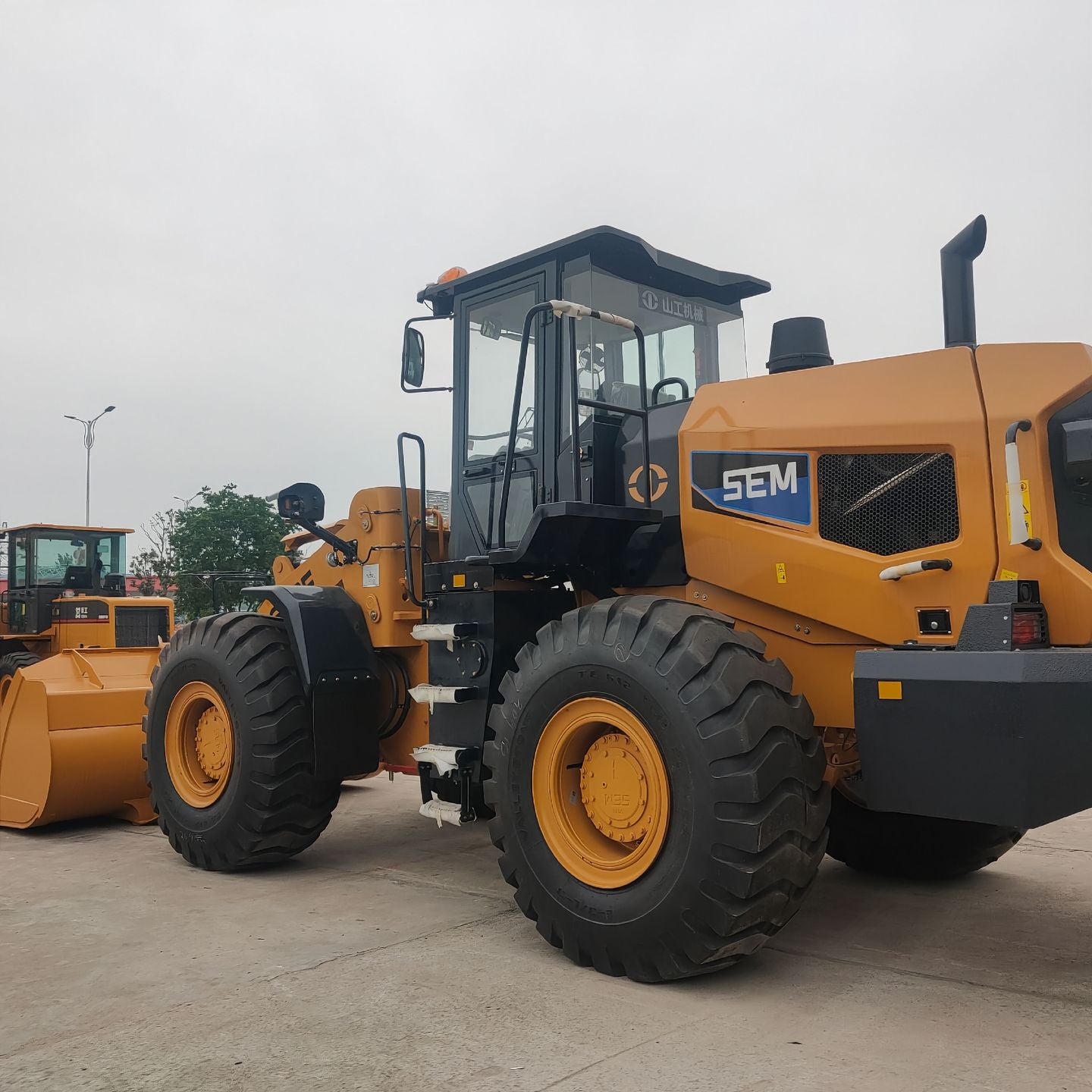

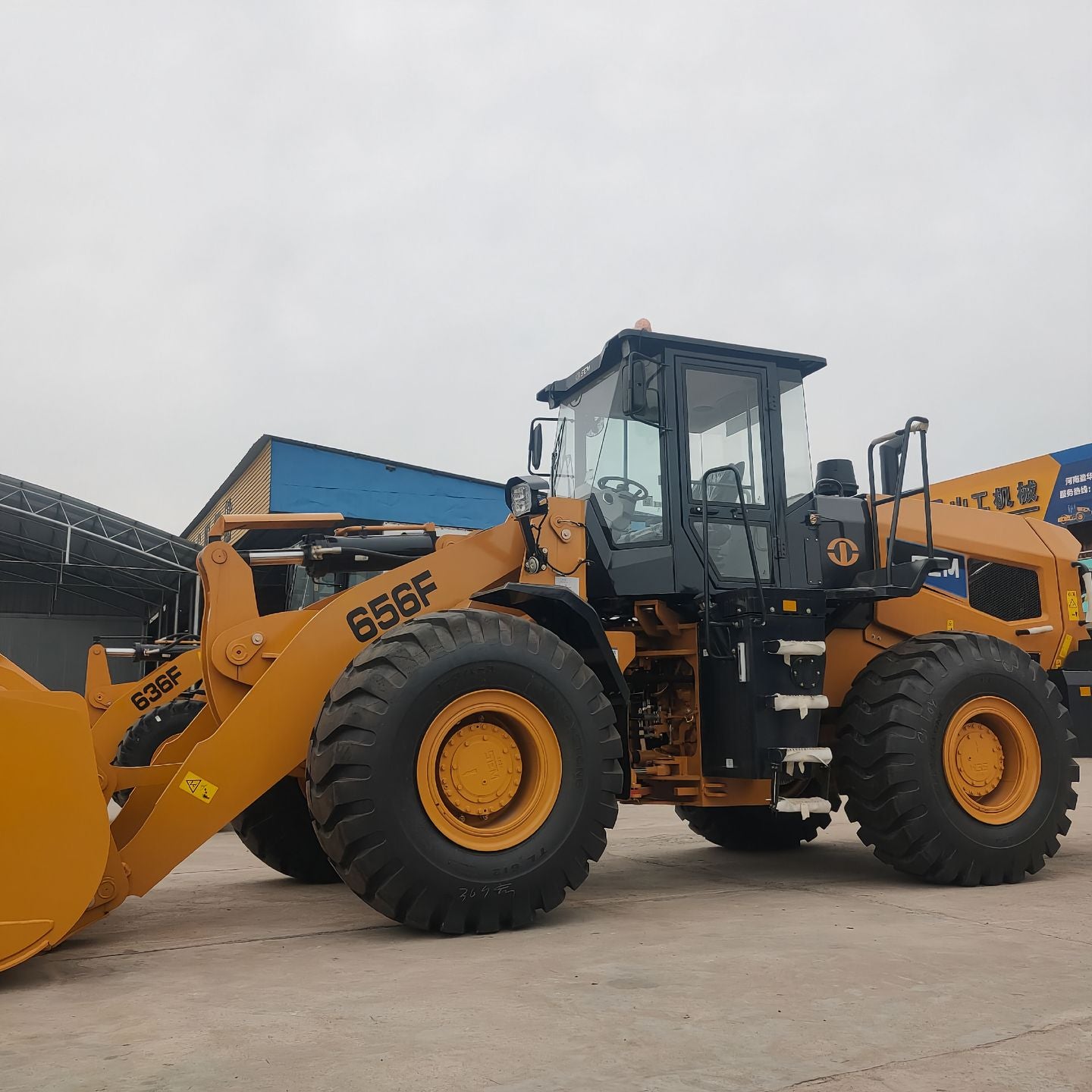

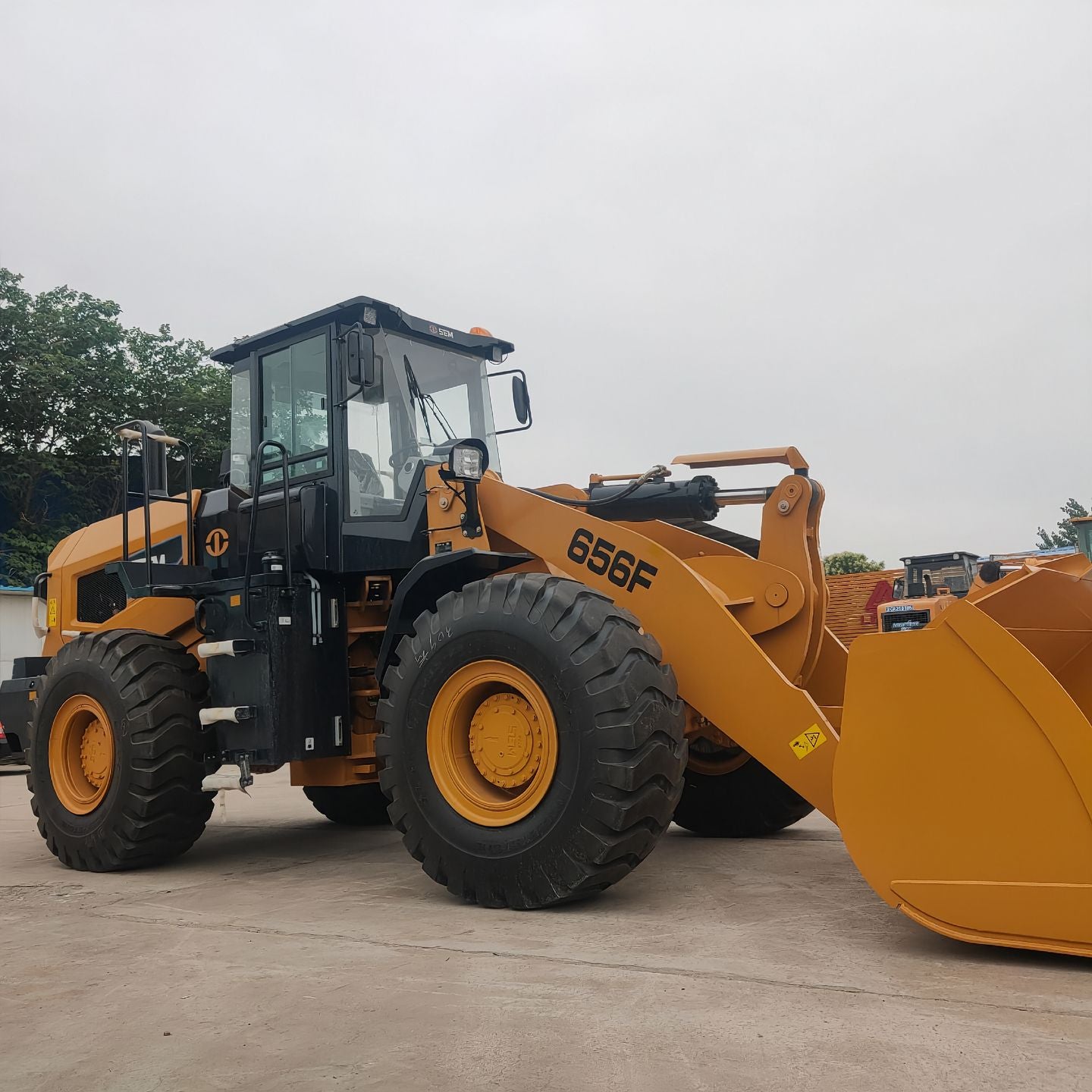

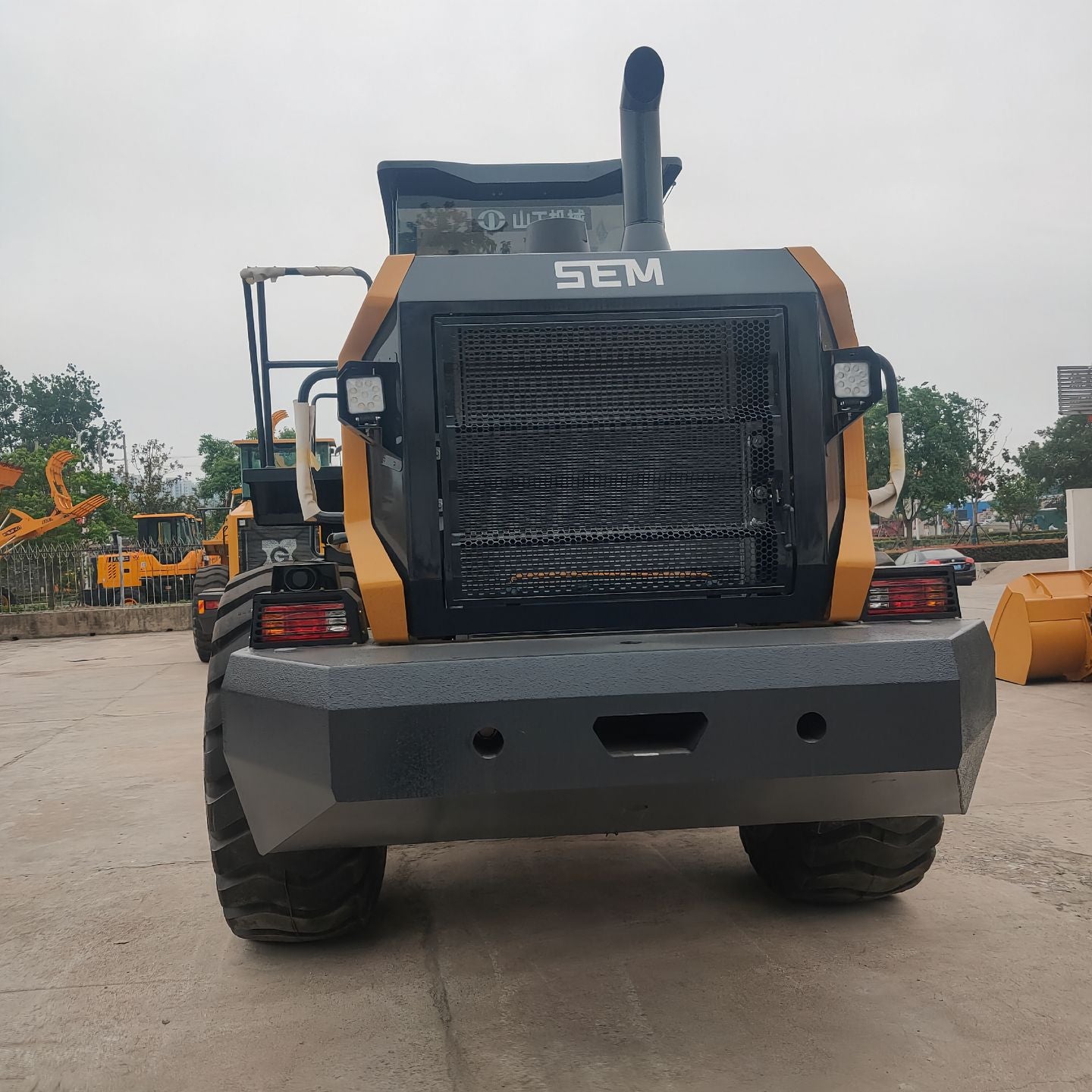

NEW SEM 656F

$41,000.00 USD

Sale Sold out

Item	Parameter	Unit
Model	SEM 656F	-
Operating Weight	17385	kg
Rated Load Capacity	5500	kg
Bucket Capacity	2.6-5.0	m³
Engine Model	WP10HG220E475	-
Rated Power	162	kW
Rated Speed	2200	r/min
Displacement	9.5	mL
Transmission Model	TR200	-
Transmission Gears	Forward 4/Reverse 4	-
Travel Speed (F1/F2/F3/F4/R1/R2/R3/R4)	7.9/14/24.5/38.5/7.9/14/24.5/38.5	km/h
Overall Dimensions (L×W×H)	8472×3117×3465	mm
Wheelbase	3350	mm
Max. Traction Force	170	kN
Breakout Force	161	kN
Unloading Height (45°)	2991	mm
Min. Turning Radius (Bucket Outer)	6813	mm
Steering Angle	±35	°
Hydraulic System Working Pressure	16	MPa
Brake Type	Air-over-oil caliper disc (service), Internal expanding drum (parking)	-
Emission Standard	China IV
