SEM

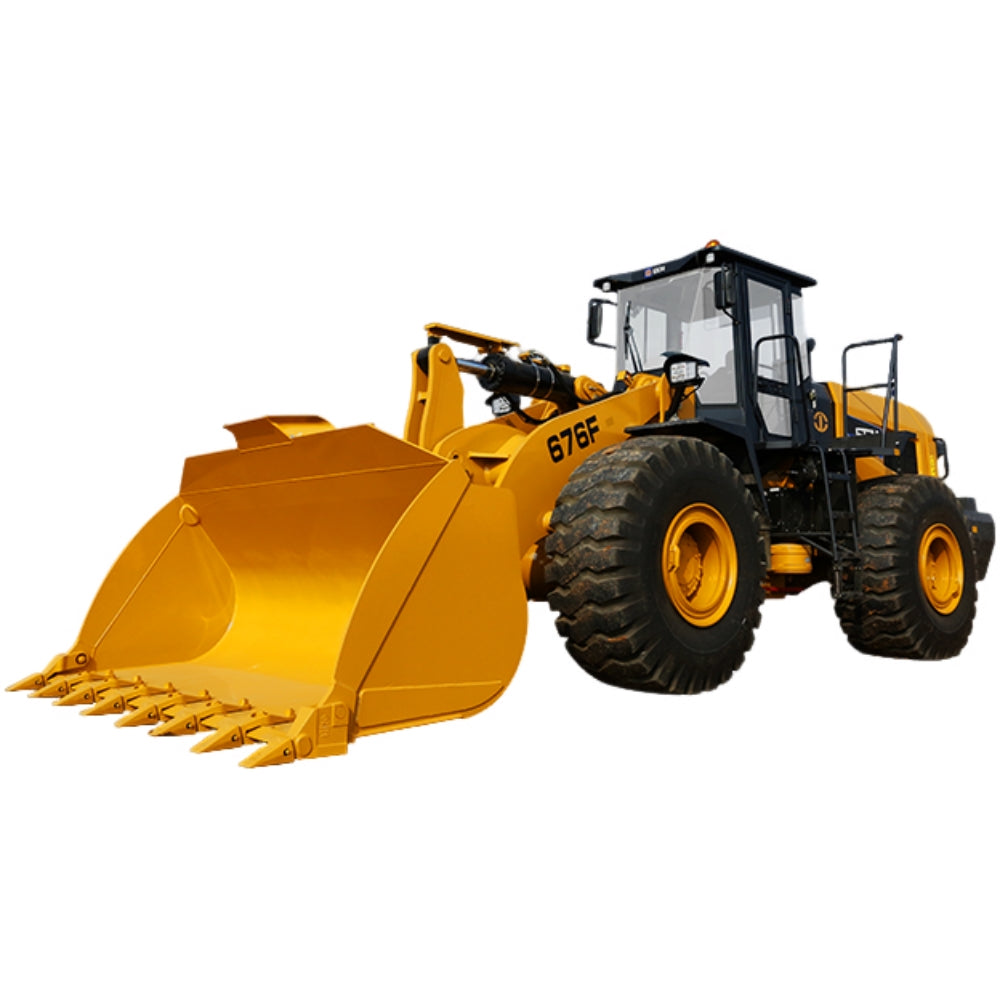

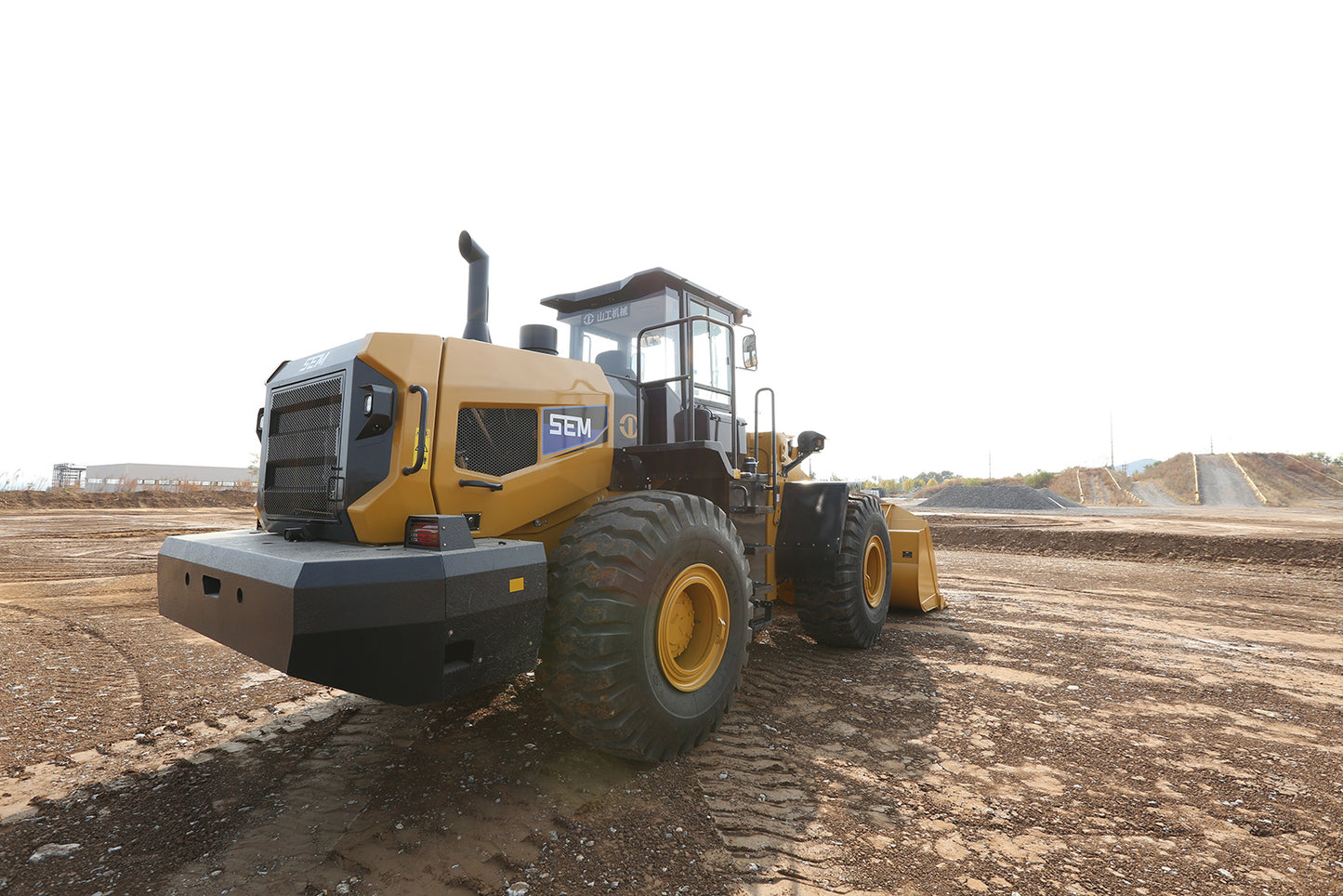

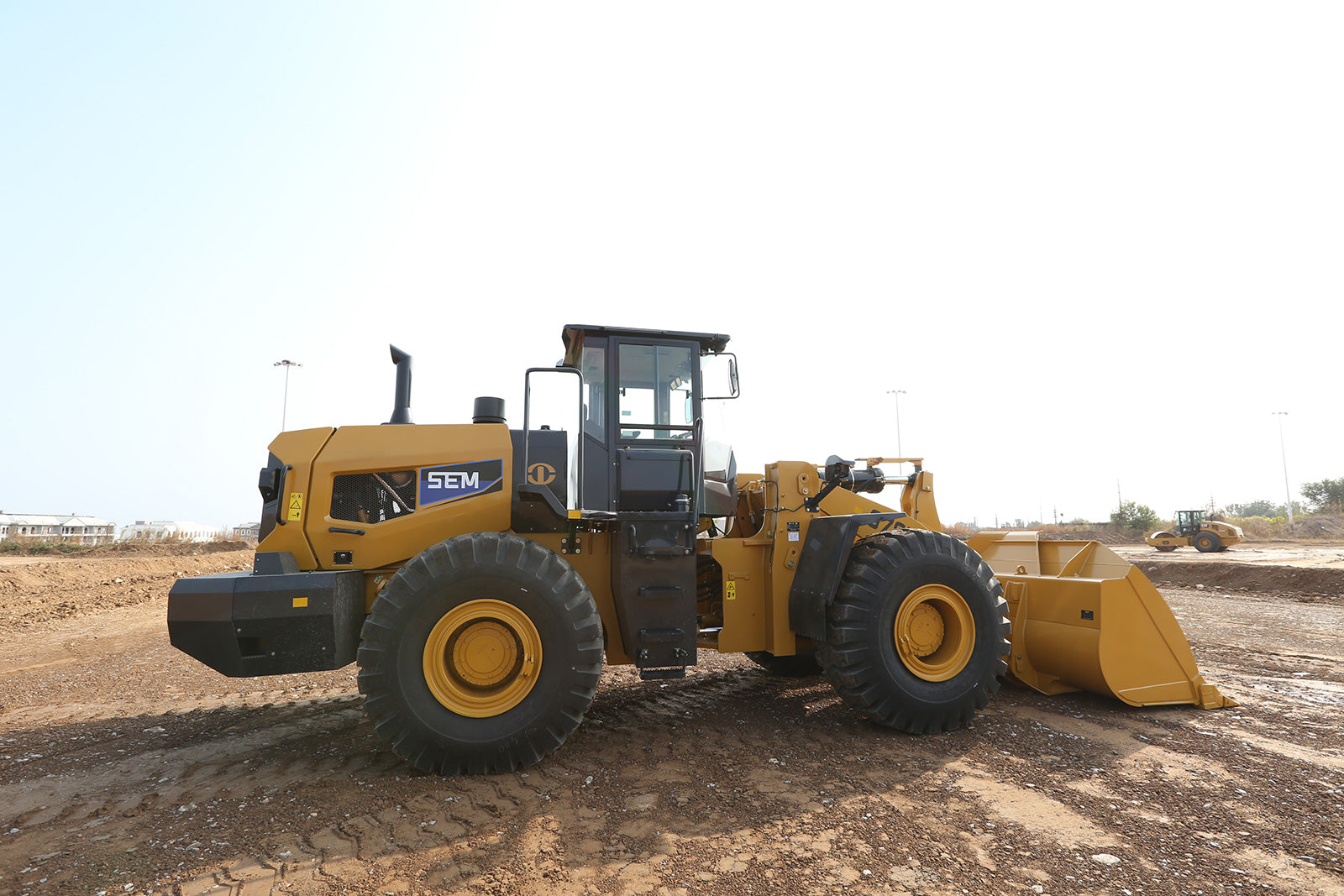

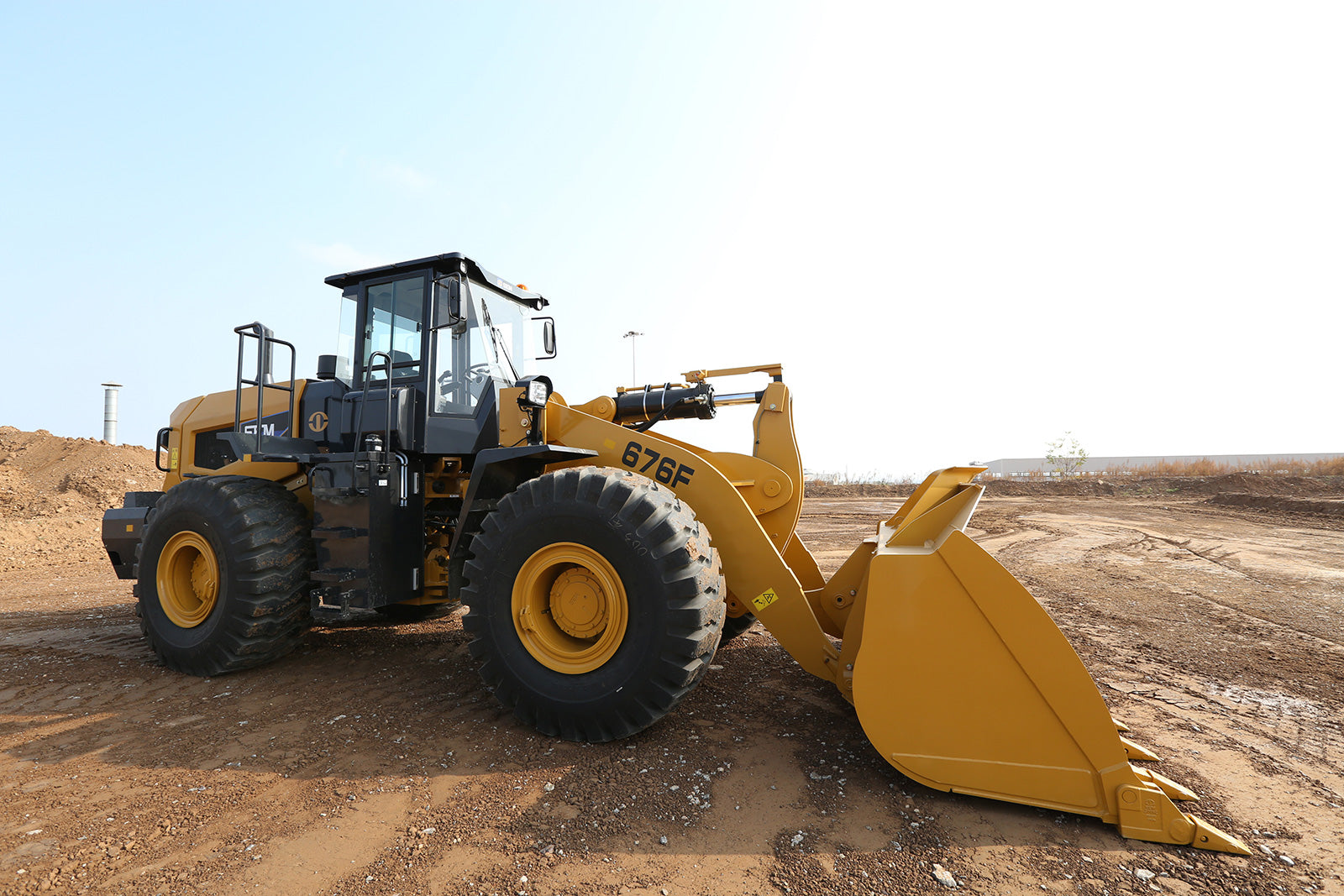

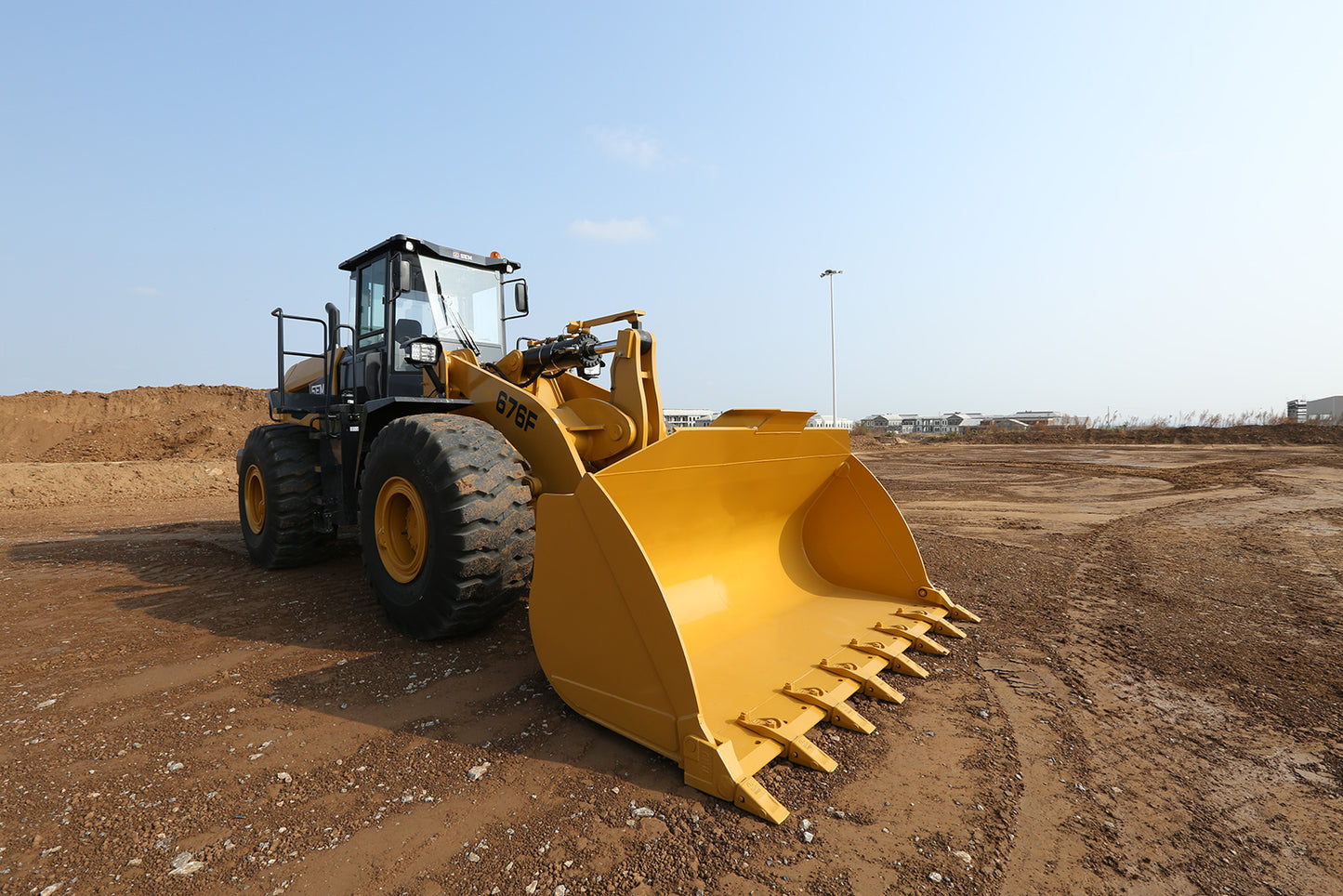

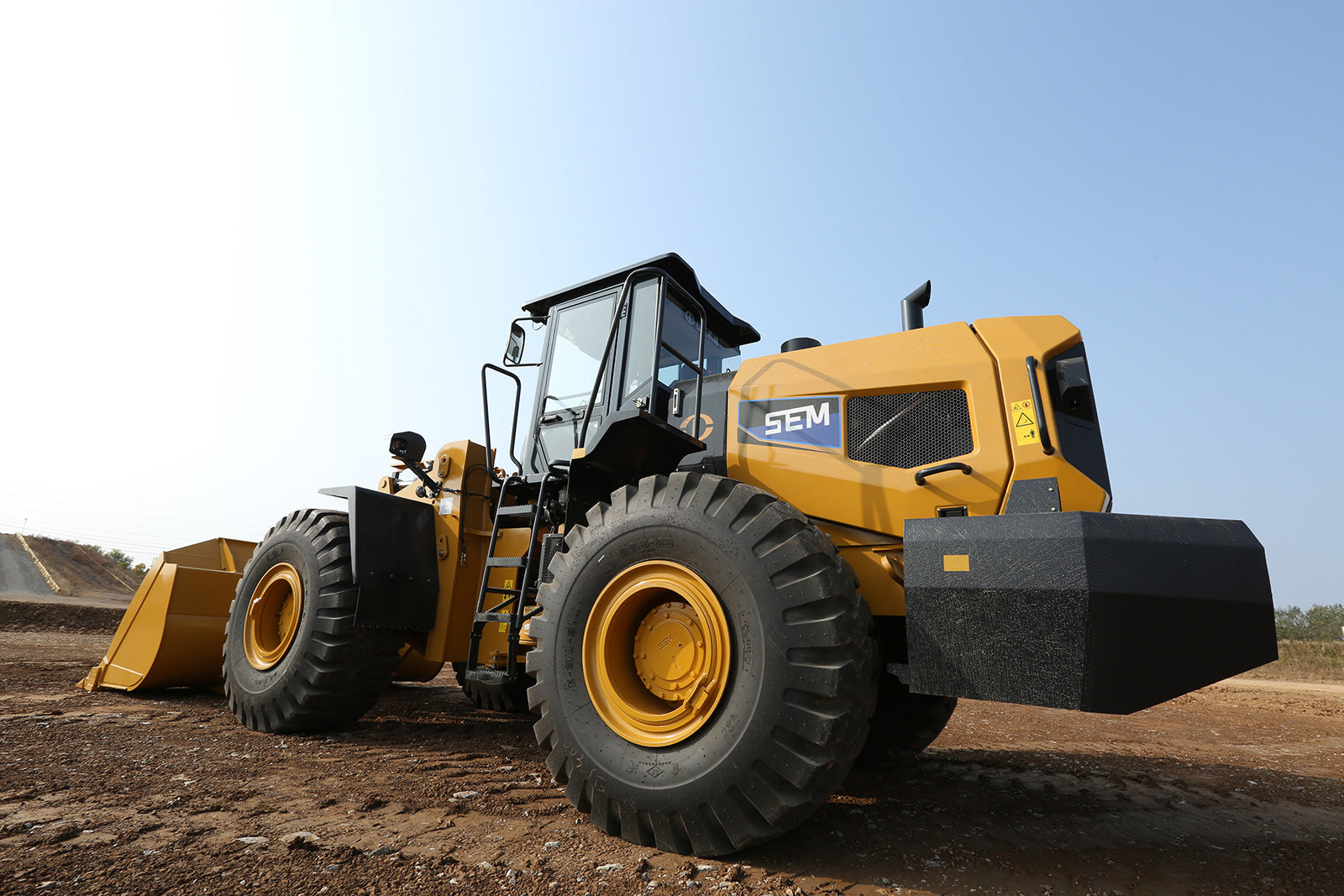

NEW SEM 676F

$38,000.00 USD

Sale Sold out

Item	Specification
Model	SEM 676F
Rated Load Capacity	7,000 kg
Operating Weight	23,000 kg
Bucket Capacity	4.2-7.0 m³
Wheelbase	3,450 mm
Transport Length × Width × Height	8,840 × 3,260 × 3,530 mm
Outside Turning Radius	7.79 m
Dump Height	3,250 mm
Bucket Hinge Pin Height	4,411 mm
Transmission Type	Electronically-controlled Fixed-shaft Transmission
Transmission Model	SEM TR240-EH
Transmission Gears	F4/R3
Engine Model	Weichai WP10G270E341
Rated Power	199 kW (270 hp) @ 2,200 rpm
Displacement	9.7 L
Max. Traction Force	208 kN
Max. Breakout Force	215 kN
Boom Lift Time	5.7 s
Total Cycle Time of Working Device	9.8 s
Working Hydraulic System Pressure	20 MPa
Steering System	Full Hydraulic with Piston Pump
Steering System Pressure	20 MPa
Service Brake	Pneumatic-hydraulic Caliper Disc Brake
Parking Brake	Internal Expanding Drum Brake
