SEM

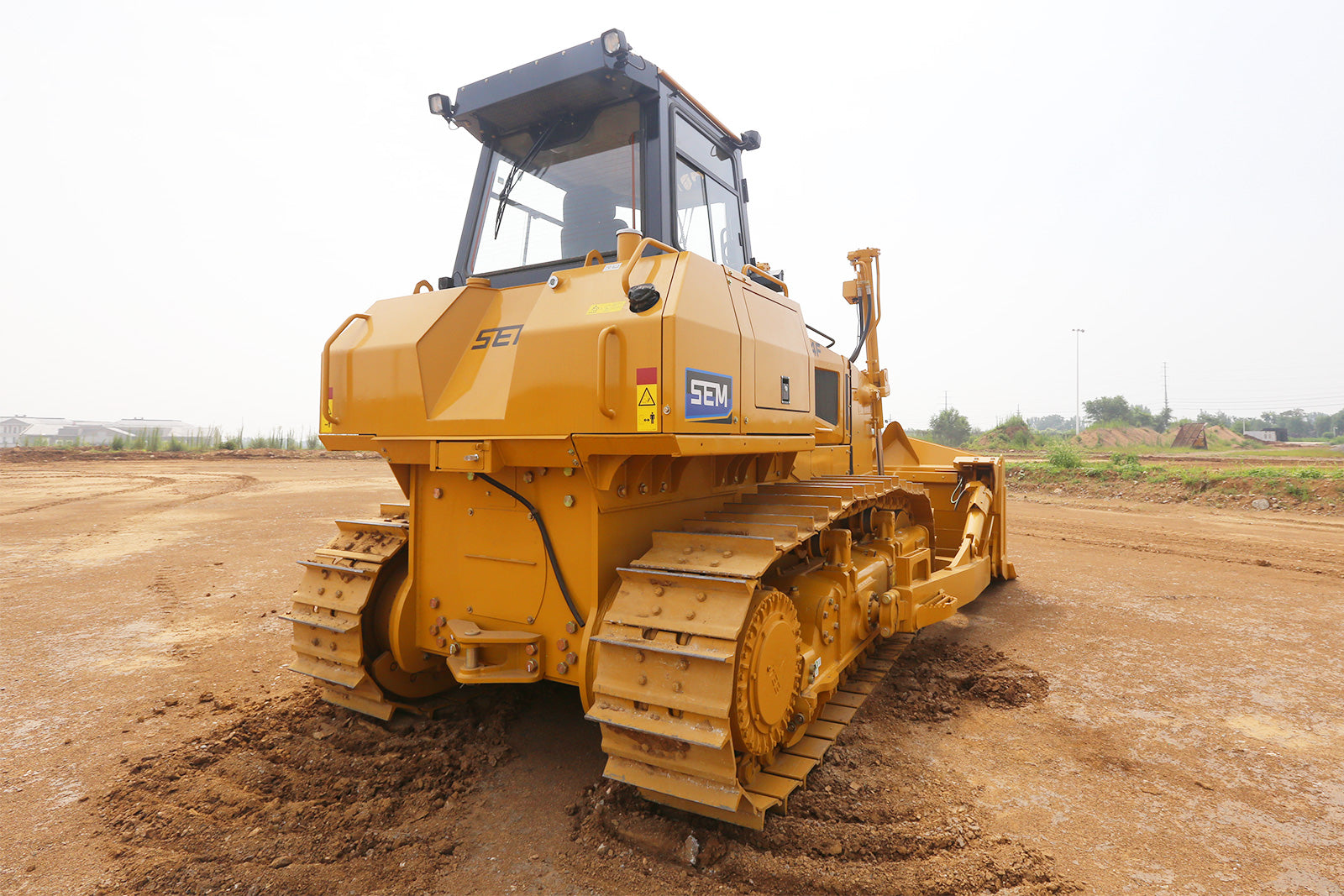

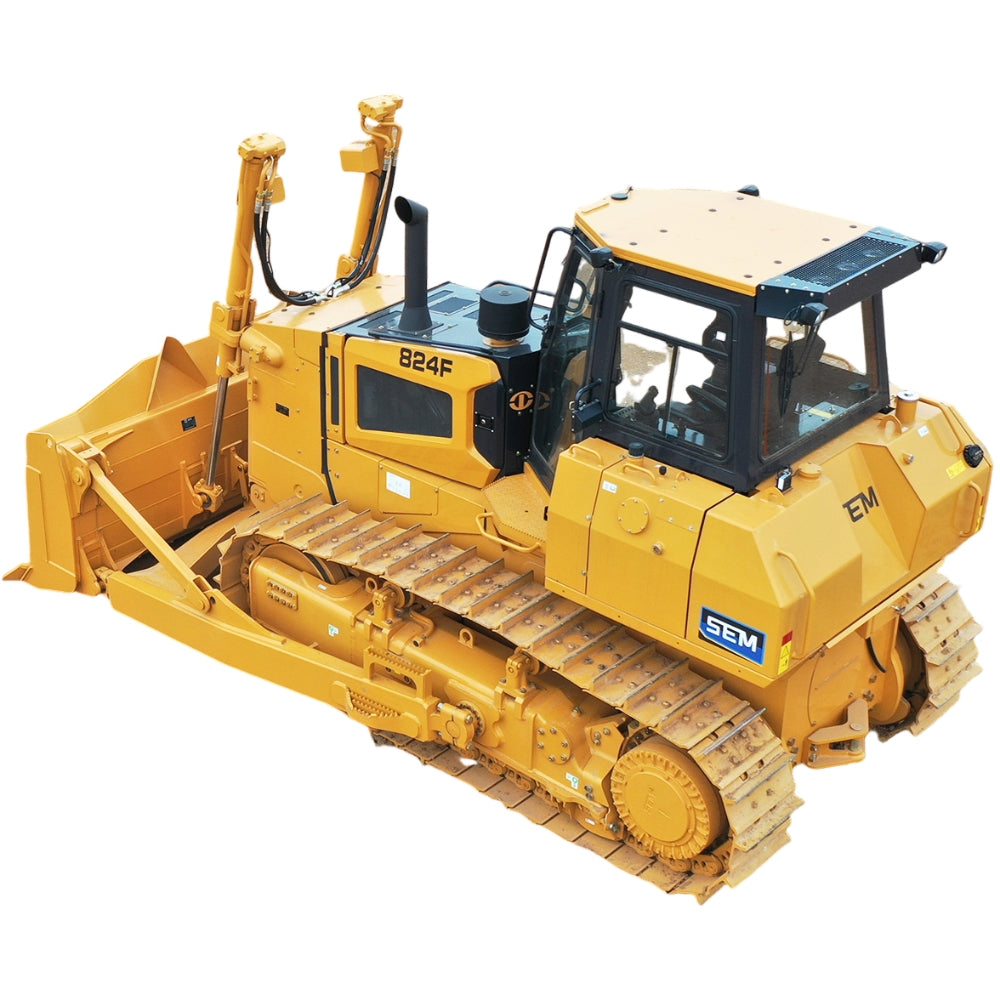

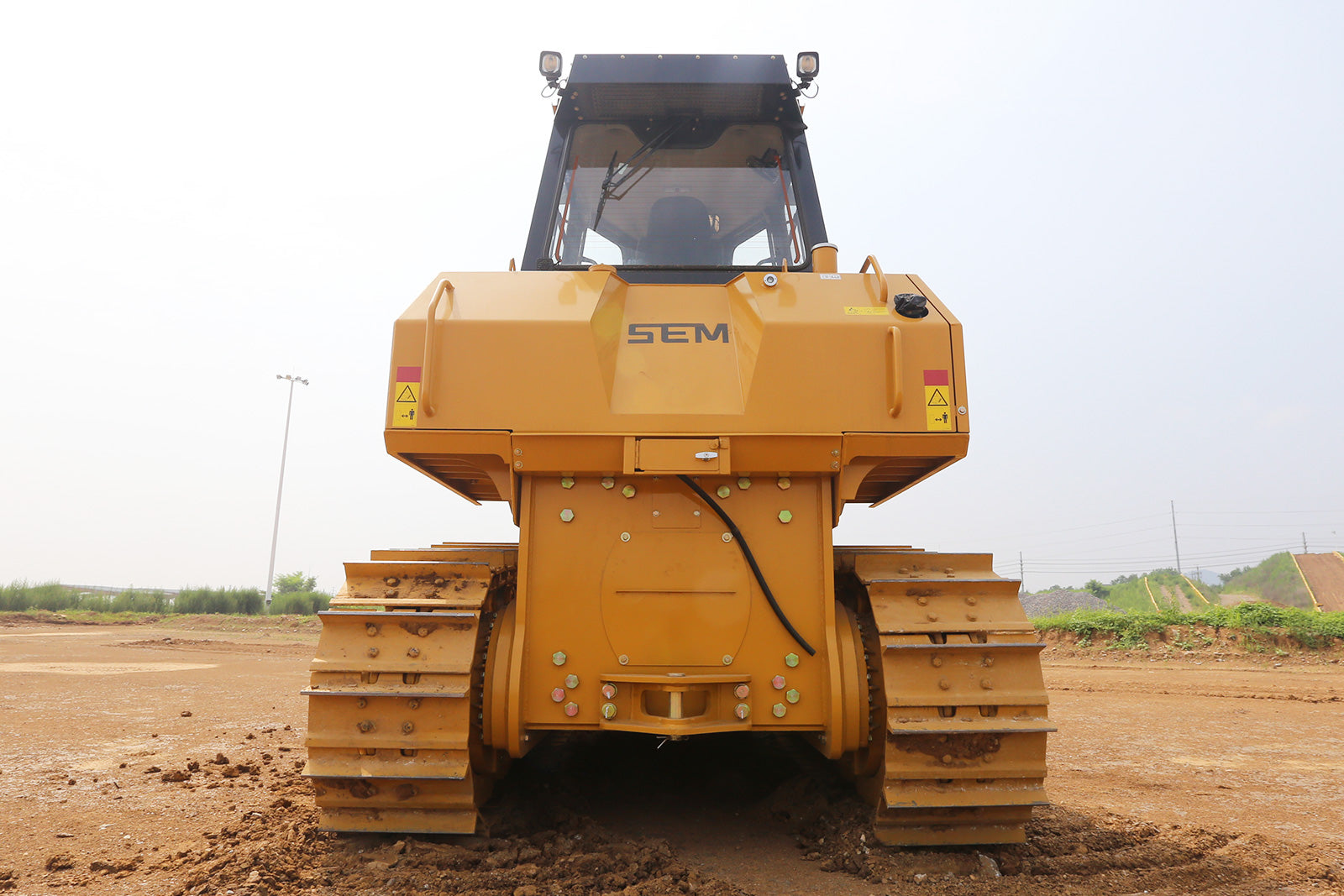

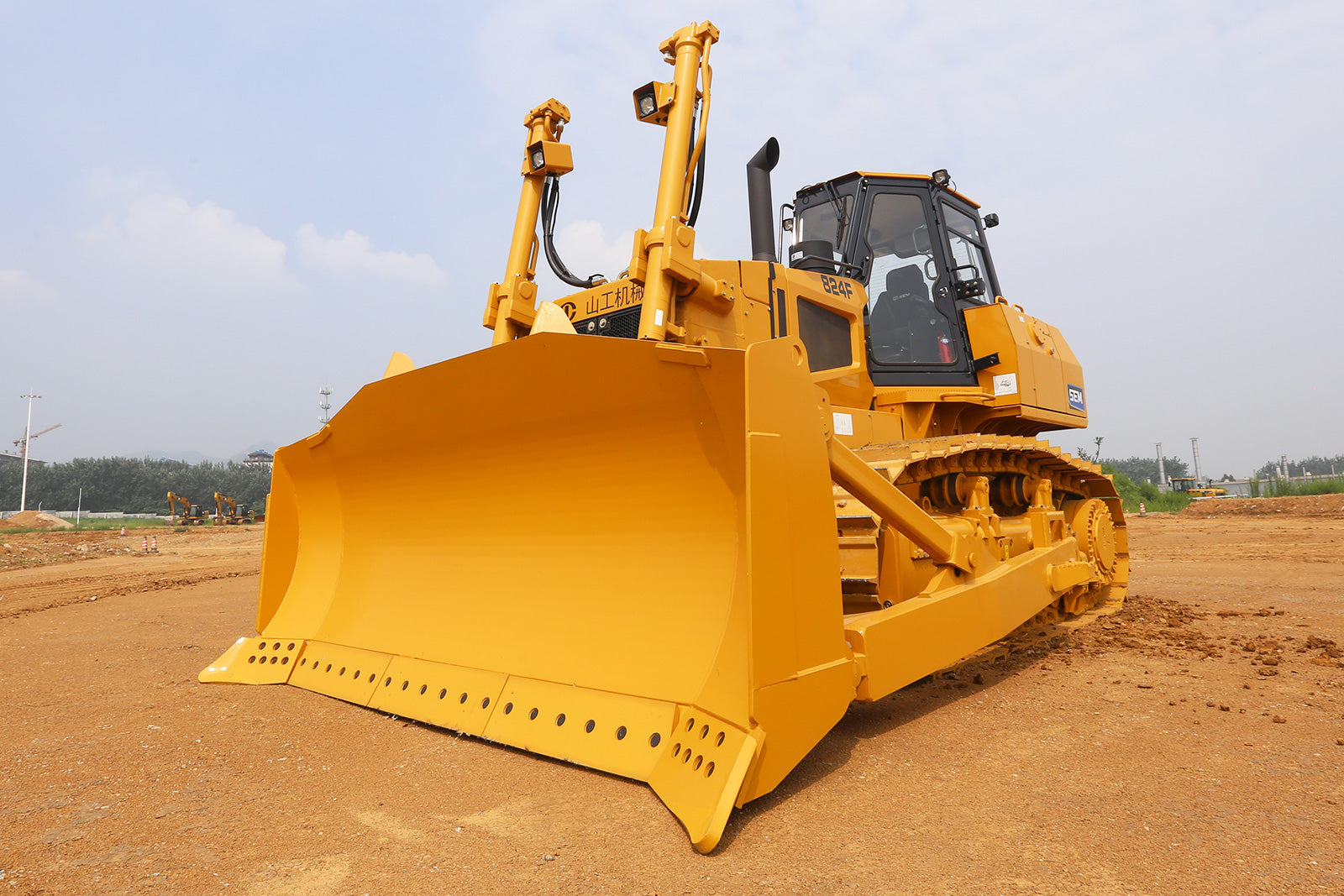

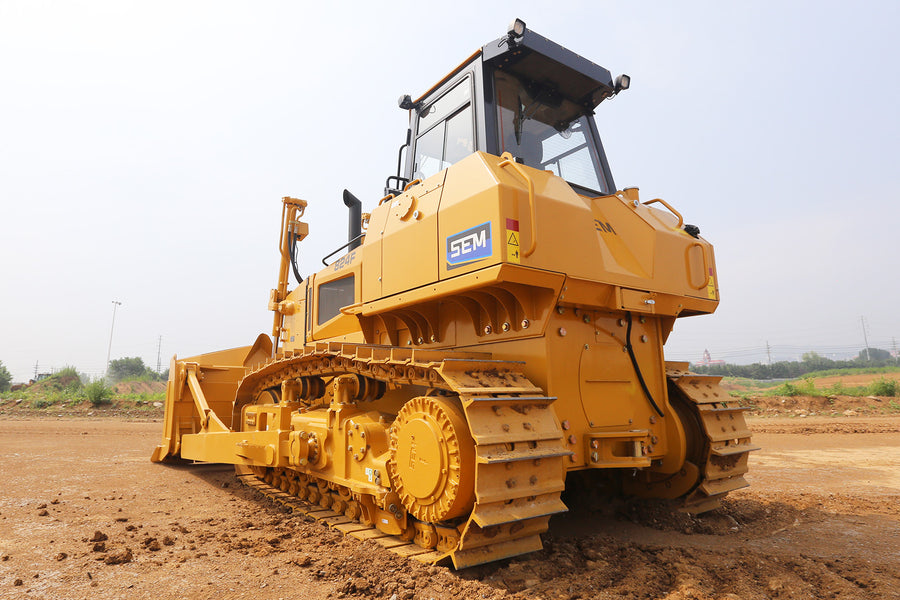

NEW SEM 824F

$40,000.00 USD

Sale Sold out

Item	Specification
Model	SEM 824F (Standard Type)
Operating Weight	23,730 kg
Engine Model	Weichai WP10HG270E471
Engine Manufacturer	Weichai
Rated Power	211 kW (283 HP) @ 2,200 rpm
Emission Standard	China Stage 4
Transmission	Electronically Controlled Hydrostatic Transmission (ECHT), stepless speed change (8-18 km/h)
Blade Type	SU blade (optional S/U blade)
Blade Capacity	6.4 m³ (SU); 7.5 m³ (U)
Blade Width	3,900 mm (SU); 4,015 mm (U)
Max. Blade Cutting Depth	570 mm
Max. Blade Lift Height	1,140 mm
Track Shoe Width	510 mm (standard); optional 610/760/910/1,100 mm
Min. Ground Clearance	400 mm
Max. Gradeability	30°
Ground Pressure	62 kPa (standard)
Max. Traction Force	350 kN
Hydraulic System Pressure	19 MPa
Fuel Tank Capacity	380 L
Hydraulic Oil Capacity	62 L
Cooling System Capacity	45 L
