SHANTUI

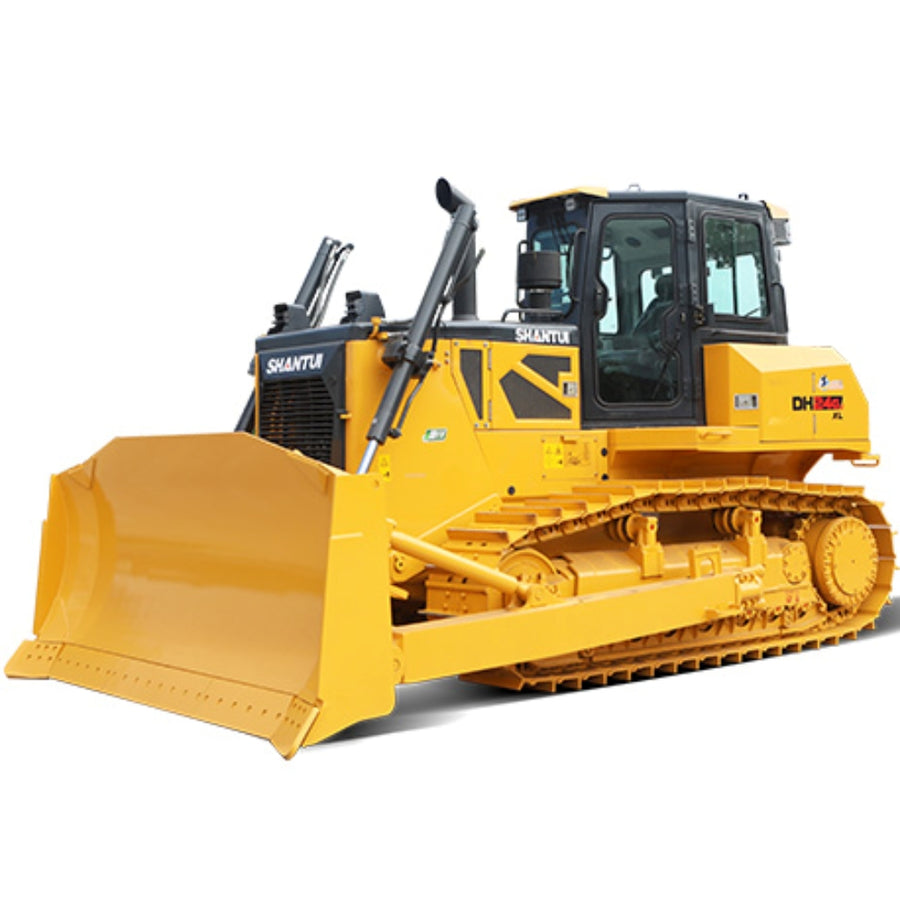

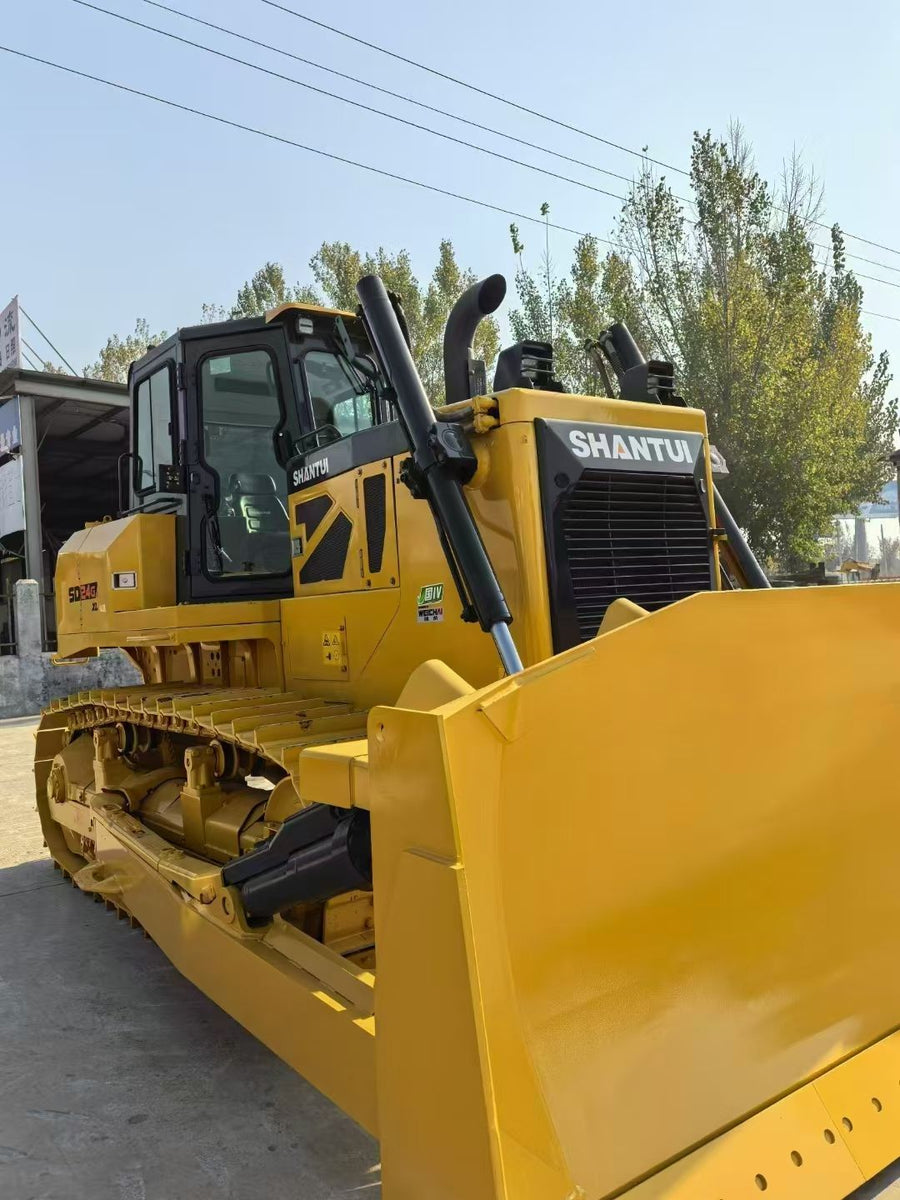

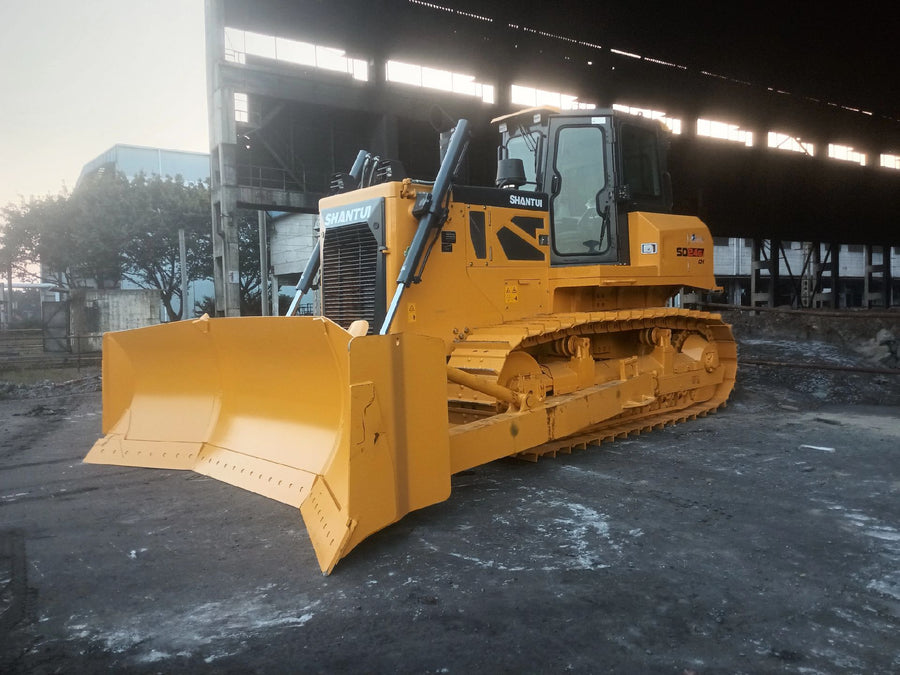

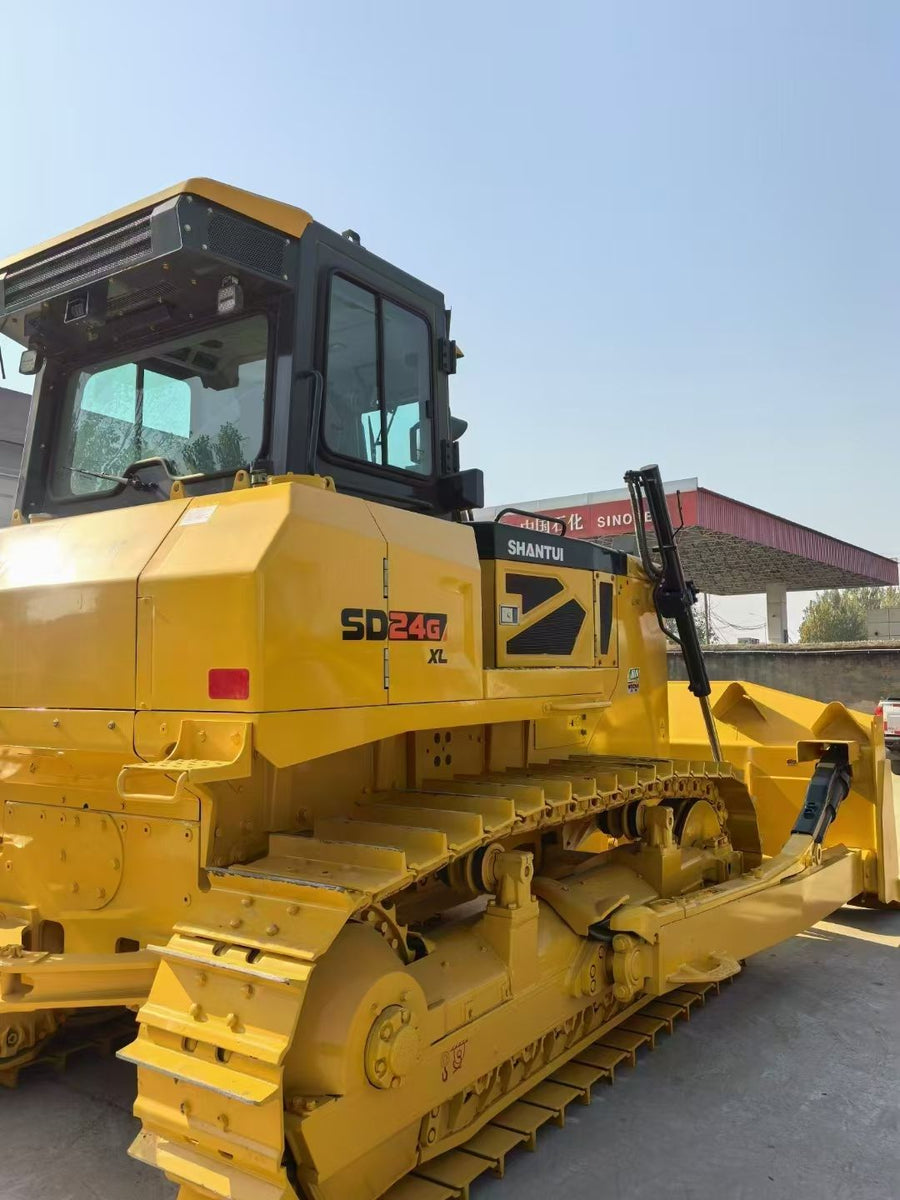

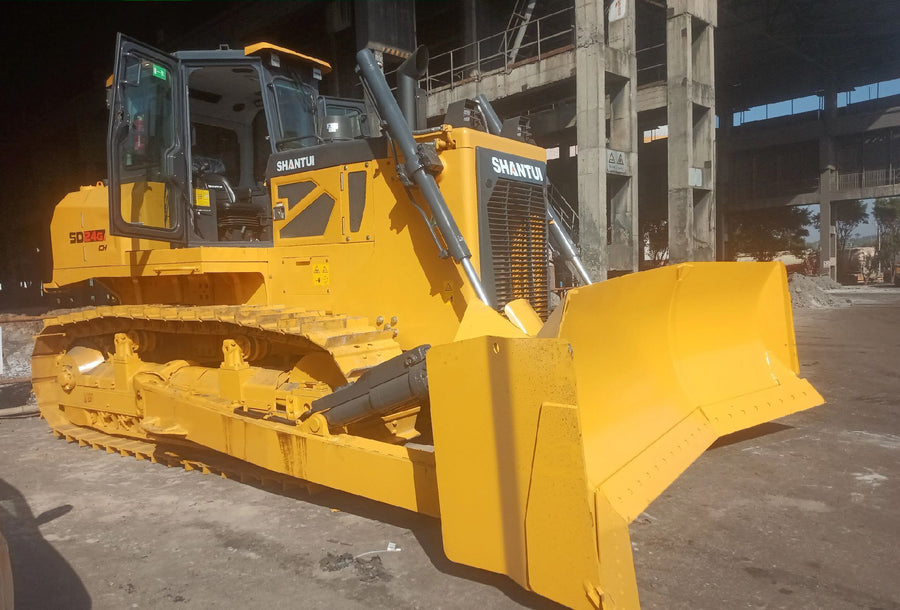

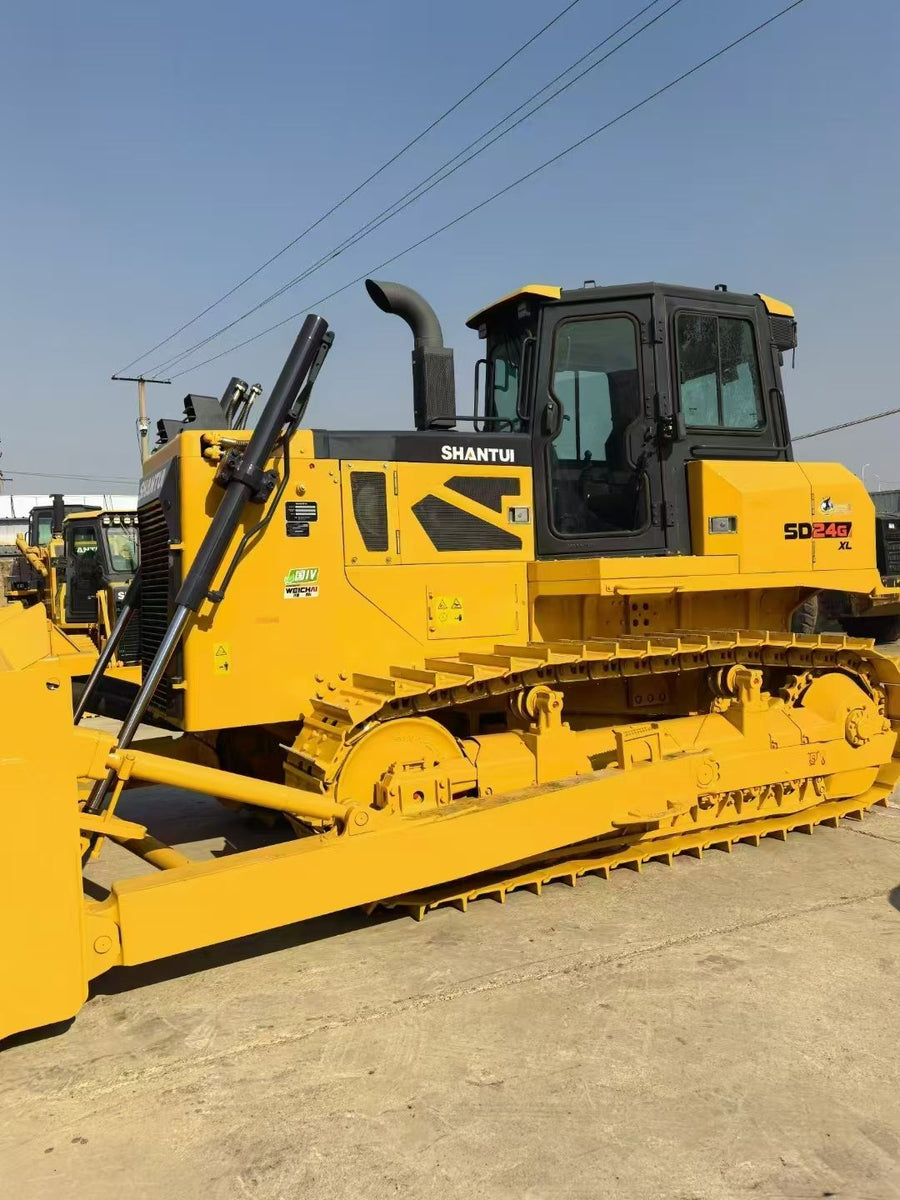

NEW SHANTUI DH24-G
NEW SHANTUI DH24-G
Regular price
$56,000.00 USD
Regular price
Sale price
$56,000.00 USD
Quantity
Couldn't load pickup availability
Here are the core parameters of the NEW SHANTUI DH24-G in a tabular format in English:
| Parameter | Description |
|---|---|
| Model | DH24-G |
| Type | Full Hydraulic Bulldozer |
| Engine Model | WP10H |
| Rated Power/Rated Speed | 173 kW/1900 rpm, 195 kW/1900 rpm, 215 kW/1900 rpm (light, medium, and heavy-duty power modes) |
| Maximum Power Output | Up to 268 horsepower (under heavy-duty mode) |
| Operating Weight | 23,820 kg - 27,030 kg (depending on the model and configuration) |
| Ground Pressure | 40.9 kPa - 70 kPa (depending on the model and configuration) |
| Overall Dimensions (L×W×H) | 5940 mm × 3640 mm × 3335 mm - 6474 mm × 4365 mm × 3402 mm (depending on the model and configuration) |
| Track Center Distance | 2000 mm - 2250 mm (depending on the model and configuration) |
| Track Shoe Width | 560 mm (standard) / 610 mm / 660 mm (depending on the model and configuration) |
| Ground Contact Length | 3050 mm - 3482 mm (depending on the model and configuration) |
| Fuel Tank Capacity | Total volume: 489 L, Usable volume: 450 L |
| Hydraulic Oil Tank Capacity | 125 L |
| Forward Speed | 0 - 11 km/h |
| Reverse Speed | 0 - 11 km/h |
| Blade Type | Various types available (e.g., straight-tilt blade, rock blade, U-blade, coal blade, semi-U blade) |
| Blade Lifting Height | 1247 mm - 1300 mm (depending on the blade type) |
| Blade Cutting Depth | 540 mm - 550 mm (depending on the blade type) |
| Ripper Type | Three-tooth ripper (available for certain models) |
| Ripping Depth | 655 mm (available for certain models) |
| Emission Standard | National Non-Road Stage IV (China IV) |
| Transmission System | Electro-hydraulic static pressure drive transmission system with automatic speed adaptation to load changes |
| Operating Modes | Three optional operating modes (light, medium, and heavy-duty) with intelligent matching technology for different working conditions |
| Fuel Efficiency | ECO mode reduces fuel consumption by over 10%; same fuel consumption increases efficiency by 10%-15% |
| AI Features | Optional AI upgrade based on SHANTUI Smart Construction (SSC) technology platform, enabling intelligent work condition assessment, dynamic path optimization, and centimeter-level precision control of the blade |
