SHANTUI

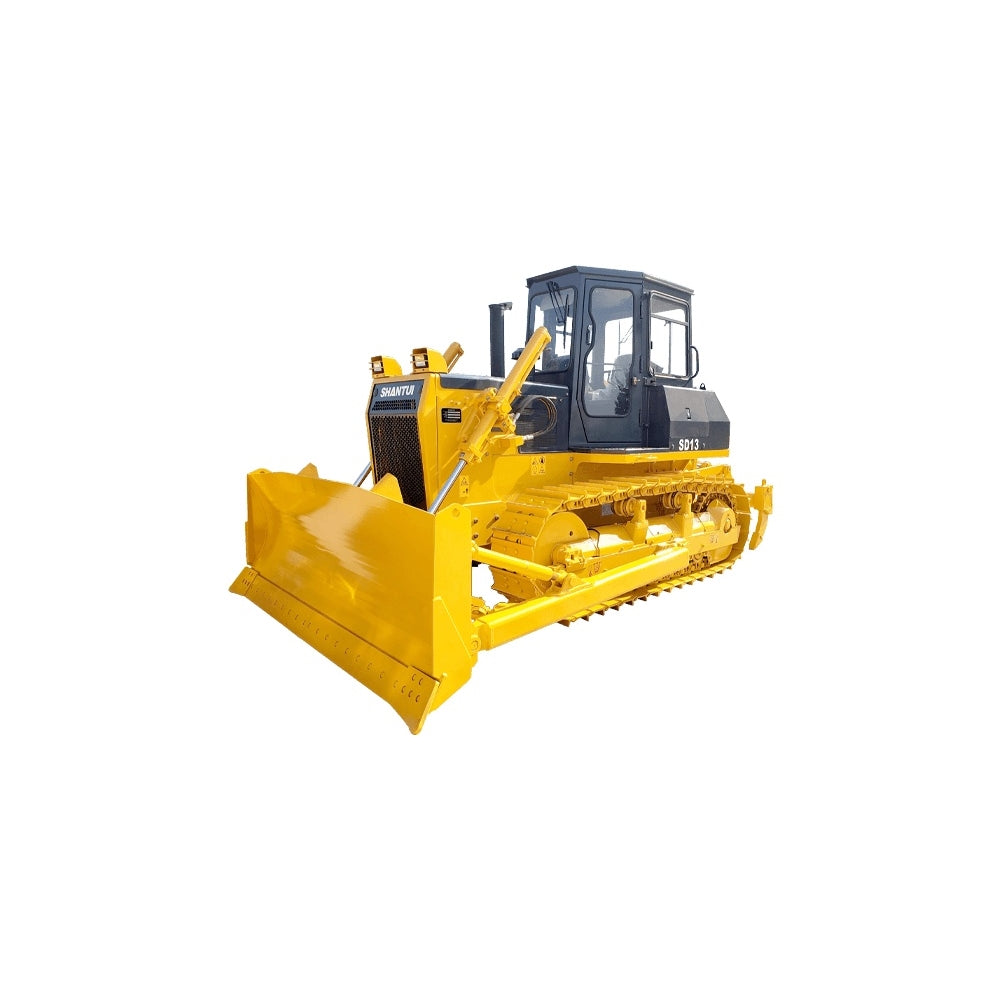

NEW SHANTUI SD13
NEW SHANTUI SD13
Regular price
$31,000.00 USD
Regular price
Sale price
$31,000.00 USD
Quantity
Couldn't load pickup availability
Here are the core parameters of the NEW SHANTUI SD13 in a tabular format in English:
| Parameter | Description |
|---|---|
| Model | SD13 |
| Type | Crawler Bulldozer |
| Engine Model | SC8DK (or variants like SC8D143G2B1, Shangchai D6114ZG4B depending on the specific version) |
| Rated Power/Rated Speed | 95.5 - 105 kW / 1900 rpm |
| Total Displacement | 8.27 L |
| Cylinder Configuration | 6 cylinders, 114 mm bore × 135 mm stroke |
| Fuel Consumption Rate | ≤ 228 g/kW·h |
| Operating Weight | 13,500 - 15,200 kg (depending on the model and configuration) |
| Ground Pressure | 53.8 kPa (or 0.063 MPa for some versions) |
| Blade Type | Straight-tilt blade, Angle blade |
| Blade Capacity | 3.158 - 3.7 m³ (straight-tilt blade), 2.33 - 3.4 m³ (angle blade) |
| Blade Width | 3,185 mm |
| Blade Height | 1,090 mm |
| Max. Lifting Height | 930 mm |
| Max. Cutting Depth | 590 mm |
| Max. Tilt Angle | 400 mm |
| Overall Dimensions (L×W×H) | 4,492 mm × 3,185 mm × 2,950 mm (without ripper) |
| Track Width | 460 - 700 mm (depending on the model) |
| Track Ground Length | 2,365 mm |
| Fuel Tank Capacity | 280 - 310 L |
| Coolant Capacity | 55.3 L |
| Gradeability | 30° |
| Travel Speeds (Forward/Reverse) | |
| 1st Gear | 0-3.2 km/h (forward), 0-3.9 km/h (reverse) |
| 2nd Gear | 0-5.9 km/h (forward), 0-7.1 km/h (reverse) |
| 3rd Gear | 0-9.8 km/h (forward), 0-11.9 km/h (reverse) |
| Transmission Type | Power-shift transmission, Single-stage, single-phase, three-element torque converter |
| Steering System | Wet-type multi-disc spring-pressed, manual hydraulic-assisted mechanical separation, linked with steering brake |
| Braking System | Wet-type floating band type, foot-pedal braking with hydraulic assistance |
| Final Drive | Straight gear two-stage reduction, splash lubrication |
| Number of Support Rollers (per side) | 6 |
| Number of Carrier Rollers (per side) | 2 |
| Track Link Pitch | 190 mm |
