SHANTUI

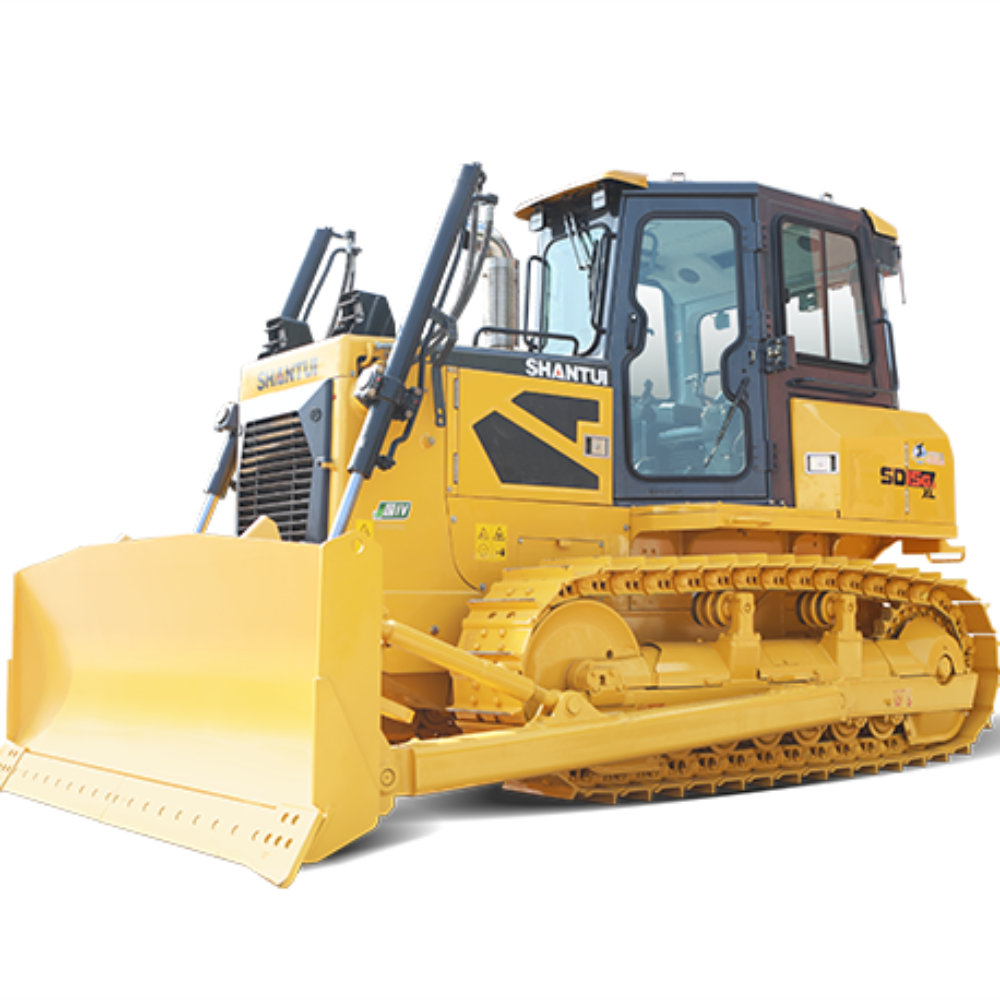

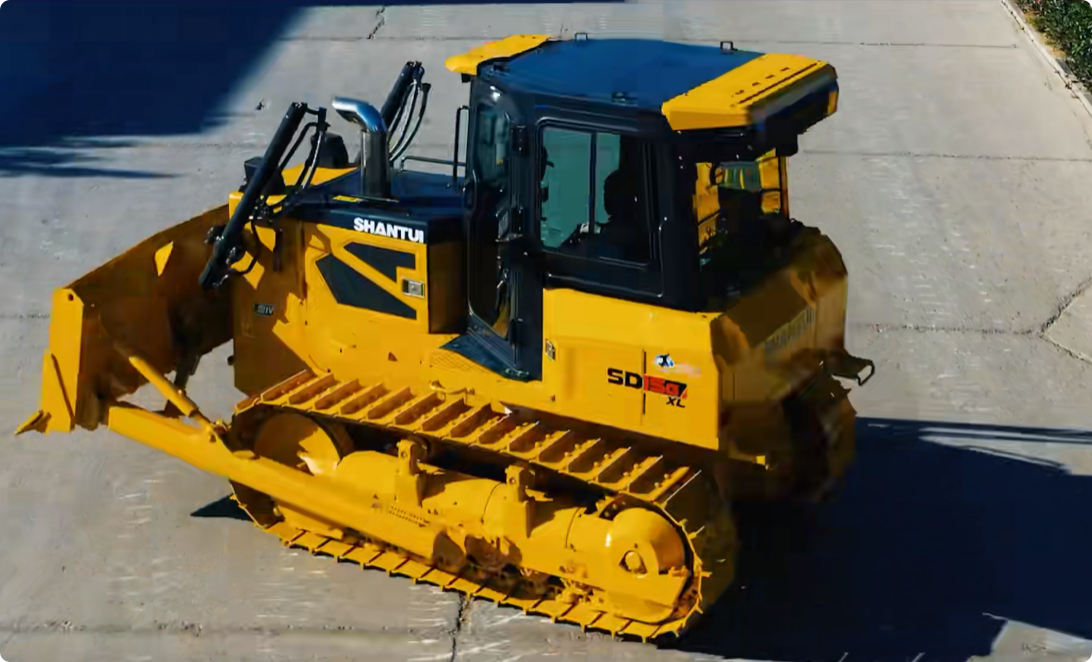

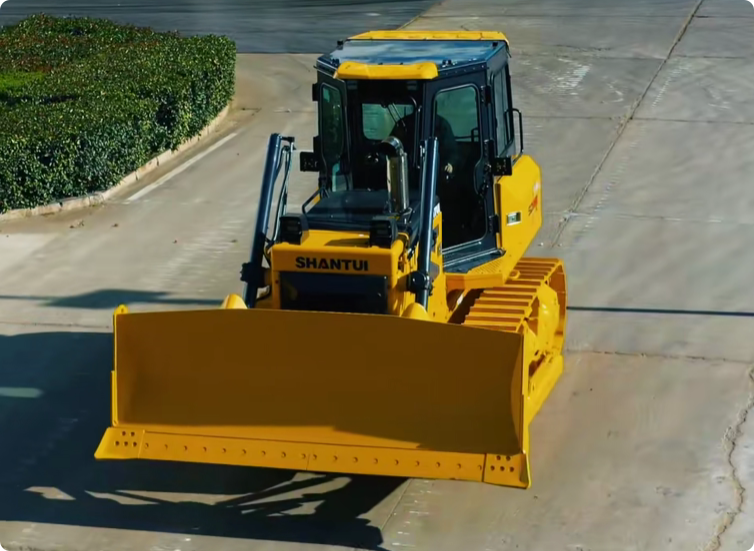

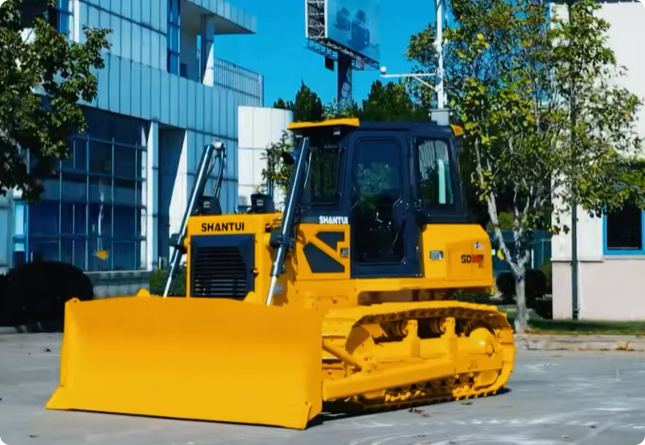

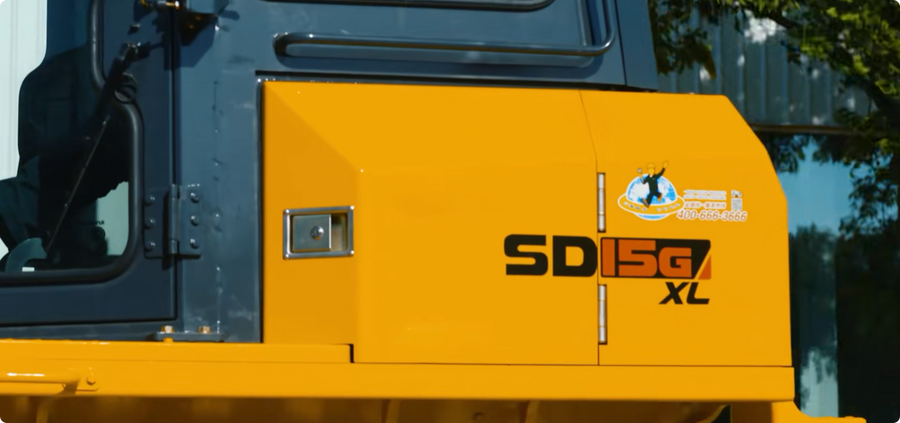

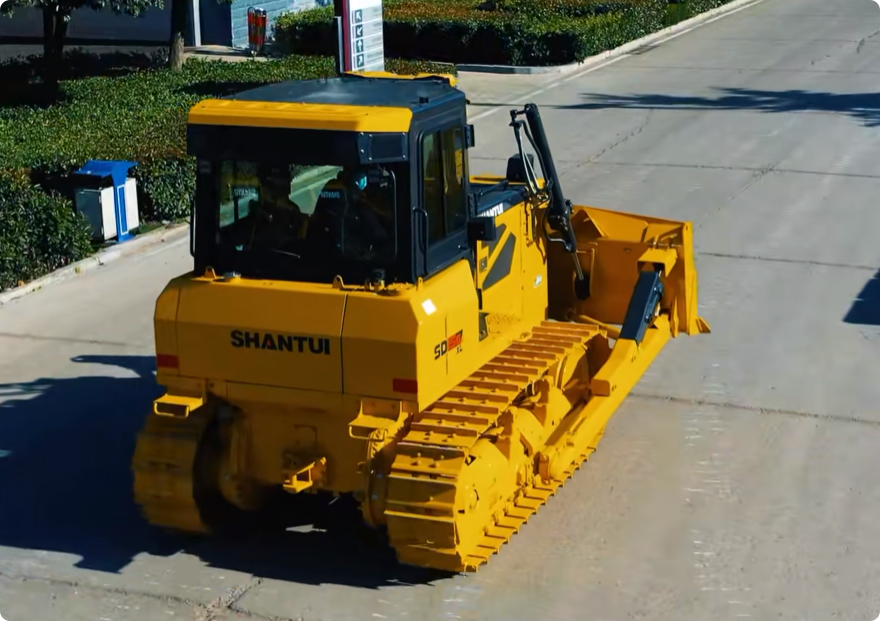

NEW SHANTUI SD15-G
NEW SHANTUI SD15-G
Regular price
$35,000.00 USD
Regular price
Sale price
$35,000.00 USD
Quantity
Couldn't load pickup availability
Here are the core parameters of the NEW SHANTUI SD15-G in a tabular format in English:
| Parameter | Description |
|---|---|
| Model | SD15-G |
| Type | Bulldozer |
| Engine Model | B5.9 (Dongkang B5.9 electronic control engine) |
| Rated Power/Rated Speed | 117 kW / 1900 rpm |
| Emission Standard | National Non-Road Stage IV (China IV) |
| Fuel Consumption Rate | Low (specific value not provided, but noted as efficient) |
| Fuel Tank Capacity | 280 L (usable volume) |
| Hydraulic Oil Tank Capacity | 73 L |
| Operating Weight | 14,120 kg (with towing frame); 14,600 kg (Super Wetland Edition, LGP); 14,840 kg (Sanitation Version, WH) |
| Ground Pressure | 55 kPa (standard); 37 kPa (Super Wetland Edition, LGP); 38 kPa (Sanitation Version, WH) |
| Overall Dimensions (L×W×H) | 4,750 mm × 3,256 mm × 3,075 mm (standard); 4,720 mm × 3,510 mm × 3,075 mm (Super Wetland Edition, LGP); 4,830 mm × 3,510 mm × 3,075 mm (Sanitation Version, WH) |
| Track Width | 460 mm (standard); 700 mm (Super Wetland Edition, LGP); 700 mm (Sanitation Version, WH) |
| Track Ground Length | 2,365 mm |
| Track Center Distance | 1,880 mm |
| Forward Speeds | F1: 0-3.2 km/h; F2: 0-5.9 km/h; F3: 0-9.8 km/h |
| Reverse Speeds | R1: 0-3.9 km/h; R2: 0-7.1 km/h; R3: 0-11.9 km/h |
| Blade Type | Straight-tilt blade (standard); Sanitation blade (Sanitation Version, WH); Other types available based on specific working conditions |
| Blade Lifting Height | 930 mm |
| Blade Cutting Depth | 590 mm |
| Transmission System | Hydraulic transmission system, matching with SD13 bulldozer, proven in the market |
| Control System | Mechanical linkage control for traveling system; Pilot control for working device, precise and easy to operate |
| Display | 8-inch LCD display, integrated with rearview camera |
| Cab Features | New enlarged positive pressure cab, high-end luxury interior, integrated with roll-over and falling object protection functions; Ultra-wide field of view; Standard equipped with integrated rear air conditioning, top air duct design, fresh air exchange; Standard equipped with Bluetooth radio, USB interface, storage box, cup holder, ashtray, sunshade curtain |

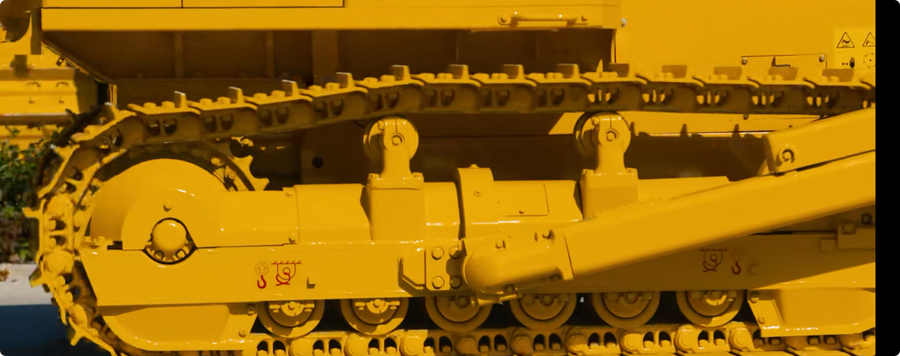

| Chassis System | Self-made by Shantui, with "four wheels and one belt" exported overseas, longer lifespan than competitors; Long ground contact length, smooth driving, good passability |
| Maintainability | Three-stage filtration for fuel system, filter elements concentrated for easy maintenance; Engine fan shaft and water pump bearing lubrication maintenance-free, balance beam lubrication points led out for easy maintenance |
