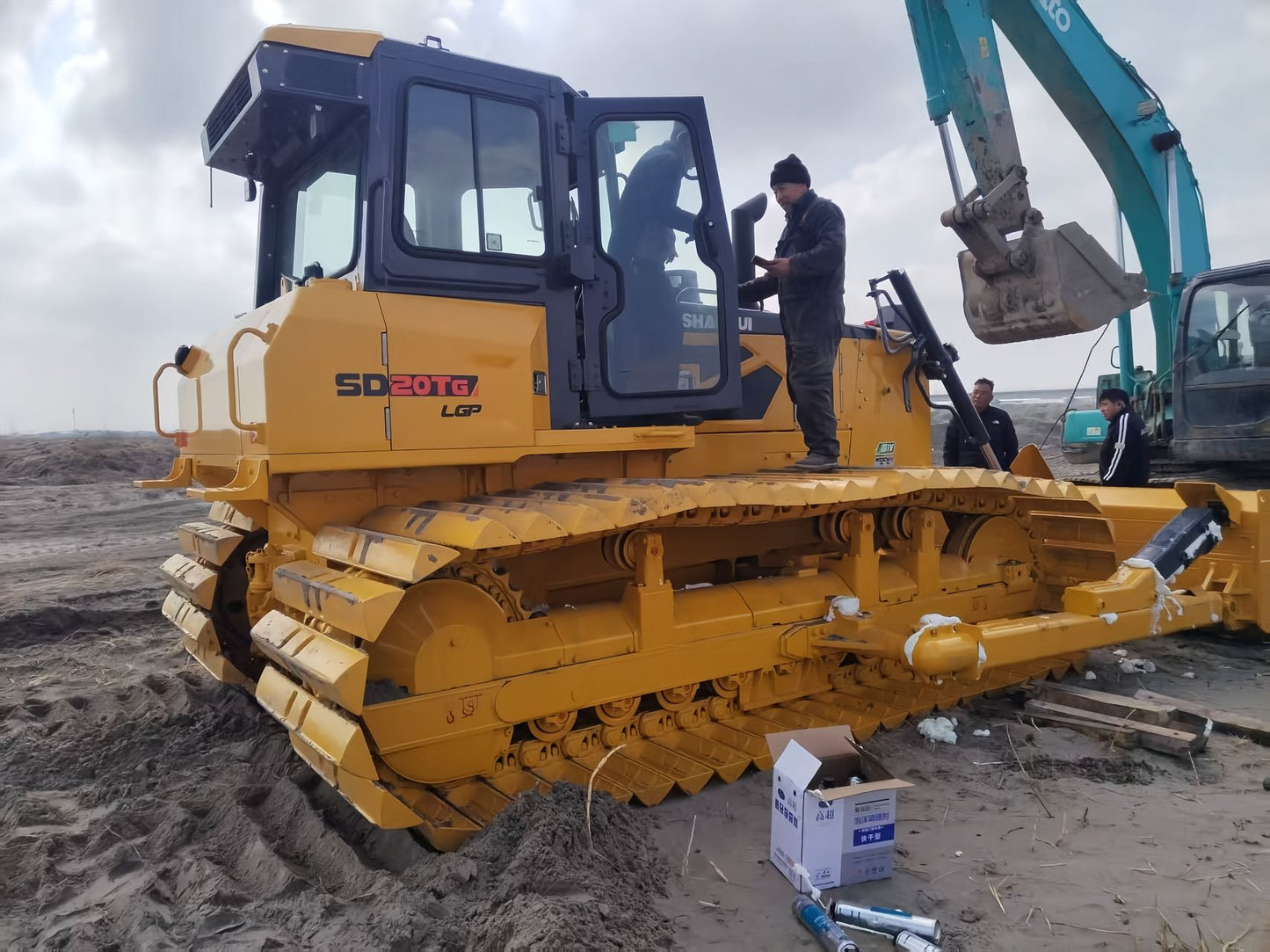

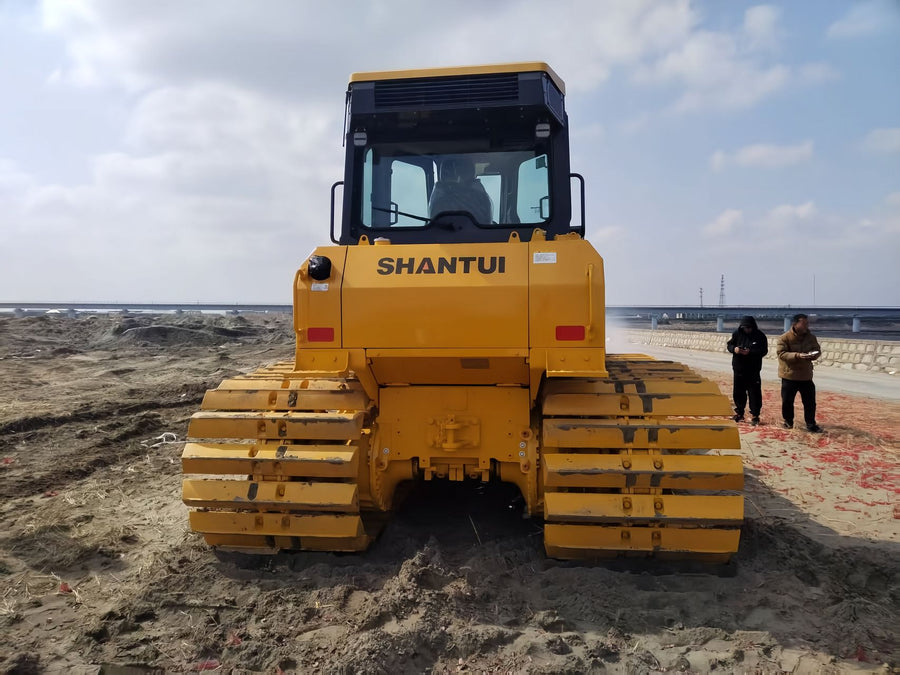

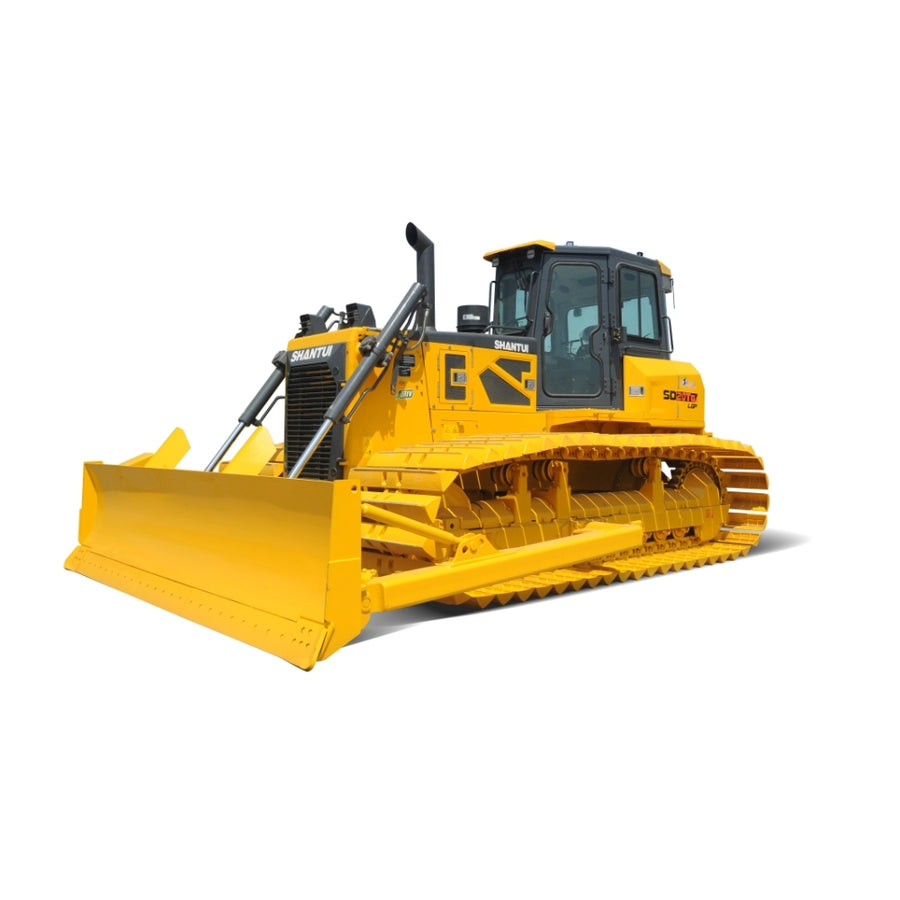

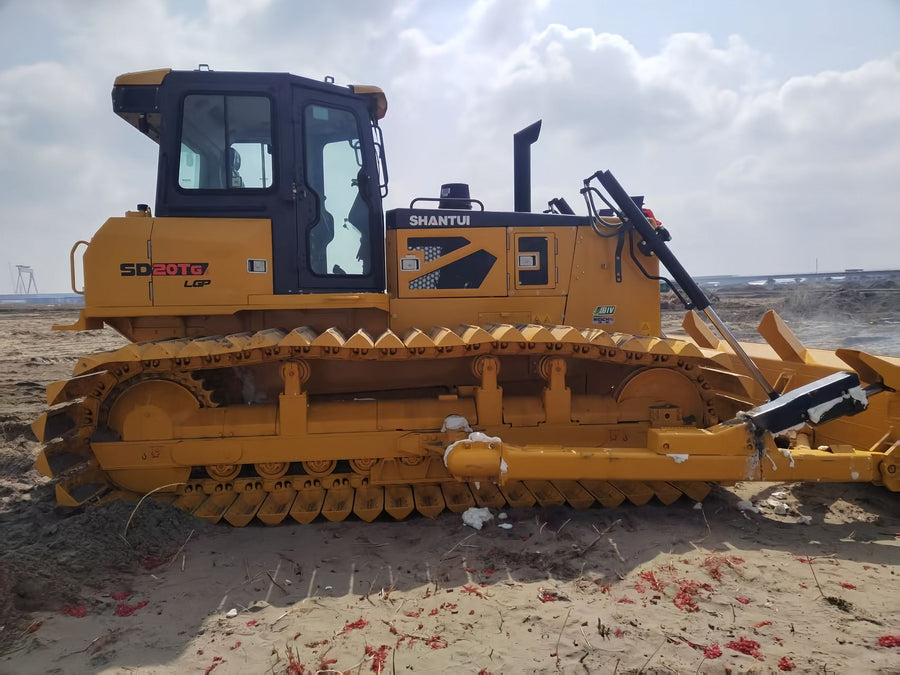

NEW SHANTUI SD20T-G

NEW SHANTUI SD20T-G

$48,000.00 USD
$48,000.00 USD
Sale Sold out

Here are the parameters of the NEW SHANTUI SD20T-G in a tabular format in English:

Parameter Description
Model SD20T-G
Type Crawler Bulldozer
Engine Model WP9H
Rated Power/Rated Speed 152 kW / 1900 rpm
Emission Standard National Non-Road Stage IV (China IV)
Operating Weight 20,900 kg (standard); 21,000 kg (with ripper)
Ground Pressure 23 kPa
Overall Dimensions (L×W×H) 6,120 mm × 4,420 mm × 3,256 mm
Track Center Distance 2,300 mm
Track Shoe Width 1,150 mm (standard); 1,100 mm (optional)
Ground Contact Length 3,650 mm
Fuel Tank Capacity 345 L
Working Hydraulic Oil Tank Capacity 75 L
Forward Speeds F1: 3.0 km/h, F2: 4.2 km/h, F3: 6.1 km/h, F4: 8.4 km/h, F5: 12.4 km/h
Reverse Speeds R1: 3.8 km/h, R2: 5.4 km/h, R3: 7.8 km/h, R4: 10.9 km/h

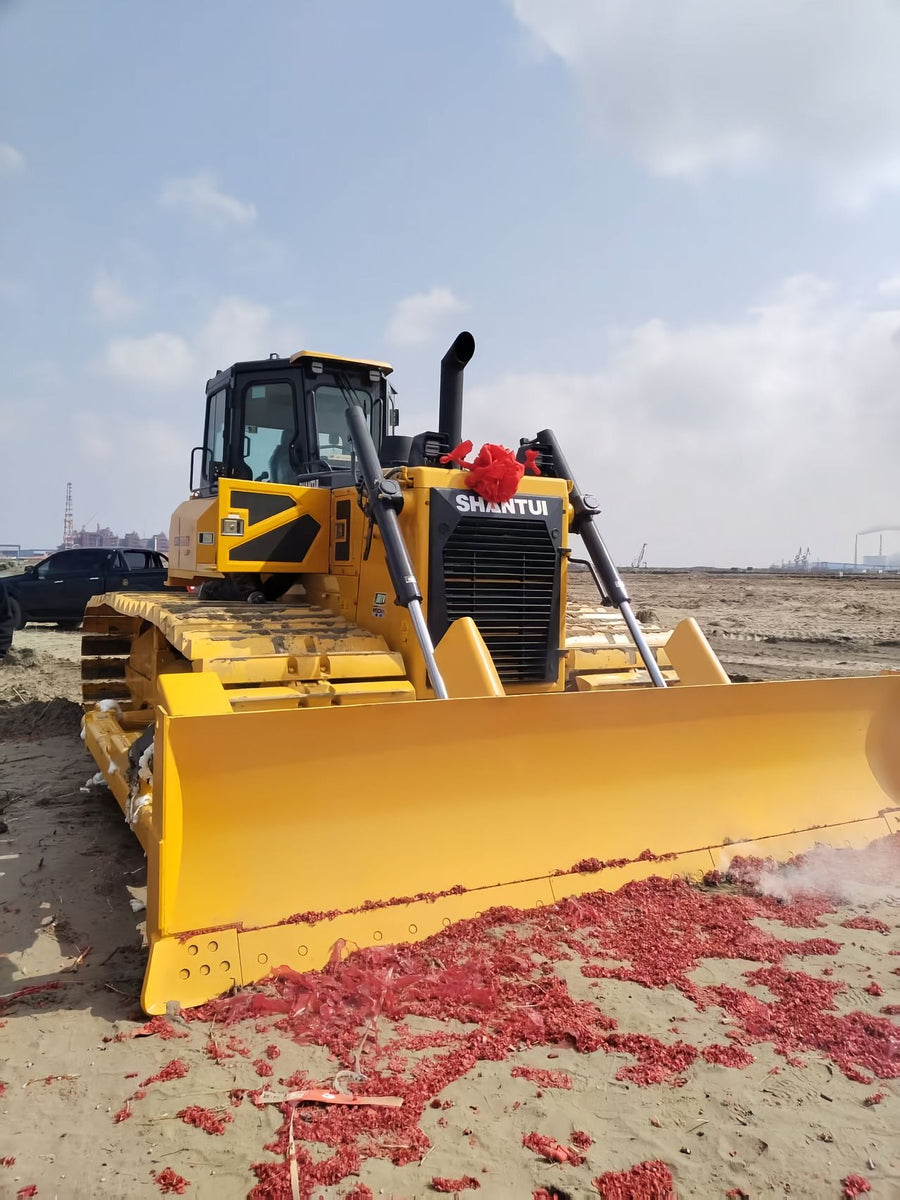

Blade Type Straight-tilt blade
Blade Lifting Height 1,140 mm
Blade Cutting Depth 485 mm
Scarifier Type Three-tooth (standard)
Scarifying Depth 460 mm (standard)
