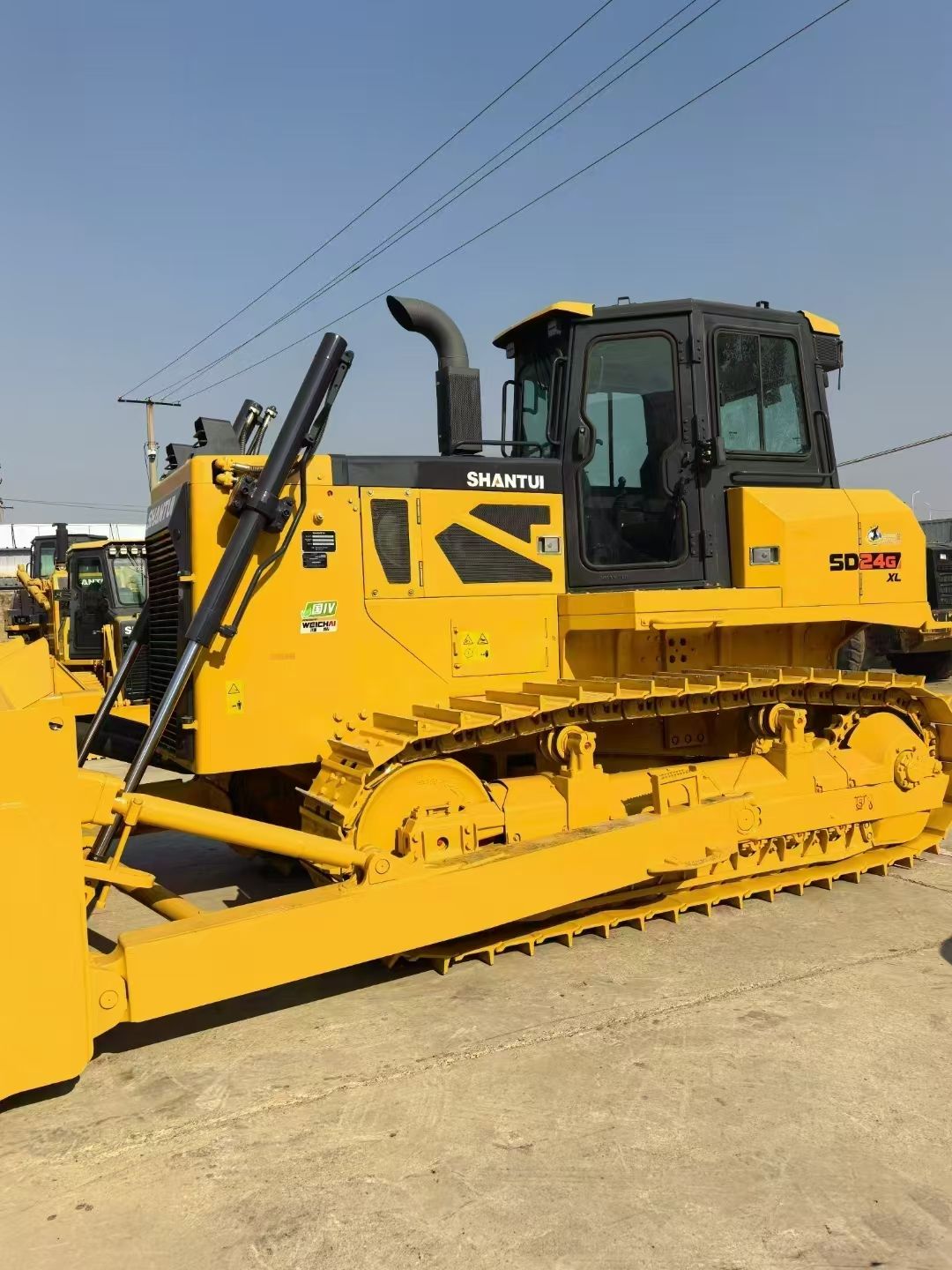

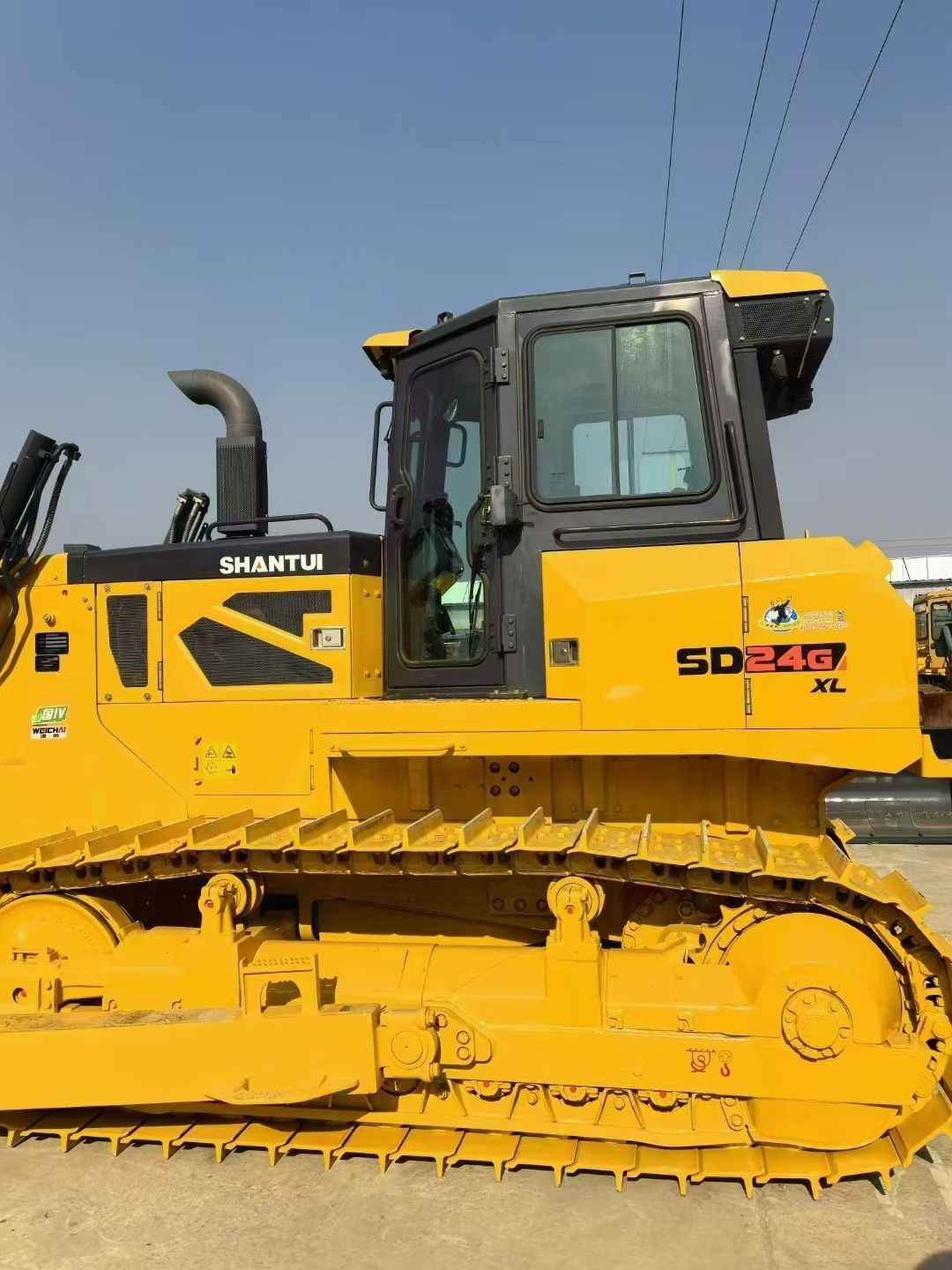

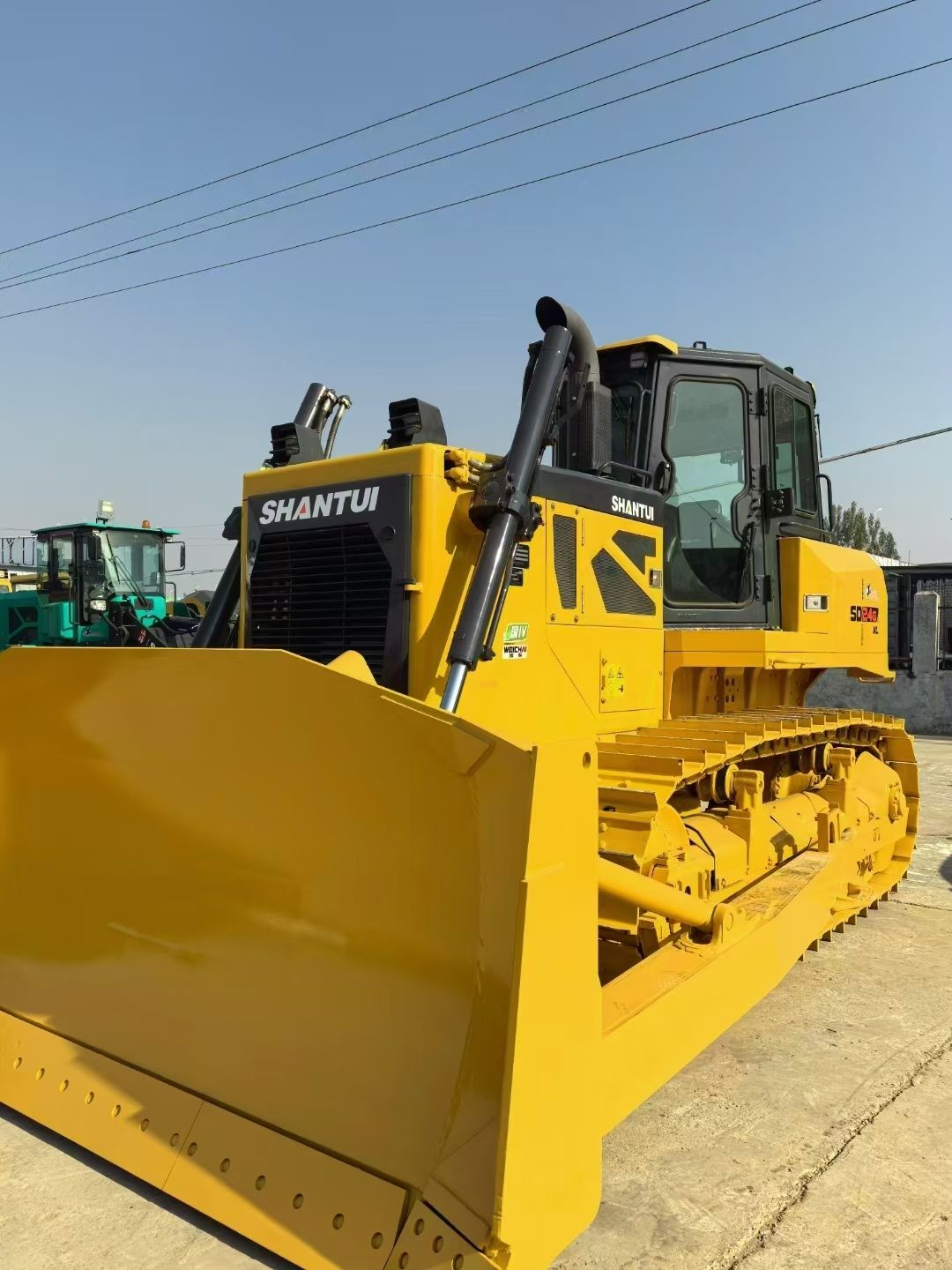

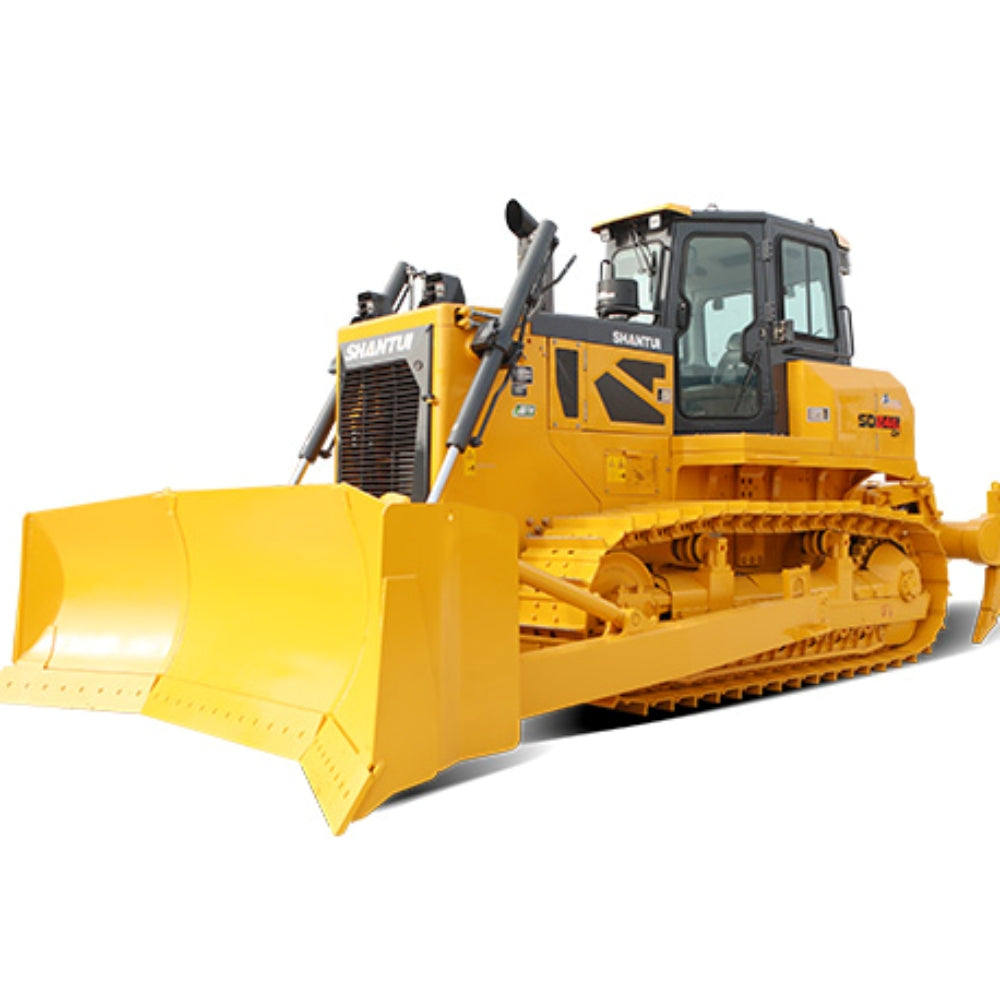

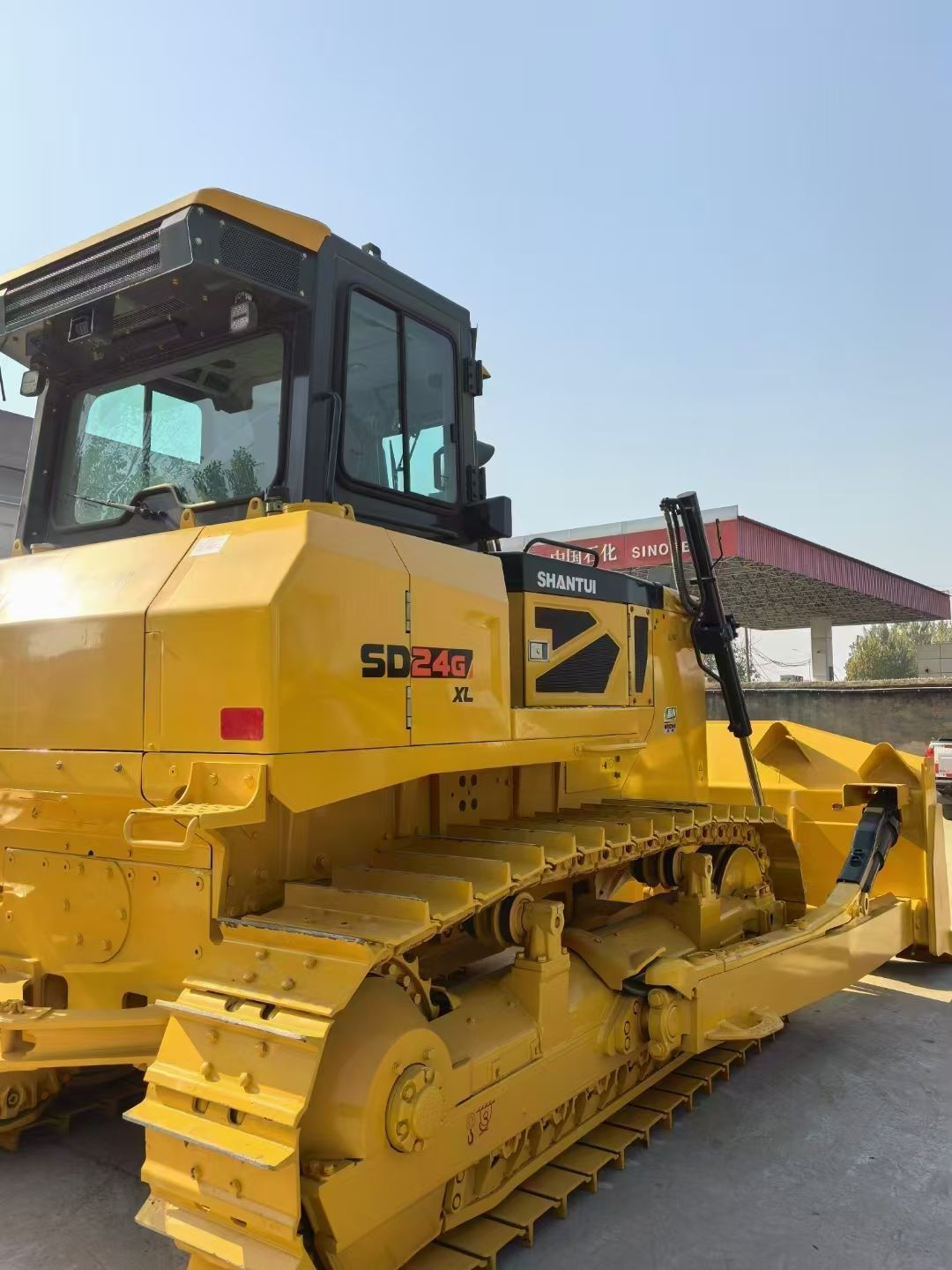

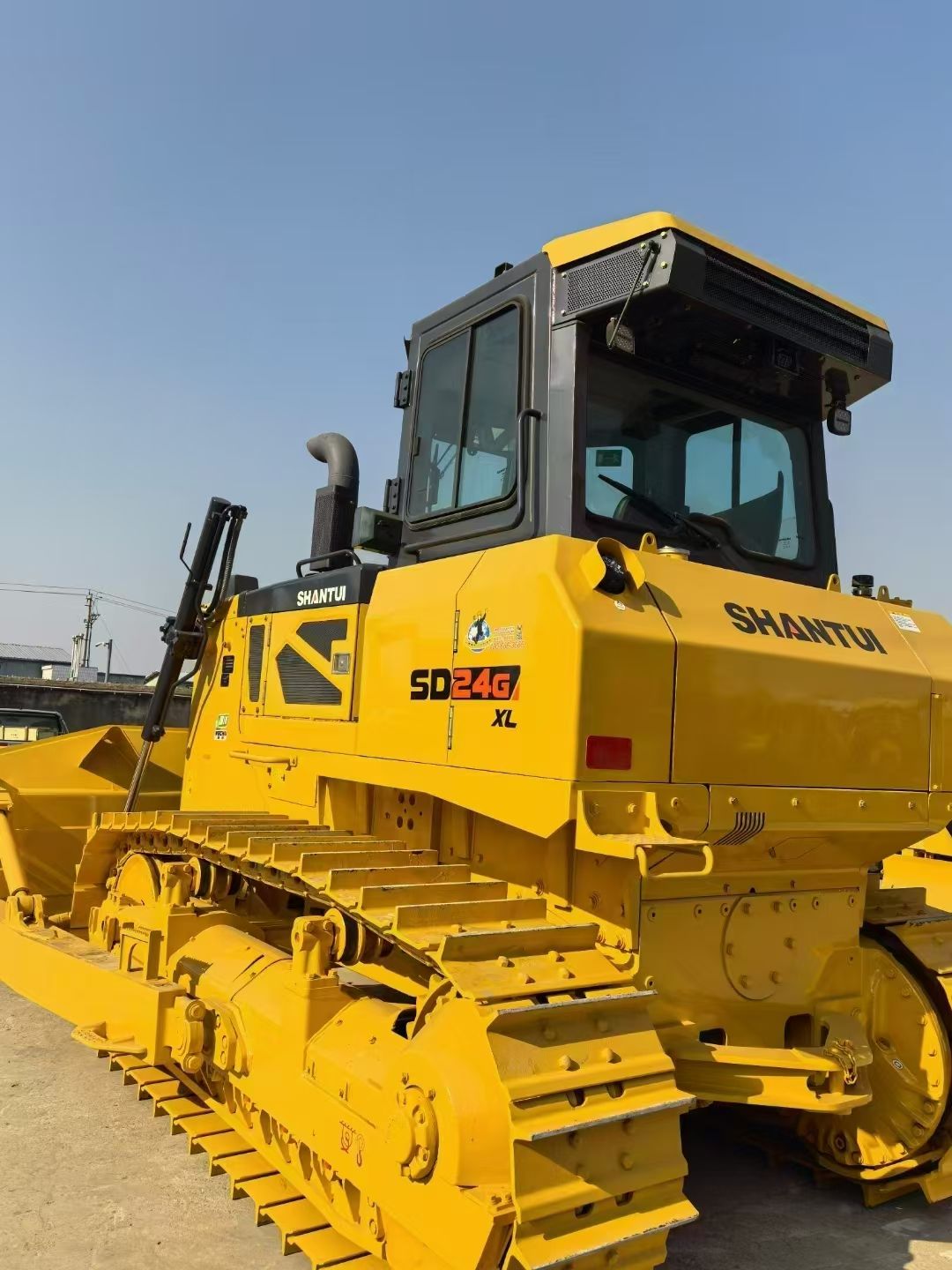

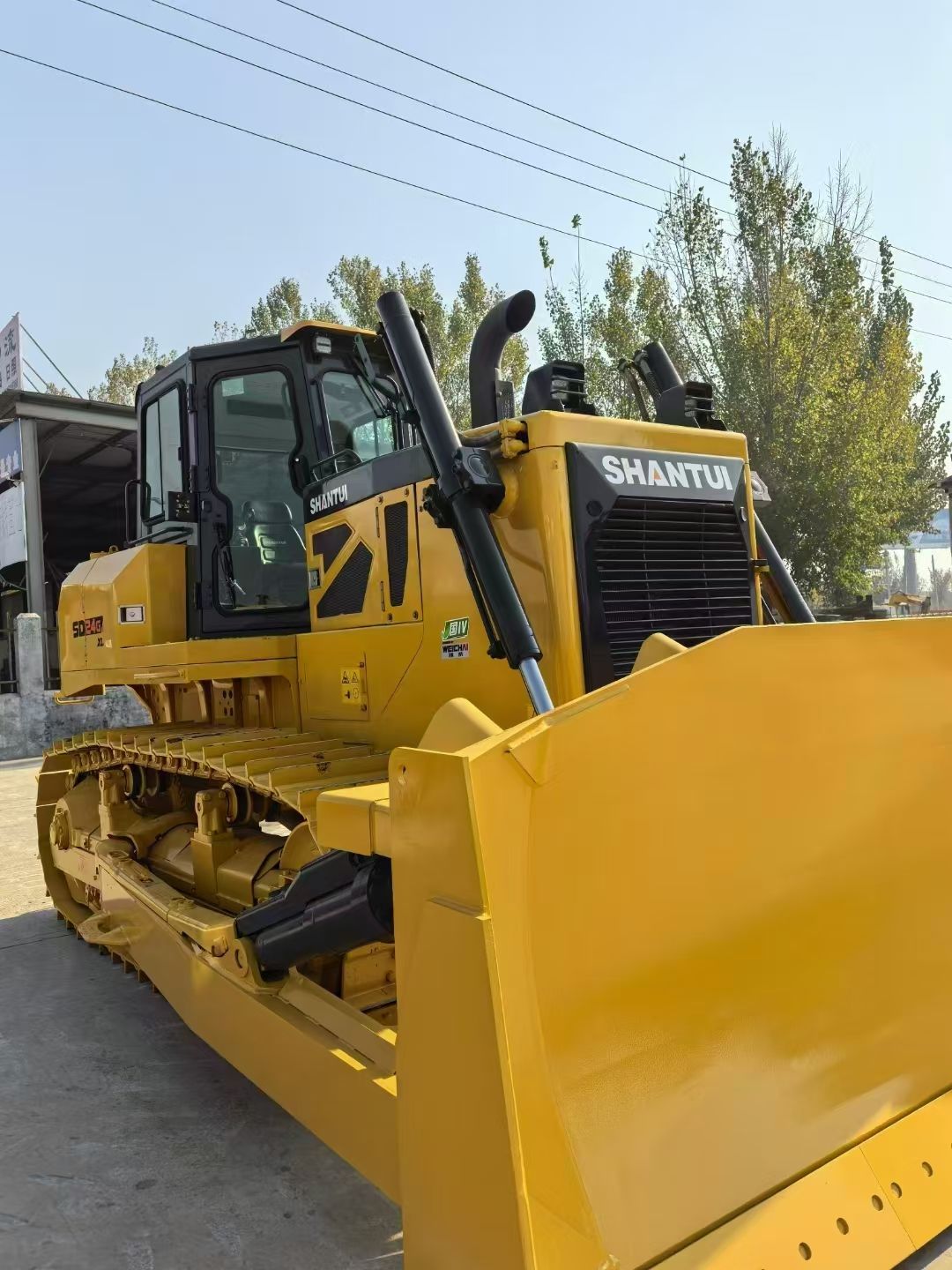

| Model |
SD24-G (with variations: XL, CH, RS, LGP, WH) |
| Type |
Crawler Bulldozer |
| Engine Model |
WP13 |
| Rated Power/Rated Speed |
199 kW / 1900 rpm (with an optional 206 kW / 1900 rpm version for some models) |
| Emission Standard |
National Non-Road Stage IV (China IV) |
| Operating Weight |
24,300 kg (XL, with traction frame); 25,200 kg (CH, with traction frame); 24,800 kg (RS, with traction frame); 26,900 kg (LGP); 27,000 kg (WH) |
| Ground Pressure |
62 kPa (XL); 55 kPa (CH); 63 kPa (RS); 37 kPa (LGP and WH) |
| Overall Dimensions (L×W×H) |
5,920 mm × 3,723 mm × 3,460 mm (XL); 6,250 mm × 4,288 mm × 3,460 mm (CH); 5,980 mm × 3,642 mm × 3,460 mm (RS); 6,130 mm × 4,362 mm × 3,510 mm (LGP); 6,450 mm × 4,362 mm × 3,510 mm (WH) |
| Forward Speeds |
F1: 0-3.8 km/h; F2: 0-6.9 km/h; F3: 0-11.8 km/h |
| Reverse Speeds |
R1: 0-4.5 km/h; R2: 0-8.1 km/h; R3: 0-13.9 km/h |
| Chassis System |
|
| Track Center Distance |
2,000 mm (XL, CH, RS); 2,250 mm (LGP, WH) |
| Track Shoe Width |
560 mm (610/660 mm optional for XL, RS); 660 mm (CH); 910 mm (LGP, WH) |
| Ground Contact Length |
3,050 mm (XL, CH, RS); 3,480 mm (LGP, WH) |
| Fuel Tank Capacity |
480 L |
| Working Hydraulic Oil Tank Capacity |
110 L |
| Blade Type |
Straight-tilt blade (XL, LGP, WH); Coal pusher (CH); Rock semi-U blade (RS) |
| Blade Lifting Height |
1,210 mm (XL, RS); 1,370 mm (CH); 1,300 mm (LGP, WH) |
| Blade Cutting Depth |
540 mm (XL, RS, LGP, WH); 630 mm (CH) |
| Scarifier Type |
Three-tooth/single-tooth (XL, CH, RS) |
| Scarifying Depth |
666/695 mm (XL, CH, RS) |
