SHANTUI

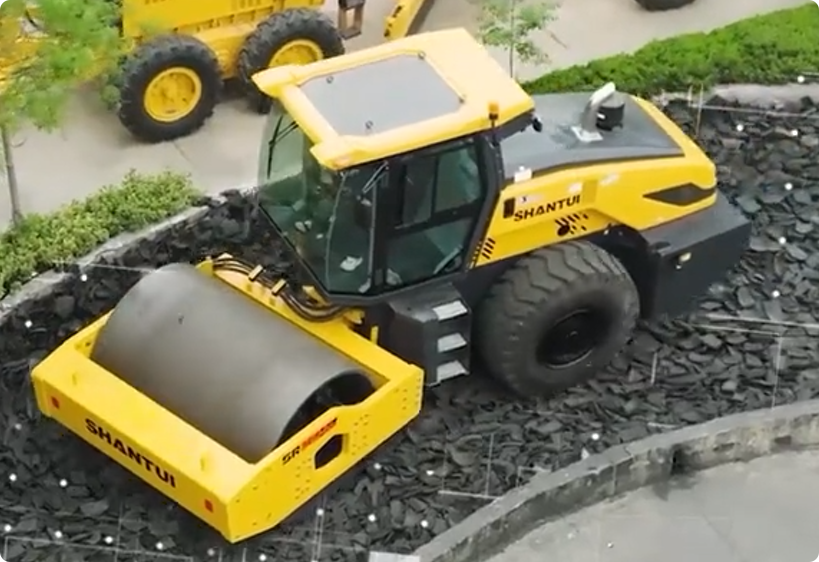

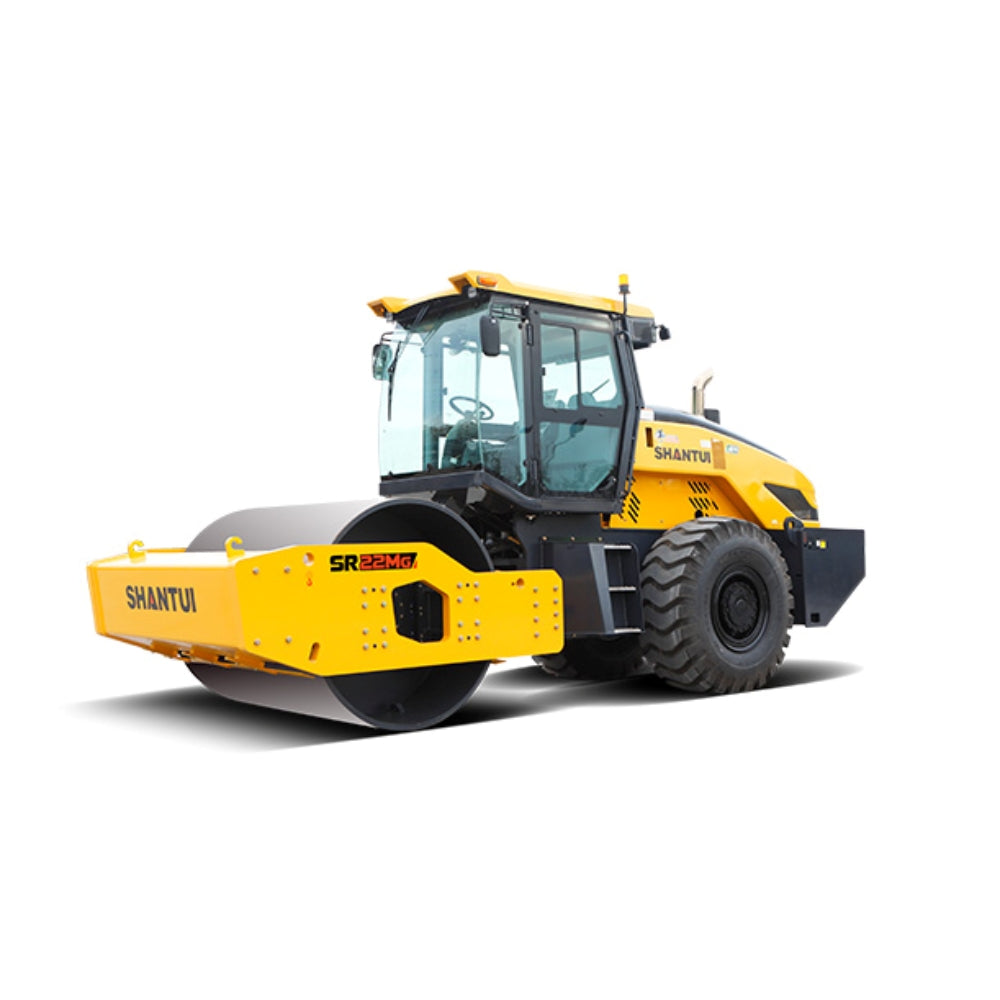

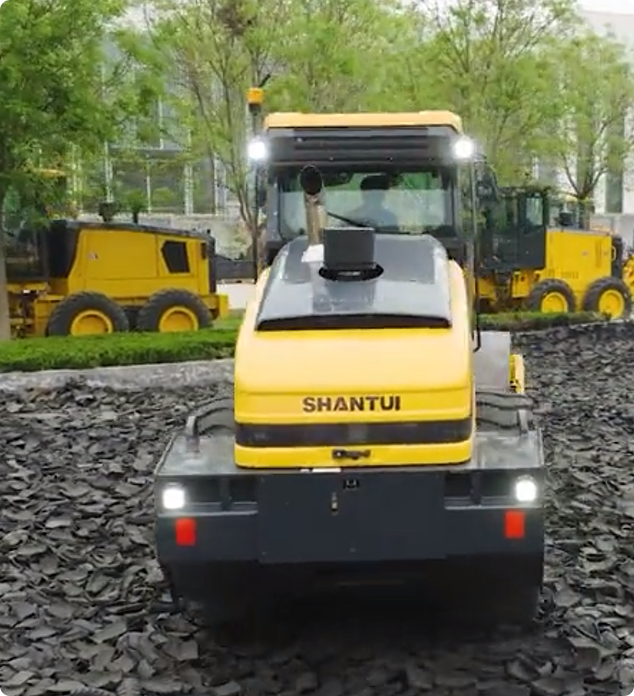

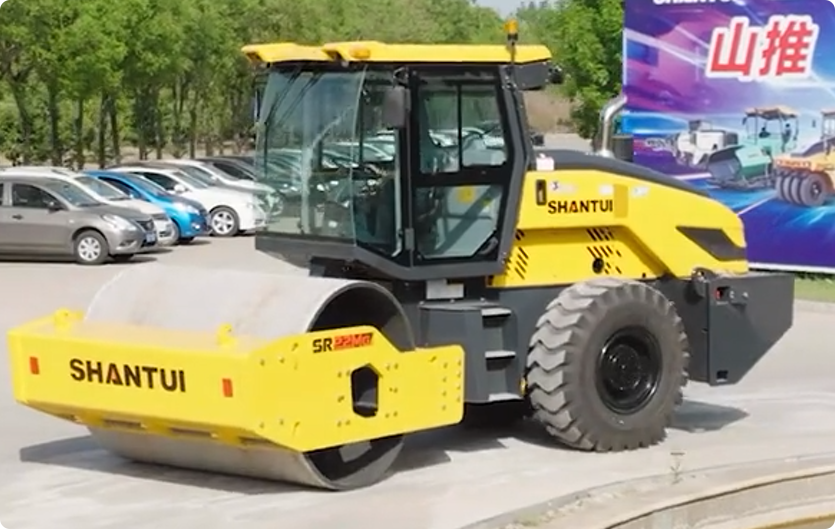

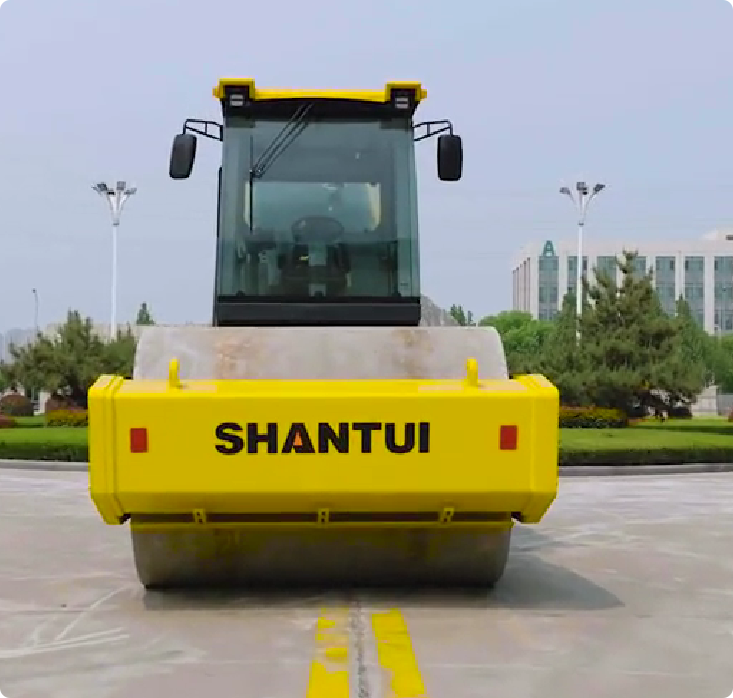

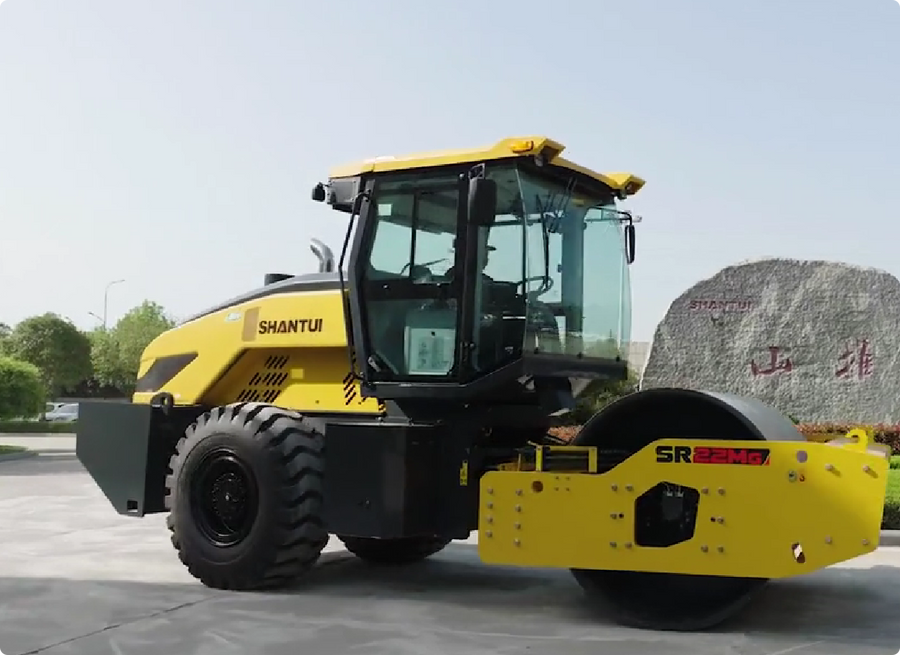

NEW SHANTUI SR22M-G

NEW SHANTUI SR22M-G

$40,000.00 USD
$40,000.00 USD
Sale Sold out

Here are the parameters of the NEW SHANTUI SR22M-G in a tabular format in English:

Parameter Description
Model SR22M-G
Type Single-Drum Vibratory Roller
Operating Weight (with cabin) 22,000 kg
Exciting Force 410 kN (high amplitude) / 300 kN (low amplitude)
Vibration Frequency 29 Hz (high amplitude) / 35 Hz (low amplitude)
Nominal Amplitude High: 1.8 mm / 1.53 mm; Low: 0.9 mm / 0.75 mm
Ground Specific Pressure Not specified
Gradeability 30% (some sources indicate 35%)
Engine Model WP4.6N (compliant with China IV emission standards)
Rated Power/Rated Speed 147 kW / 1800 rpm
Overall Dimensions (L×W×H) 6,799 mm × 2,362 mm × 3,325 mm
Forward Speed 2.8 km/h / 5.5 km/h / 9.0 km/h (adjustable)
Reverse Speed 2.8 km/h / 5.5 km/h / 9.0 km/h (adjustable)
Wheelbase 3,445 mm
Fuel Tank Capacity 330 L
Compaction Width 2,140 mm
Static Line Load 490 N/cm / 527 N/cm
