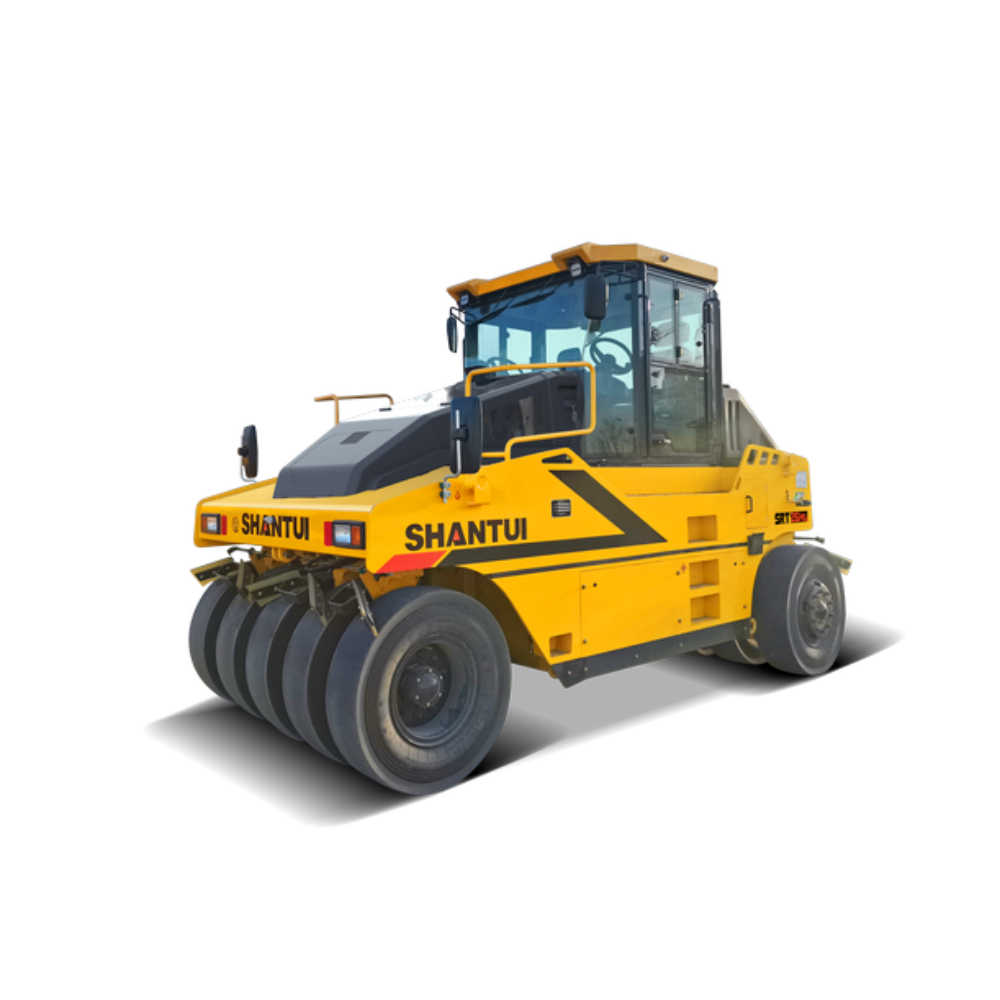

NEW SHANTUI SRT26H-G
NEW SHANTUI SRT26H-G
Regular price
$45,000.00 USD
Regular price
Sale price
$45,000.00 USD
Quantity
Couldn't load pickup availability
Here are the parameters of the NEW SHANTUI SRT26H-G in a tabular format in English:
| Parameter | Description |
|---|---|
| Model | SRT26H-G |
| Type | Pneumatic Tire Roller |
| Operating Weight | 26,000 kg |
| Engine Model | Dongkang B5.9 |
| Rated Power/Rated Speed | 129 kW / 2000 rpm |
| Emission Standard | China IV (equivalent to EU Stage IV) |
| Forward Speed | 0-6 km/h, 0-13 km/h (two-speed ranges) |
| Reverse Speed | 0-6 km/h, 0-13 km/h (two-speed ranges) |
| Gradeability | 22% |
| Compaction Width | 2,355 mm (some sources indicate 2,750 mm, depending on configuration) |
| Tire Configuration | Front four, rear five (or front five, rear six in some configurations) |
| Fuel Tank Capacity | 220 L |
| Hydraulic Oil Tank Capacity | 60 L |
| Ground Pressure | 200-470 kPa (or 200-420 kPa, depending on configuration) |
| Braking System | Service brake, parking brake, auxiliary brake, emergency brake |
| Safety Features | 360° surround view system, non-contact collision avoidance system |
| Overall Dimensions (L×W×H) | 4,900 mm × 2,600 mm × 3,410 mm (or 4,920 mm × 2,895 mm × 3,410 mm, depending on configuration) |
| Axle Base | 3,840 mm |
