SUMITOMO

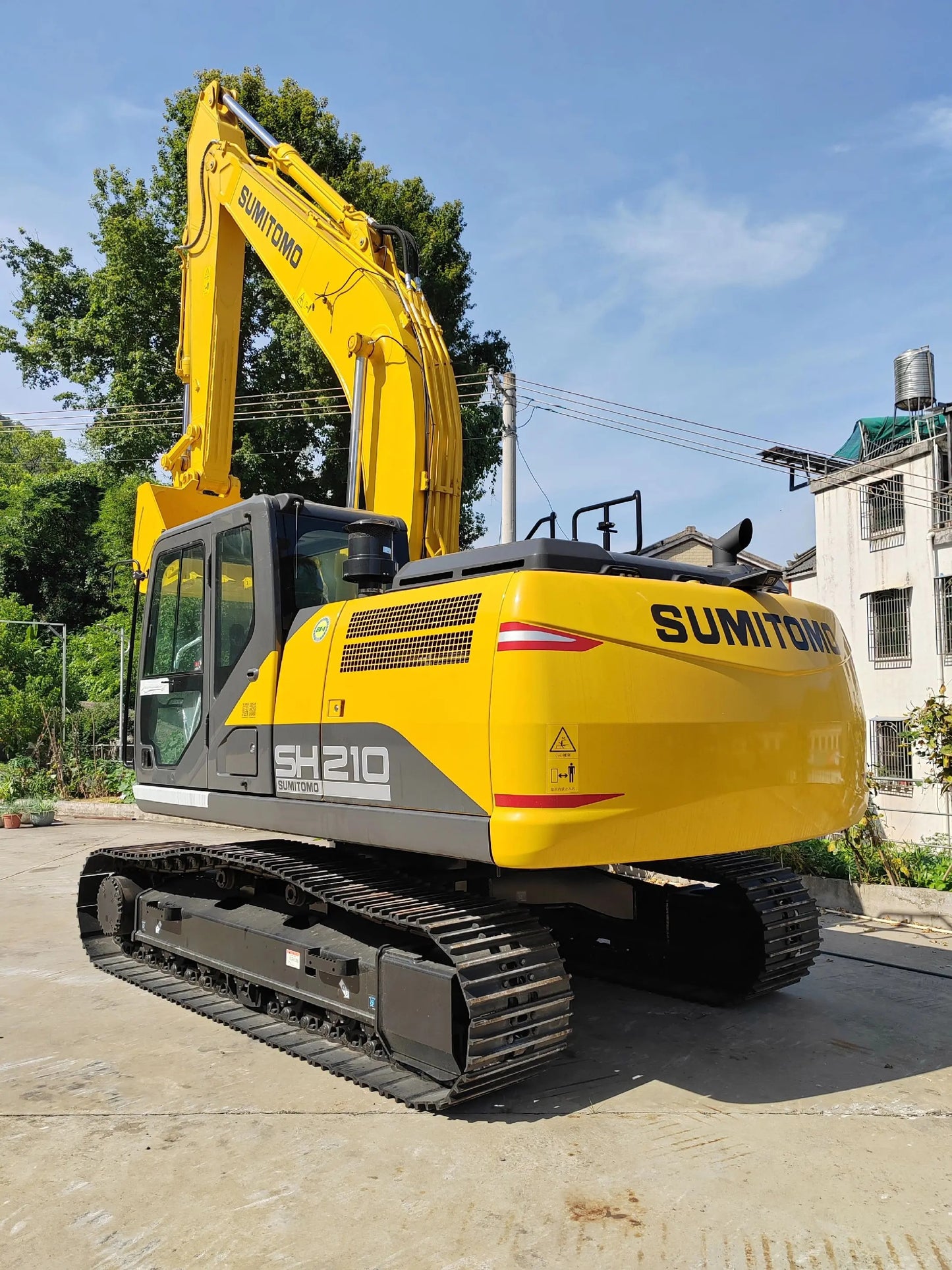

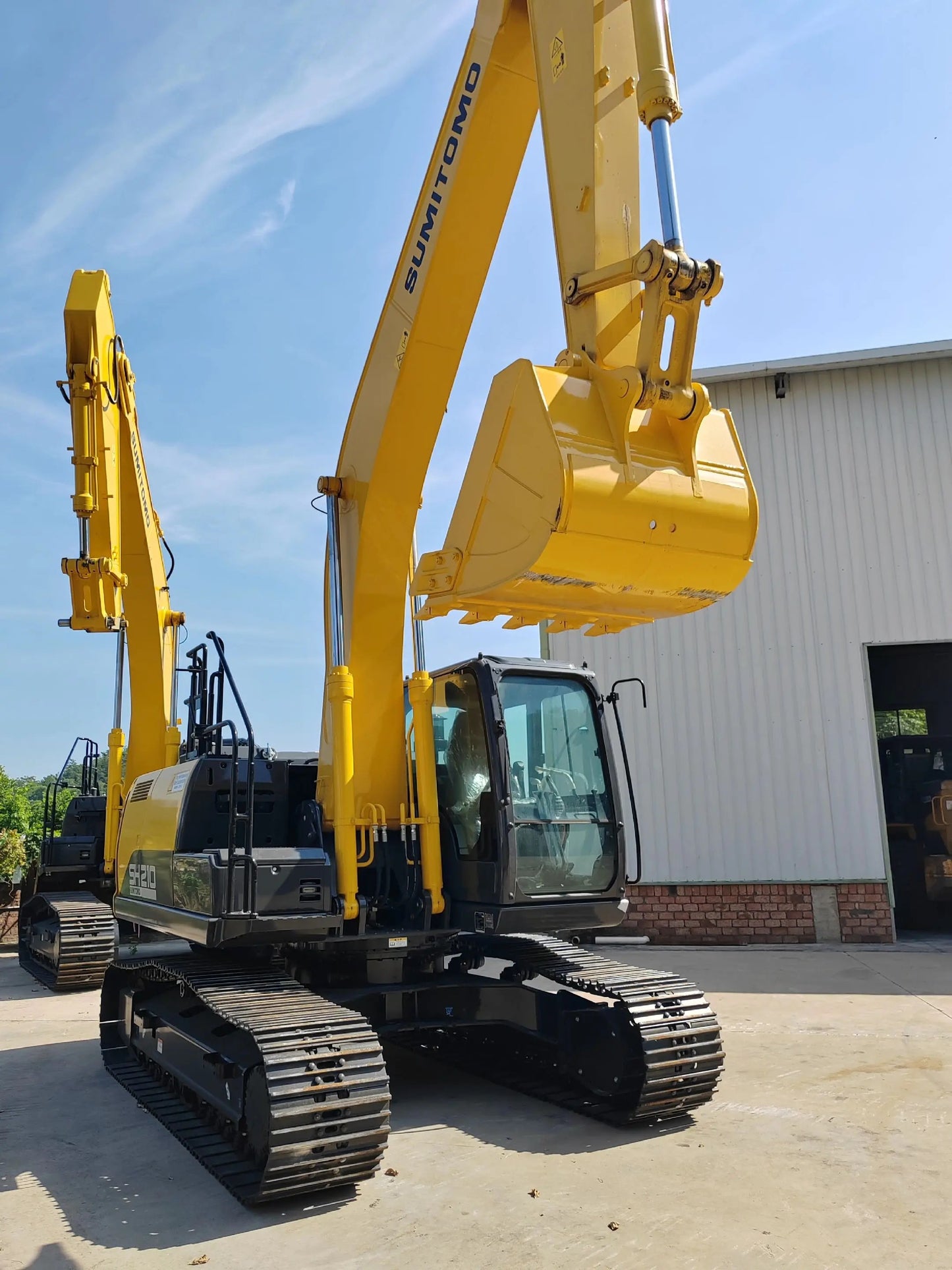

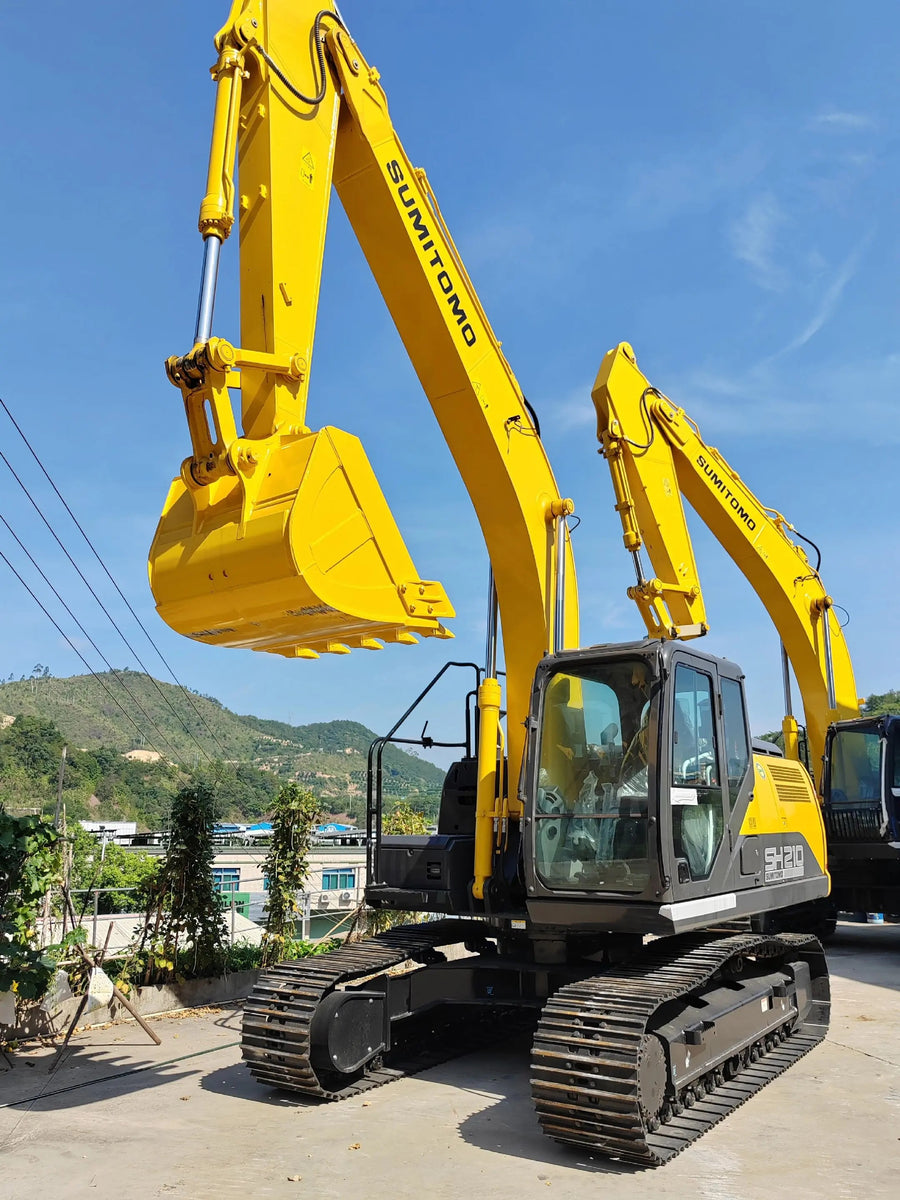

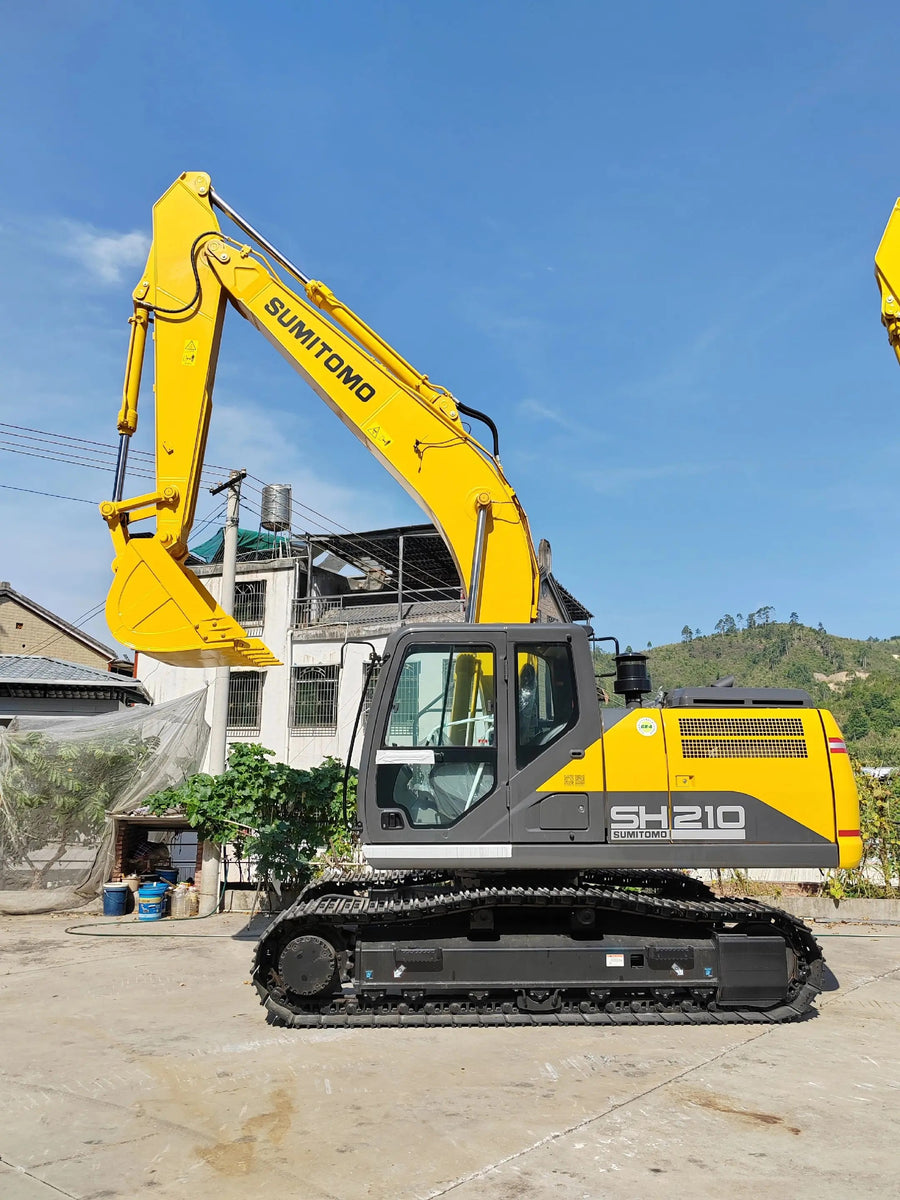

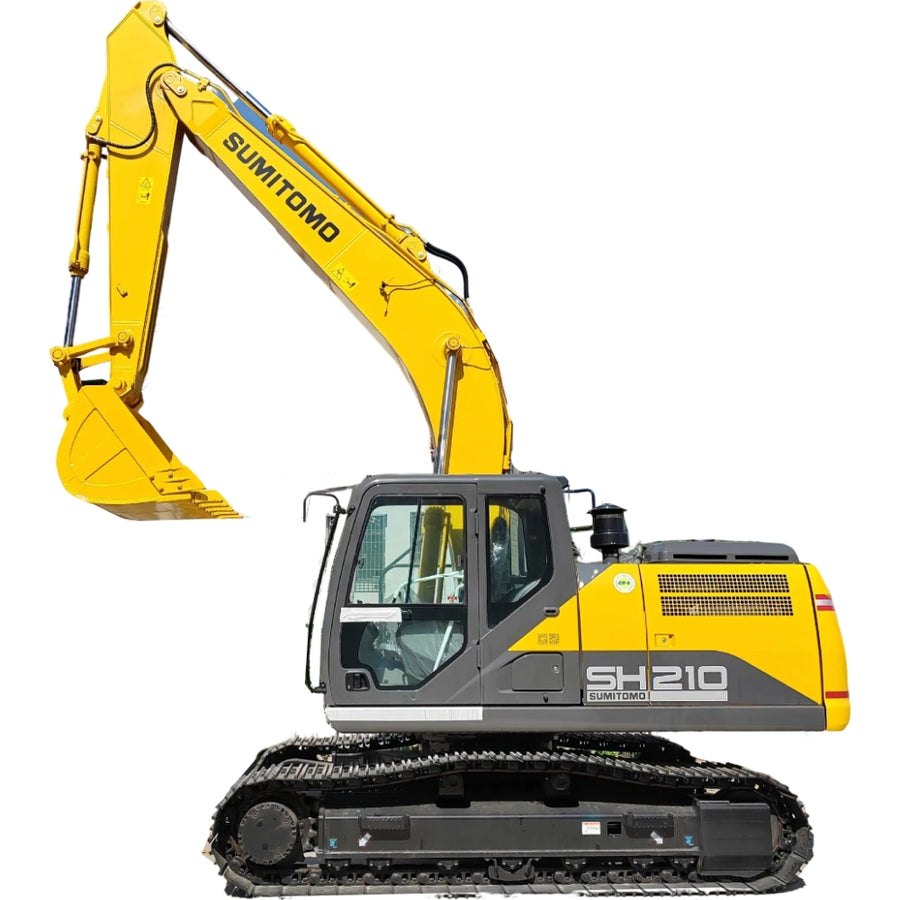

NEW SUMITOMO SH210

NEW SUMITOMO SH210

$38,000.00 USD
$38,000.00 USD
Sale Sold out
Parameter SH210-6 SH210LC-6
Operating Weight 20,100 kg 20,400 kg
Engine Model ISUZU GI-4HK1X ISUZU GI-4HK1X
Engine Rated Output 117.3 kW (159.5 PS) / 1,800 min⁻¹ 117.3 kW (159.5 PS) / 1,800 min⁻¹
Engine Displacement 5.19 L 5.19 L
Bucket Capacity (ISO Heaped) 0.8-1.0 m³ 0.8-1.0 m³
Max Digging Depth 6,650 mm 6,110 mm
Max Digging Height 9,610 mm 9,610 mm
Max Digging Radius 9,900 mm 9,420 mm
Hydraulic System Max Pressure 34.3 MPa (36.8 MPa with auto power boost) 34.3 MPa (36.8 MPa with auto power boost)
Travel Speed 5.6/3.4 km/h 5.6/3.4 km/h
Drawbar Pull 188 kN 188 kN
Ground Pressure 47 kPa 44 kPa
Swing Speed 11.5 rpm 11.5 rpm

Special Model: SH210LC-5LR (Long Reach)

Parameter Specification
Operating Weight 23,000 kg
Bucket Capacity (ISO Heaped) 0.37 m³
Boom Length 8.7 m
Stick Length 6.4 m
Max Digging Radius 15,600 mm
Ground Pressure 36 kPa (800 mm track shoes)
