SUMITOMO

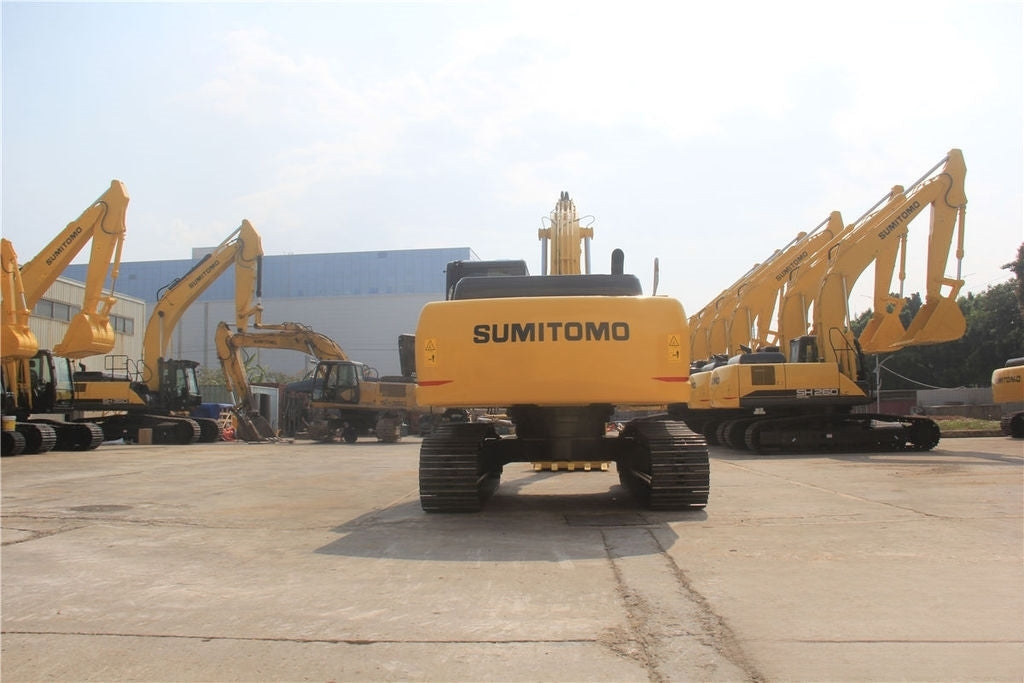

NEW SUMITOMO SH240

NEW SUMITOMO SH240

$35,000.00 USD
$35,000.00 USD
Sale Sold out
Parameter SH240-5 SH240-6 SH240-7
Operating Weight 24,600 kg 24,800 kg 25,100 kg
Engine Model ISUZU AI-4HK1X ISUZU AI-4HK1X ISUZU GQ-4HK1X
Engine Rated Output 132.1 kW (177 HP) / 2,000 min⁻¹ 132.1 kW (177 HP) / 2,000 min⁻¹ 132.1 kW (177 HP) / 2,000 min⁻¹
Engine Displacement 5.193 L 5.193 L 5.193 L
Bucket Capacity (ISO Heaped) 1.1-1.3 m³ 1.2 m³ 1.2 m³
Max Digging Depth 6,900 mm 6,900 mm 6,900 mm
Max Digging Height 9,800 mm 9,800 mm 9,800 mm
Max Digging Radius 9,930 mm 9,930 mm 9,930 mm
Hydraulic System Max Pressure 34.3 MPa (36.8 MPa with auto power boost) 34.3 MPa (36.8 MPa with auto power boost) 34.3 MPa (36.8 MPa with auto power boost)
Travel Speed 5.5/3.5 km/h 5.5/3.5 km/h 5.5/3.5 km/h
Drawbar Pull 205 kN 205 kN 205 kN
Ground Pressure 48 kPa 48 kPa 49 kPa
Swing Speed 10.7 rpm 10.7 rpm 10.7 rpm

Special Model: SH240LC-5LR (Long Reach)

Parameter Specification
Operating Weight 28,000 kg
Bucket Capacity (ISO Heaped) 0.37 m³
Boom Length 10.3 m
Stick Length 8.0 m
Max Digging Radius 18,320 mm
Ground Pressure 42 kPa (800 mm track shoes)
