| Model |

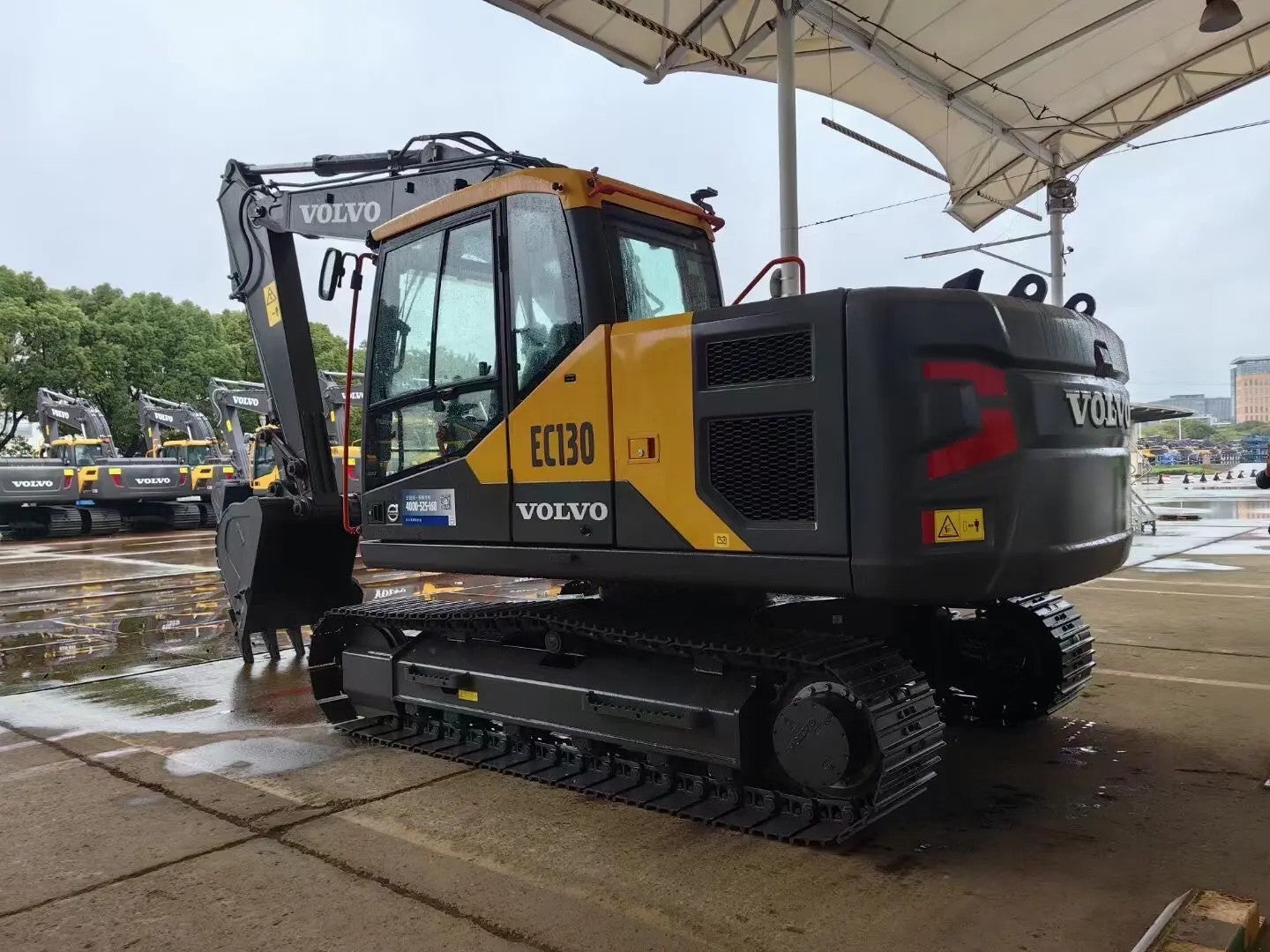

VOLVO EC130 (CN4) |
| Operating Weight |
12,300 kg沃尔沃建筑设备中国
|
| Bucket Capacity (SAE Heaped) |
0.2-0.52 m³沃尔沃建筑设备中国
|
| Engine Model |
Volvo D3.8H |
| Rated Power |
78.6 kW (105.5 hp) @ 2,200 rpm (ISO 14396/SAE J1995) |
| Net Power |
77.4 kW (103.8 hp) @ 2,200 rpm (ISO 9249/SAE J1349) |
| Displacement |
3.8 L |
| Max. Torque |
375 N·m @ 1,500 rpm |
| Travel Speed (Low/High) |
3.0/5.2 km/h |
| Slewing Speed |
11.6 rpm |
| Max. Traction Force |
107 kN |
| Max. Bucket Breakout Force |
88 kN |
| Max. Arm Crowd Force |
62 kN |
| Main Hydraulic Pump Max. Flow |
2×106 L/min |
| Working Hydraulic System Pressure |
34.3 MPa |
| Travel Hydraulic System Pressure |
34.3 MPa |
| Slewing Hydraulic System Pressure |
24.5 MPa |
| Track Gauge |
2,000 mm |
| Track Length |
3,140 mm |
| Track Shoe Width |
500 mm |
| Ground Clearance |
440 mm |
| Tail Swing Radius |
2,200 mm沃尔沃建筑设备中国
|
| Max. Digging Depth |
5,530 mm沃尔沃建筑设备中国
|
| Max. Digging Height |
8,300 mm |
| Max. Dumping Height |
6,000 mm |
| Max. Horizontal Reach |
8,330 mm沃尔沃建筑设备中国
|
| Fuel Tank Capacity |
250 L |
| Hydraulic Oil Tank Capacity |
85 L |
| Hydraulic System Total Capacity |
167 L |
