| Model |

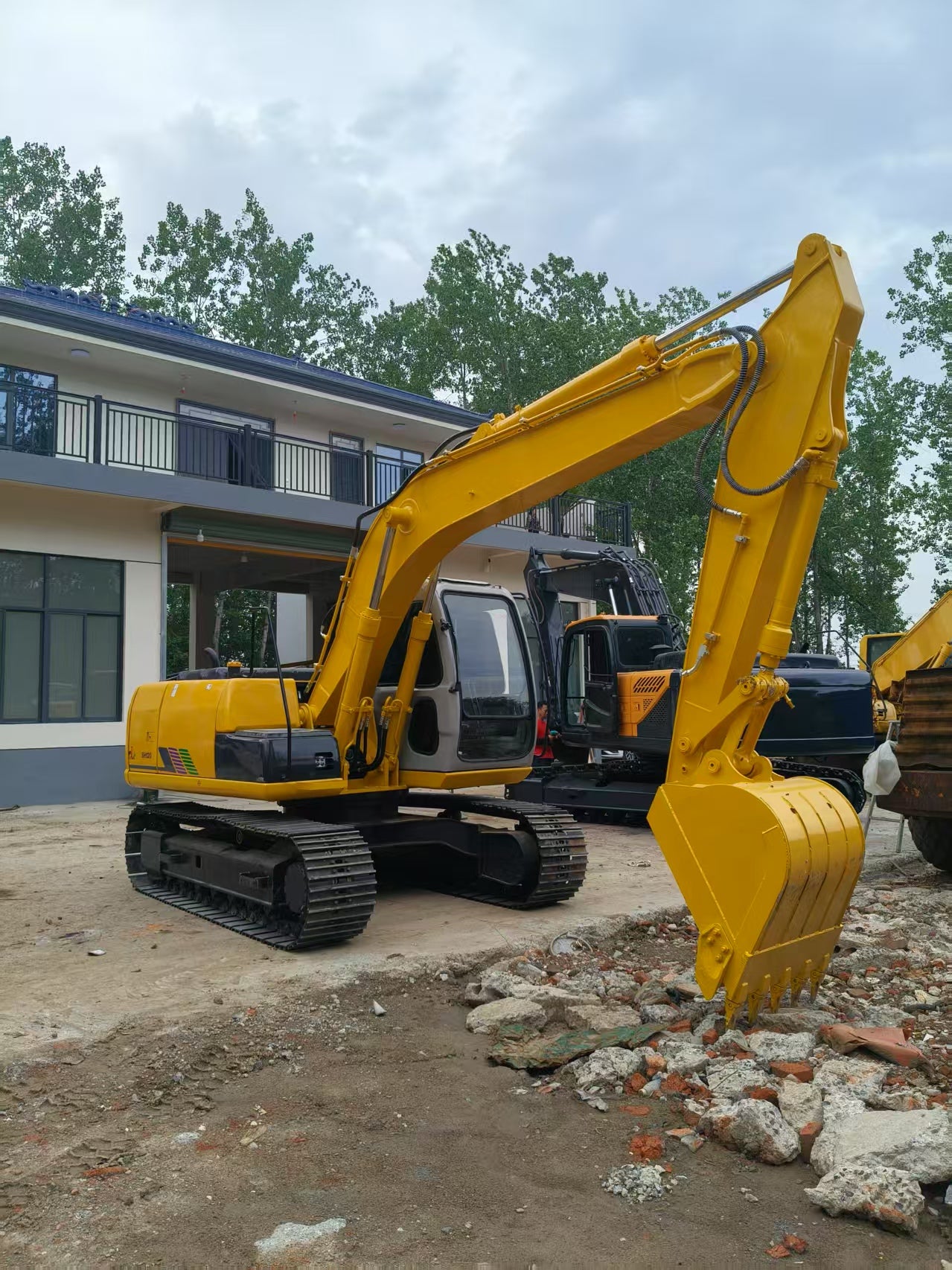

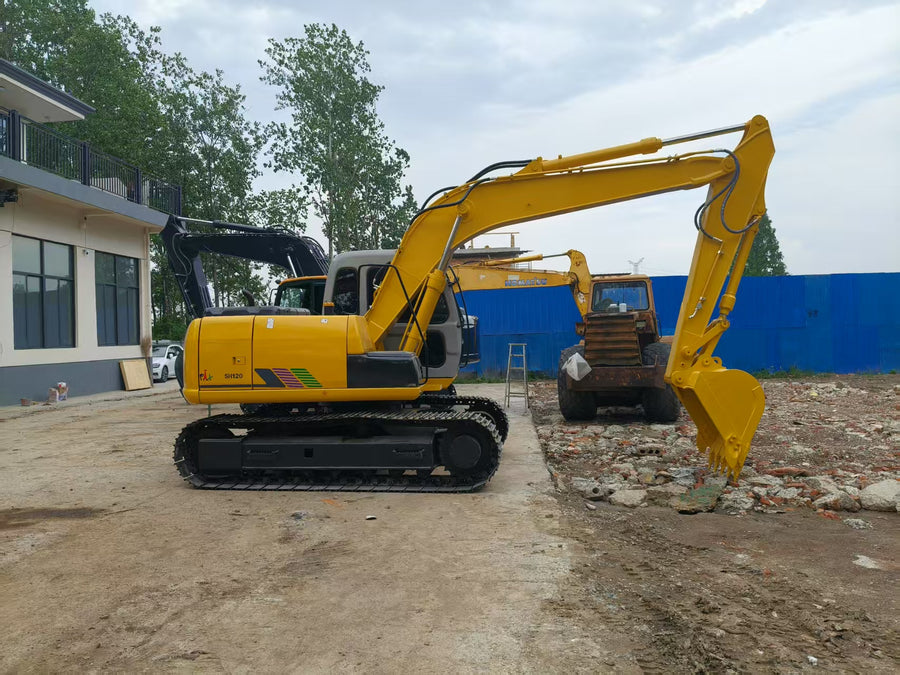

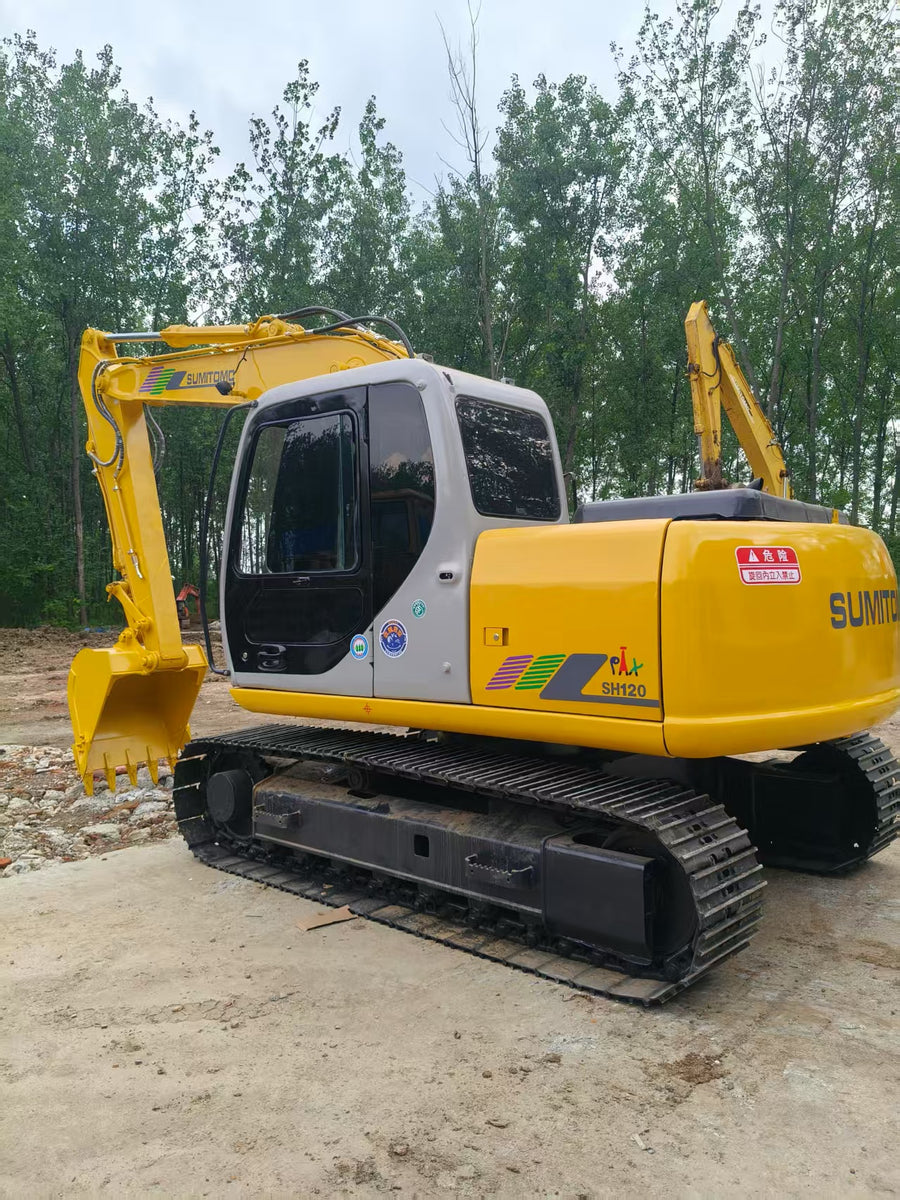

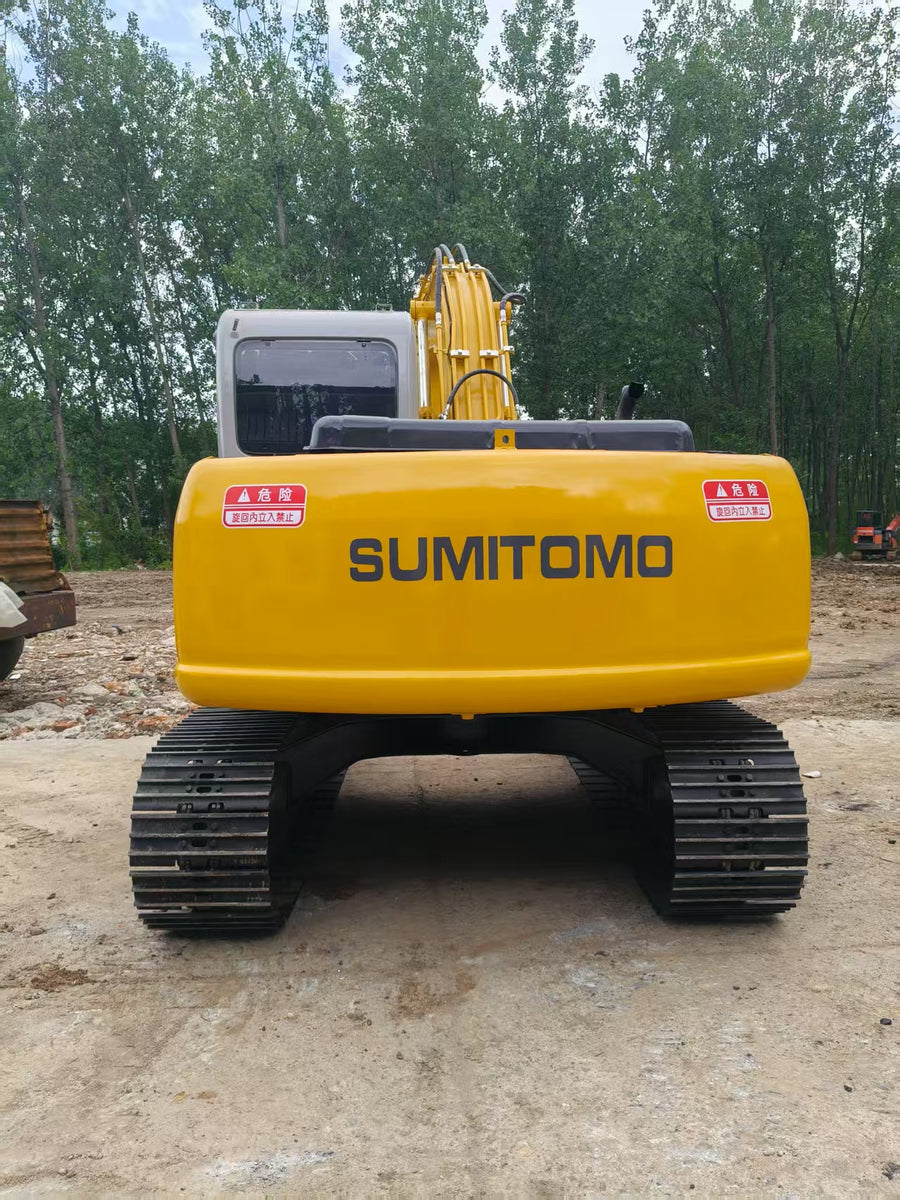

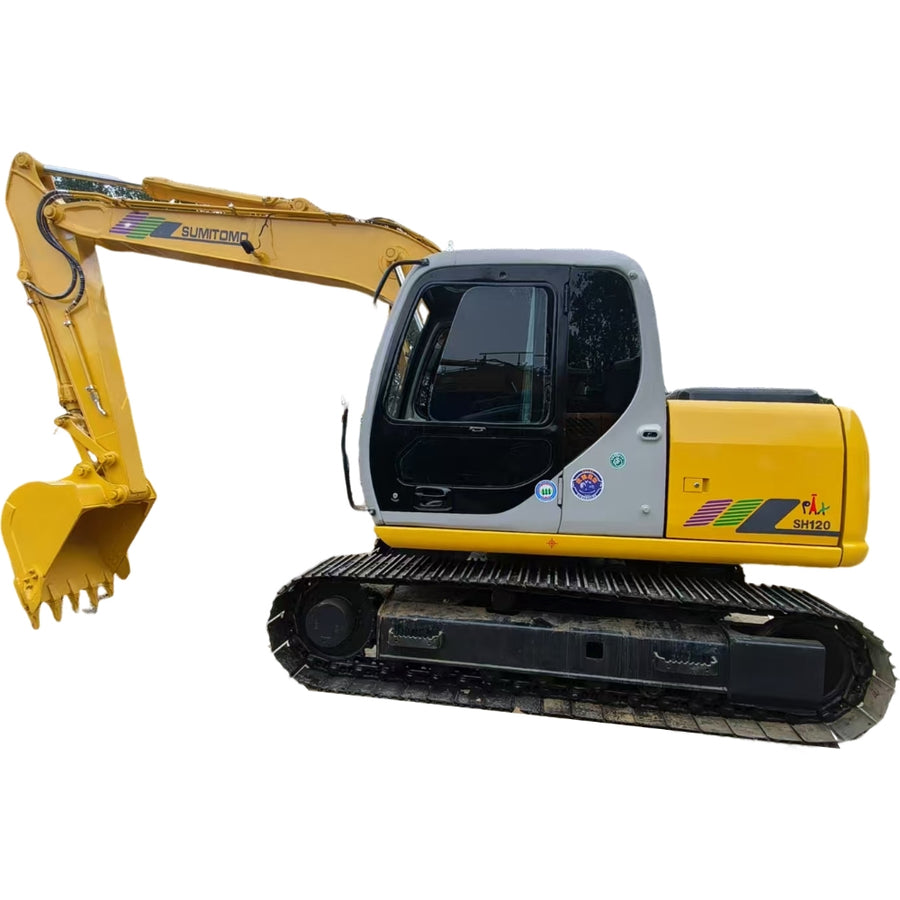

SUMITOMO SH120-6 (Current Mainstream Model) |
| Operating Weight |
12,500-13,400 kg (w/ Blade) |
| Bucket Capacity (ISO Heaped) |
0.5-0.65 m³ |
| Engine Model |
Isuzu AM-4JJ1X (4-cylinder, turbocharged diesel) |
| Rated Power (Net, ISO 9249/SAE J1349) |
74.9 kW (101.9 hp) @ 2,000 rpm |
| Displacement |
3.0 L |
| Max. Torque |
330 N·m @ 1,600 rpm |
| Travel Speed (Low/High) |
3.4/5.6 km/h |
| Slewing Speed |
13.2 rpm |
| Max. Traction Force |
110.0 kN |
| Max. Bucket Breakout Force (Normal/Boost) |
85.0/90.0 kN |
| Max. Arm Crowd Force |
58.0 kN |
| Main Hydraulic Pump Max. Pressure |
34.3 MPa (34300 kPa) |
| Track Gauge |
2,000 mm |
| Track Length |
3,500 mm |
| Track Shoe Width |
500 mm |
| Ground Clearance |
440 mm |
| Tail Swing Radius |
2,130 mm |
| Max. Digging Depth |
5,540 mm |
| Max. Digging Height |
8,300 mm |
| Max. Dumping Height |
6,000 mm |
| Max. Horizontal Reach |
8,310 mm |
| Fuel Tank Capacity |
250 L |
| Hydraulic Oil Tank Capacity |
120 L |
