CASE

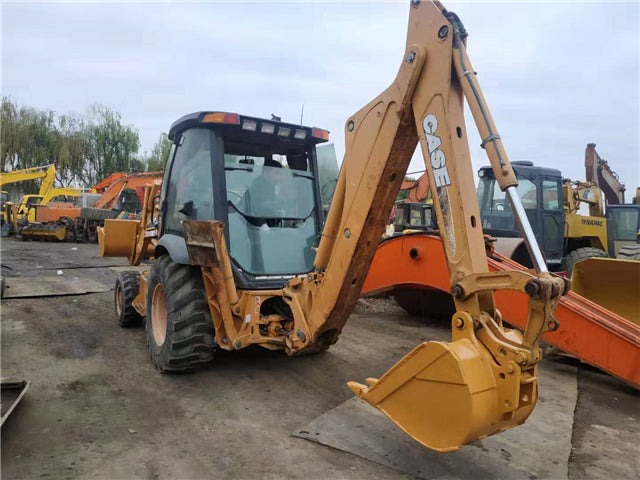

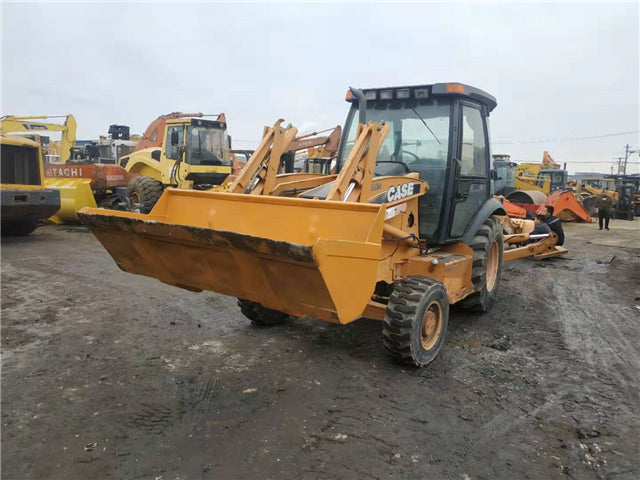

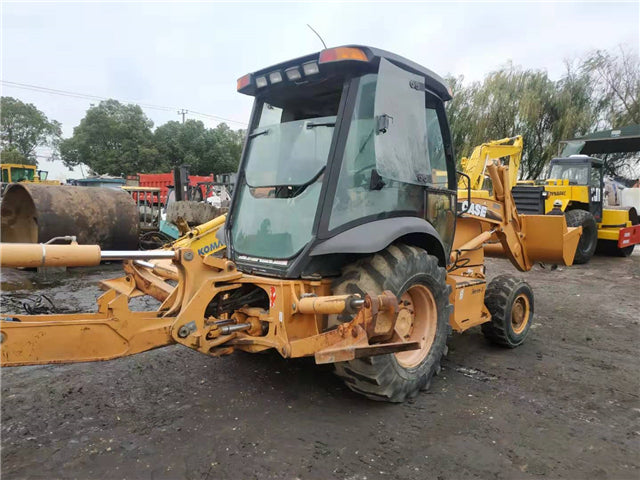

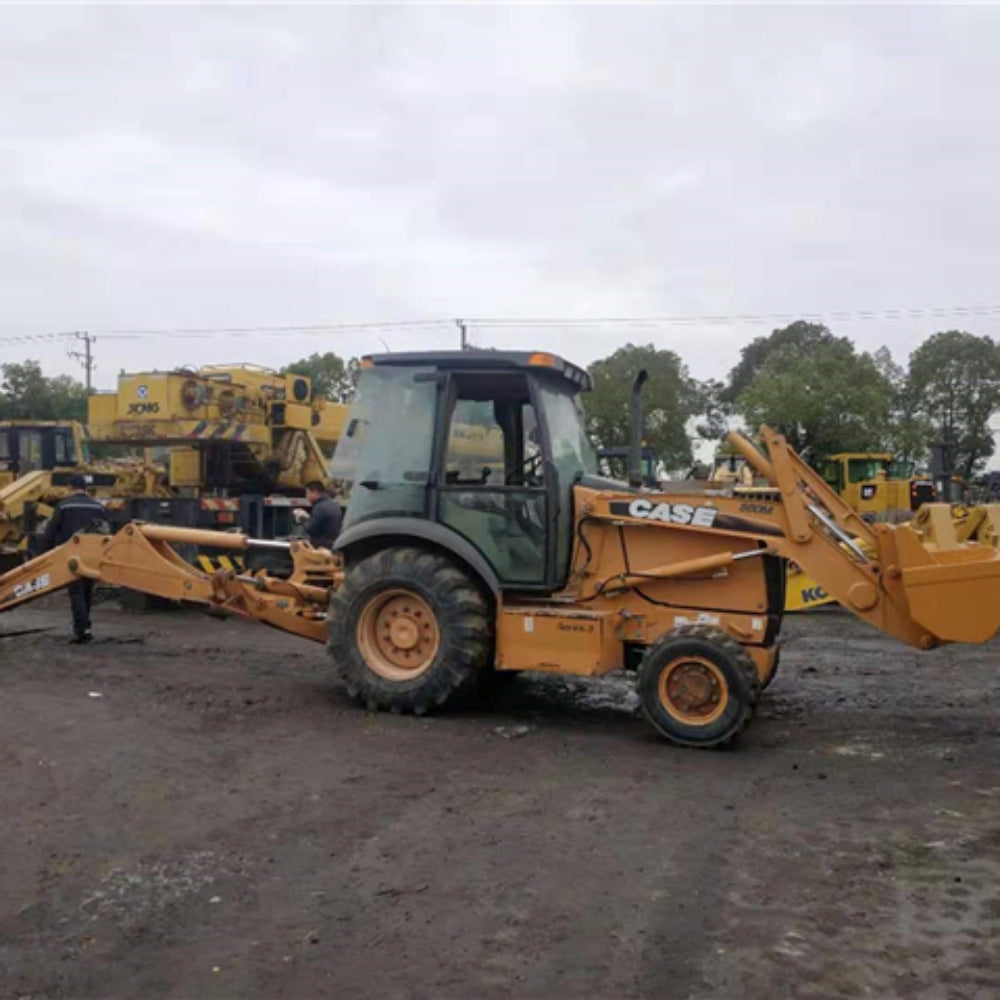

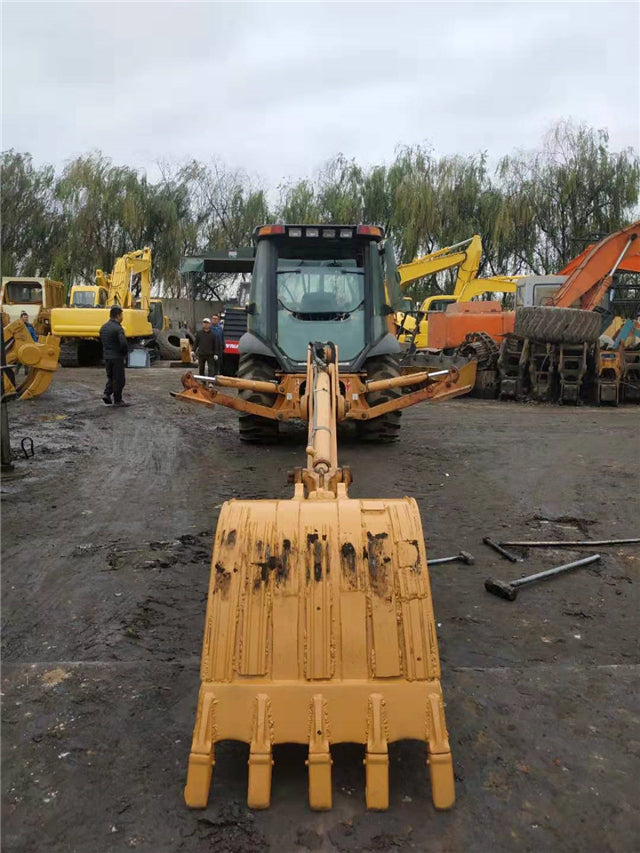

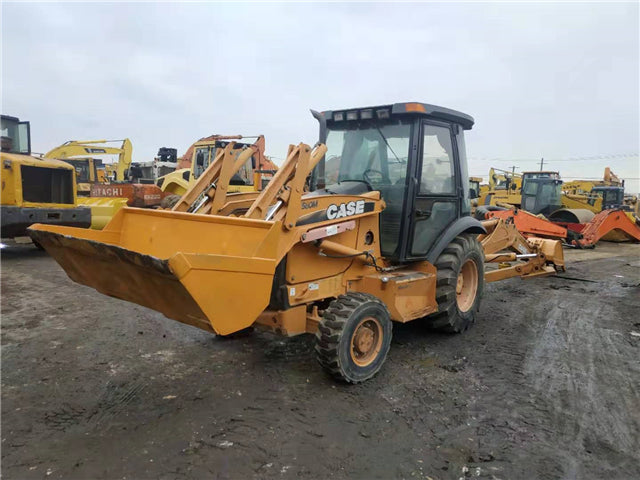

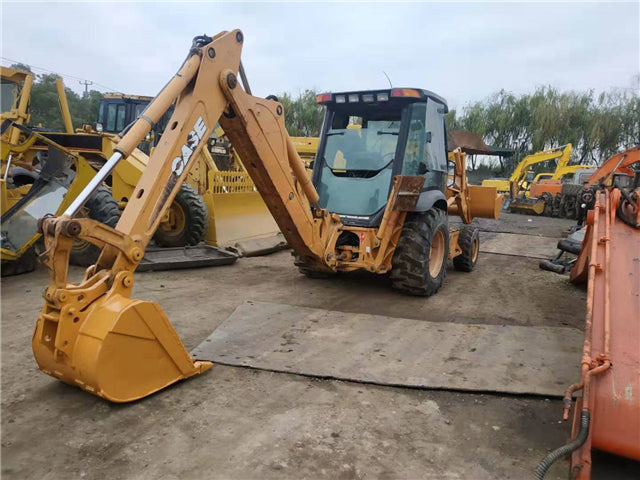

USED CASE 580M
USED CASE 580M
Regular price
$22,000.00 USD
Regular price
Sale price
$22,000.00 USD
Quantity
Couldn't load pickup availability
English:
| Parameter | Description |
|---|---|
| Model | BOBCAT CASE 580M |
| Type | Backhoe loader |
| Engine Model | Family III 445/M2, Tier II certified |
| Aspiration | Natural (some variants may be turbocharged) |
| Displacement | 272 cu in (4,457 cu cm) |
| Gross Power | 80 - 85 hp (60 - 63 kW) |
| Net Power | 76 hp (57 kW) |
| Net Max Torque | 231 - 246 lbs/ft (334 Nm) |
| Number of Cylinders | 4 |
| Operating Weight | 13,359 - 16,510 lbs (6,060 - 7,489 kg) |
| Fuel Capacity | 31 - 31.4 gal (117 - 119 l) |
| Hydraulic System Fluid Capacity | 28 gal (106 l) |
| Hydraulic System Pump Flow Capacity | 28.5 - 29 gal/min (106 - 108 l/min) |
| Relief Valve Pressure | 3,050 psi (210 bar) |
| Backhoe Bucket Dig Force | 11,212 lbs (5,086 kg) |
| Backhoe Dig Depth | 14.3 ft (4 m) (standard) |
| Backhoe Dig Depth (Extended) | 18.3 ft (5 m) |
| Backhoe Load Height | 11.2 ft (3 m) (standard) |
| Backhoe Load Height (Extended) | 13.3 ft (4 m) |
| Backhoe Reach at Load Height (Extended) | 11.5 ft (3 m) |
| Backhoe Reach From Swivel | 17.9 ft (5 m) (standard) |
| Backhoe Reach From Swivel (Extended) | 21.9 ft (6 m) |
| Loader Bucket Breakout Force | 9,164 lbs (4,157 kg) |
| Loader Bucket Capacity | 0.9 - 1 cu yd (0.7 - 0.8 cu m) |
| Loader Bucket Width | 82 in (208 cm) |
| Loader Clearance at Max Dump Height | 8.7 - 9 ft (2 - 3 m) |
| Loader Reach at Max Dump Height | 28 - 28.2 ft (9 m) |
| Loader Lift Capacity | 1,950 - 6,182 lbs (885 - 2,804 kg) (varies by configuration) |
| Transmission Type | 4-speed synchromesh with hydraulically actuated clutches |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Maximum Travel Speed | 24.5 mph (39 kph) |
| Maximum Reverse Speed | 29.6 mph (47 kph) |
| Tire Size (Front) | 11Lx16.1/12x16.5 |
| Tire Size (Rear) | 17.5Lx24/19.5Lx24 |
| Ground Clearance | 1 - 1.3 ft (0.3 - 0.4 m) |
| Height to Top of Suspended Cab | 9 ft (3 m) |
| Transport Length | 23 - 23.2 ft (7 - 7 m) |
| Transport Width | 7 - 7.2 ft (2 - 2 m) |
| Wheelbase | 7 - 7.1 ft (2 - 2 m) |
