CATERPILLAR

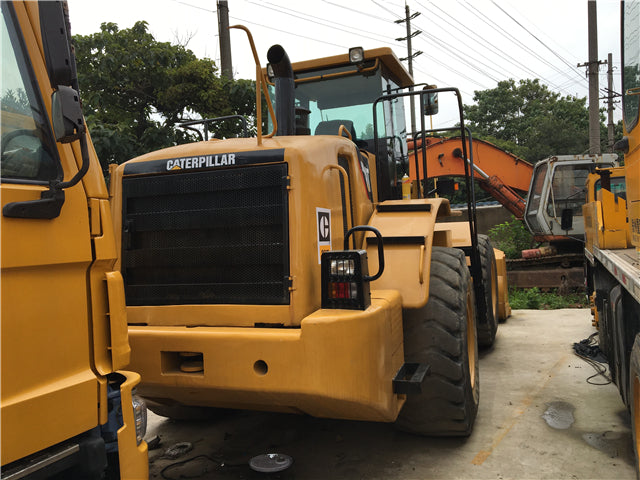

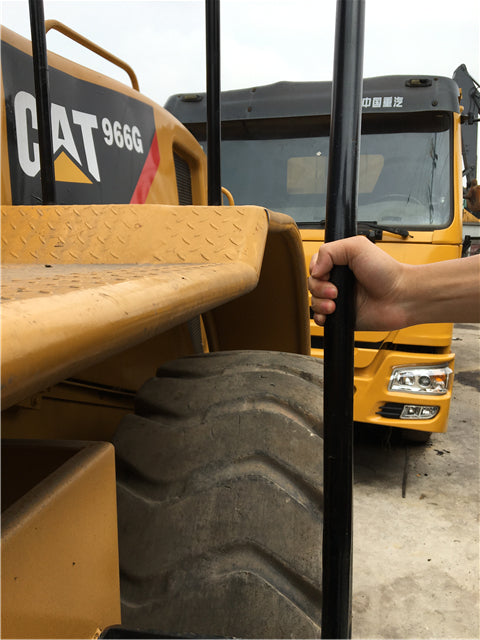

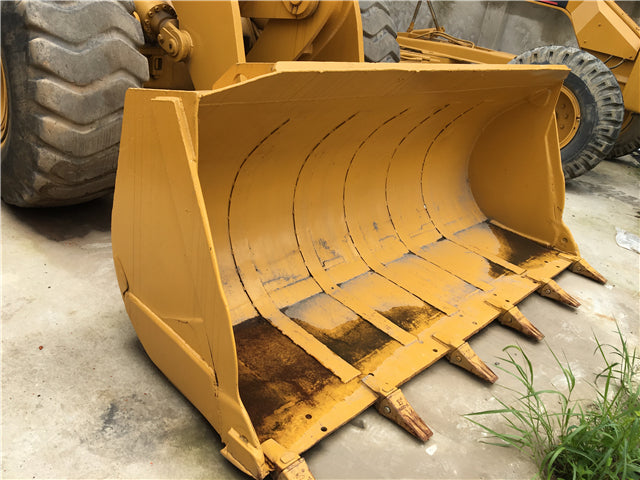

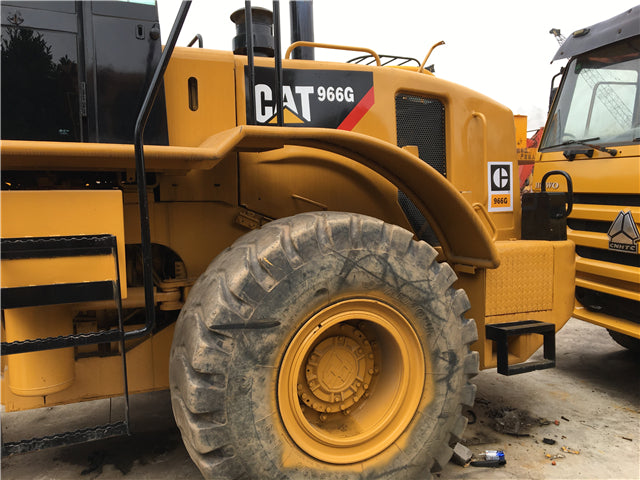

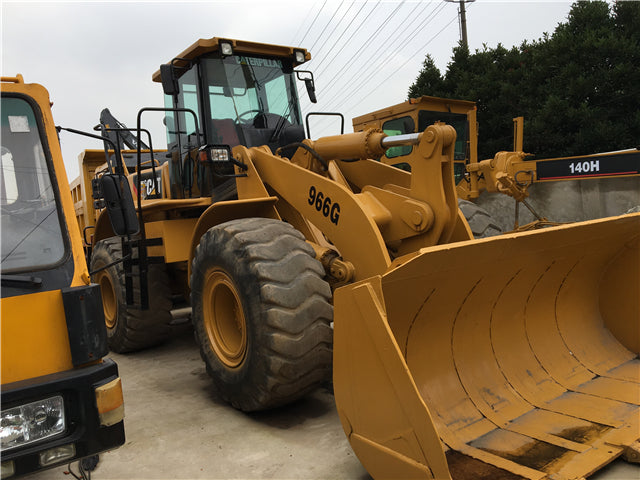

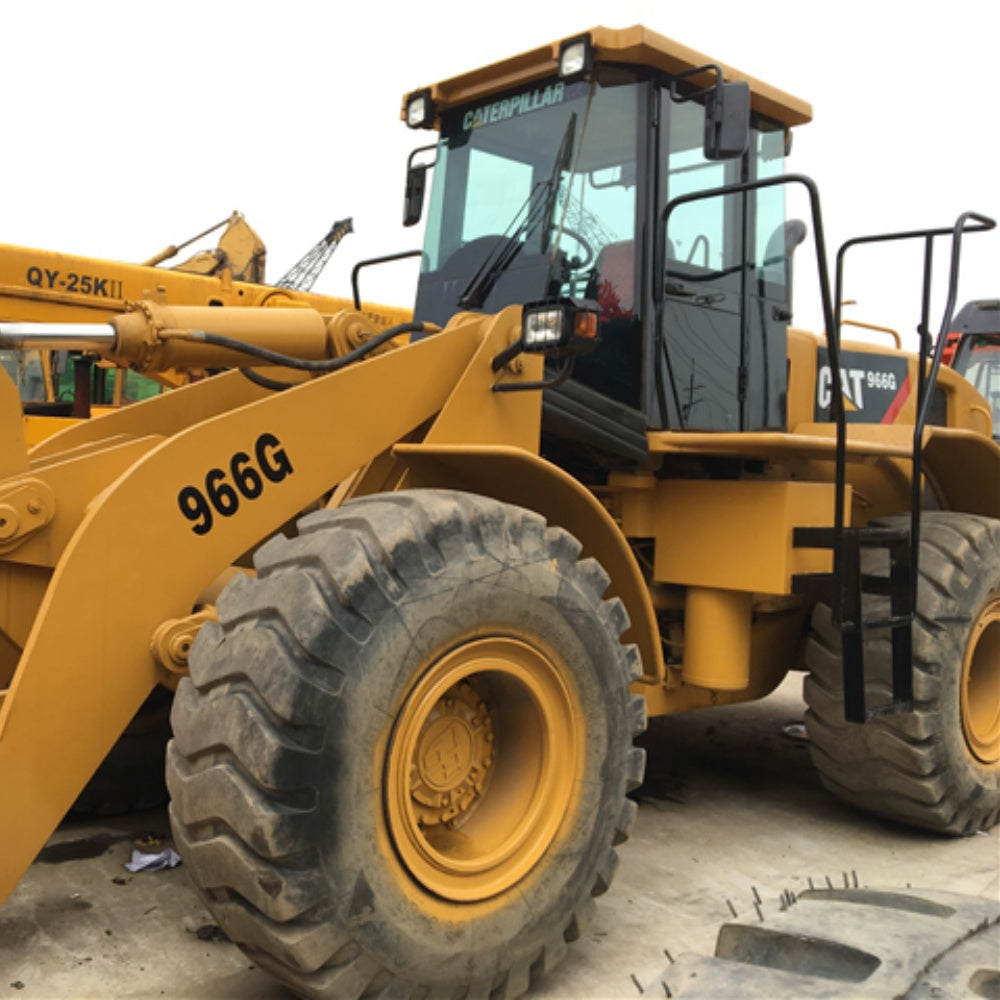

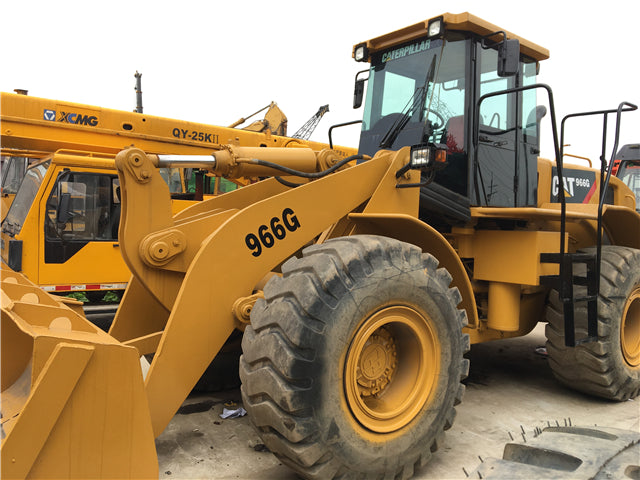

USED CAT 966G

USED CAT 966G

$36,600.00 USD
$36,600.00 USD
Sale Sold out

Cat 966G Wheel Loader Core Specifications (English)

Category Parameter Value
Weight Operating Weight 22,866 kg / 50,410 lb
Static Tipping Load (Full Turn, Bucket) 15,754 kg / 34,732 lb
Engine (Cat 3306 DITA) Rated Gross Power (SAE J1995) 175 kW / 235 hp @ 2,200 rpm
Rated Net Power (ISO 9249) 189 kW / 253 hp @ 2,200 rpm
Displacement 10.5 L / 641 in³
Number of Cylinders 6
Emission Standard Tier 2
Loader Performance Bucket Capacity (Heaped, General Purpose) 3.5-5.5 m³ / 4.6-7.2 yd³
Bucket Breakout Force 194.7 kN / 43,770 lb
Max Hinge Pin Height 3,810 mm / 12.5 ft
Max Dump Clearance 3,180 mm / 10.4 ft
Transmission & Mobility Transmission Type Planetary Powershift (4F/4R)
Max Forward Speed 37.3 km/h / 23.2 mph
Max Reverse Speed 42.3 km/h / 26.3 mph
Standard Tires 26.5-25
Hydraulics Pump Flow Capacity 265 L/min / 70 gal/min
Relief Valve Setting 20,684 kPa / 3,000 psi
Raise Time 6.6 sec
Dump Time 1.3 sec
Lower Time 1.8 sec
Dimensions Length (Overall) 9,030 mm / 29.6 ft
Width (Over Tires) 2,970 mm / 9.7 ft
Height (To Top of ROPS) 3,550 mm / 11.6 ft
Wheelbase 3,660 mm / 12.0 ft
Ground Clearance 457 mm / 18.0 in
Operational Specs Fuel Tank Capacity 410 L / 108.4 gal
Hydraulic System Fluid Capacity 207 L / 54.7 gal
