| Model |

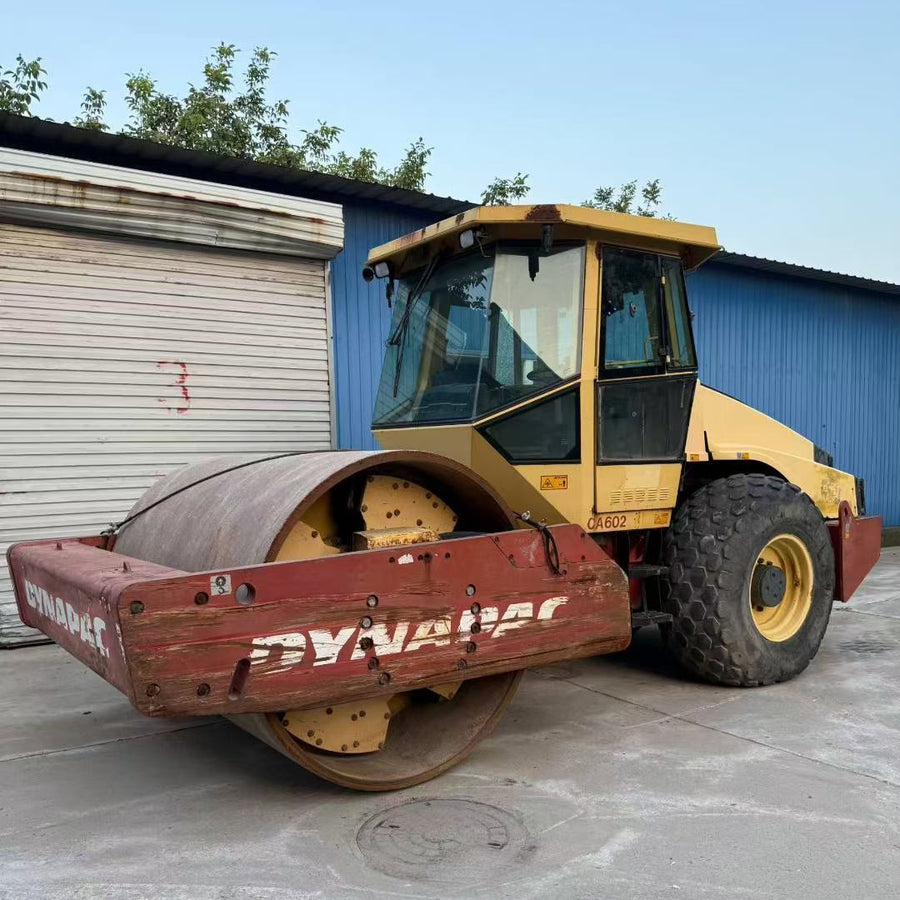

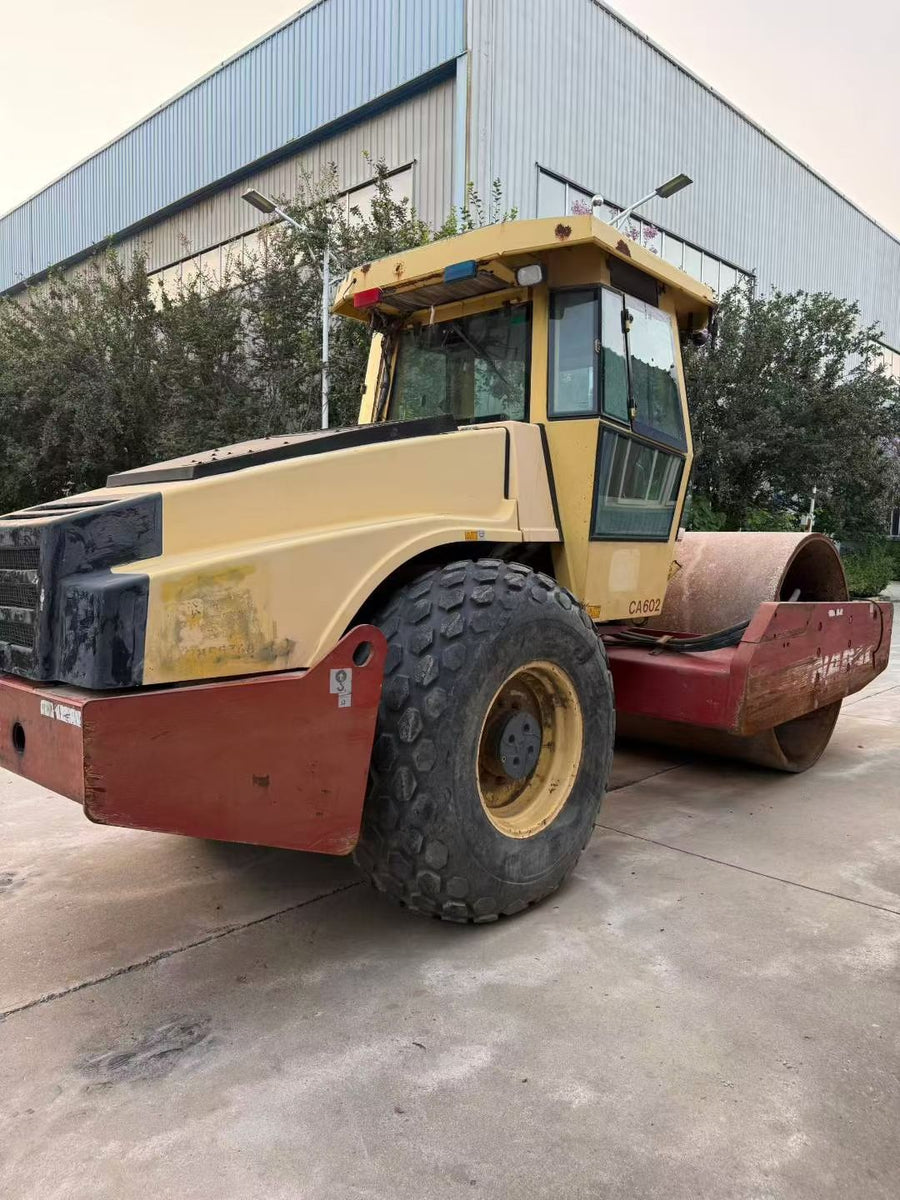

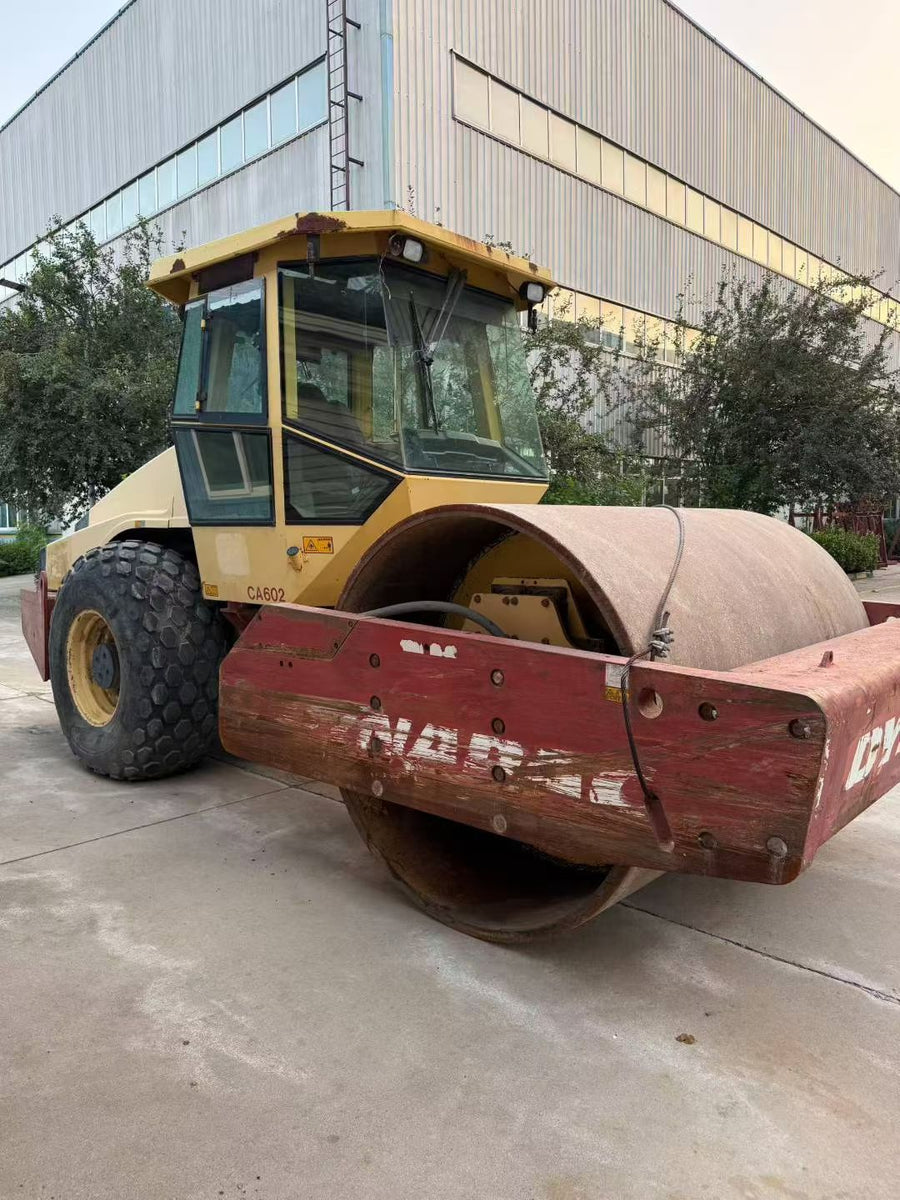

DYNAPAC CA602 (D=smooth drum / PD=padfoot) |
| Operating Weight |
19,000 kg (41,888 lb) |
| Engine Model |
Cummins QSB 6.7 T3（6-cyl, 6.7L, Turbo, Tier 3） |
| Rated Power |
142 kW / 190 HP @ 2,200 rpm |
| Emission |
Tier 3 / China Stage III（No DPF） |
| Vibration Frequency (High/Low) |
31 / 29 Hz |
| Nominal Amplitude (High/Low) |
1.8 / 1.1 mm |
| Centrifugal Force (High/Low) |
317 / 231 kN |
| Drum Width |
2,130 mm |
| Drum Diameter |
1,543 mm |
| Drum Shell Thickness |
50 mm（smooth drum） |
| Static Linear Load |
596 N/cm (59.6 kg/cm) |
| Travel Speed |
11 km/h (6.9 mph) |
| Gradeability |
35° (70%) |
| Fuel Tank Capacity |
320 L (84.6 gal) |
| Dimensions (L×W×H) |
6,180 × 2,400 × 3,000 mm |
| Wheelbase |
2,992 mm |
| Ground Clearance |
450 mm |

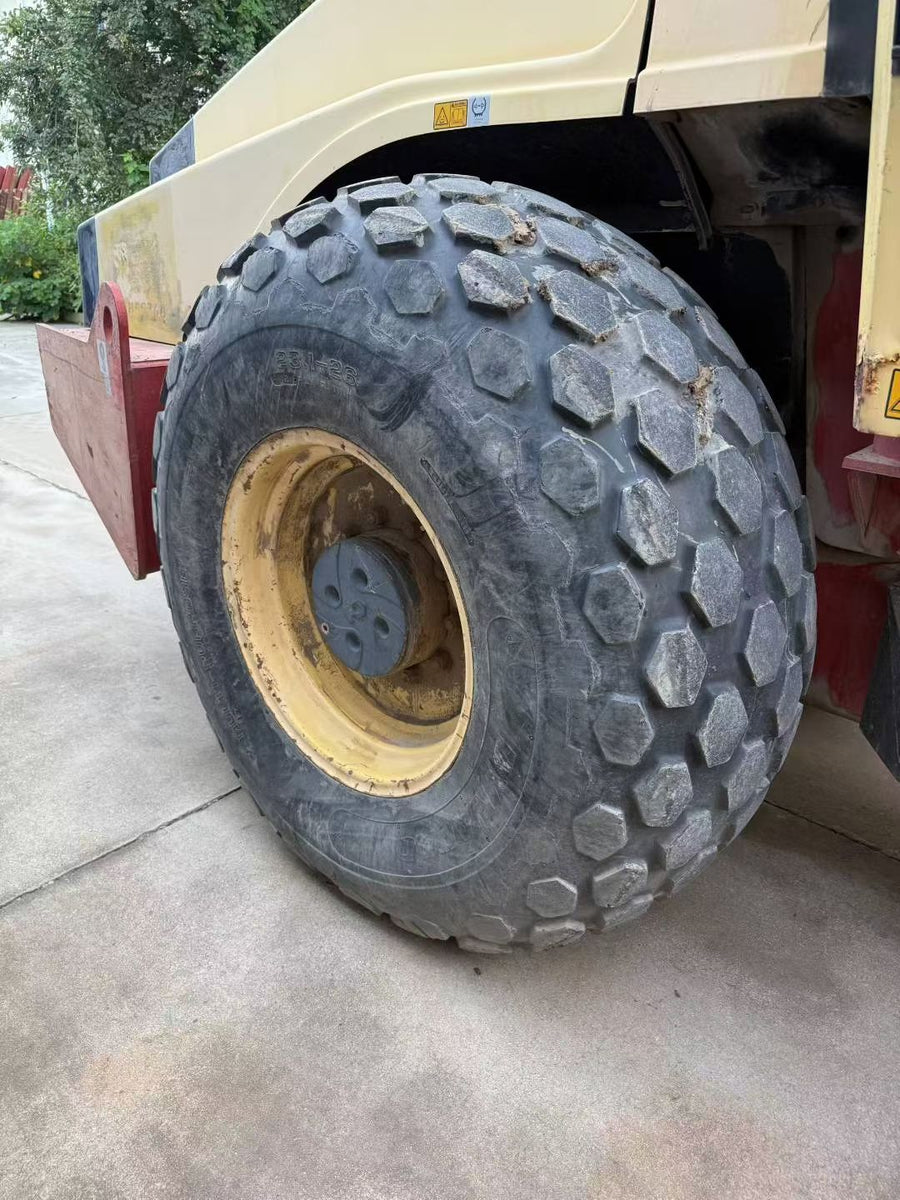

| Tire Size |
23.1×26 |
| Key Features |
Heavy-duty rockfill compaction (up to 1.8m lift), 50mm thick drum, high centrifugal force, Cummins power, ROPS cabin, reliable for mining/quarry |
