HELI

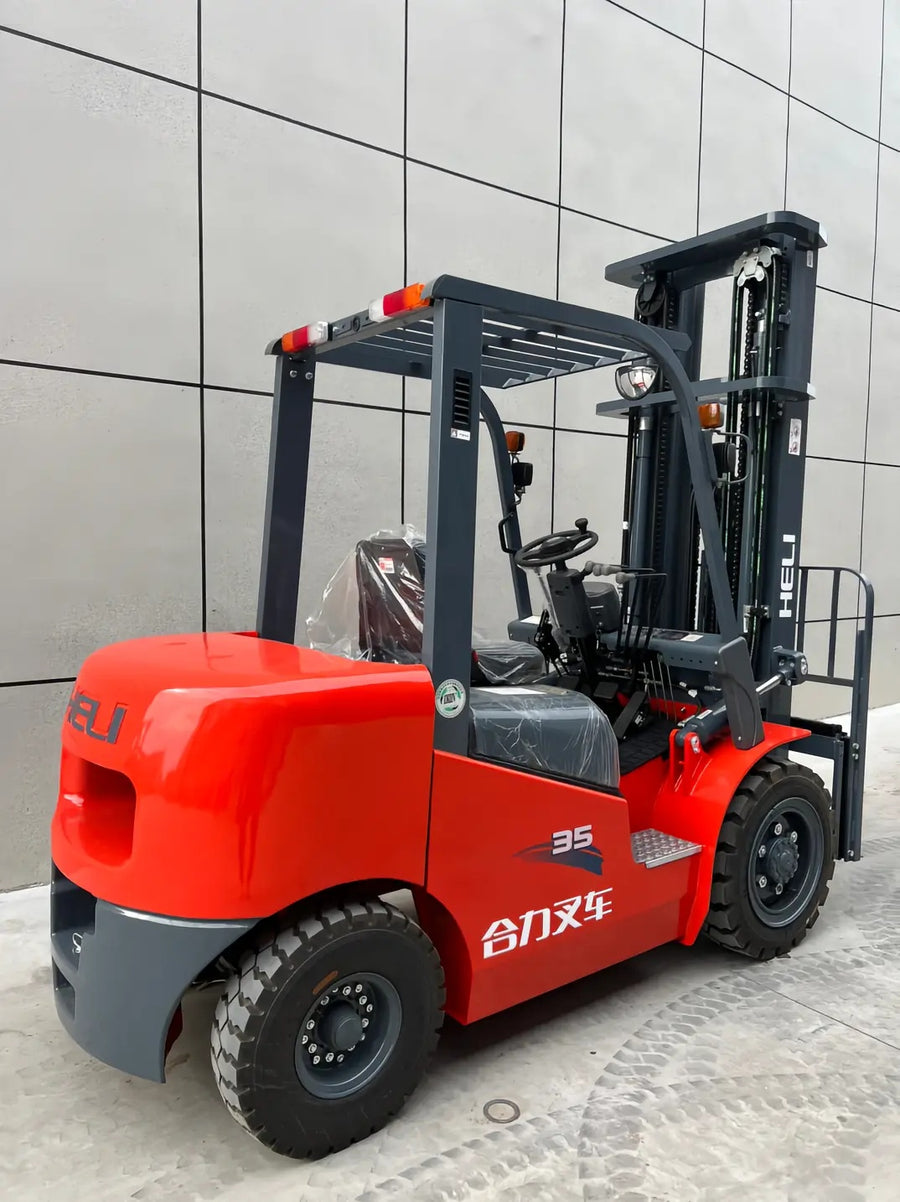

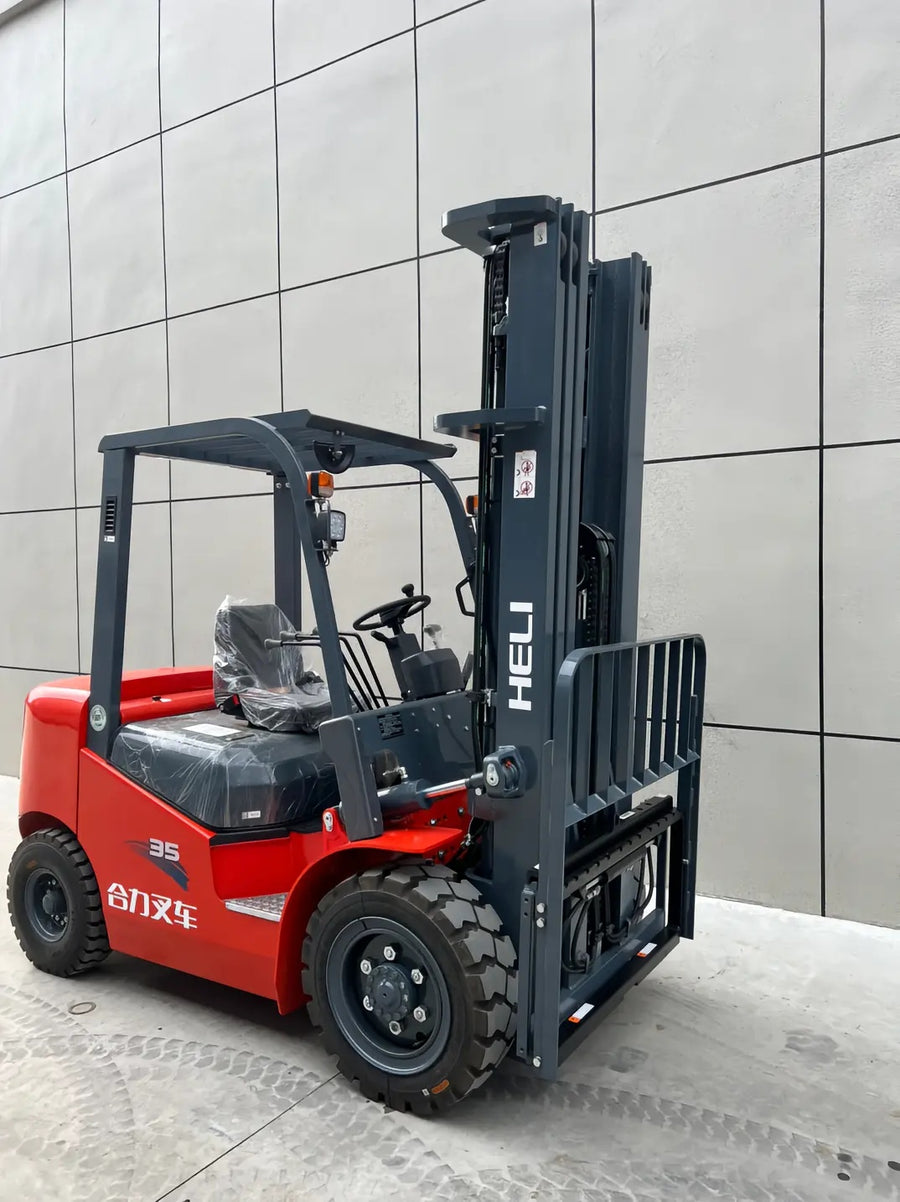

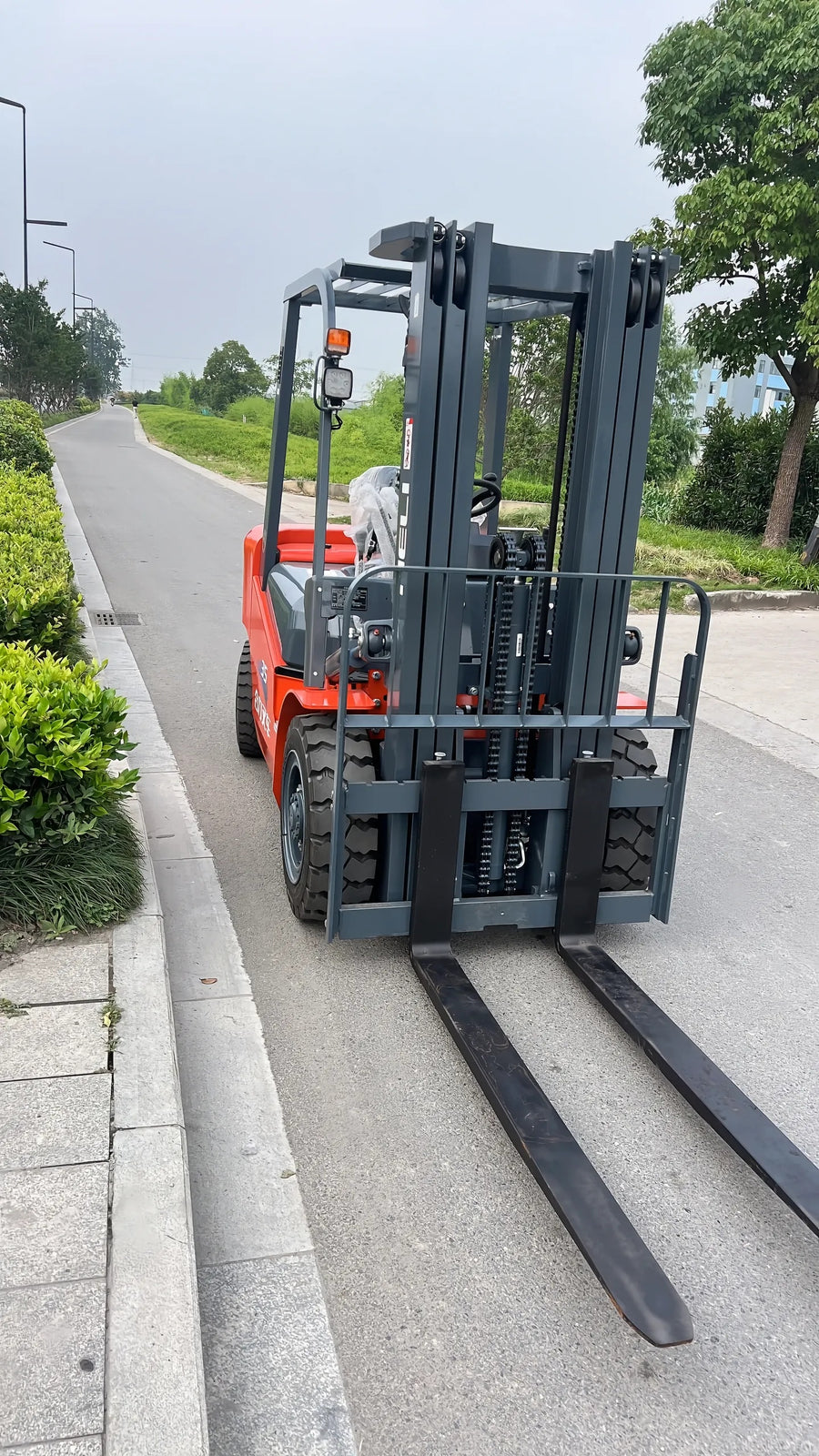

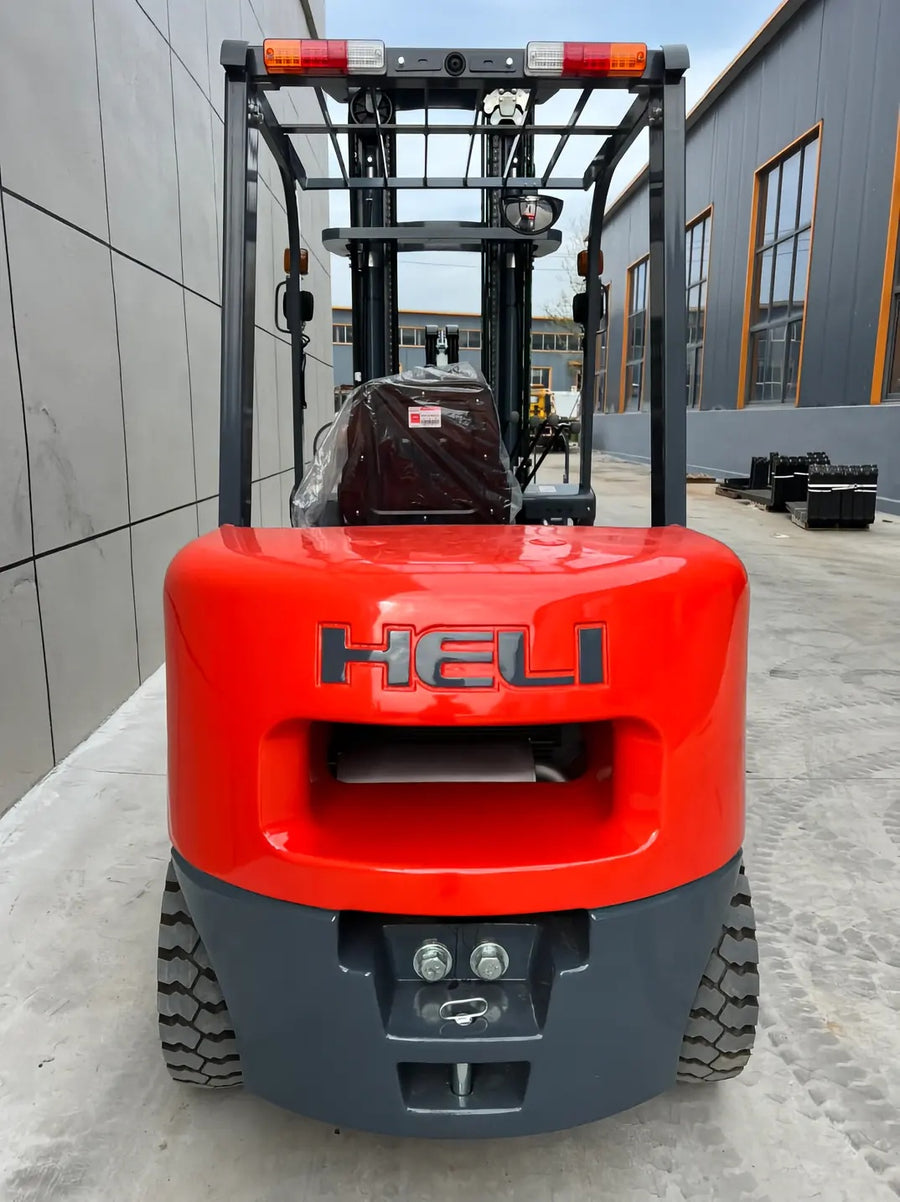

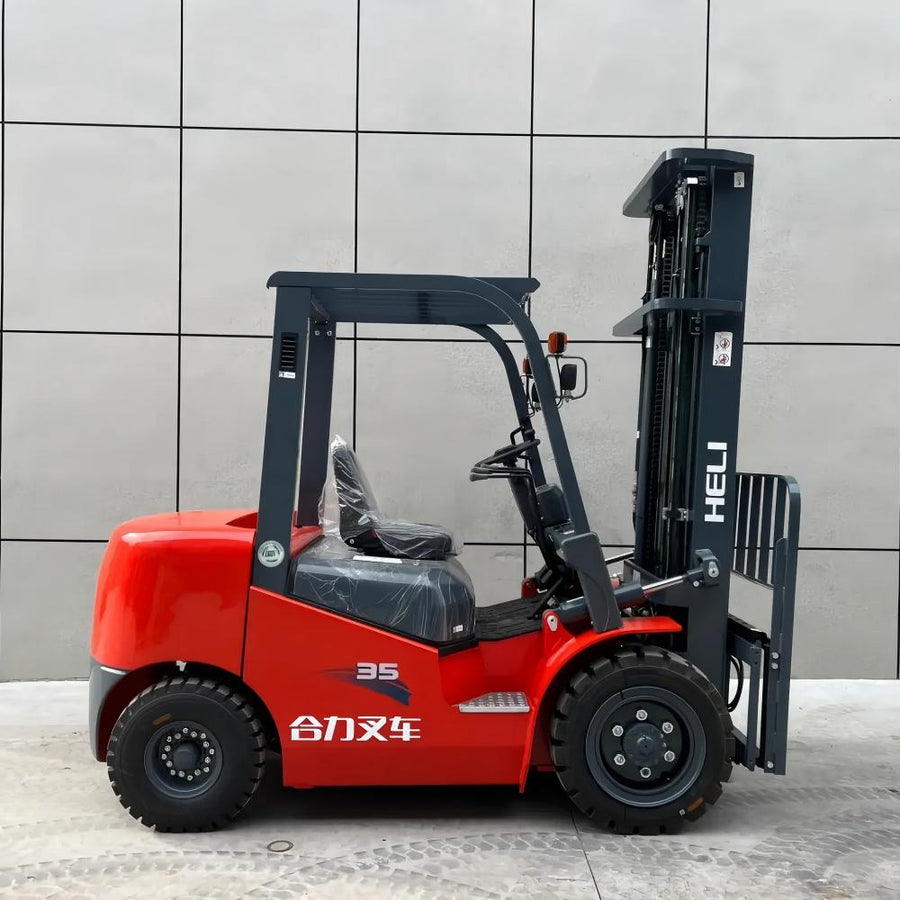

USED HELI FORKLIFT CPC35

$5,000.00 USD

Sale Sold out

Item	Specification
Model	HELI CPC35
Rated Load Capacity	3500 kg
Load Center Distance	500 mm
Overall Length (Without Fork)	2730 mm
Overall Width	1230 mm
Overall Height (Mast Lowered)	2160 mm
Maximum Lifting Height	3000 mm
Free Lift Height	150 mm
Fork Dimension	1070×122×45 mm
Front Wheel Tread	975 mm
Rear Wheel Tread	985 mm
Wheelbase	1530 mm
Minimum Turning Radius	2360 mm
Minimum Ground Clearance	135 mm
Max Travel Speed (Full Load)	18 km/h
Max Gradeability (Full Load)	20%
Mast Tilt Angle (Forward/Backward)	6° / 12°
Front Tire Size	6.50-10
Rear Tire Size	5.00-8
Engine Model	Xichai C490BPG
Engine Type	4-cylinder Water-cooled Diesel Engine
Rated Power	37 kW / 50 HP
Rated Rotational Speed	2600 rpm
Fuel Tank Capacity	60 L
Hydraulic Oil Tank Capacity	45 L
Transmission Type	Mechanical / Hydraulic Automatic
Service Weight	4880 kg
Brake System	Hydraulic Foot Brake + Manual Parking Brake
Operation Mode	Seated Driving Type
