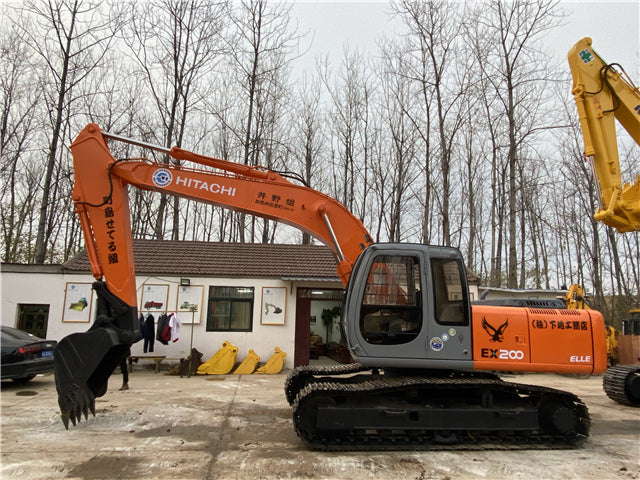

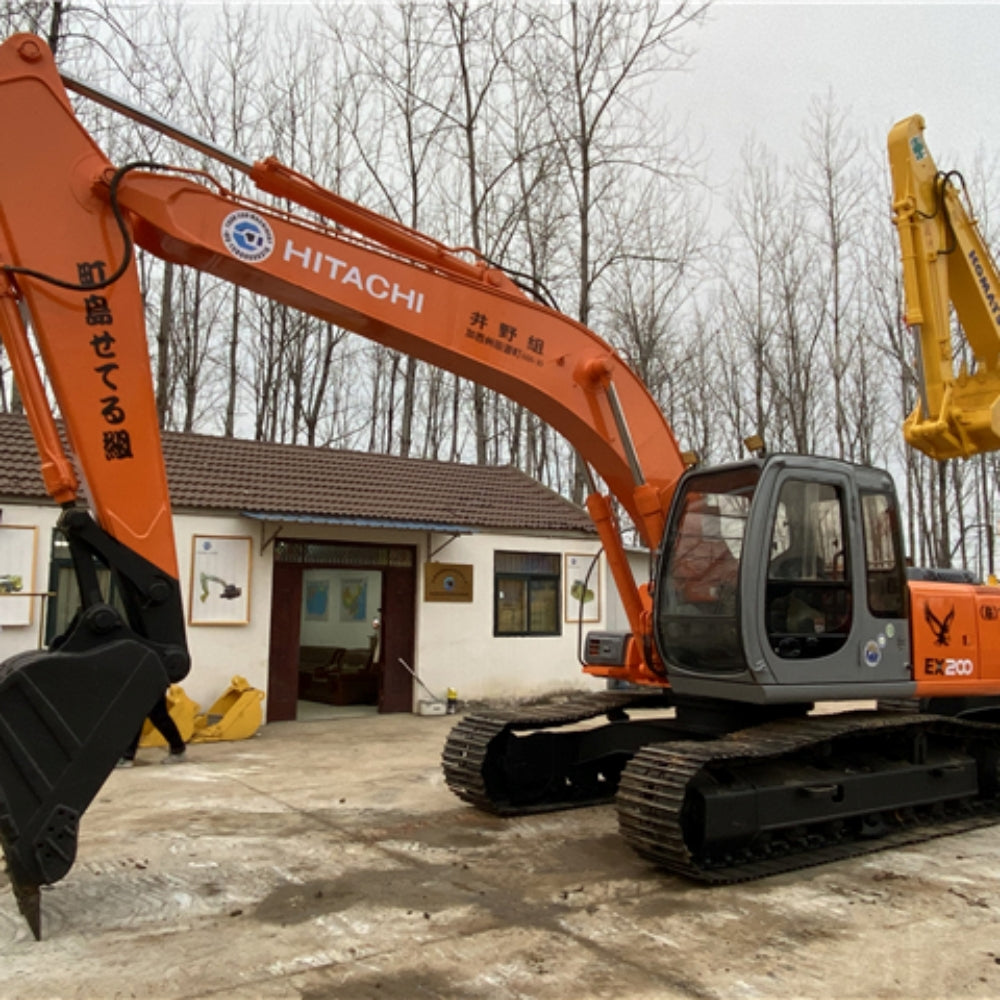

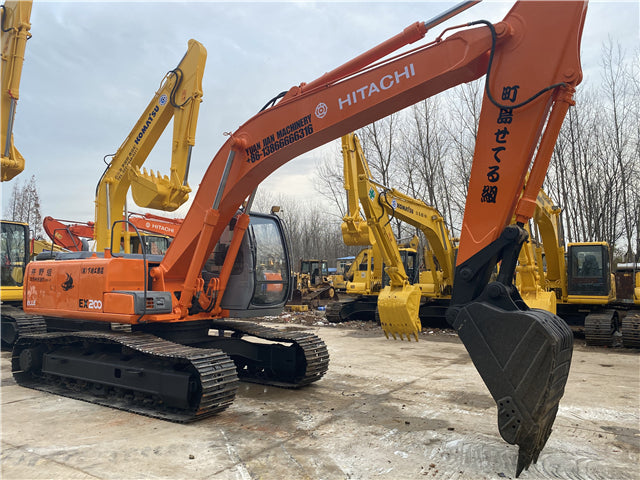

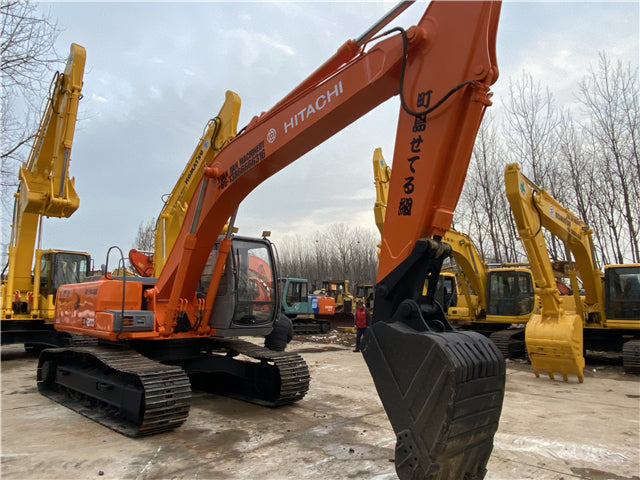

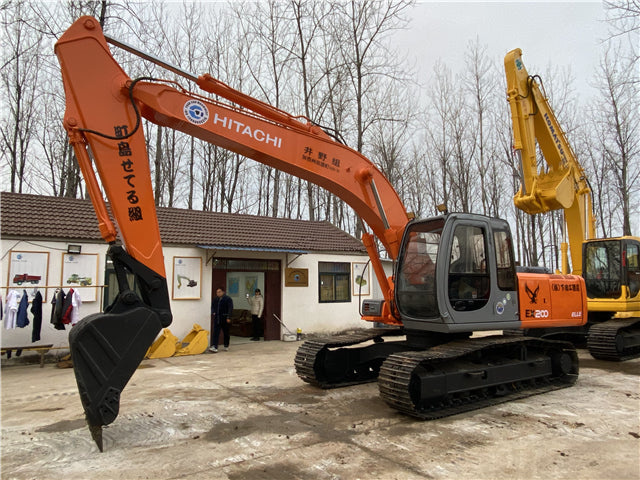

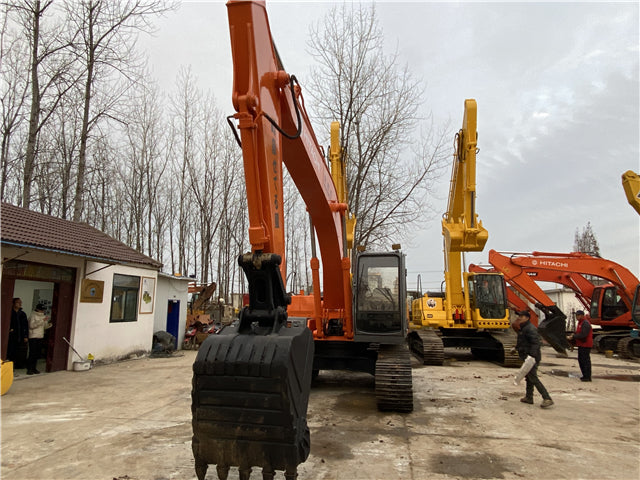

USED HITACHI EX200-5

USED HITACHI EX200-5

$20,000.00 USD
$20,000.00 USD
Sale Sold out


Parameter Details
Model HITACHI EX200-5 (standard crawler excavator)
Engine Model: Isuzu A-6BG1T (6-cylinder, water-cooled, turbocharged diesel)

Rated Net Power: 98.4 kW (132 hp) @ 1950 rpm (SAE J1349); 99 kW (133 hp) @ 1950 rpm (DIN 6271)

Displacement: 6.5 L (396 cu in)

Bore×Stroke: 105 mm×125 mm

Aspiration: Turbocharged

Max Torque: 461 N·m (340 lb·ft) @ 1600 rpm
Hydraulic System Type: Open-center, two variable-displacement axial-piston pumps

Relief Valve Pressure: 34.3 MPa (4980 psi)

Main Pump Flow: 2×185 L/min (2×48.9 US gal/min), total 370 L/min (97.8 US gal/min)

Hydraulic Fluid Capacity: 200 L (52.9 US gal)
Operating Weight 18800 kg (41,447 lbs) (standard configuration with bucket and boom)
Bucket (Standard) Capacity: 0.8 m³ (1.05 yd³) (heaped); Optional: 0.51-1.2 m³

Max Digging Depth: 6000 mm (19.7 ft)

Max Loading Height: 6650 mm (21.8 ft)

Max Reach Along Ground: 9140 mm (30.0 ft)

Max Digging Height: 9200 mm (30.2 ft)
Dimensions Overall Length: 9620 mm (31.6 ft)

Overall Width (over tracks): 2800 mm (9.2 ft)

Height (top of cab): 3090 mm (10.1 ft)

Rear Swing Radius: 2750 mm (9.0 ft)

Track Gauge: 2200 mm (7.2 ft)

Ground Clearance: 450 mm (1.5 ft)
Undercarriage & Travel Track Shoe Width: 600 mm (23.6 in)

Ground Contact Length: 3770 mm (12.4 ft)

Ground Pressure: 42.1 kPa (6.1 psi)

Max Travel Speed: 5.5 kph (3.4 mph) (high); 3.4 kph (2.1 mph) (low)
Capacities Fuel Tank: 310 L (81.9 US gal)

Engine Oil: 25 L (6.6 US gal)

Coolant: 23 L (6.1 US gal)
Swing Mechanism Swing Speed: 13.9 rpm

Swing Drive Fluid Capacity: 8.4 L (2.2 US gal)
