HITACHI

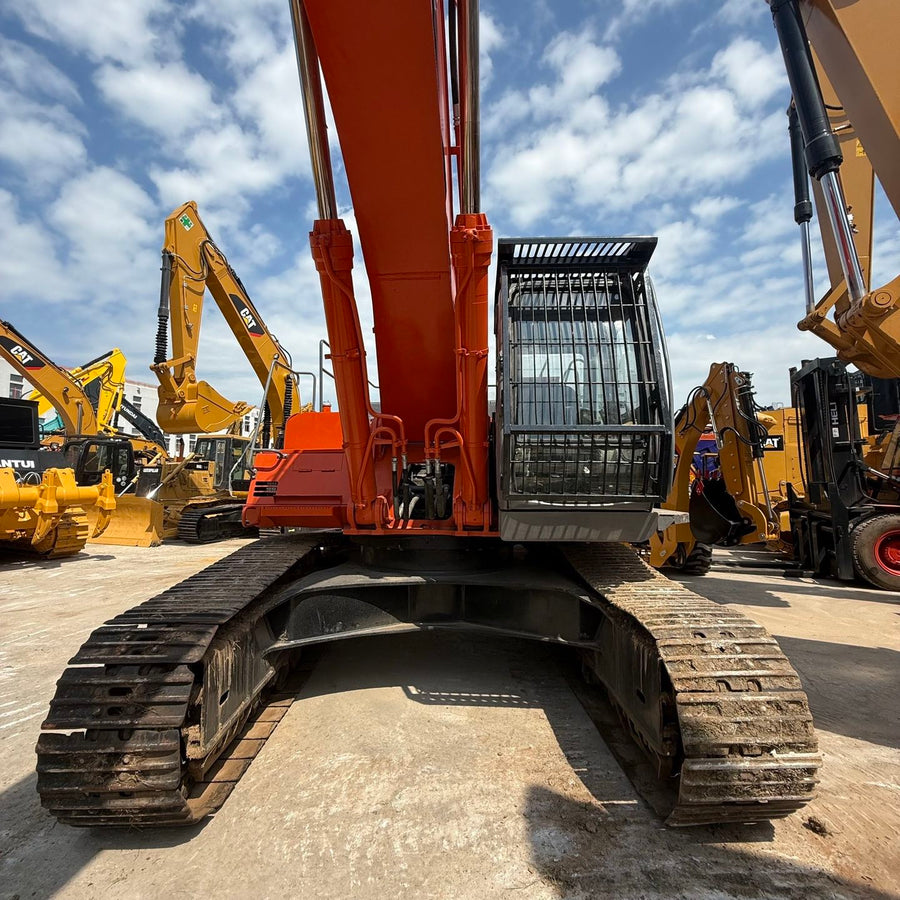

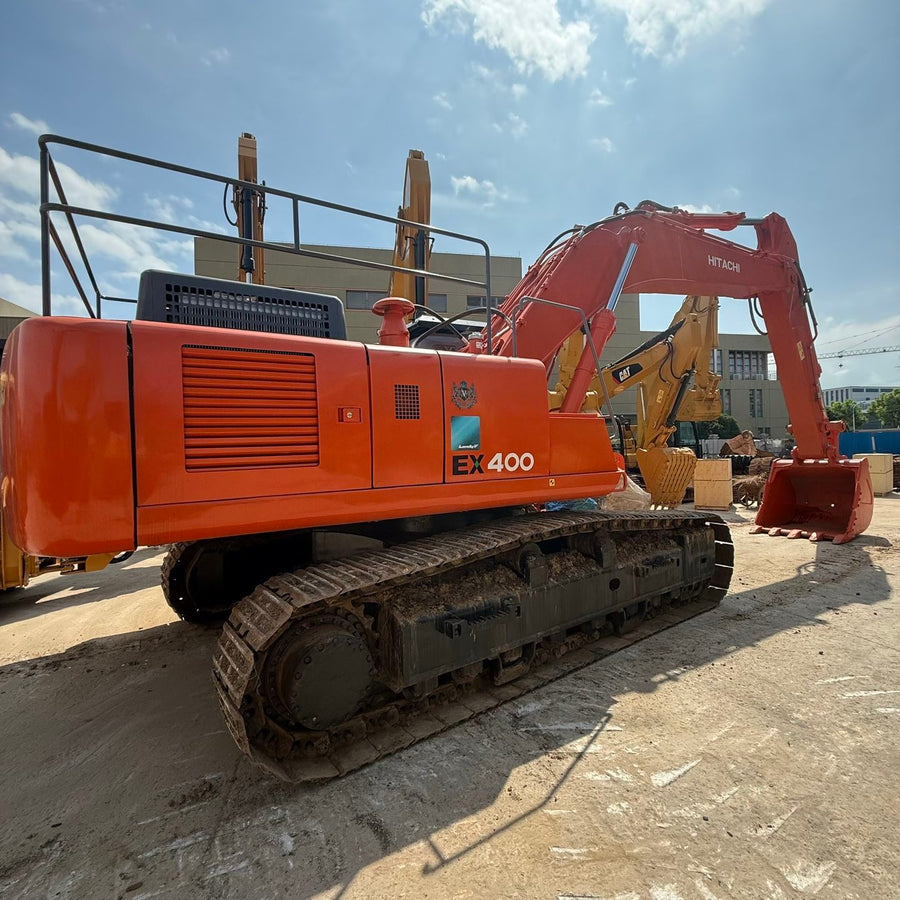

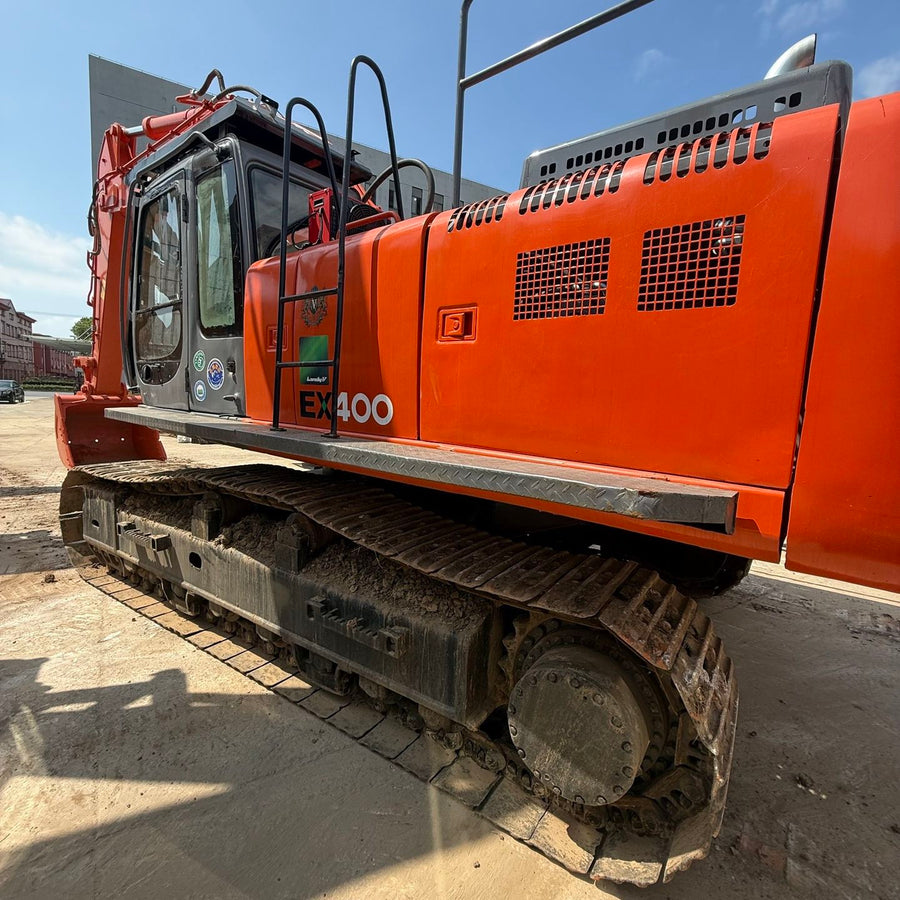

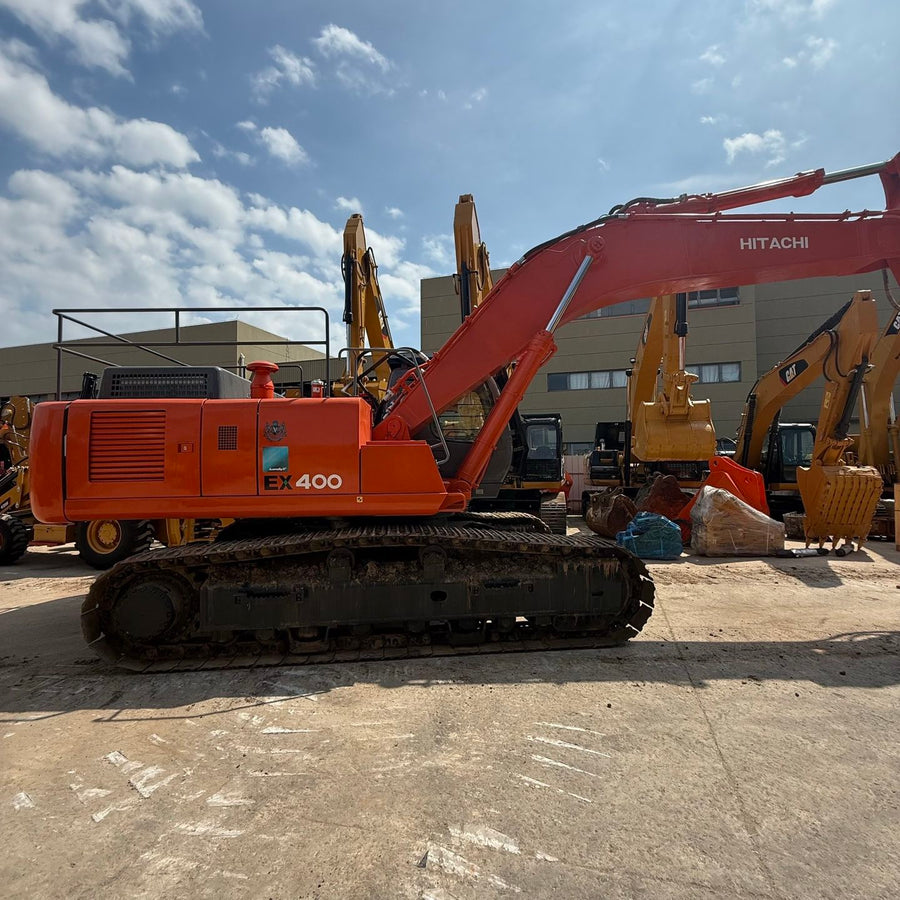

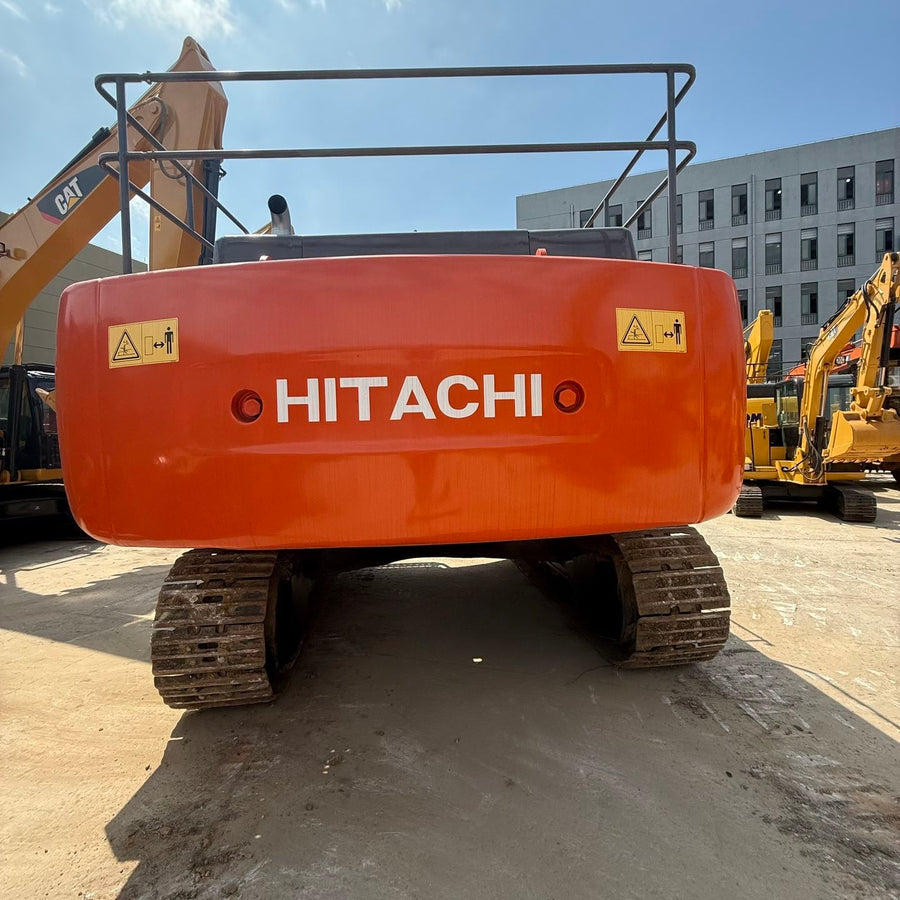

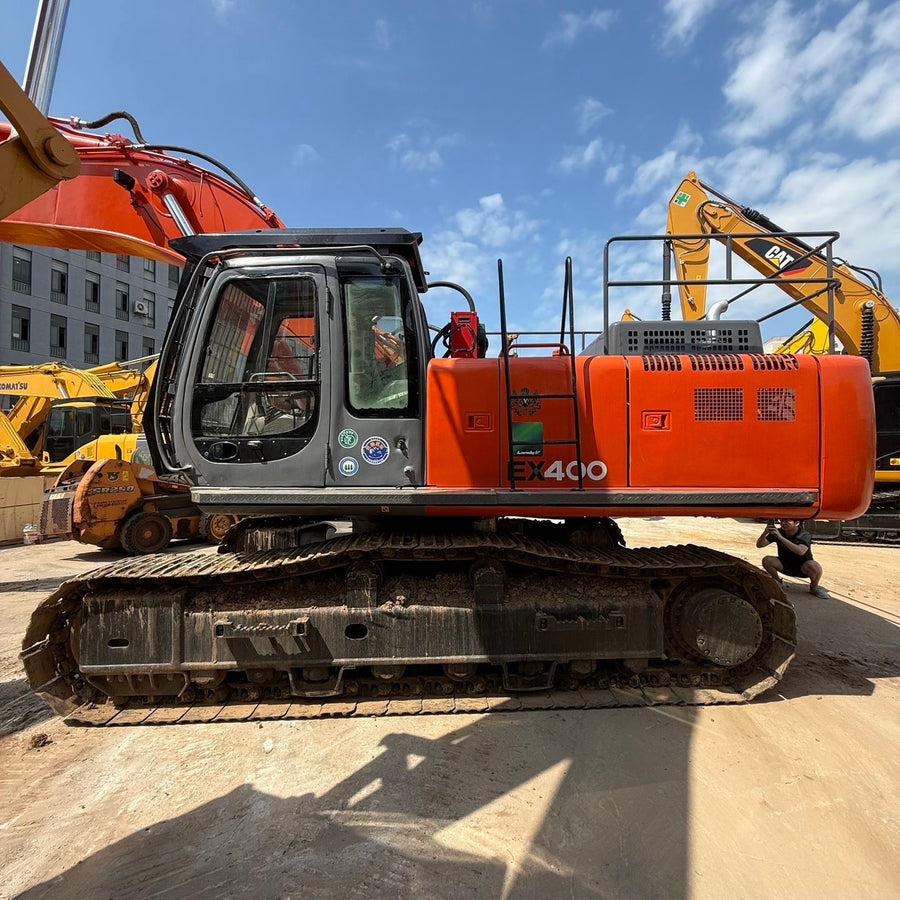

USED HITACHI EX400-5

$41,000.00 USD

Sale Sold out

Item	Specification
Model	Hitachi EX400-5 (Standard)
Operating Weight	41,000 kg
Standard Bucket Capacity	1.8 m³ (Range:1.4–2.3 m³)
Overall Dimensions (L×W×H)	11,442 × 3,290 × 3,520 mm
Track Shoe Width	600 mm
Track Gauge	2,890 mm
Min. Ground Clearance	490 mm
Tail Swing Radius	3,500 mm
Engine Model	Isuzu AA-6WG1TQA (6-cylinder, turbocharged, water-cooled)
Rated Power	224.5 kW @ 2,000 rpm
Max Torque	1,230 N·m @ 1,400 rpm
Displacement	15.7 L
Emission Standard	Tier 2 / Stage II
Fuel Tank Capacity	605 L
Hydraulic Tank Capacity	520 L
Max Digging Depth	6,860 mm
Max Digging Radius (Ground Level)	9,900 mm
Max Digging Height	10,750 mm
Max Dumping Height	7,220 mm
Max Vertical Digging Depth	4,890 mm
Bucket Digging Force	235 kN
Arm Digging Force	192 kN
Max Traction Force	320 kN
Travel Speed (Low/High)	3.4 / 5.5 km/h
Swing Speed	9.8 rpm
Gradeability	35° (70%)
Ground Pressure	59 kPa
