1 5

HYUNDAI

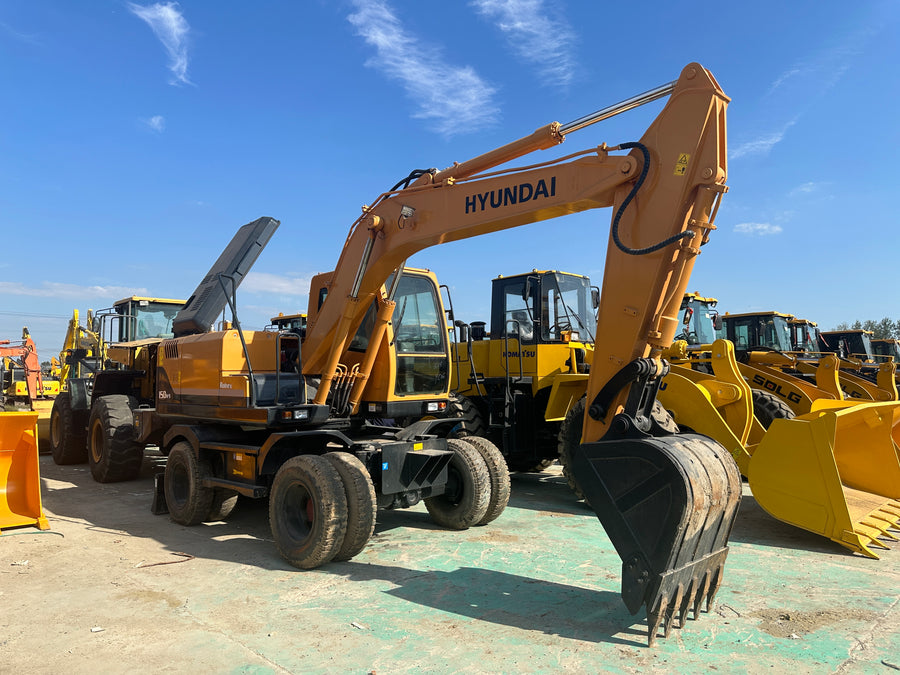

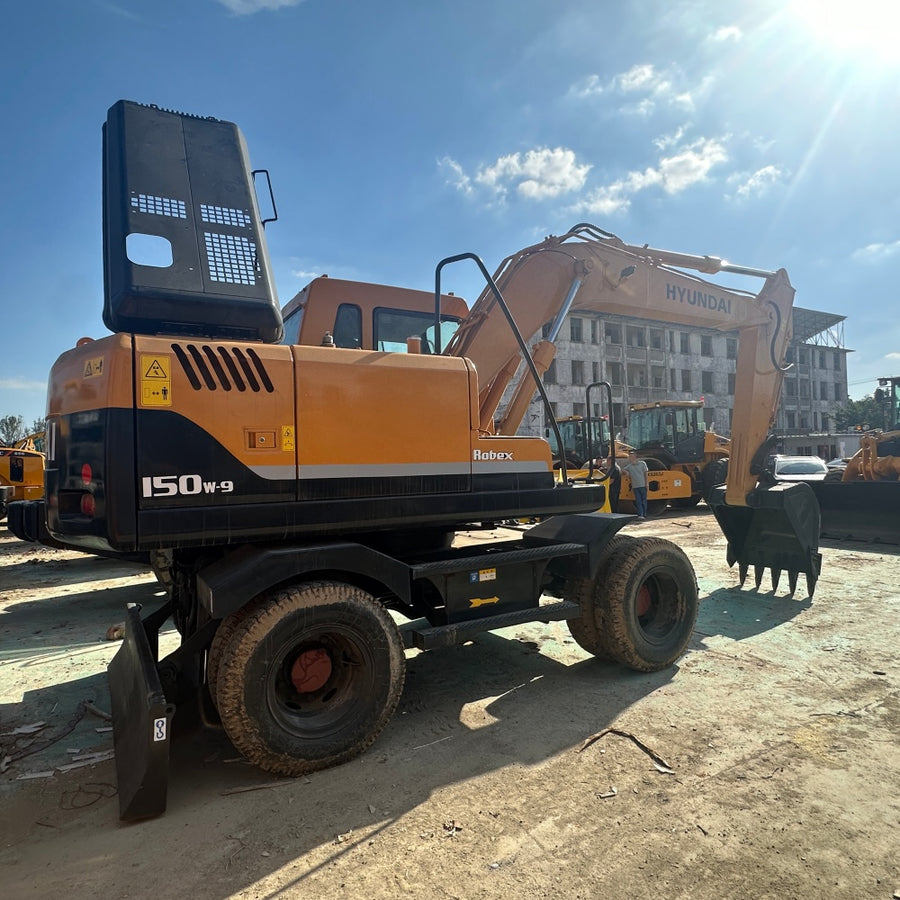

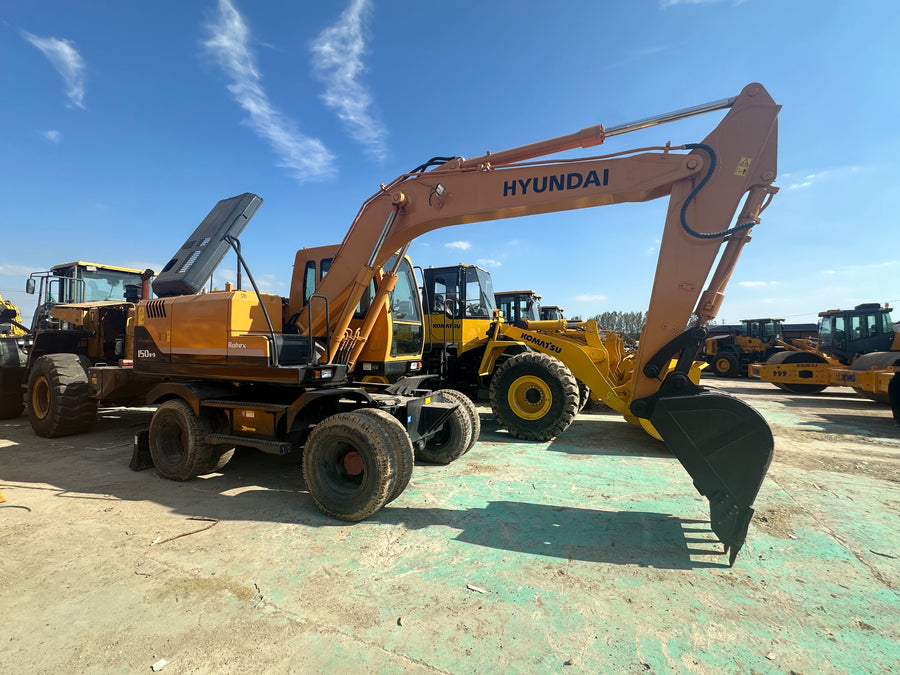

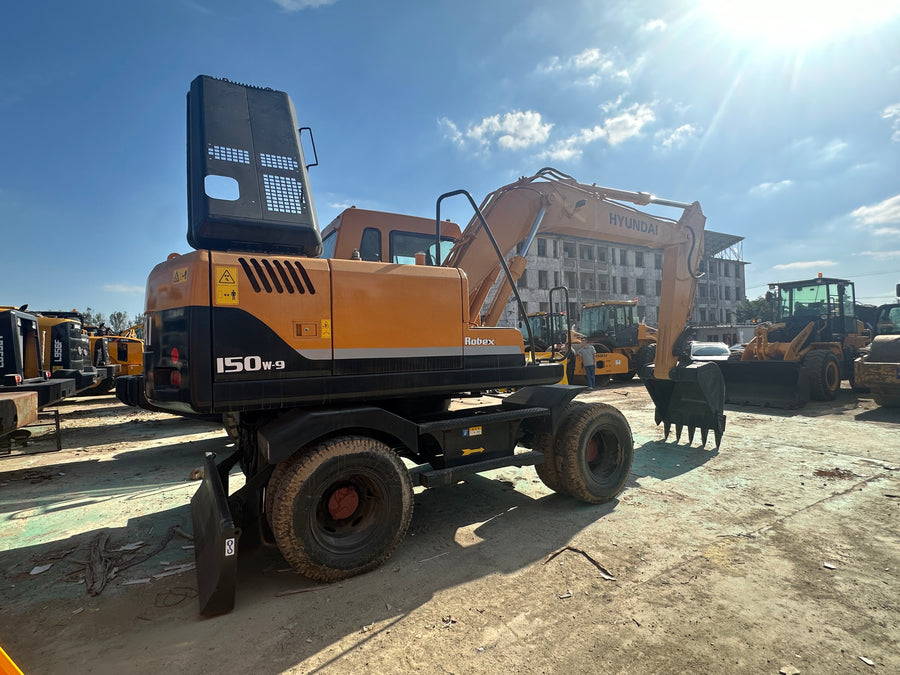

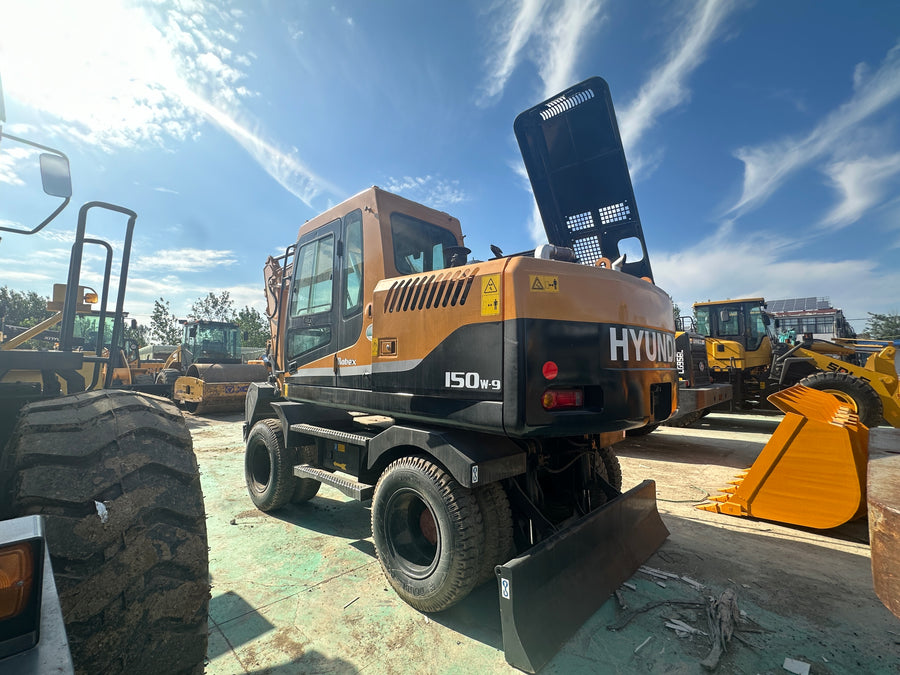

USED HYUNDAI R150W-9

USED HYUNDAI R150W-9

$15,000.00 USD
$15,000.00 USD
Sale Sold out
Category Parameters
Basic Info Model: Hyundai R150W-9

Type: Hydraulic Wheel Excavator

Operating Weight: 30,203 lb (13,700 kg)

Standard Bucket Capacity: 0.55 m³ (0.72 yd³); Range: 0.23-0.71 m³ (0.30-0.93 yd³)

Boom Length: 15.09 ft (4,600 mm)

Stick Length: 6.89 ft (2,100 mm)
Engine Model: Cummins B5.9-C

Type: 6-cylinder, water - cooled, 4-stroke turbocharged diesel

Displacement: 359.9 cu in (5.9 L)

Rated Power: 150 hp (112 kW) @ 1,950 rpm

Max Torque: 452.4 lbf - ft (613.5 N•m)

Cooling System: Water - cooled
Hydraulics System Relief Pressure: 5,076 psi (35 MPa)

Main Pump Flow: 111.5 gal/min (422 L/min) (2×168 L/min)

Hydraulic Fluid Capacity: 33.3 gal (126 L)

Main Pump Type: Variable Displacement Axial Piston Pump
Performance Max Travel Speed: 23 mph (37 km/h) (High gear); 6.2 mph (10 km/h) (Low gear)

Swing Speed: 13 rpm

Bucket Digging Force: 101.9 kN (22,918 lbf)

Stick Digging Force: 65.6 kN (14,747 lbf)

Max Digging Depth: 15.91 ft (4,850 mm)

Max Digging Reach (Ground Level): 25.26 ft (7,700 mm)

Max Digging Height: 27.8 ft (8,470 mm)

Gradeability: 35% (19.3°)
Capacities Fuel Tank: 71.3 gal (270 L)

Engine Oil Capacity: 3.2 gal (12 L)

Cooling System Fluid Capacity: 6.6 gal (25 L)
Dimensions Transport Length×Width×Height: 25.46 ft×8.20 ft×11.48 ft (7,760×2,500×3,500 mm)

Wheelbase: 9.19 ft (2,800 mm)

Tire Size: 12.00-20-16PR

Tail Swing Radius: 7.55 ft (2,300 mm)

Min Ground Clearance: 1.57 ft (480 mm)
Electrical System Voltage: 24 V

Alternator Output: 50 A
