| Model |

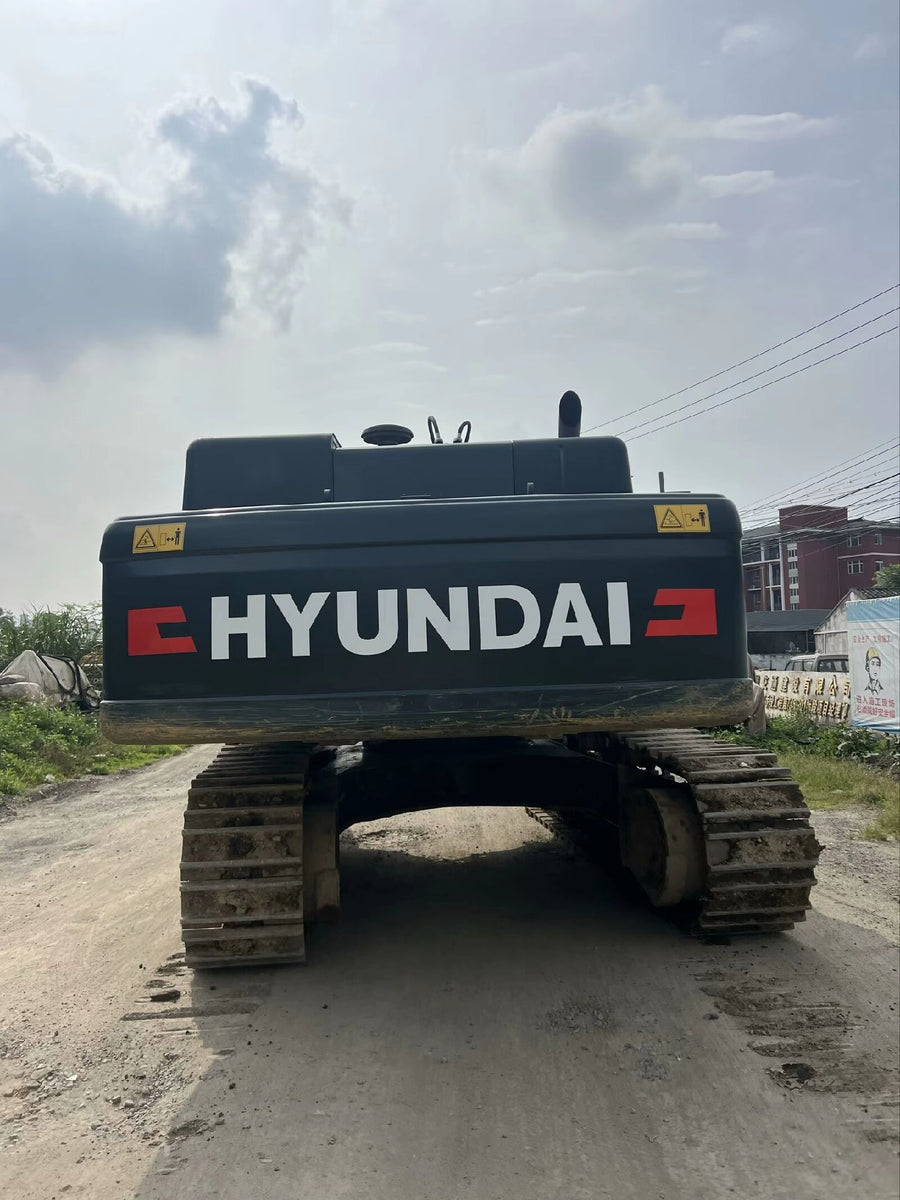

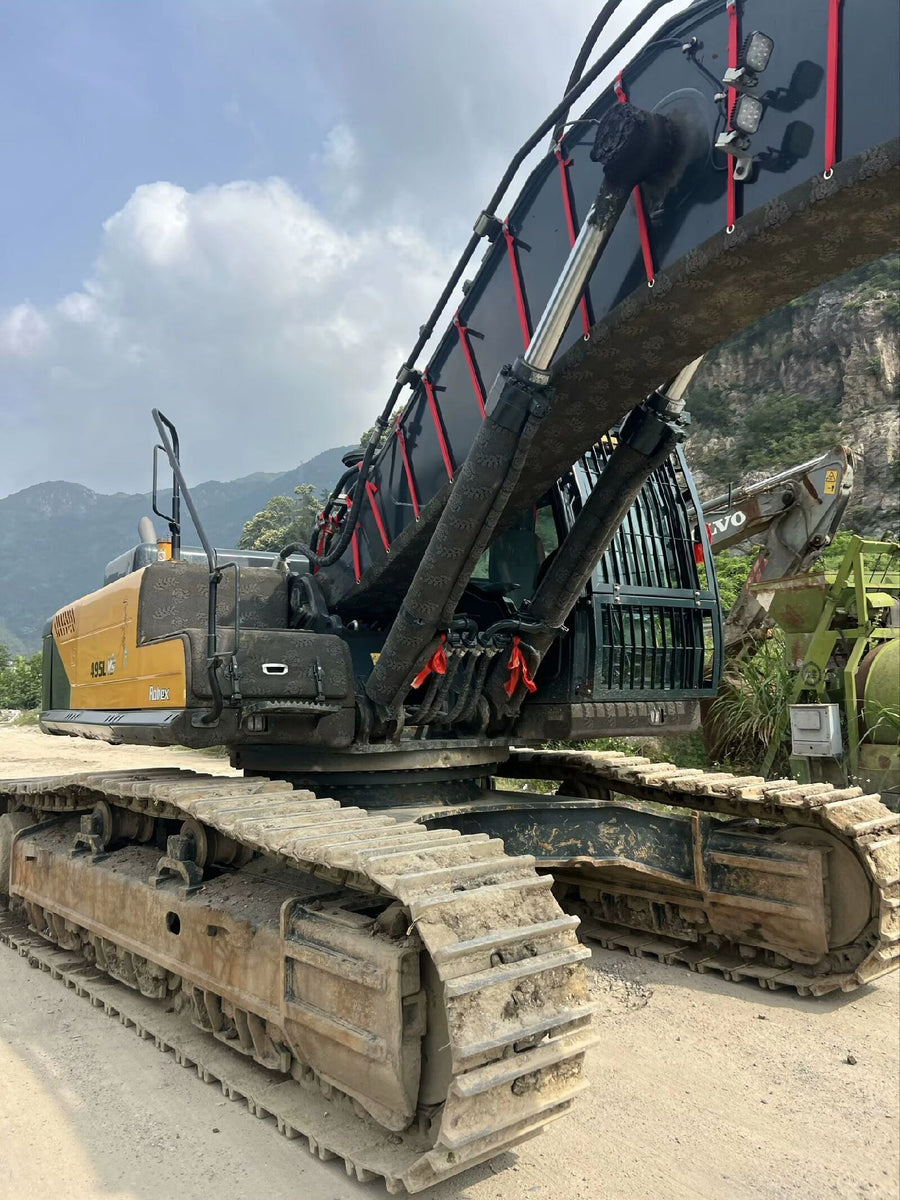

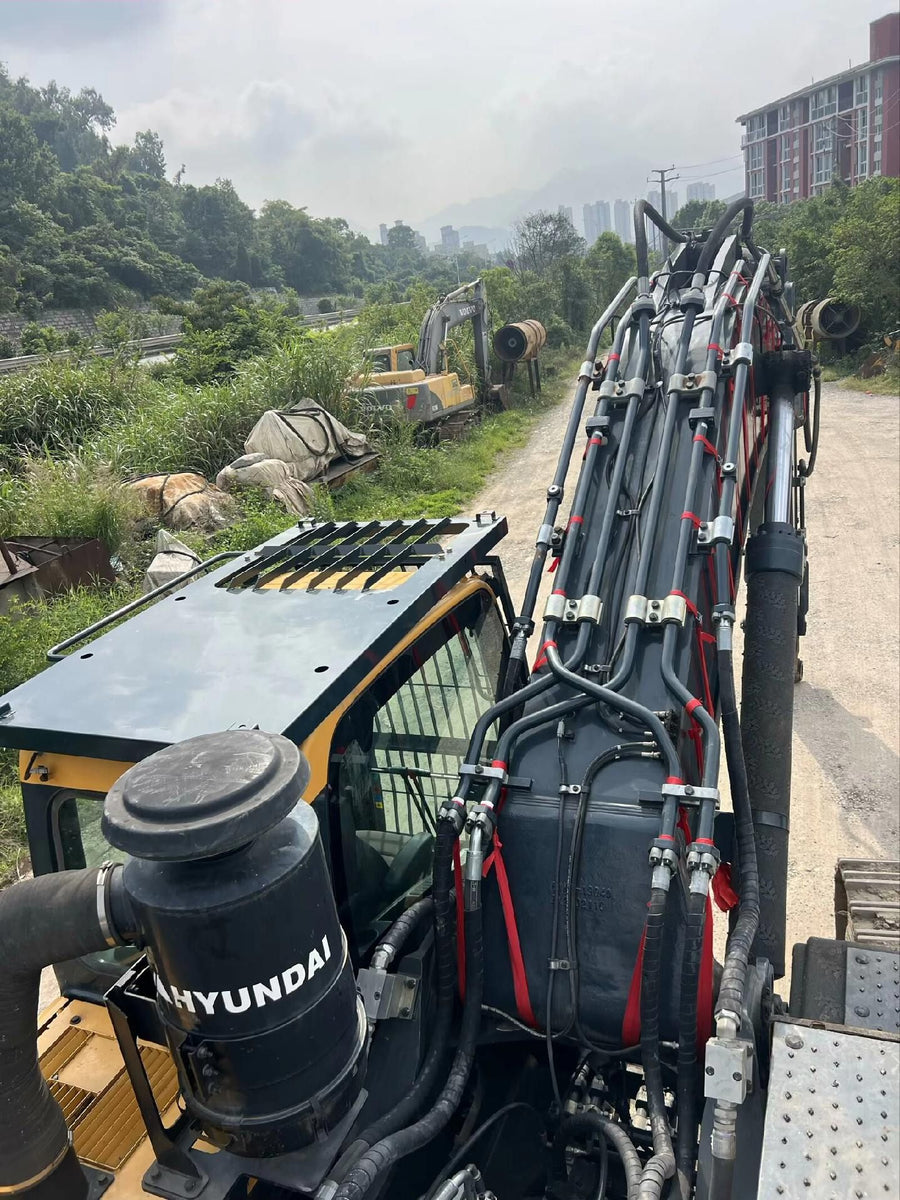

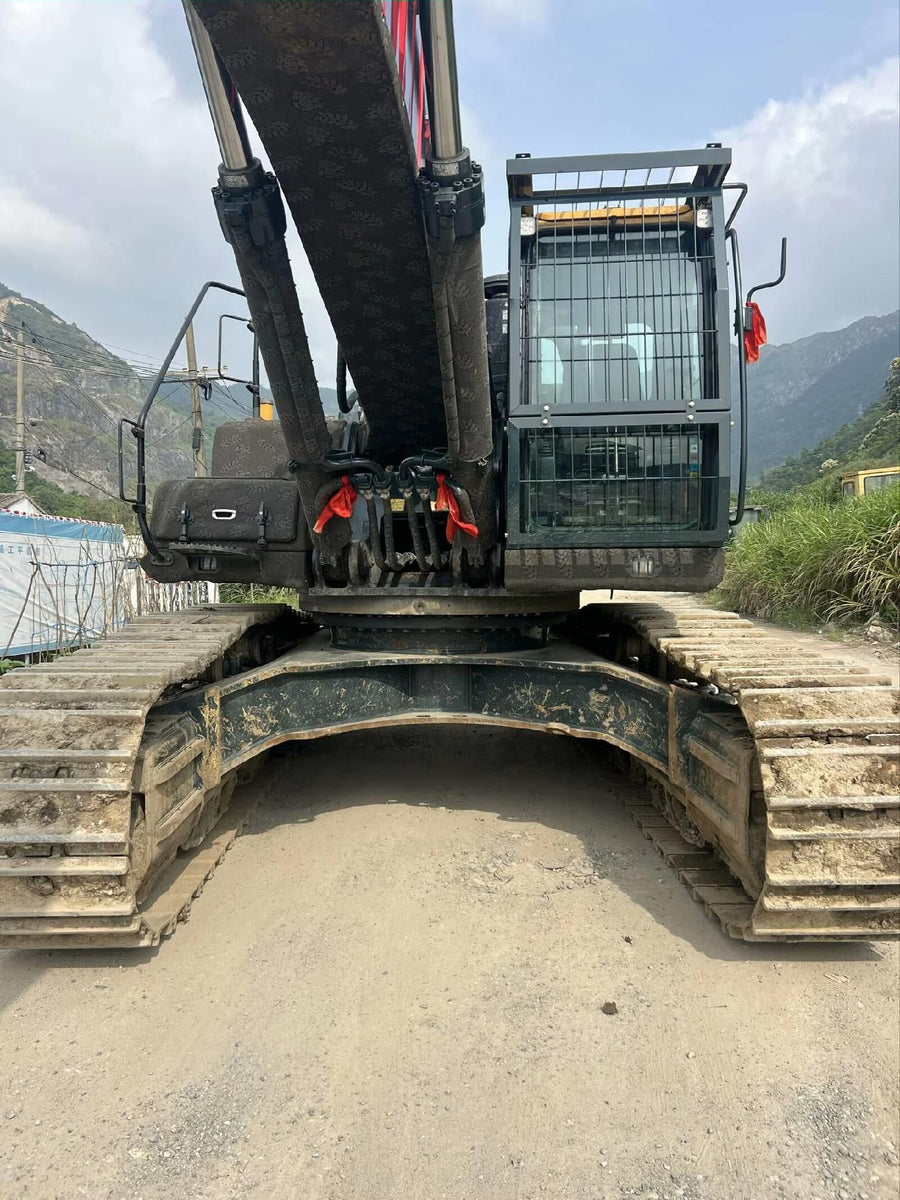

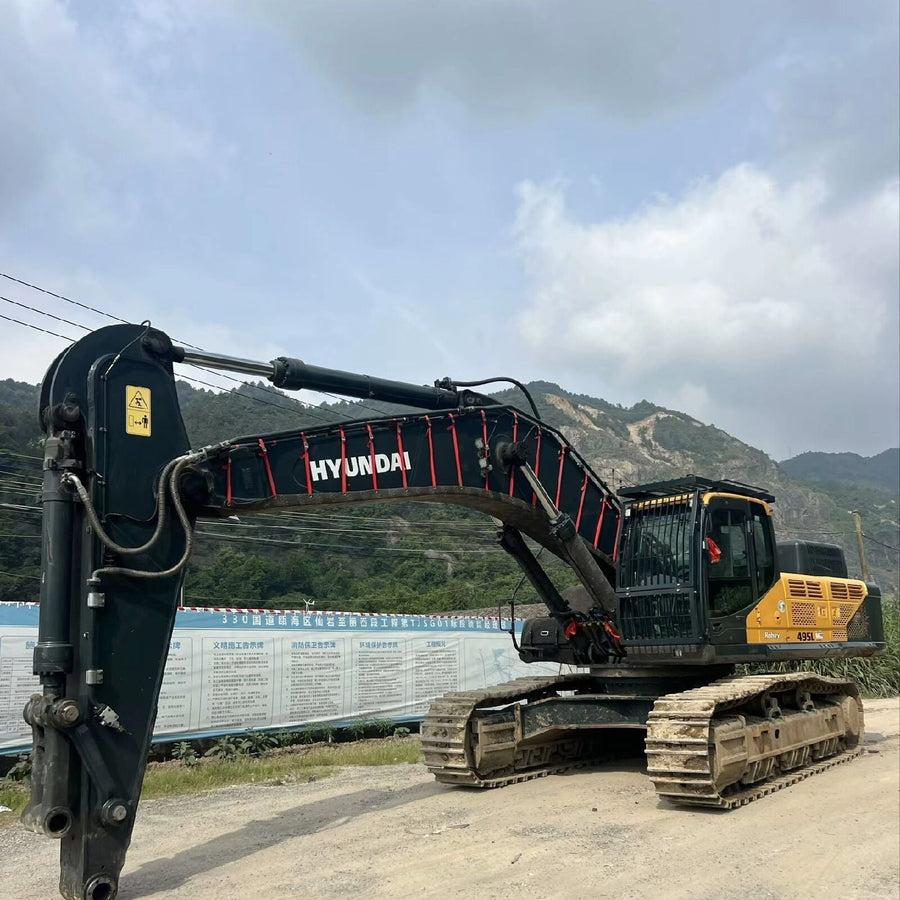

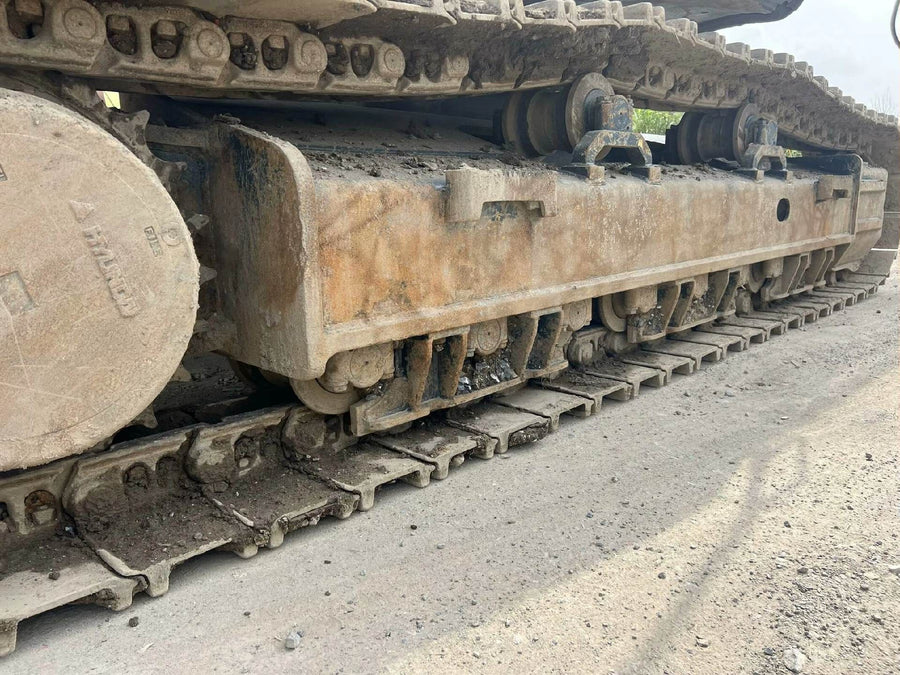

HYUNDAI ROBEX R495LVS (45.9t Crawler Excavator) |
| Operating Weight |
45,875 kg (101,157 lb) |
| Bucket Capacity (Std) |
2.50 m³ (3.27 yd³) rock bucket |
| Engine Model |
Cummins QSM11 (6‑cyl turbo diesel, 10.8L) |
| Rated Power |
263 kW / 353 HP @ 1,900 rpm |
| Max Torque |
1,650 N·m @ 1,500 rpm |
| Emission |
Euro 3 / Tier 3 / 国三 |
| Max Digging Depth |
6,907 mm (22.7 ft) |
| Max Reach (Ground) |
11,057 mm (36.3 ft) |
| Max Dump Height |
6,983 mm (22.9 ft) |
| Max Digging Height |
10,363 mm (34.0 ft) |
| Bucket Digging Force |
248 kN (25.3 tf) |
| Arm Digging Force |
225 kN (22.9 tf) |
| Travel Speed (High/Low) |
5.0 / 3.1 km/h (3.1 / 1.9 mph) |
| Swing Speed |
8.5 rpm |
| Gradeability |
35° (70%) |
| Ground Pressure |
82 kPa |
| Main Pump Flow |
2 × 380 L/min |
| Relief Pressure |
35 MPa (5,075 psi) |
| Fuel Tank |
620 L (163.8 gal) |
| Hydraulic Tank |
262 L (69.2 gal) |
| Dimensions (L×W×H) |
11,710 × 3,340 × 3,810 mm |
| Track Width |
600 mm (800 mm optional) |
| Key Features |
45.9t mining/breaker, 353HP Cummins QSM11, 2.5m³ HD rock bucket, breaker circuit std, heavy‑duty undercarriage, quarry/rock/overburden |
