KOBELCO

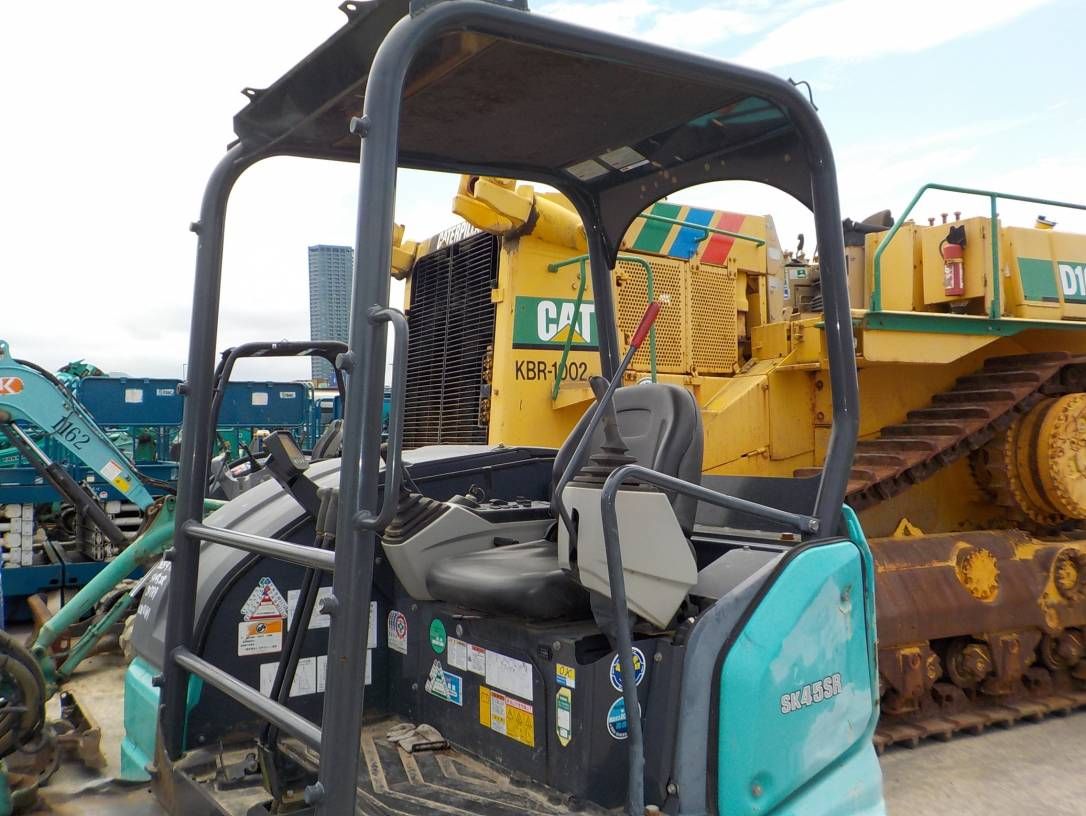

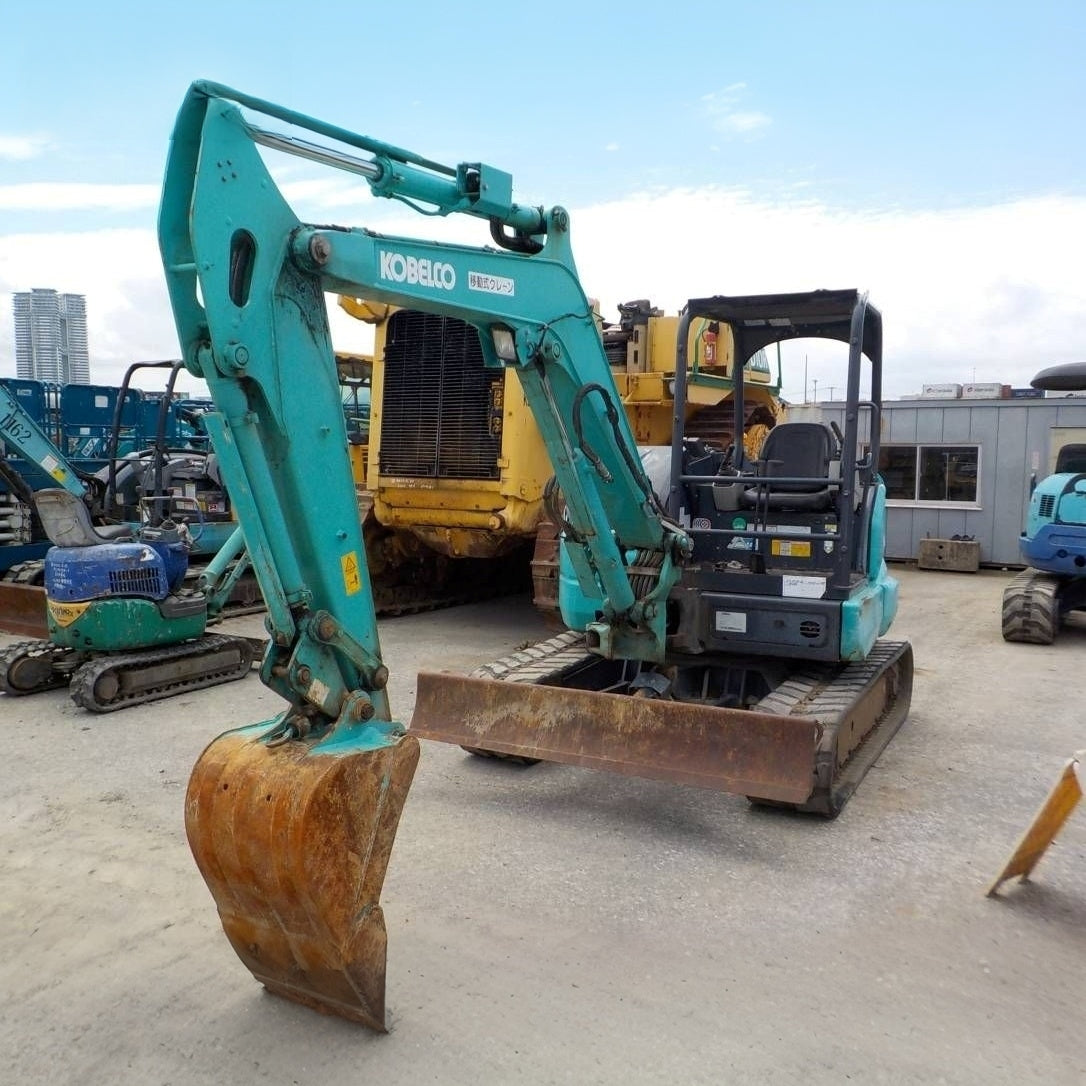

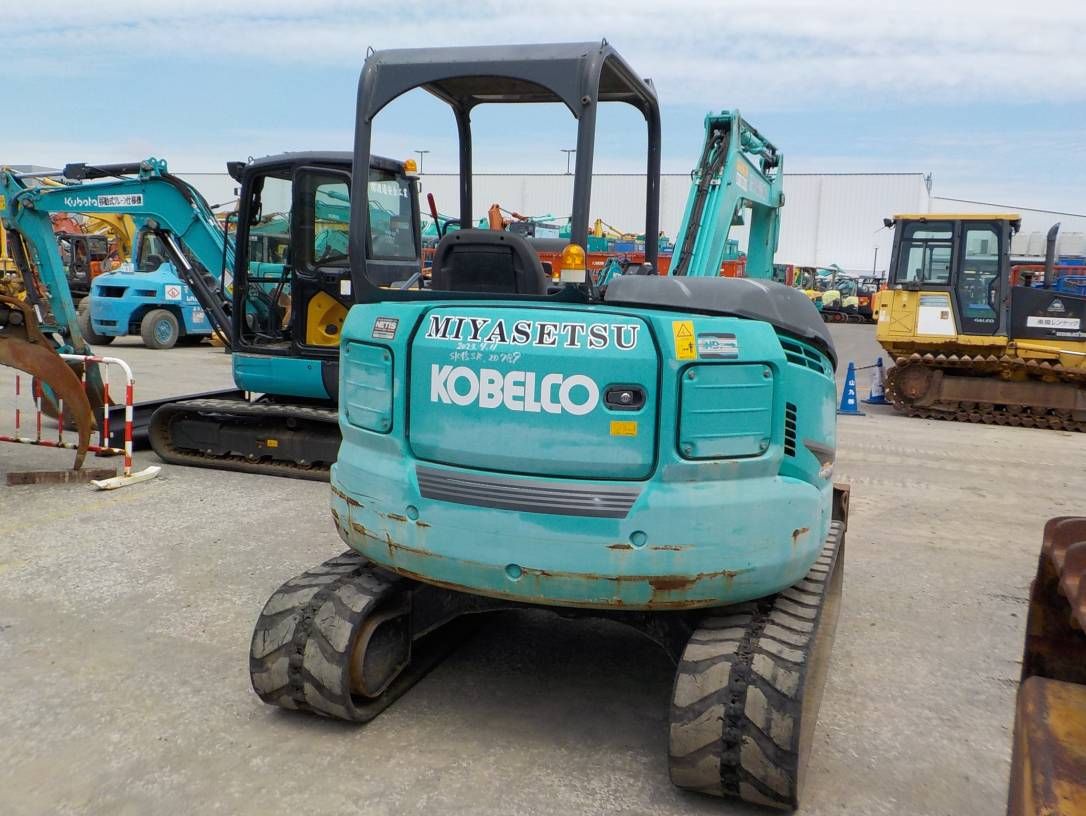

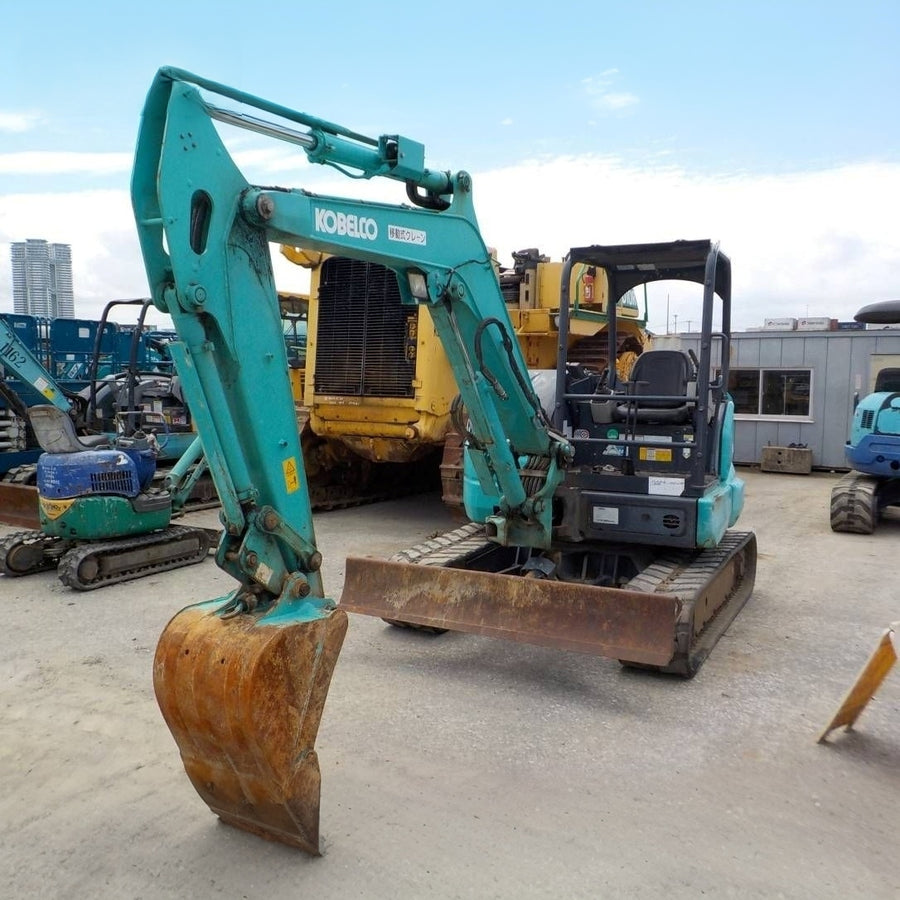

Used Kobelco SK45SRX-6 Excavator for Sale
Used Kobelco SK45SRX-6 Excavator for Sale
Regular price
$11,500.00 USD
Regular price
Sale price
$11,500.00 USD
Quantity
Couldn't load pickup availability
| Item | Specification |
|---|---|
| Model | KOBELCO SK45SRX-6 Compact Short Tail Swing Hydraulic Mini Excavator |
| Operating Weight(Canopy/Cab,Rubber Track) | 4440 kg / 4560 kgKobelco Construction Machinery |
| Operating Weight(Canopy/Cab,Steel Track) | 4590 kg / 4700 kgKobelco Construction Machinery |
| Standard Heaped Bucket Capacity | 0.18 m³ (Optional:0.15~0.21 m³)Kobelco Construction Machinery |
| Overall Transport Length | 4980 mm |
| Overall Transport Width | 1960 mm |
| Overall Transport Height(Cab Top) | 2510 mm |
| Standard Rubber Track Shoe Width | 350 mm |
| Track Gauge | 1610 mm |
| Track Length on Ground | 1990 mm |
| Ground Clearance | 315 mm |
| Minimum Tail Swing Radius | 910 mm(Short Tail Design) |
| Engine Model | YANMAR 4TNV88C-PYBV 4-Cylinder Diesel Engine |
| Engine Type | Water-cooled,4-stroke,direct injection naturally aspirated diesel |
| Rated Net Power | 29.1 kW @2400 rpm(ISO14396) |
| Engine Displacement | 2.189 L |
| Max Engine Torque | 139.1 N·m @1400 rpm |
| Fuel Tank Capacity | 75.0 L |
| Hydraulic Oil Tank/Whole System | 27.9 L / 57.7 L |
| Main Hydraulic Relief Pressure | 23.0 MPa |
| Total Hydraulic Pump Flow | 2×49.9 L/min +33.8 L/min |
| Max Digging Reach(Ground Level) | 5900 mm |
| Max Digging Depth | 3440 mm |
| Max Vertical Wall Digging Depth | 3010 mm |
| Max Digging Height | 5190 mm |
| Max Dumping Height | 3920 mm |
| Bucket Digging Force(ISO) | 35.2 kN |
| Arm Digging Force(ISO) | 20.9 kN |
| Swing Speed | 8.5 rpm |
| Travel Speed(Low/High) | 2.2 km/h / 4.0 km/h |
| Gradeability | 30°(58%) |
| Ground Pressure(Cab,Rubber/Steel) | 26.1 kPa /27.7 kPaKobelco Construction Machinery |
| Ground Pressure(Canopy,Rubber/Steel) | 25.4 kPa /27.0 kPaKobelco Construction Machinery |
| Standard Boom Length | 2680 mm |
| Standard Stick Length | 1550 mm |
| Standard Dozer Blade Size | 1960 mm ×345 mm(W×H)Kobelco Construction Machinery |
