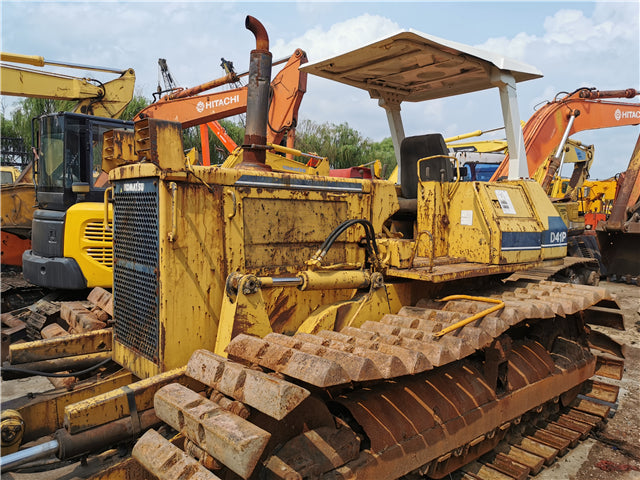

ParameterDetailsModelKOMATSU D41P-6EngineModel: S6D102E-1 (turbocharged)
Gross Power: 106 hp (78 kW) @ 2400 rpm
Number of Cylinders: 6
Displacement: 360.1 cu in (5.9 L)
Bore × Stroke: 102 mm × 102 mmTransmissionType: Komatsu HYDROSHIFT
Gears: 3 forward, 3 reverse
Max Forward Speed: 4.8 mph (7.7 kph)
Max Reverse Speed: 5.9 mph (9.5 kph)Operating Weight25,574 lbs (11,600 kg) (ROPS cab, standard blade, full fuel & operator)Blade (Standard Straight)Capacity: 3.8 yd³ (2.9 m³)
Width: 11 ft (3.35 m)
Height: 41.7 in (1.06 m)
Angle Range: ±30°DimensionsLength (with blade): 16.1 ft (4.9 m)
Width (over tracks): 8.2 ft (2.5 m)
Height (top of cab): 9.5 ft (2.9 m)
Ground Clearance: 1.5 ft (0.46 m)
Track Gauge: 5.9 ft (1.8 m)UndercarriageTrack Rollers per Side: 7
Carrier Rollers per Side: 1
Standard Shoe Size: 27.6 in (700 mm)
Ground Pressure: 3.5 psi (24.1 kPa)CapacitiesFuel Tank: 59.5 gal (225 L)
Hydraulic System: 9.8 gal (37 L)
Engine Oil: 6.1 gal (23.1 L)
Coolant: 7.4 gal (28 L)
