| Model |

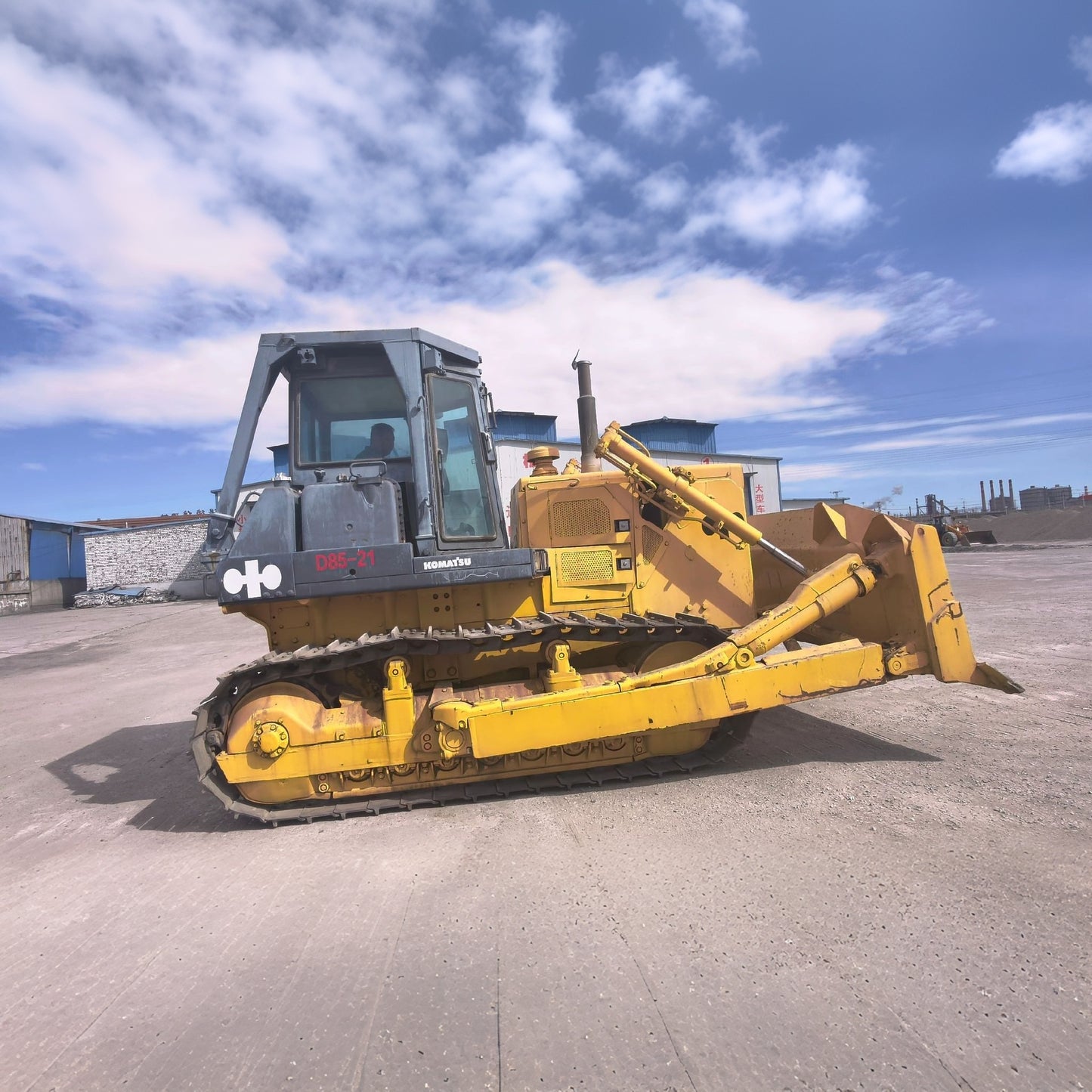

KOMATSU D85P-21 |
| Engine |
Model: S6D125E-2 (6-cylinder, turbocharged diesel)
Gross Power: 228 hp (170 kW) @ 2000 rpm
Displacement: 673.8 cu in (11.1 L)
Bore × Stroke: 125 mm × 150 mm |
| Transmission |
Type: Torque Converter (TF)
Gears: 3 forward, 3 reverse
Max Forward Speed: 4.0 mph (6.4 kph)
Max Reverse Speed: 5.0 mph (8.0 kph) |
| Operating Weight |
58,841 lbs (26,690 kg) (ROPS cab, standard blade, full fuel & operator) |
| Blade (Standard Straight) |
Capacity: 7.8 yd³ (6.0 m³)
Width: 12.3 ft (3.75 m)
Height: 54.8 in (1.39 m)
Angle Range: ±30° |
| Dimensions |
Length (with blade): 22.4 ft (6.83 m)
Width (over tracks): 8.6 ft (2.62 m)
Height (top of cab): 11.4 ft (3.48 m)
Ground Clearance: 1.4 ft (0.42 m)
Track Gauge: 6.6 ft (2.01 m) |
| Undercarriage |
Track Rollers per Side: 7
Carrier Rollers per Side: 2
Standard Shoe Size: 22.1 in (560 mm)
Ground Pressure: 5.0 psi (34.5 kPa) |
| Capacities |
Fuel Tank: 126.9 gal (480 L)
Hydraulic System: 27.0 gal (102 L)
Engine Oil: 12.7 gal (48 L)
Coolant: 15.9 gal (60 L) |
