KUBOTA

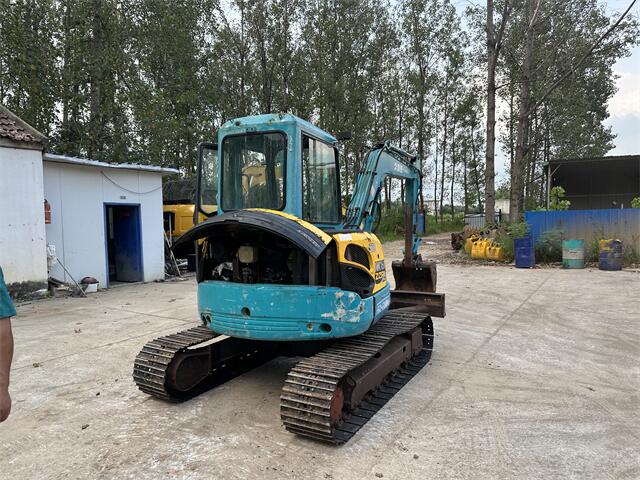

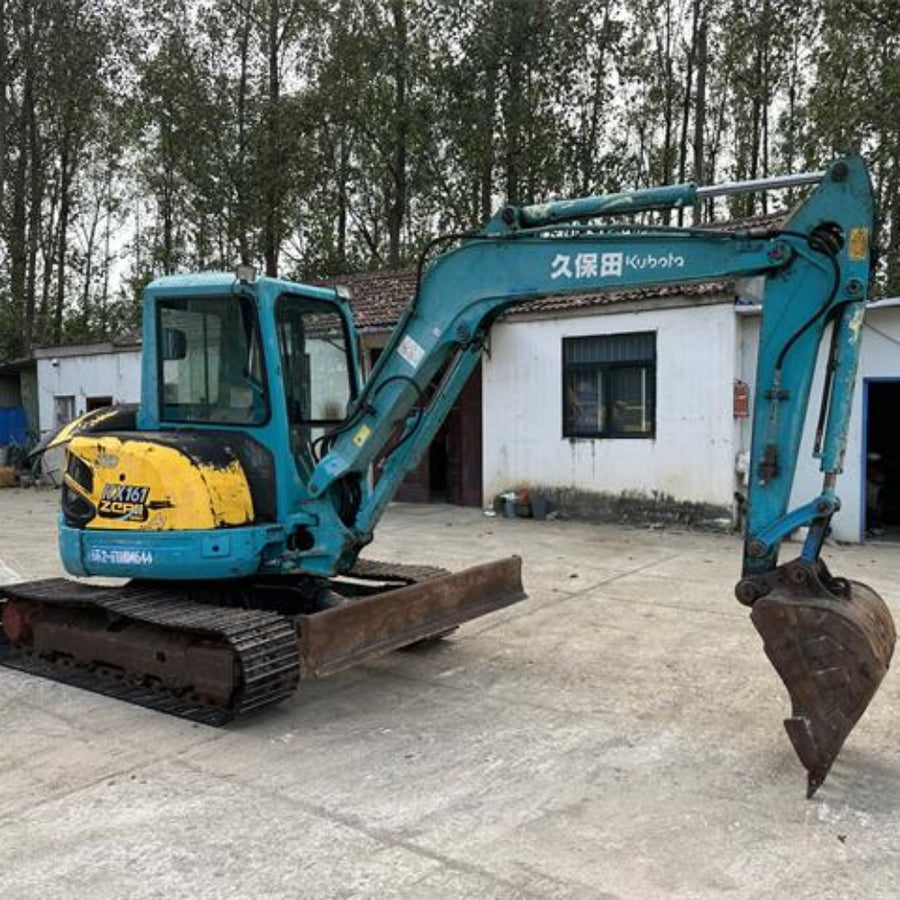

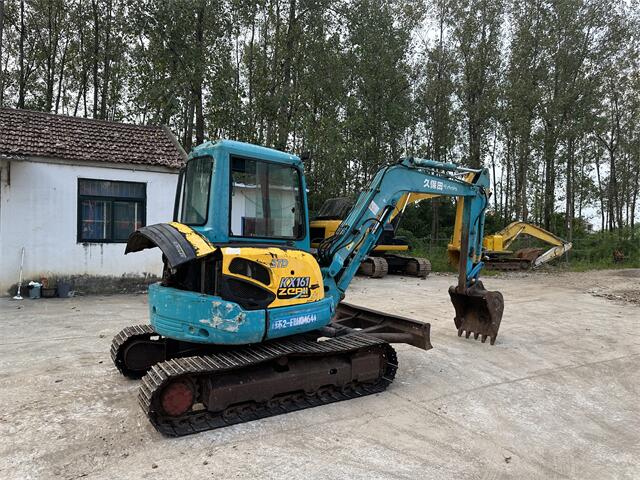

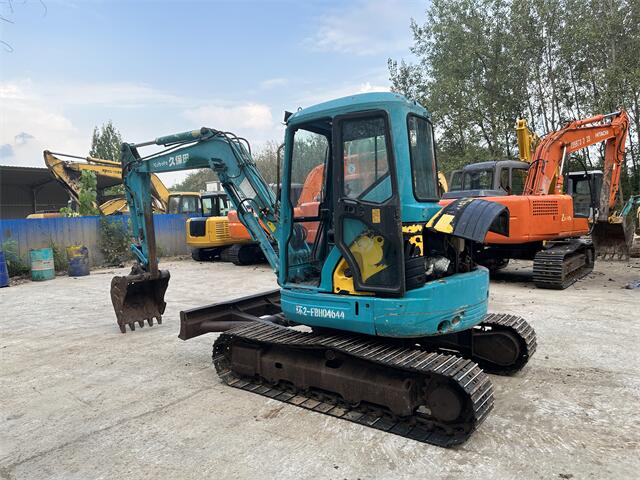

USED KUBOTA KX155

USED KUBOTA KX155

$10,000.00 USD
$10,000.00 USD
Sale Sold out

KUBOTA KX155 (Mini Crawler Excavator) Core Specifications


Category Parameter Specification
Basic Model Model Name KUBOTA KX155 (Mini Crawler Excavator, Common Version: KX155-5)
Engine Engine Model Kubota V2203 (Diesel, 4-cylinder, Liquid - cooled)
Rated Power 29.4 kW (40 HP) @ 2250 rpm
Displacement 2.194 L
Emission Standard EU Stage IIIA / EPA Tier 3 (Typical for Base Model)
Operating Performance Operating Weight 5115-5190 kg
Max. Bucket Capacity (ISO Heaped) 0.19 m³ (Standard); 0.16 m³ (Optional)
Max. Digging Depth 3560 mm (3.56 m)
Max. Digging Radius 5995 mm (5.995 m)
Bucket Digging Force (ISO) 36.5 kN
Swing Speed 9.3 rpm
Gradeability 30%
Dimensions Transport Length 5510 mm (5.51 m)
Transport Width 1960 mm (1.96 m)
Transport Height 2540 mm (2.54 m)
Minimum Ground Clearance 320 mm
Mobility Travel Speed (High/Low) 4.2/2.4 km/h
Track Width 400 mm
Fuel System Fuel Tank Capacity 64 L
View full details
