SANY

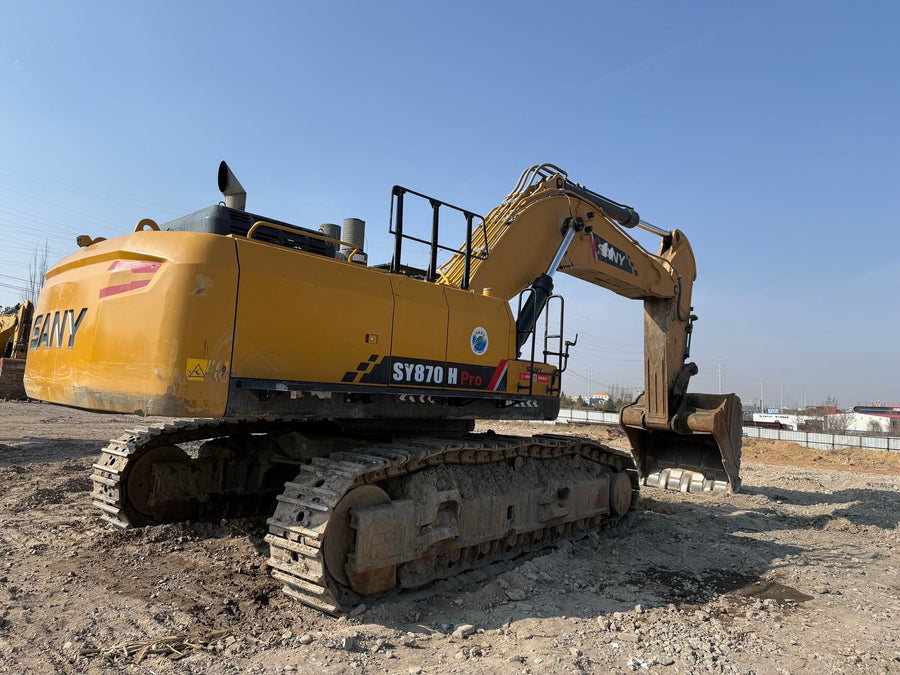

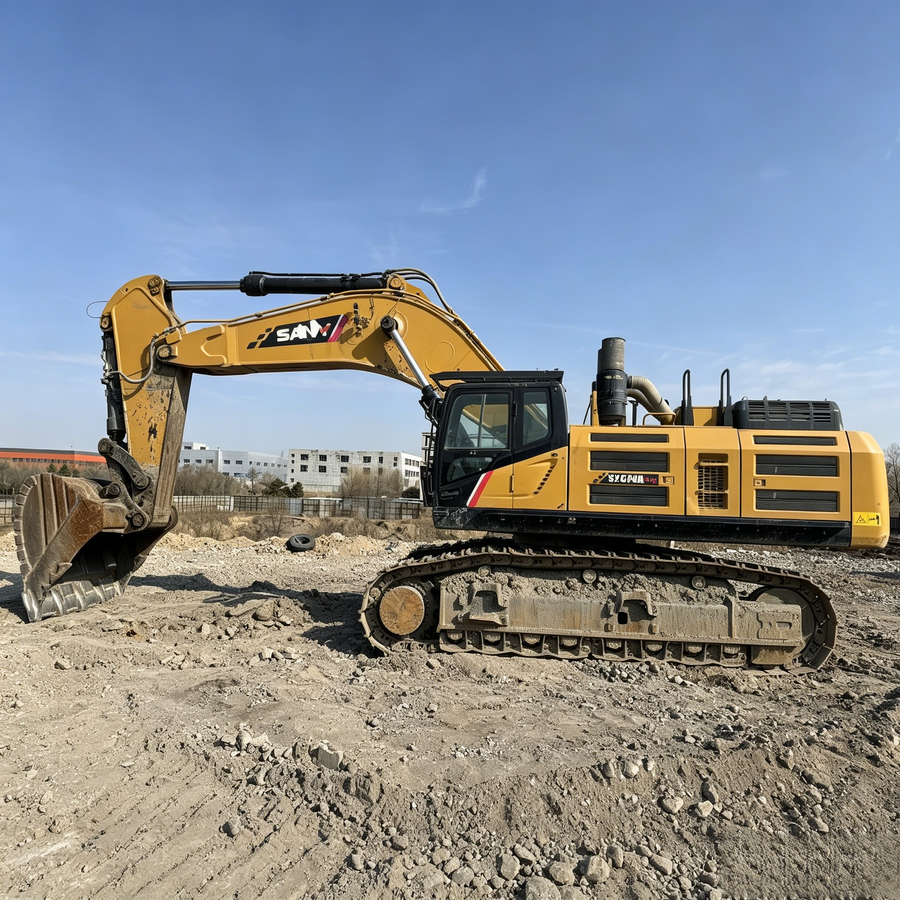

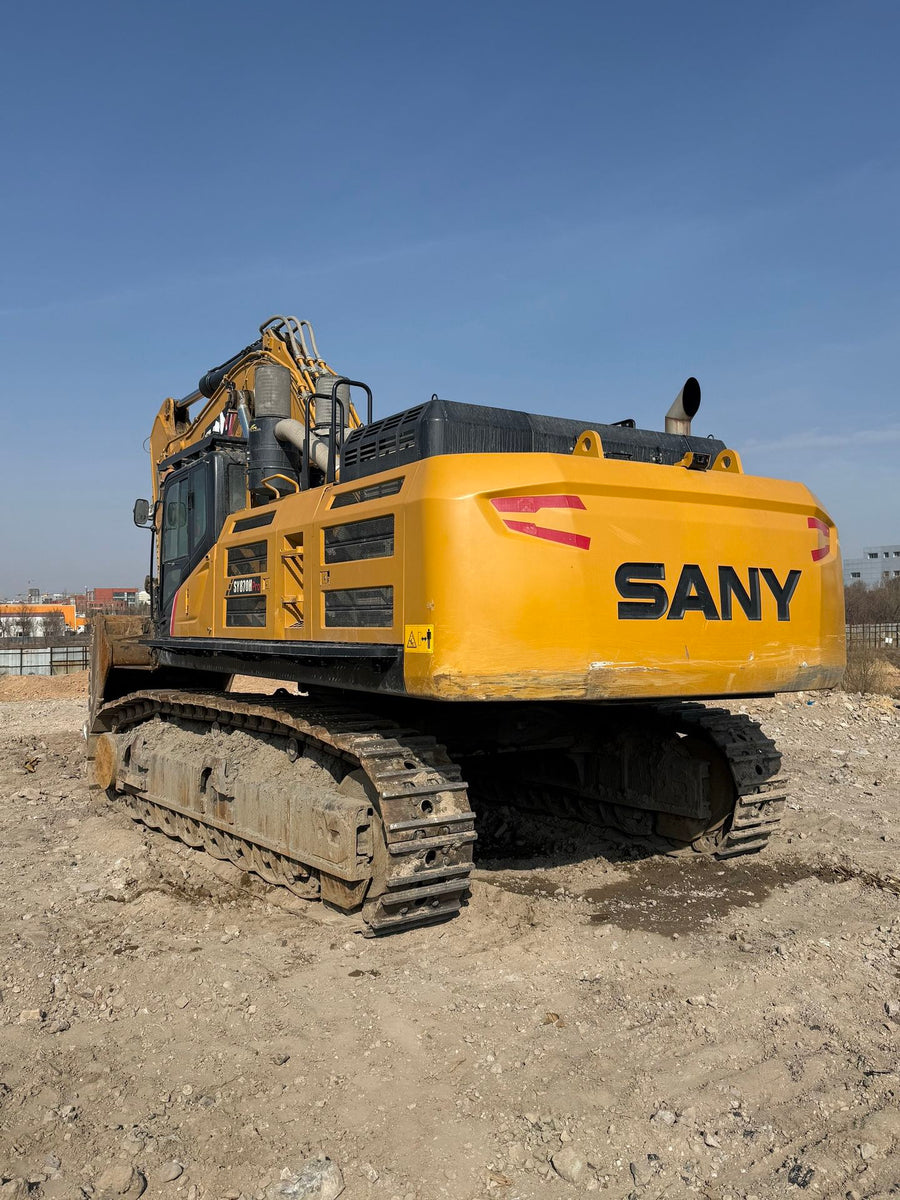

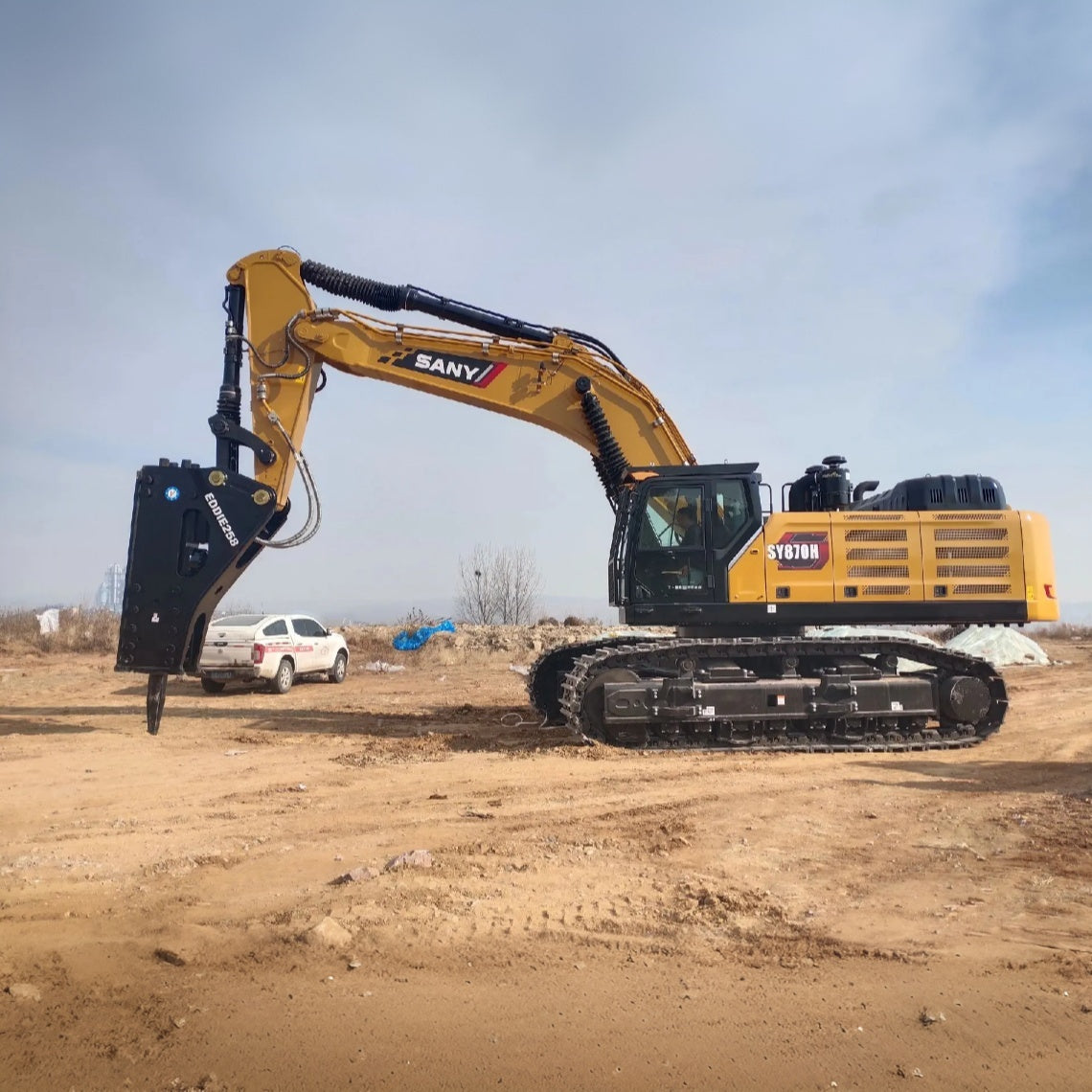

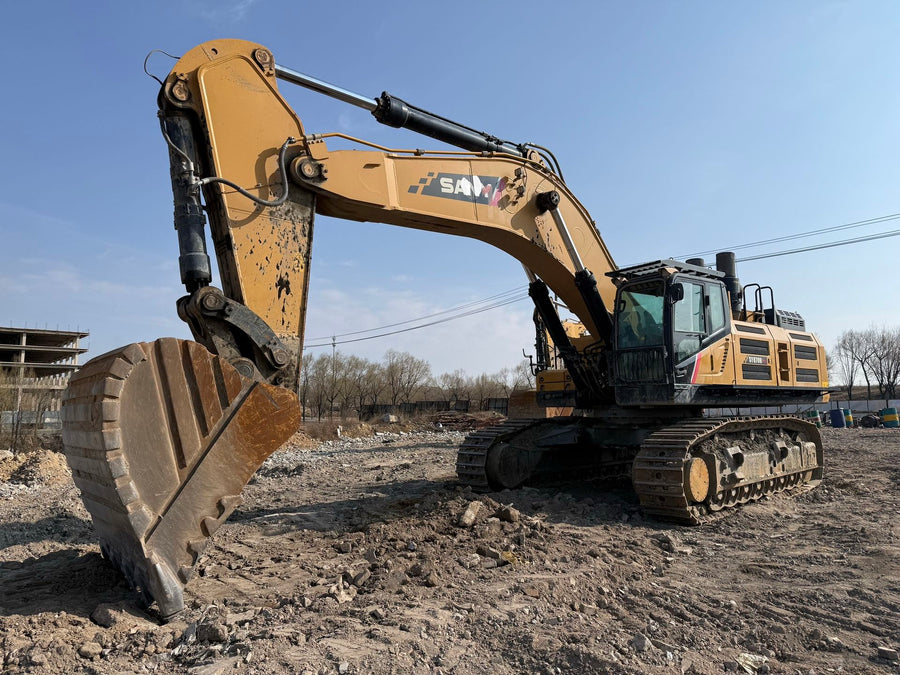

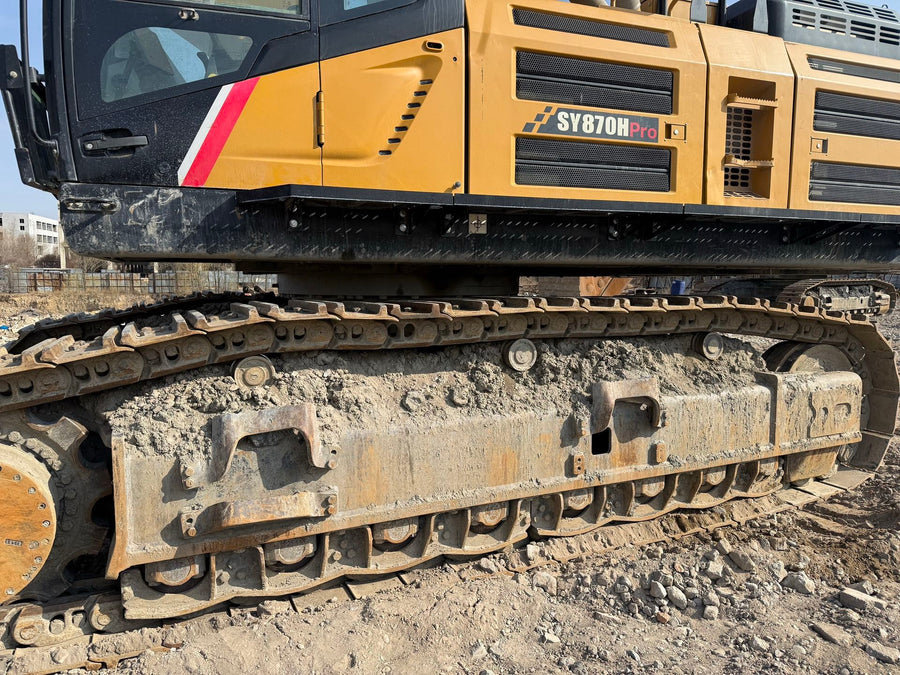

USED SANY SY870H PRO
USED SANY SY870H PRO
Regular price
$80,000.00 USD
Regular price
Sale price
$80,000.00 USD
Quantity
Couldn't load pickup availability
| Item | Specification |
|---|---|
| Model | SANY SY870H PRO Heavy Mining Crawler Excavator |
| Operating Weight | 78,600 kg |
| Standard Heaped Bucket Capacity | 5.4 m³ (Optional:5.0~6.5 m³) |
| Overall Transport Length | 13,002 mm |
| Overall Transport Width | 4,320 mm |
| Overall Transport Height(Cab Top) | 4,742 mm |
| Standard Track Shoe Width | 700 mm |
| Track Gauge | 3,550 mm |
| Track Length on Ground | 5,120 mm |
| Ground Clearance | 620 mm |
| Minimum Tail Swing Radius | 4,480 mm |
| Engine Model | ISUZU GH-6WG1X 6-Cylinder Diesel Engine |
| Engine Type | Water-cooled,4-stroke,turbocharged & intercooled direct injection diesel |
| Rated Net Power | 377 kW @ 1800 rpm |
| Engine Displacement | 15.681 L |
| Max Engine Torque | 2138 N·m @1500 rpm |
| Fuel Tank Capacity | 940 L |
| Hydraulic Oil Tank Capacity | 700 L |
| Main Hydraulic Working Pressure | 35.5 MPa |
| Max Digging Reach(Ground Level) | 11,703 mm |
| Max Digging Depth | 7,247 mm |
| Max Vertical Wall Digging Depth | 6,430 mm |
| Max Digging Height | 11,910 mm |
| Max Dumping Height | 7,047 mm |
| Bucket Digging Force(ISO) | 469.0 kN |
| Arm Digging Force(ISO) | 402.0 kN |
| Swing Speed | 7.7 rpm |
| Travel Speed(Low/High) | 2.9 km/h / 4.5 km/h |
| Gradeability | 35° (70%) |
| Average Ground Pressure | 114.0 kPa |
| Standard Boom Length | 7,000 mm |
| Standard Stick Length | 2,600 mm |
