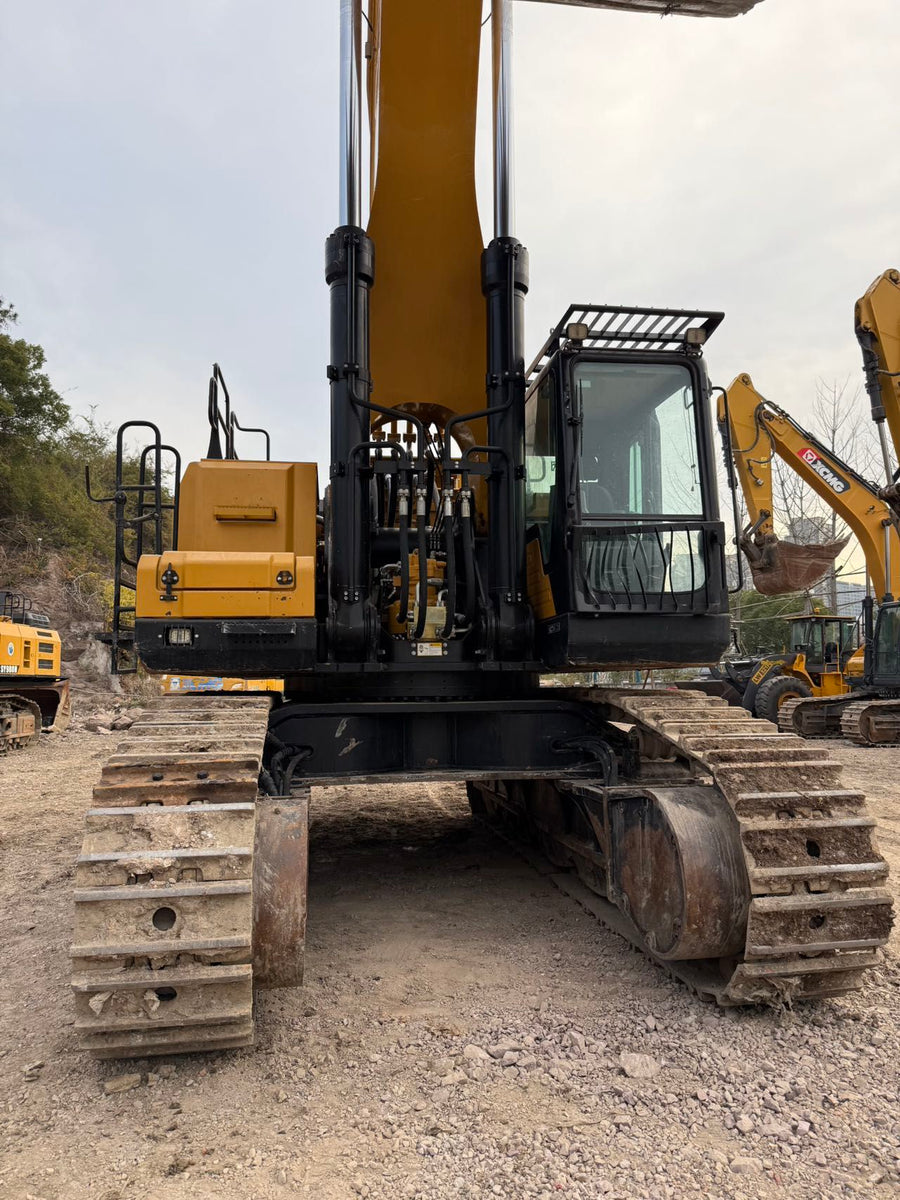

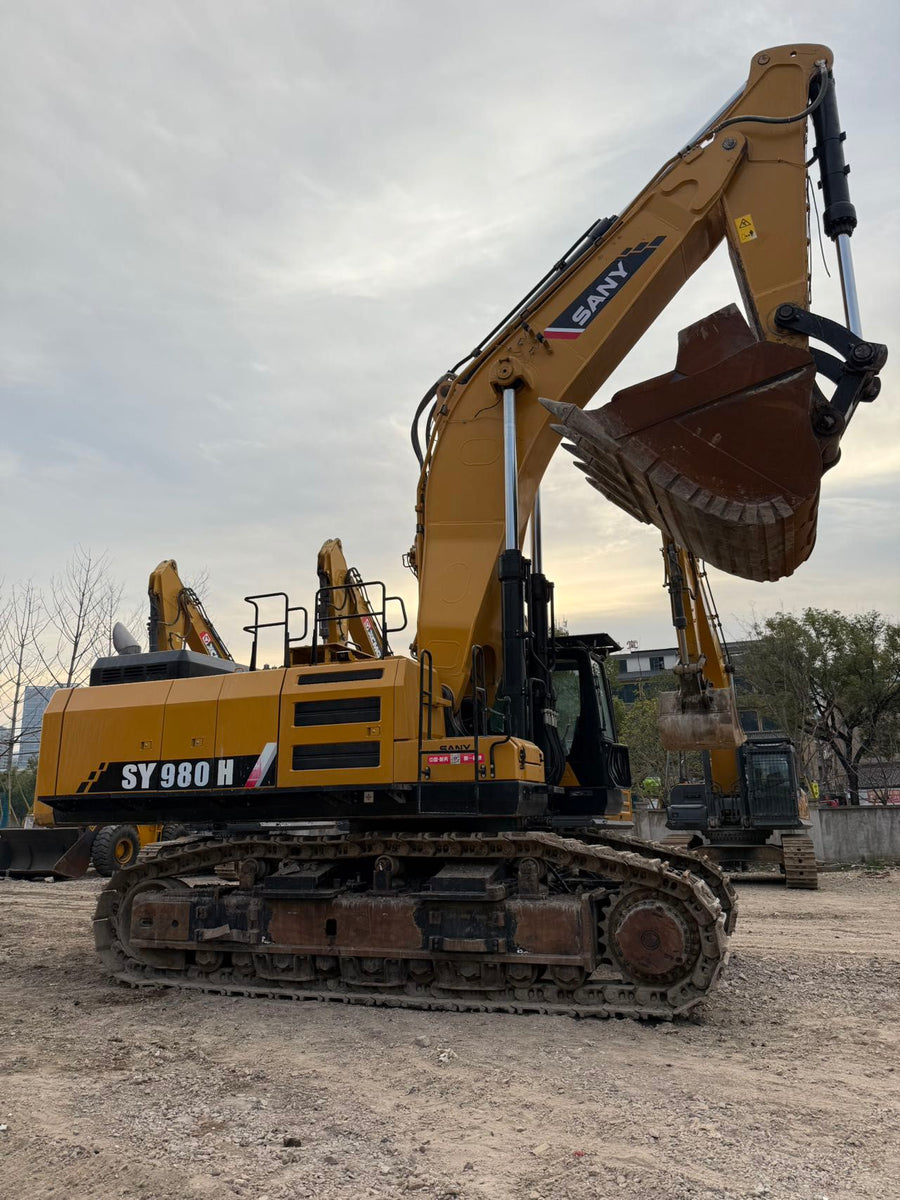

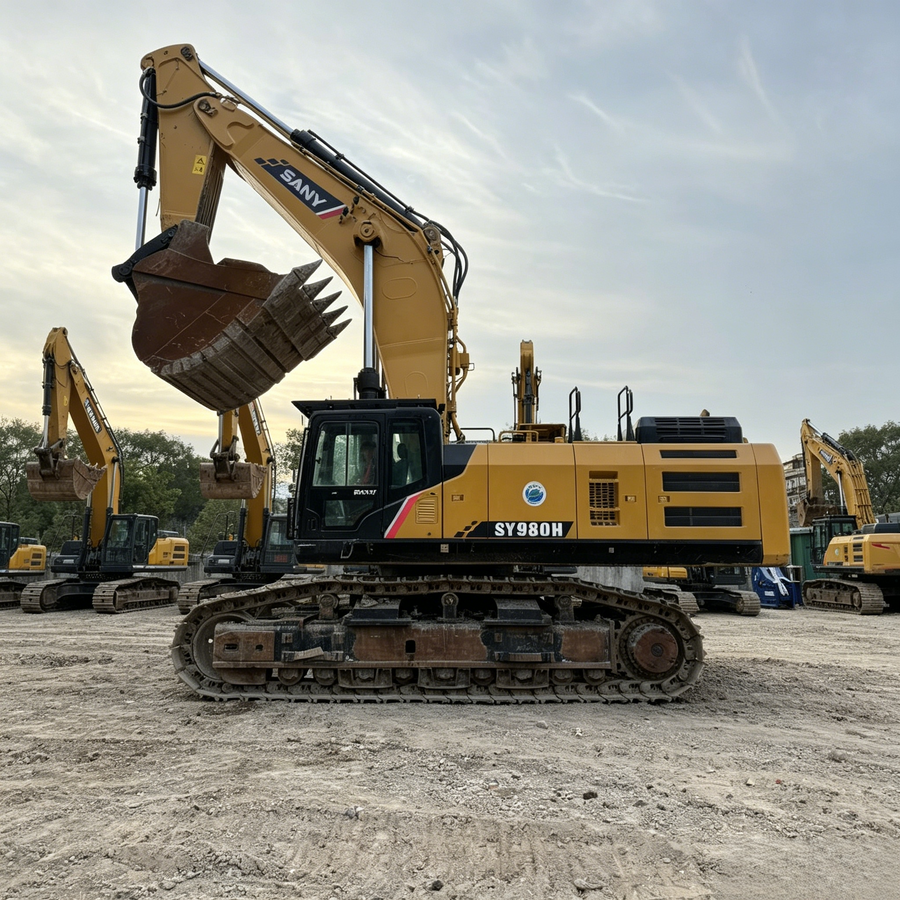

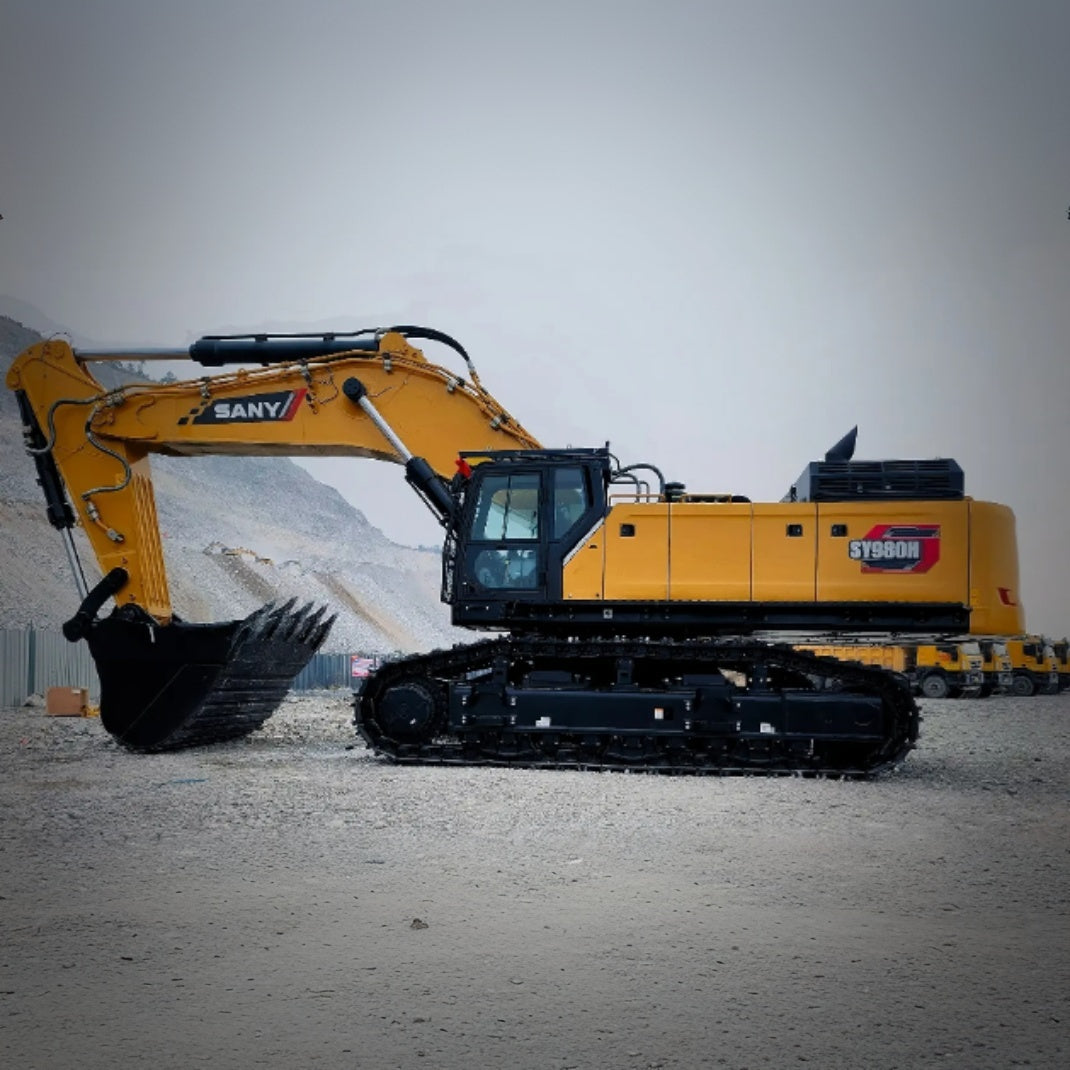

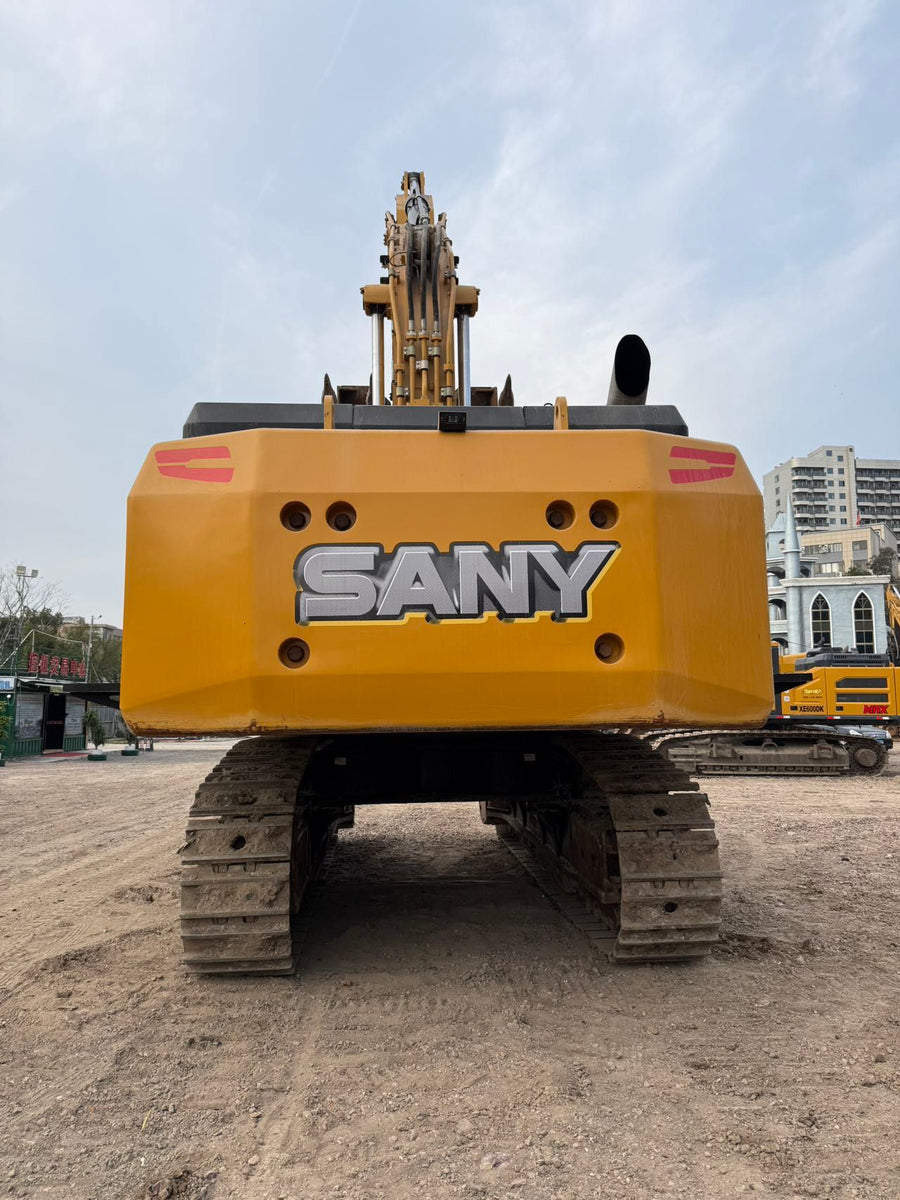

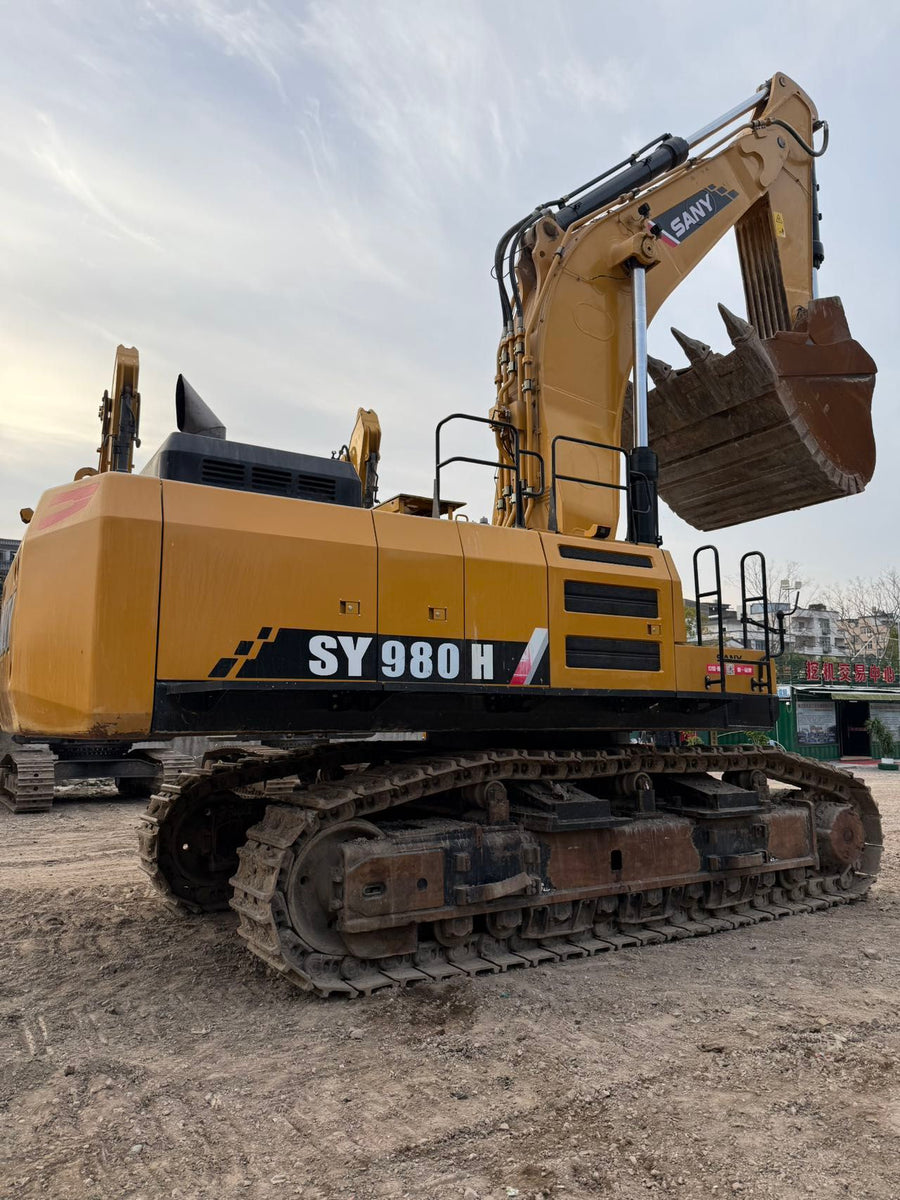

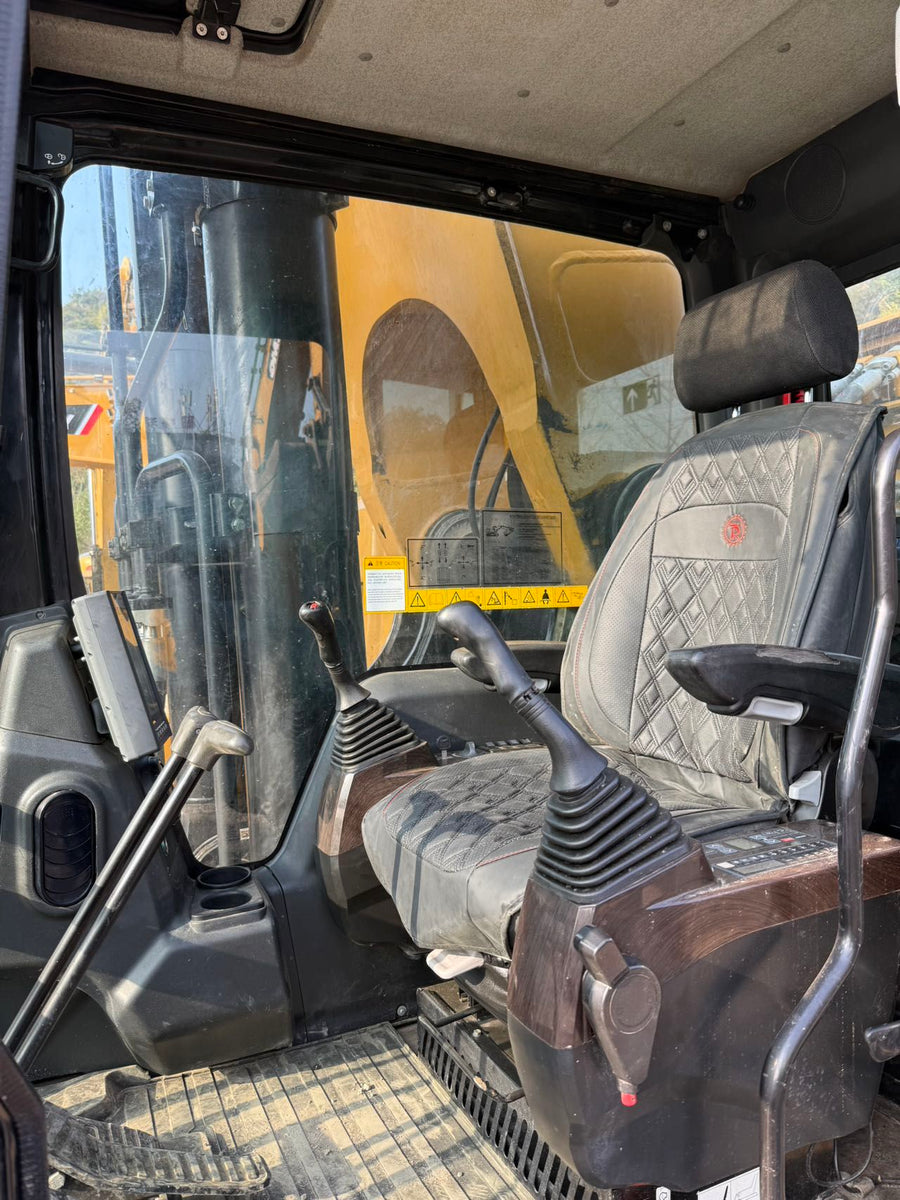

USED SANY SY980H

$98,000.00 USD

Sale Sold out

Parameter	Value
Model	SANY SY980H
Type	Mining Large Crawler Excavator
Operating Weight	98000 kg
Standard Bucket Capacity	6.0 m³
Engine Model	Isuzu 6UZ1
Rated Power	490 kW @ 1800 rpm
Engine Displacement	18.0 L
High Travel Speed	4.3 km/h
Low Travel Speed	2.3 km/h
Swing Rotation Speed	7.0 rpm
Gradeability	70%
Bucket Digging Force	510 kN
Arm Digging Force	405 kN
Max Digging Depth	10350 mm
Max Digging Radius	15400 mm
Max Digging Height	14650 mm
Max Dumping Height	10280 mm
Overall Transport Length	15100 mm
Overall Width	4520 mm
Overall Height	4400 mm
Track Shoe Width	900 mm
Fuel Tank Capacity	1180 L
Main Hydraulic Pressure	37.5 MPa
Electrical System Voltage	24 V
