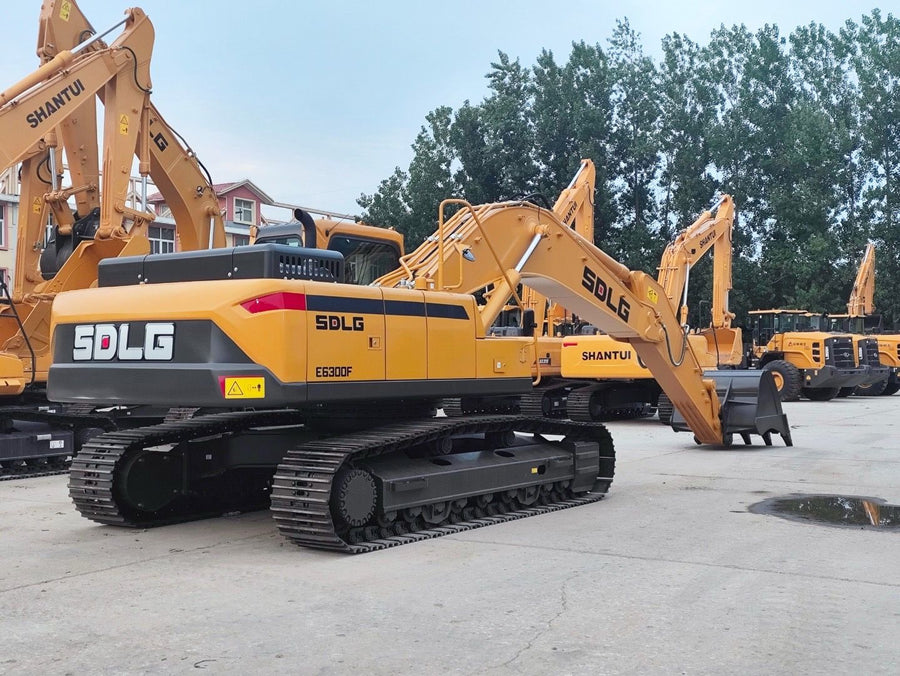

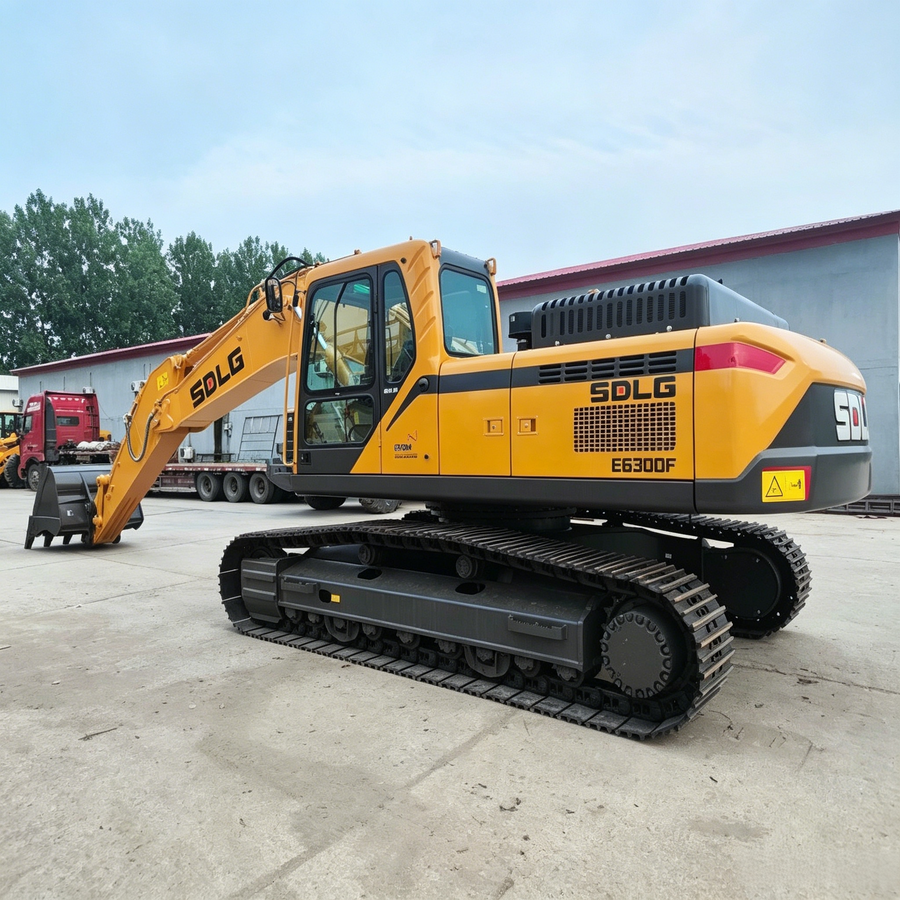

USED SDLG E6300F

USED SDLG E6300F

$28,000.00 USD
$28,000.00 USD
Sale Sold out
Parameter Unit Value
Operating Weight kg 30000
Standard Bucket Capacity m³ 1.45
Engine Model - Weichai WP10H
Rated Power kW/rpm 191/2000
Emission Standard - China Stage IV
Low Travel Speed km/h 3.0
High Travel Speed km/h 5.4
Swing Speed r/min 9.2
Max Digging Radius mm 10650
Max Digging Depth mm 7120
Max Digging Height mm 10150
Max Dumping Height mm 7350
Bucket Digging Force kN 198
Arm Digging Force kN 152
Overall Transport Length mm 10680
Overall Transport Width mm 3190
Overall Transport Height mm 3380
Track Shoe Width mm 700
Ground Contact Pressure kPa 63
Max Gradeability ° 35
Fuel Tank Capacity L 420
Hydraulic Tank Capacity L 450
