ParameterDetails
ModelSHANTUI DH08-B3
EngineModel: Weichai WP4G95221 (4-cylinder, turbocharged diesel)
Rated Power: 70 kW (94 hp) @ 2200 rpm
Net Power: 63 kW (85 hp) @ 2200 rpm
Displacement: 4.5 L
Max Torque: 380 N·m @ 1400-1600 rpm
Emission Standard: EU Stage ⅡTransmissionType: Hydrostatic drive
Gears: Infinitely variable

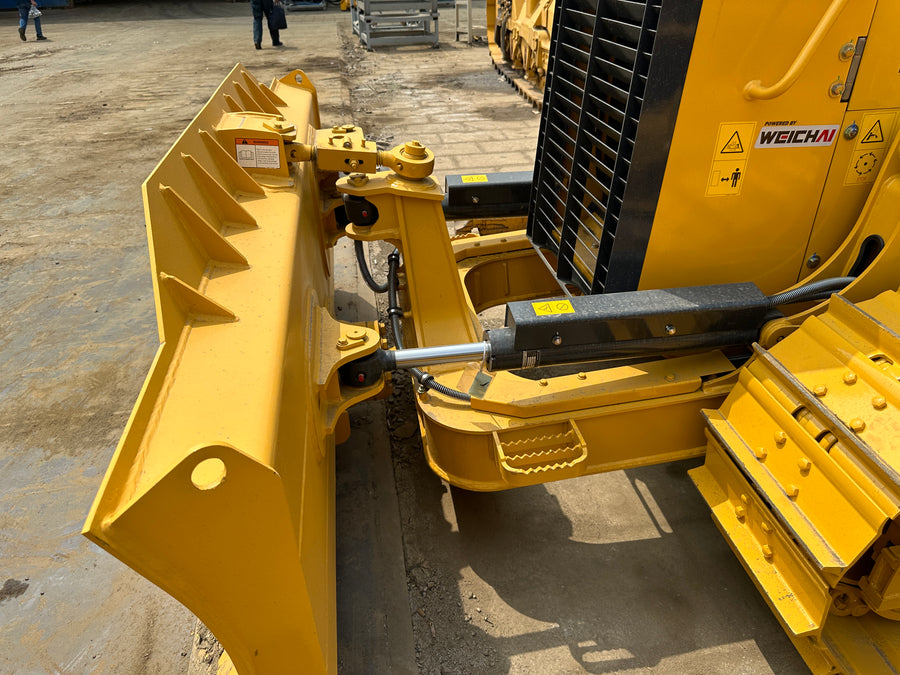

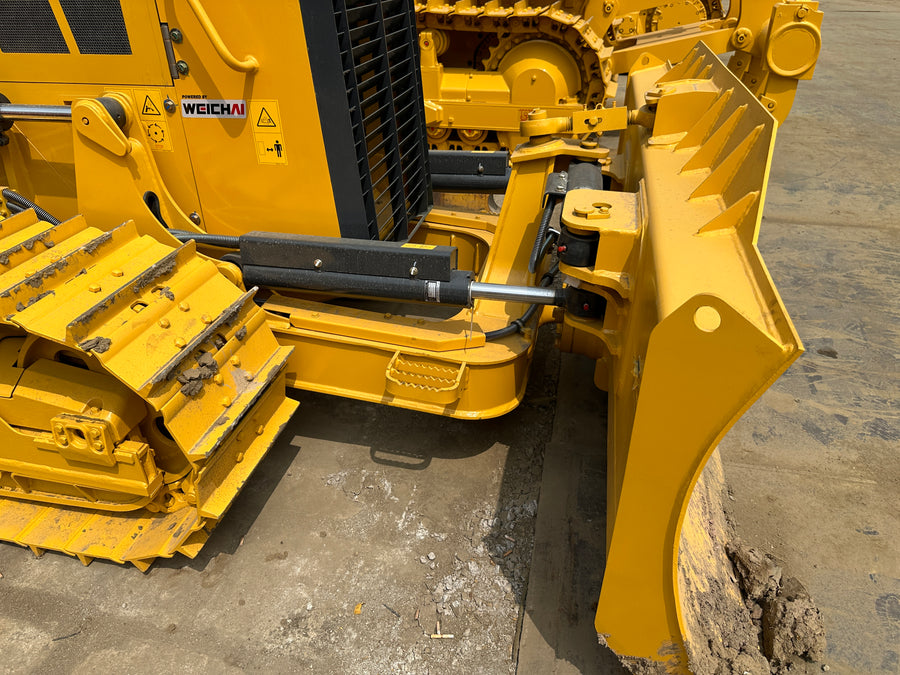

Max Travel Speed: 9 kph (5.6 mph)Operating Weight8,780 kg (19,357 lbs) (standard configuration, ROPS cab, full fuel, operator)Blade (PAT - Power Angle Tilt)Capacity: 1.93 m³ (2.52 yd³)
Width: 2,680 mm (8.79 ft)
Height: 890 mm (2.92 ft)
Angle Range: ±30°DimensionsLength (without ripper): 4,298 mm (14.1 ft)
Width (over tracks): 2,680 mm (8.79 ft)
Height (top of cab): 2,724 mm (8.94 ft)
Track Gauge: 1,650 mm (5.41 ft)
Ground Clearance: 360 mm (1.18 ft)UndercarriageTrack Shoe Width: 460 mm (18.1 in)
Ground Contact Length: 2,225 mm (7.3 ft)
Ground Pressure: 42.5 kPa (6.16 psi)CapacitiesFuel Tank: 197 L (52.0 gal)
Hydraulic System: 68 L (18.0 gal)
Engine Oil: 12 L (3.2 gal)
Coolant: 18 L (4.8 gal)
