| Model |

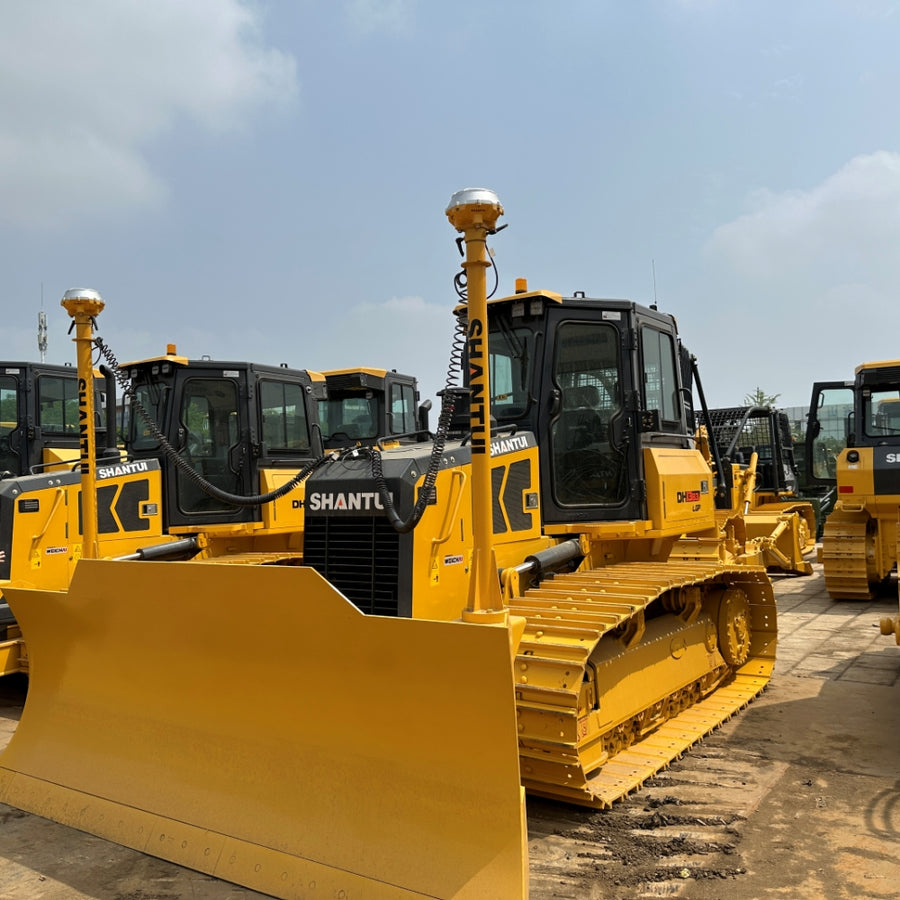

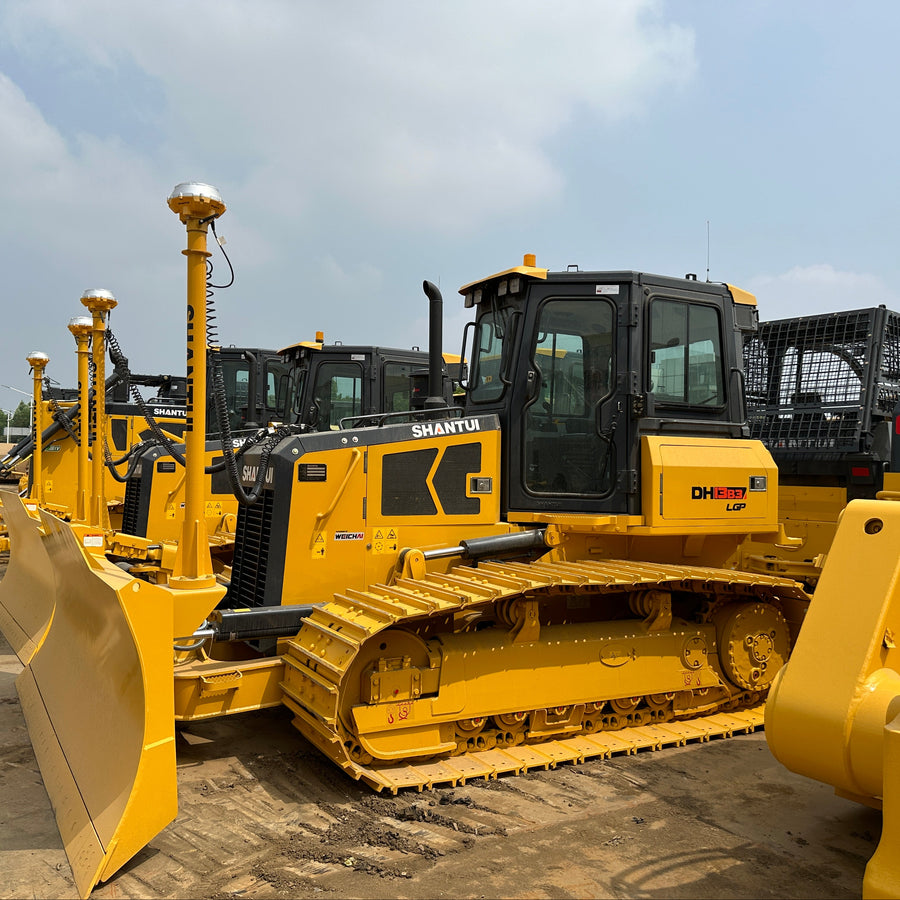

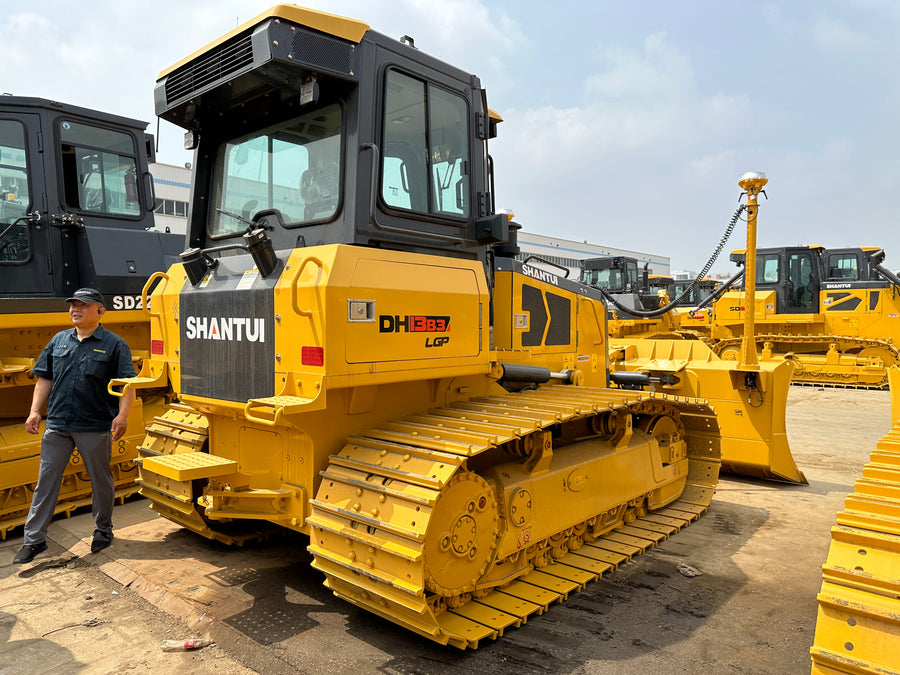

SHANTUI DH13-B2 |
| Engine |
Model: Weichai WP6G140E22 (6-cylinder, turbocharged diesel)
Rated Power: 105 kW (141 hp) @ 2200 rpm
Displacement: 6.7 L (409 cu in)
Max Torque: 520 N·m @ 1400-1600 rpm
Emission Standard: EU Stage Ⅱ |
| Transmission |
Type: Hydrostatic drive
Gears: Infinitely variable
Max Travel Speed: 10 kph (6.2 mph) |
| Operating Weight |
13,400 kg (29,542 lbs) (ROPS cab, standard VPAT blade, full fuel & operator) |
| Blade (VPAT - Variable Pitch Angle Tilt) |
Capacity: 3.16 m³ (4.13 yd³)
Width: 3,380 mm (11.09 ft)
Height: 1,100 mm (3.61 ft)
Angle Range: ±30° |
| Dimensions |
Length (with blade): 4,924 mm (16.15 ft)
Width (over tracks): 3,380 mm (11.09 ft)
Height (top of cab): 3,047 mm (9.99 ft)
Track Gauge: 1,780 mm (5.84 ft)
Ground Clearance: 360 mm (1.18 ft) |

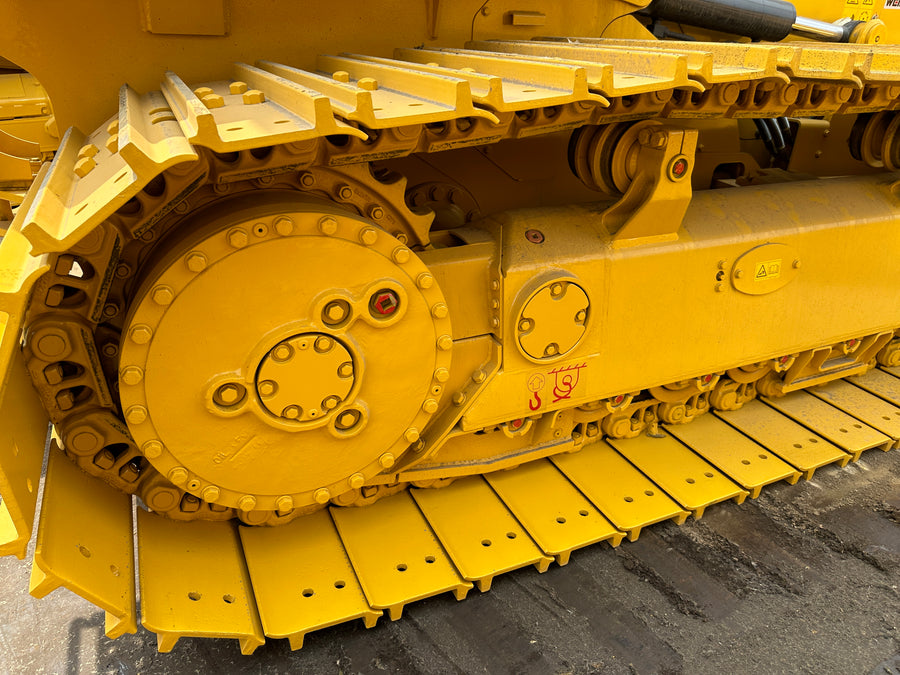

| Undercarriage |
Track Shoe Width: 560 mm (22.0 in)
Ground Contact Length: 2,640 mm (8.66 ft)
Ground Pressure: 39.9 kPa (5.79 psi) |
| Capacities |
Fuel Tank: 270 L (71.3 gal)
Hydraulic System: 90 L (23.8 gal)
Engine Oil: 18 L (4.8 gal)
Coolant: 25 L (6.6 gal) |
