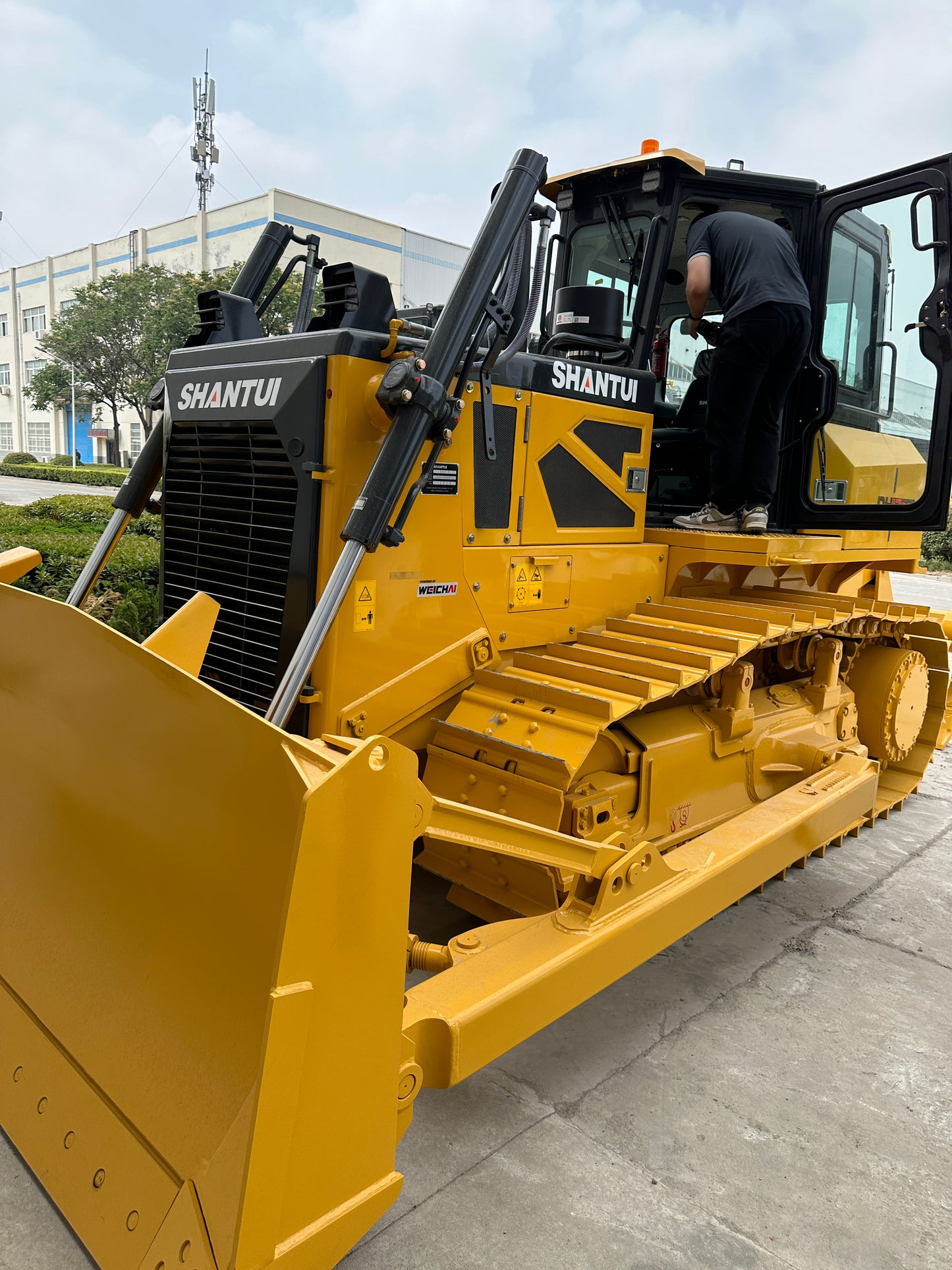

USED SHANTUI DH17-B3

USED SHANTUI DH17-B3

$26,000.00 USD
$26,000.00 USD
Sale Sold out


Parameter Details
Model SHANTUI DH17-B3 (standard configuration, hydrostatic drive bulldozer)Shantui
Engine Model: Weichai WD10G190E214 (6-cylinder, turbocharged diesel)

Rated Power: 140 kW (188 hp) @ 1900 rpm

Net Power: 127 kW (170 hp) @ 2000 rpm

Displacement: 9.726 L

Max Torque: 860 N·m @ 1400-1600 rpm

Emission Standard: EU Stage ⅡShantui
Transmission Type: Hydrostatic drive

Gears: Infinitely variable

Max Travel Speed: 10 kph (6.2 mph) (forward/reverse)
Operating Weight 17,500 kg (38,581 lbs) (without ripper); 18,900 kg (41,667 lbs) (with ripper)
Blade (VPAT - Variable Pitch Angle Tilt, Semi-U type) Capacity: 4.7 m³ (6.15 yd³)

Width: 3,980 mm (13.06 ft)

Height: 1,010 mm (3.31 ft)

Angle Range: ±30°
Dimensions Length (without ripper): 5,100 mm (16.73 ft)

Width (over tracks): 3,980 mm (13.06 ft)

Height (top of cab): 3,150 mm (10.33 ft)

Track Gauge: 1,880 mm (6.17 ft)

Ground Clearance: 370 mm (1.21 ft)
Undercarriage Track Shoe Width: 510 mm (20.1 in)

Ground Contact Length: 2,675 mm (8.78 ft)

Ground Pressure: 64 kPa (9.28 psi)
Capacities Fuel Tank: 320 L (84.5 gal)

Hydraulic System: 120 L (31.7 gal)

Engine Oil: 28 L (7.4 gal)

Coolant: 35 L (9.25 gal)
