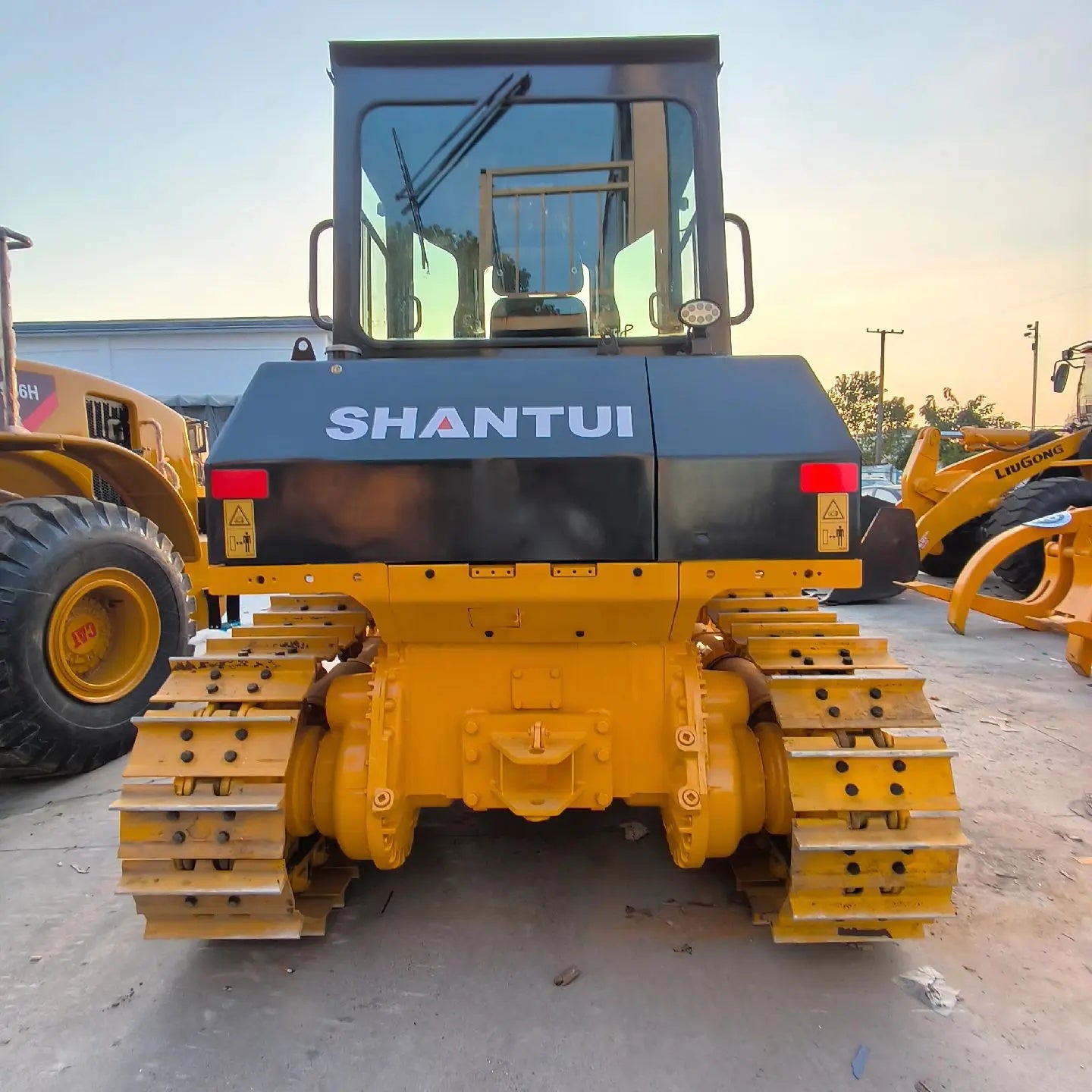

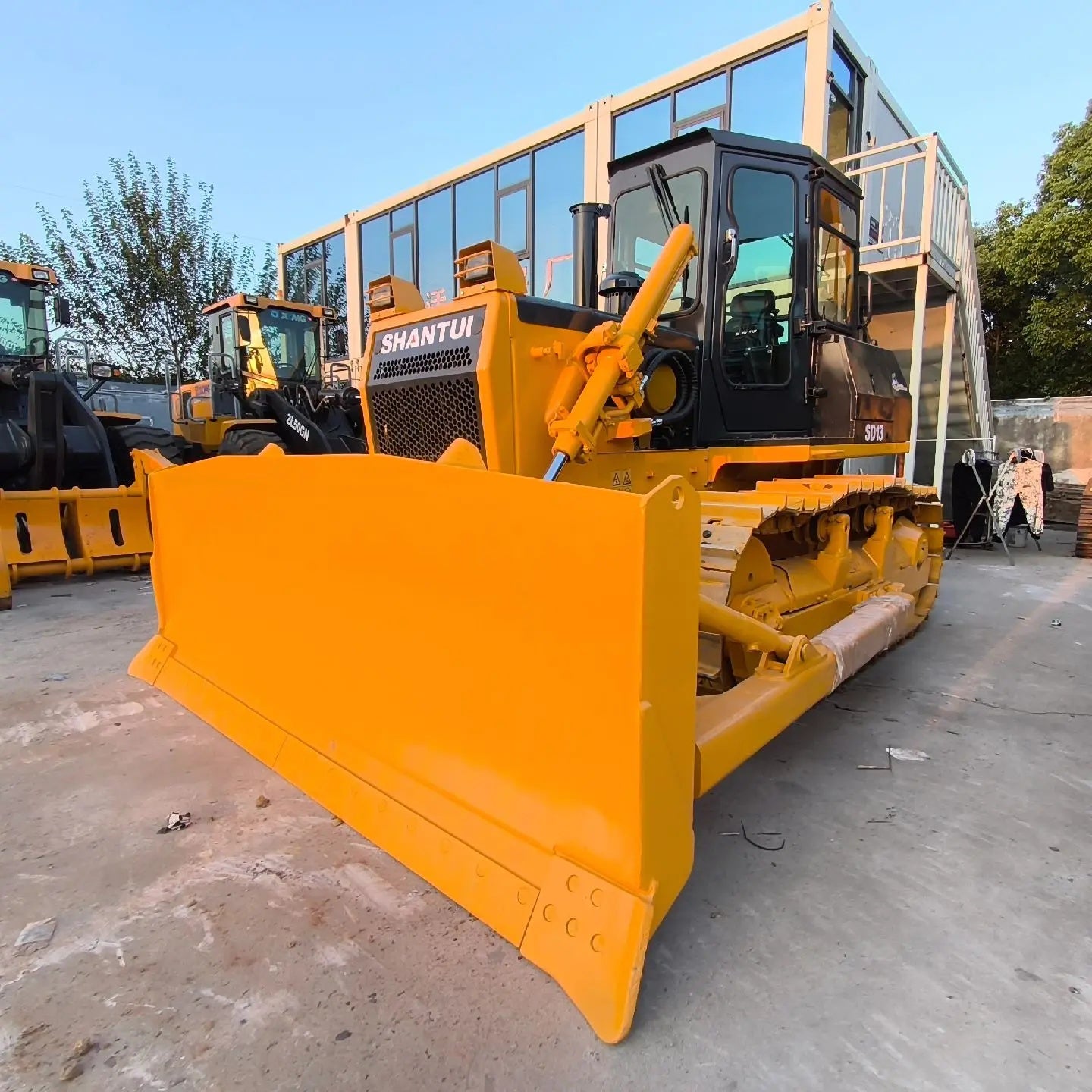

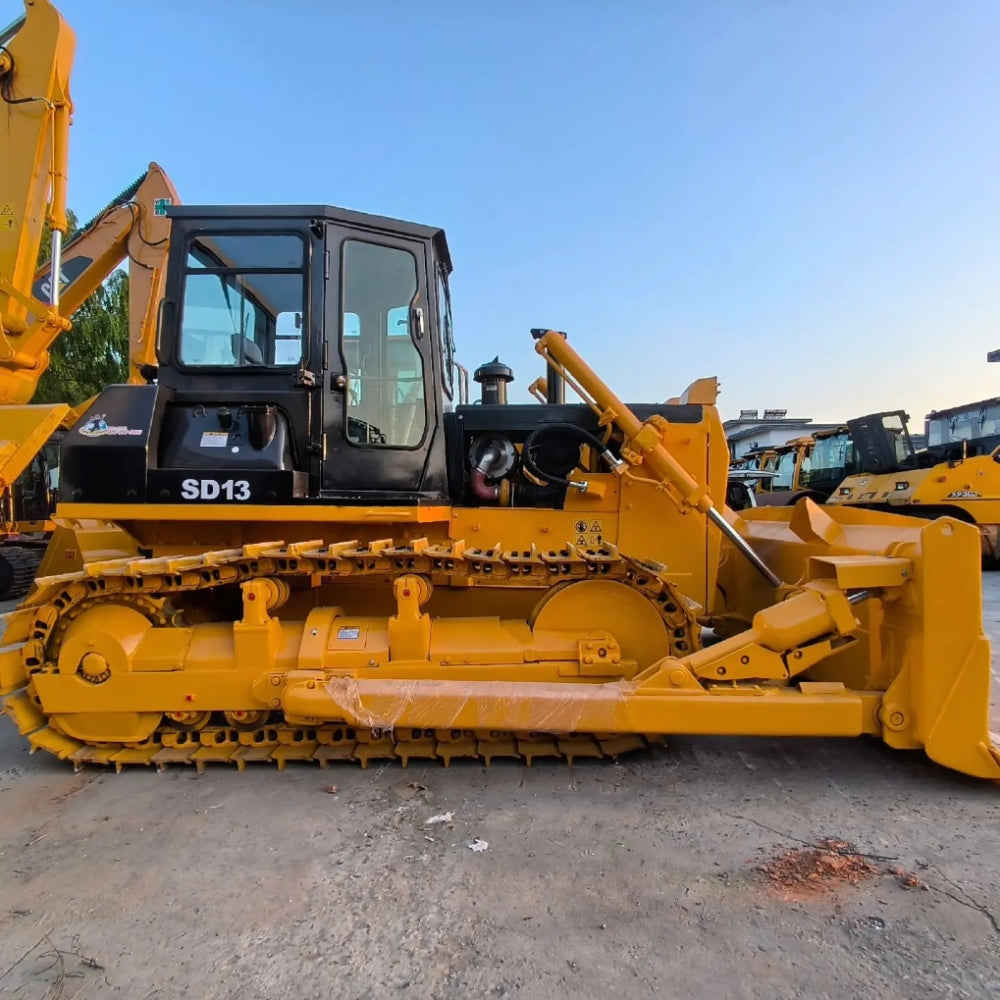

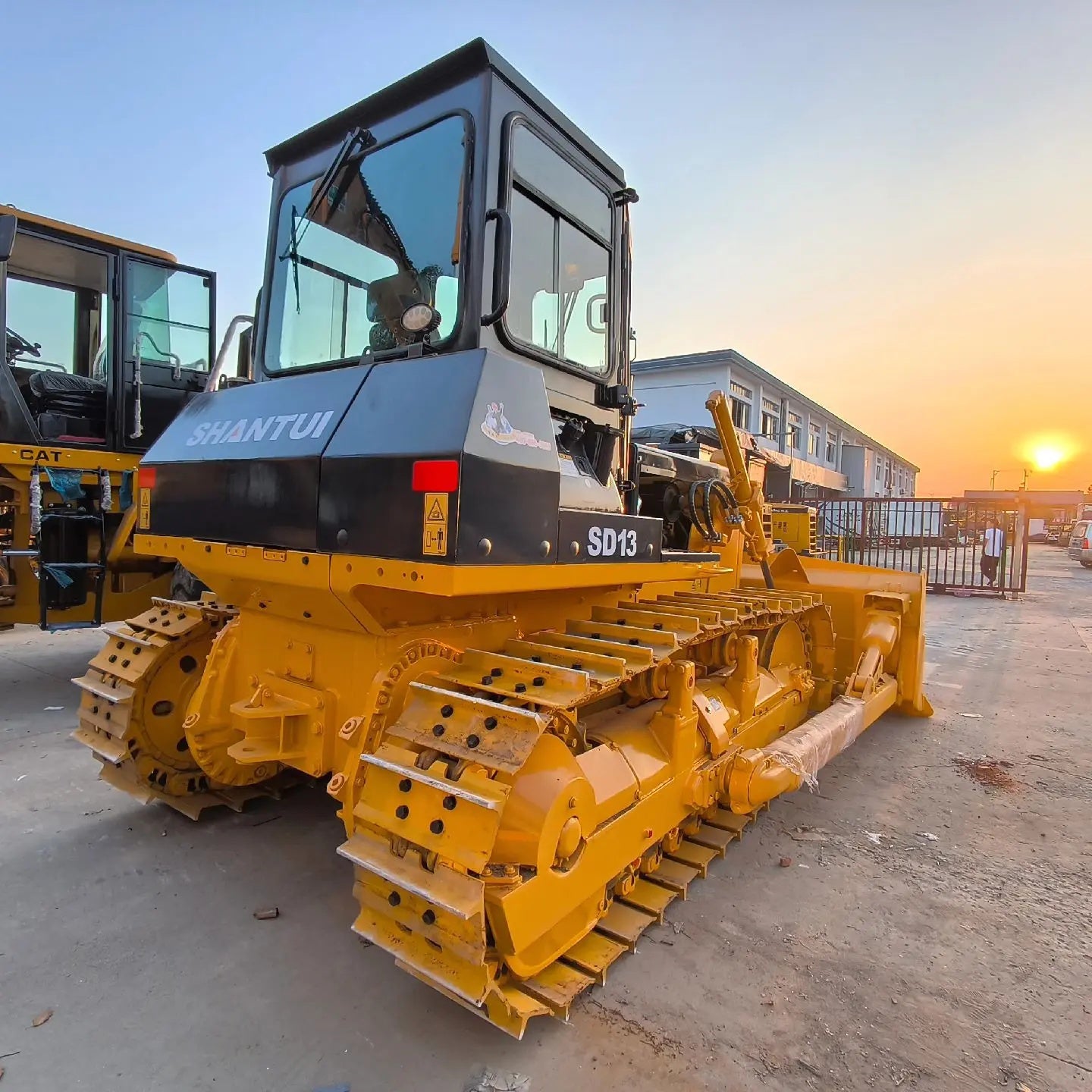

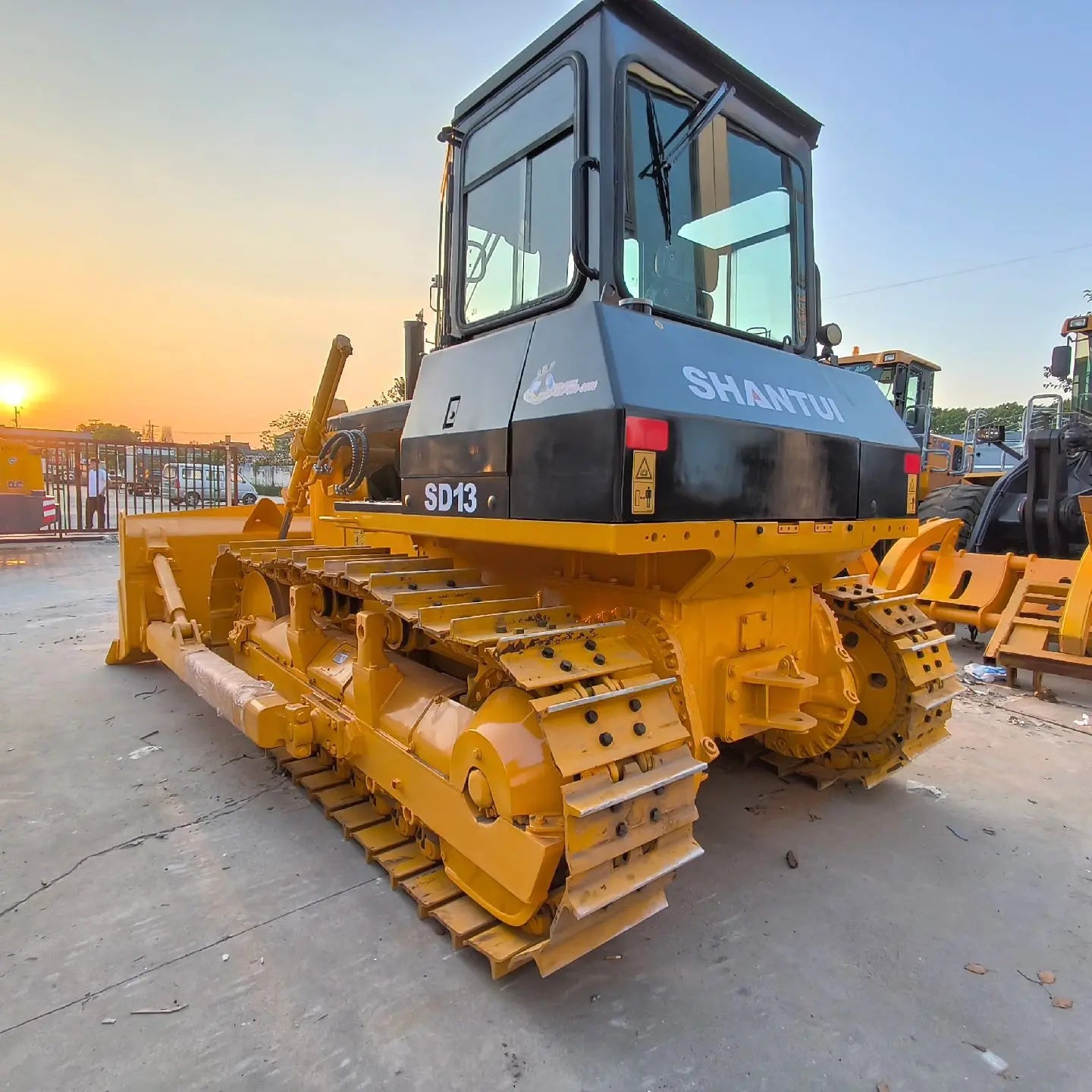

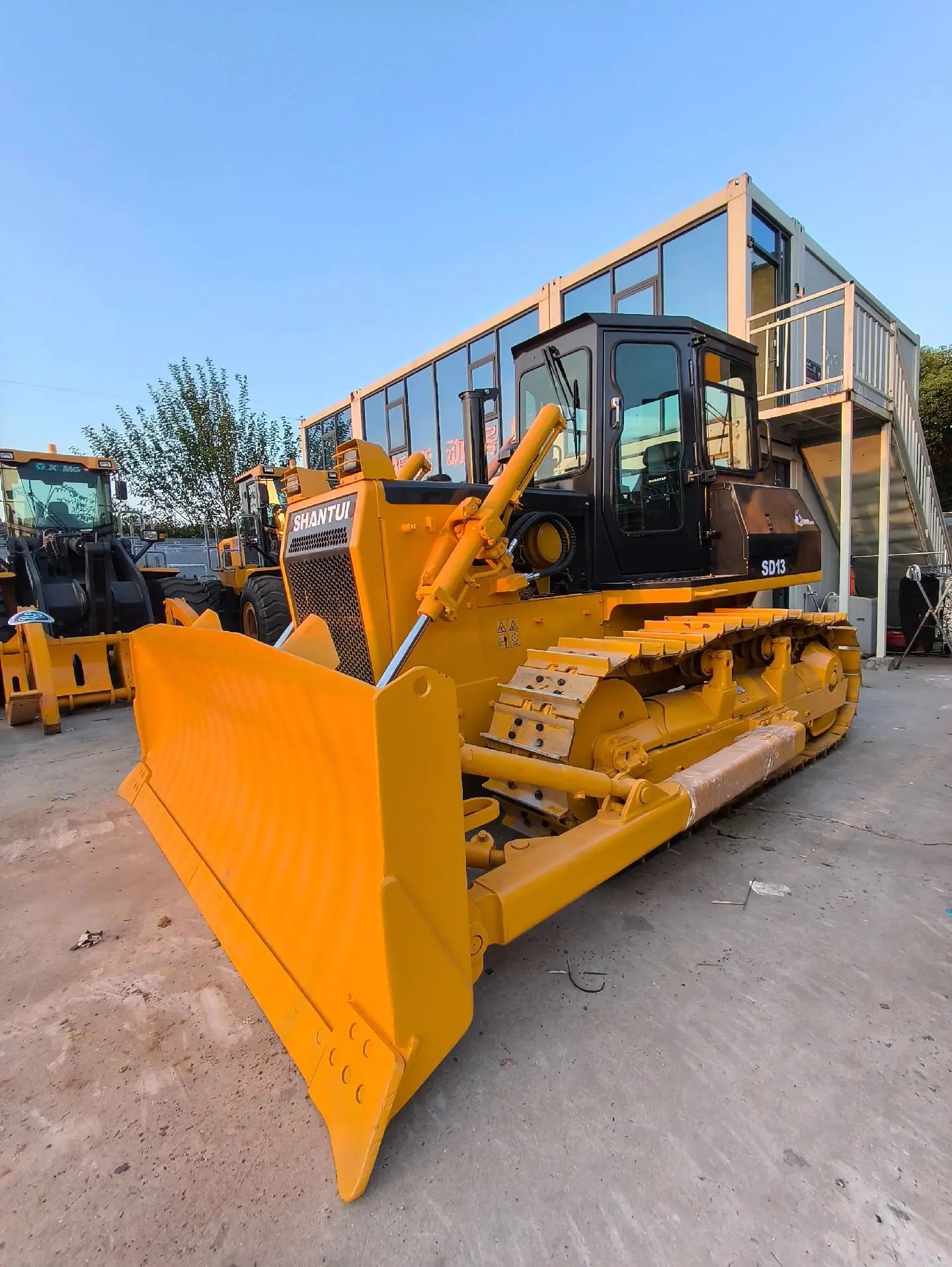

USED SHANTUI SD13

USED SHANTUI SD13

$16,000.00 USD
$16,000.00 USD
Sale Sold out
Below are the core parameters of the SHANTUI SD13 (standard variant) in English, structured in a tableShantui:

Parameter Details
Model SHANTUI SD13 (standard configuration, ROPS cab, full fuel, operator, without ripper)
Engine Model: Shangchai SC8D143G2B1 (6-cylinder, turbocharged diesel)

Rated Power: 105 kW (141 hp) @ 1900 rpm

Displacement: 8.3 L

Max Torque: 520 N·m @ 1400-1600 rpm

Emission Standard: China - Ⅱ (EU Stage Ⅱ equivalent)
Transmission Type: Hydrodynamic torque converter, planetary power shift

Gears: 3 forward, 3 reverse

Max Travel Speed: 9.8 kph (6.1 mph) (forward 3rd); 11.9 kph (7.4 mph) (reverse 3rd)
Operating Weight 13,700 kg (30,203 lbs) (standard); 14,500 kg (31,967 lbs) (with 3-shank ripper)
Blade (Straight - tilt/Angle) Straight - tilt Blade Capacity: 3.7 m³ (4.84 yd³)

Straight - tilt Blade Width×Height: 3,185 mm×1,090 mm (10.45 ft×3.58 ft)

Angle Blade Capacity: 3.4 m³ (4.45 yd³)

Angle Blade Width×Height: 3,475 mm×915 mm (11.40 ft×3.00 ft)

Max Digging Depth: 590 mm (1.94 ft)

Max Lift Height: 930 mm (3.05 ft)

Angle Range: ±30°
Dimensions Length (without ripper): 4,492 mm (14.74 ft)

Width (over tracks, straight - tilt blade): 3,185 mm (10.45 ft)

Height (top of cab): 2,950 mm (9.68 ft)

Track Gauge: 1,885 mm (6.18 ft)

Ground Clearance: 420 mm (1.38 ft)
Undercarriage Track Shoe Width: 460 mm (18.1 in)

Ground Contact Length: 2,380 mm (7.81 ft)

Ground Pressure: 53.8 kPa (7.80 psi)
Capacities Fuel Tank: 280 L (74.0 gal)

Hydraulic System: 90 L (23.8 gal)

Engine Oil: 20 L (5.3 gal)

Coolant: 28 L (7.4 gal)
