SHANTUI

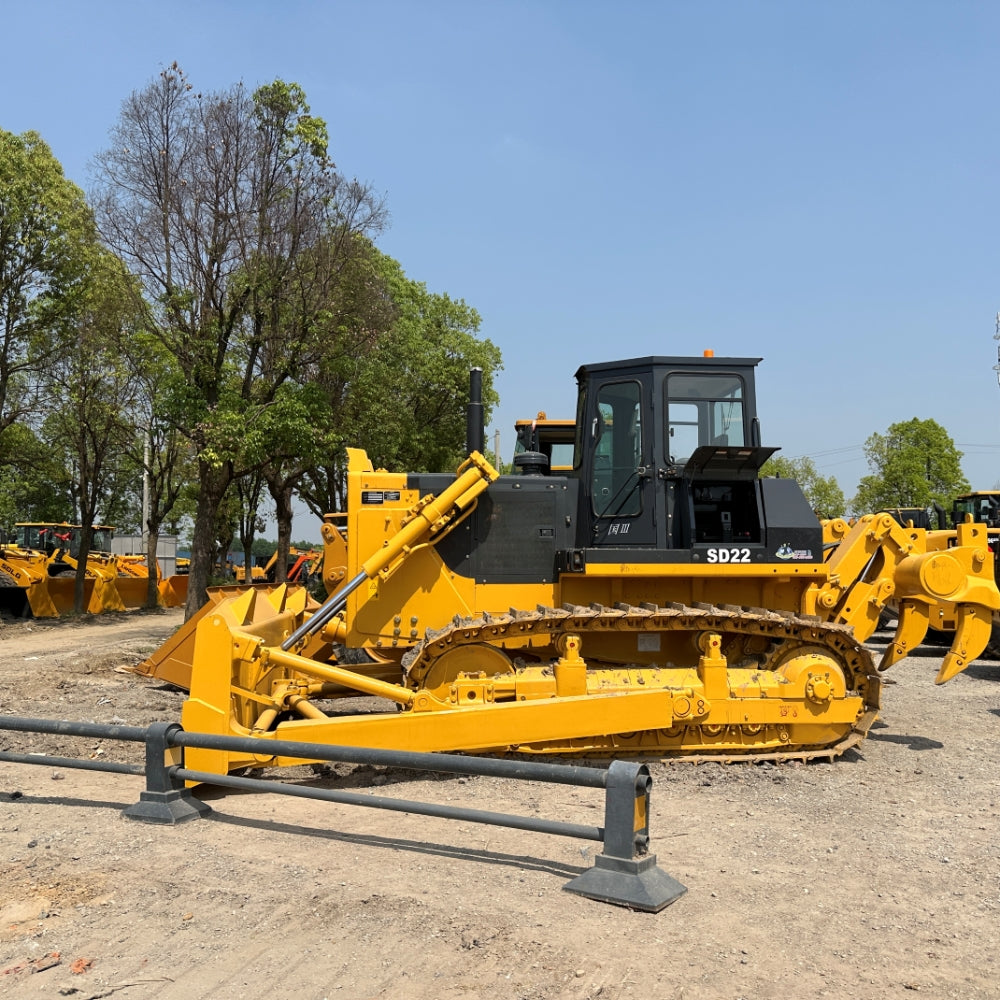

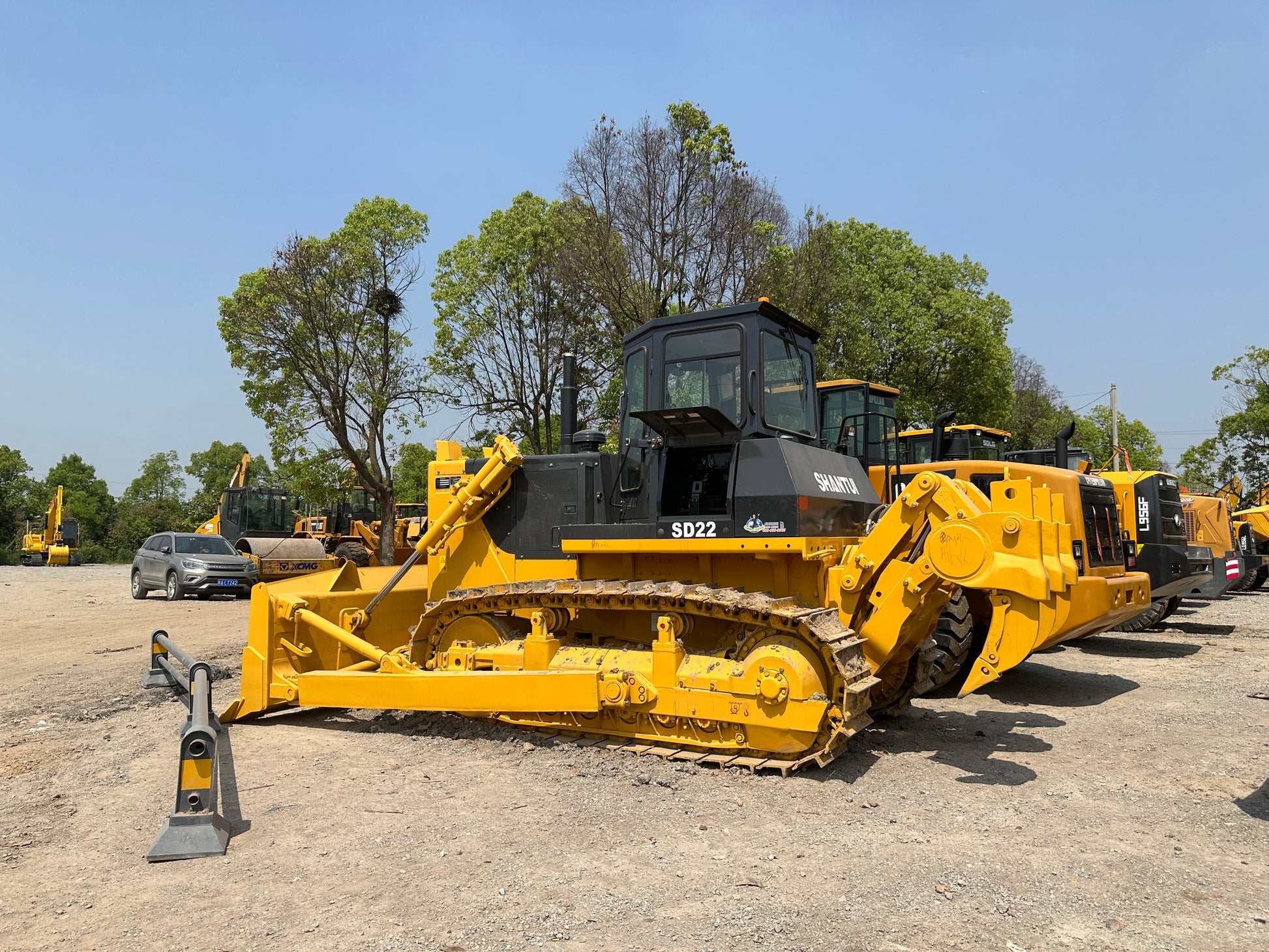

USED SHANTUI SD22

USED SHANTUI SD22

$28,000.00 USD
$28,000.00 USD
Sale Sold out
Here are the core parameters of the SHANTUI SD22 (standard variant) in English, structured in a tableShantui:

Parameter Details
Model SHANTUI SD22 (standard configuration, without ripper)
Engine Model: Cummins NT855 - C280S10 / Weichai WP12G240E306

Rated Power: 175 kW (235 hp) @ 1800 rpm

Net Power: 162 kW (220 hp) @ 1800 rpm

Displacement: 14 L

Max Torque: 1085 N·m @ 1300 rpm

Emission Standard: EU Stage Ⅱ
Transmission Type: Hydrodynamic torque converter, planetary power shift

Gears: 3 forward, 3 reverse

Max Travel Speed: 11.2 kph (6.96 mph) (forward 3rd); 13.5 kph (8.39 mph) (reverse 3rd)

Torque Converter: Three - element, single - stage, single - phase
Operating Weight 23,450 kg (51,708 lbs) (standard); 24,500 kg (54,013 lbs) (with 3 - shank ripper)

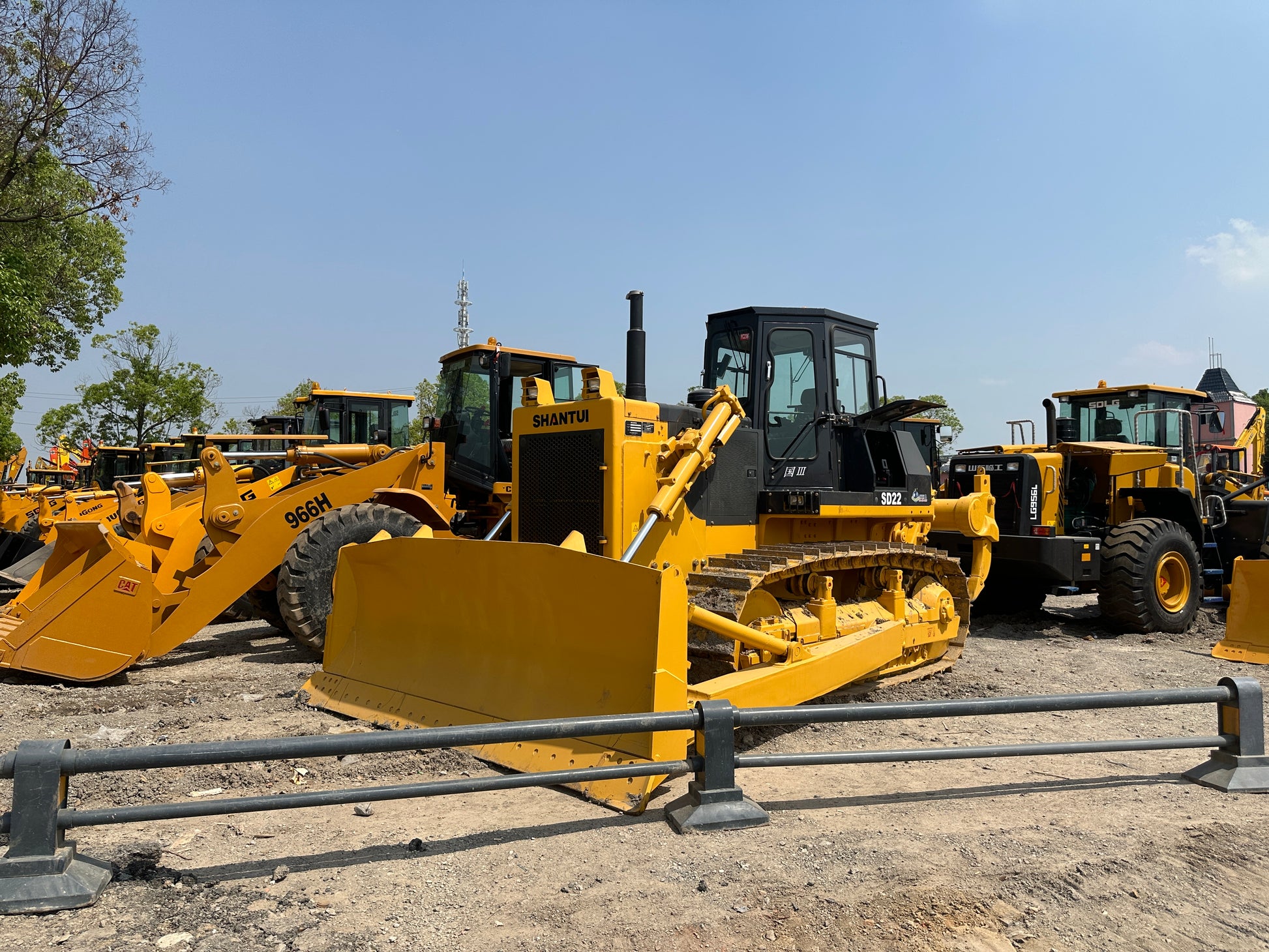

Blade Straight - tilt Blade Capacity: 6.4 m³ (8.37 yd³)

Straight - tilt Blade Width×Height: 3,725 mm×1,315 mm (12.22 ft×4.31 ft)

U - shaped Blade Capacity: 7.5 m³ (9.81 yd³)

Angle Blade Capacity: 4.7 m³ (6.15 yd³)

Max Digging Depth: 540 mm (1.77 ft); Max Lift Height: 1,210 mm (3.97 ft)

Angle Range: ±30°
Dimensions Length (without ripper): 5,495 mm (18.03 ft)

Width (over tracks, straight - tilt blade): 3,725 mm (12.22 ft)

Height (top of cab): 3,745 mm (12.29 ft)

Track Gauge: 2,000 mm (6.56 ft)

Ground Clearance: 450 mm (1.48 ft)

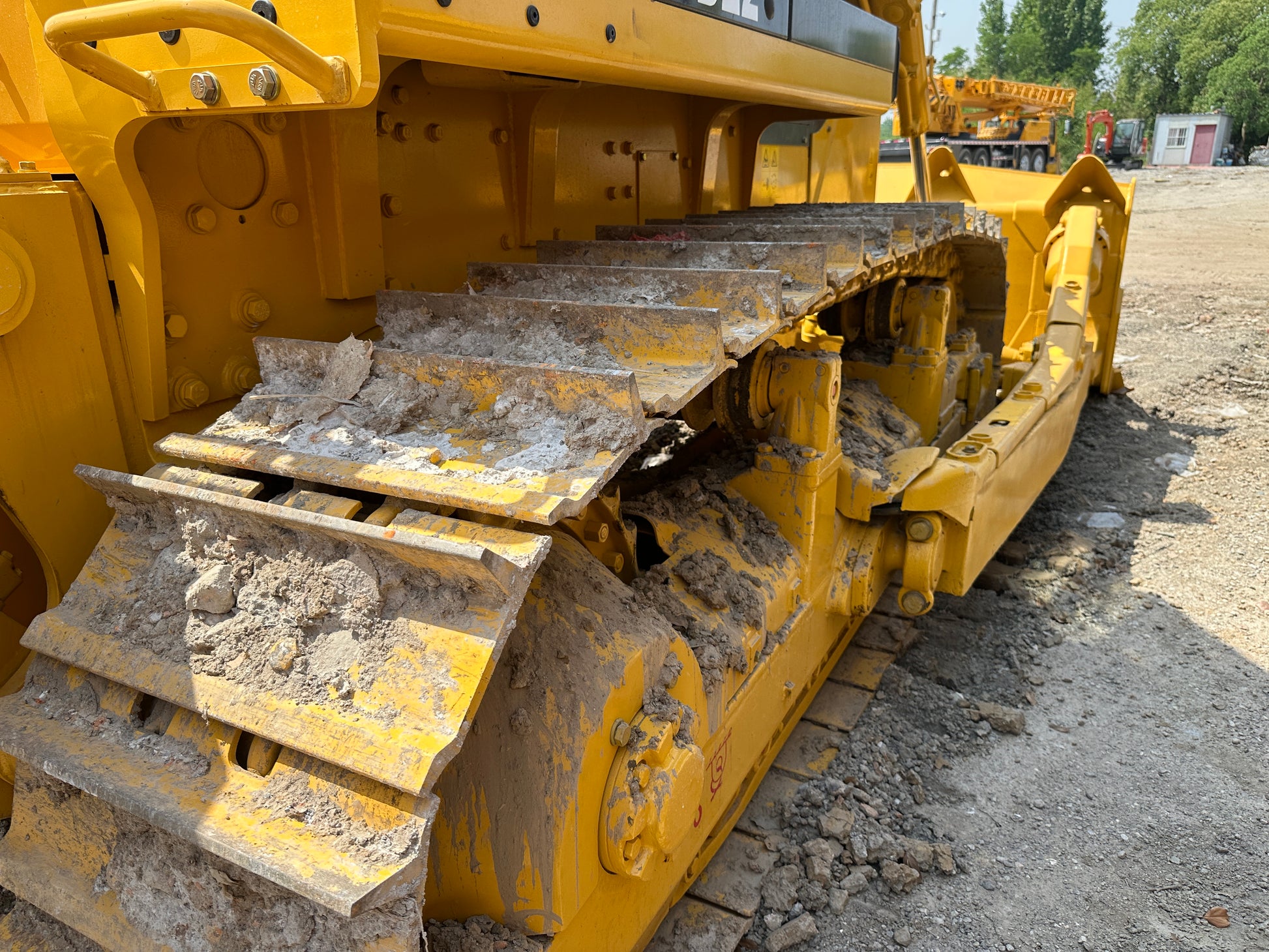

Undercarriage Track Shoe Width: 560 mm (22.05 in) (optional 610/660 mm)

Ground Contact Length: 2,730 mm (8.96 ft)

Ground Pressure: 77 kPa (11.17 psi)
Capacities Fuel Tank: 450 L (118.88 gal)

Hydraulic System: 120 L (31.70 gal)

Engine Oil: 38 L (10.04 gal)

Coolant: 95 L (25.09 gal)

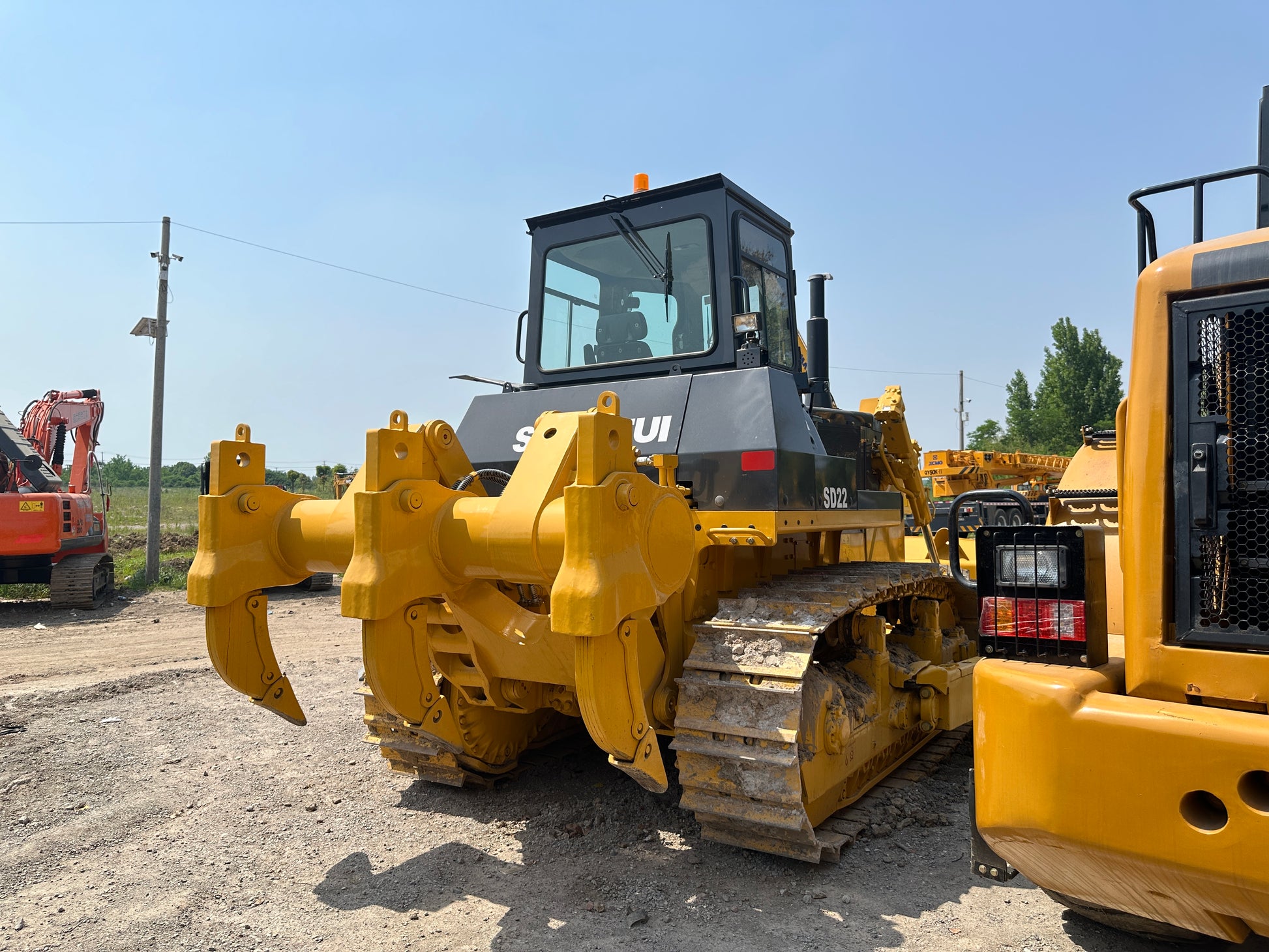

Ripper (Optional 3 - shank) Type: Parallelogram adjustable 3 - shank ripper

Max Digging Depth: 666 mm (2.19 ft)

Max Lift Height: 555 mm (1.82 ft)

Ripper Weight: 1,050 kg (2,315 lbs)
