SHANTUI

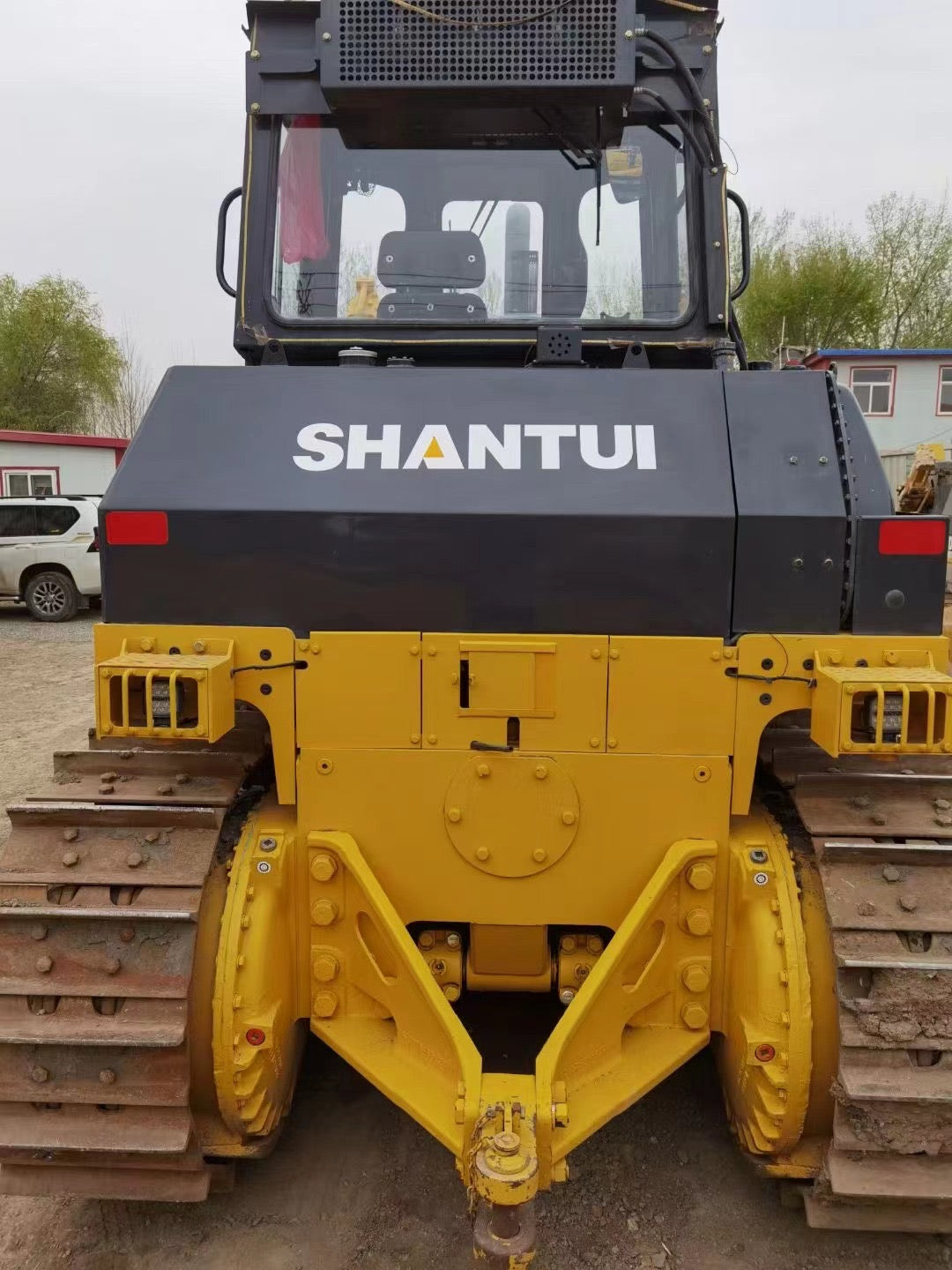

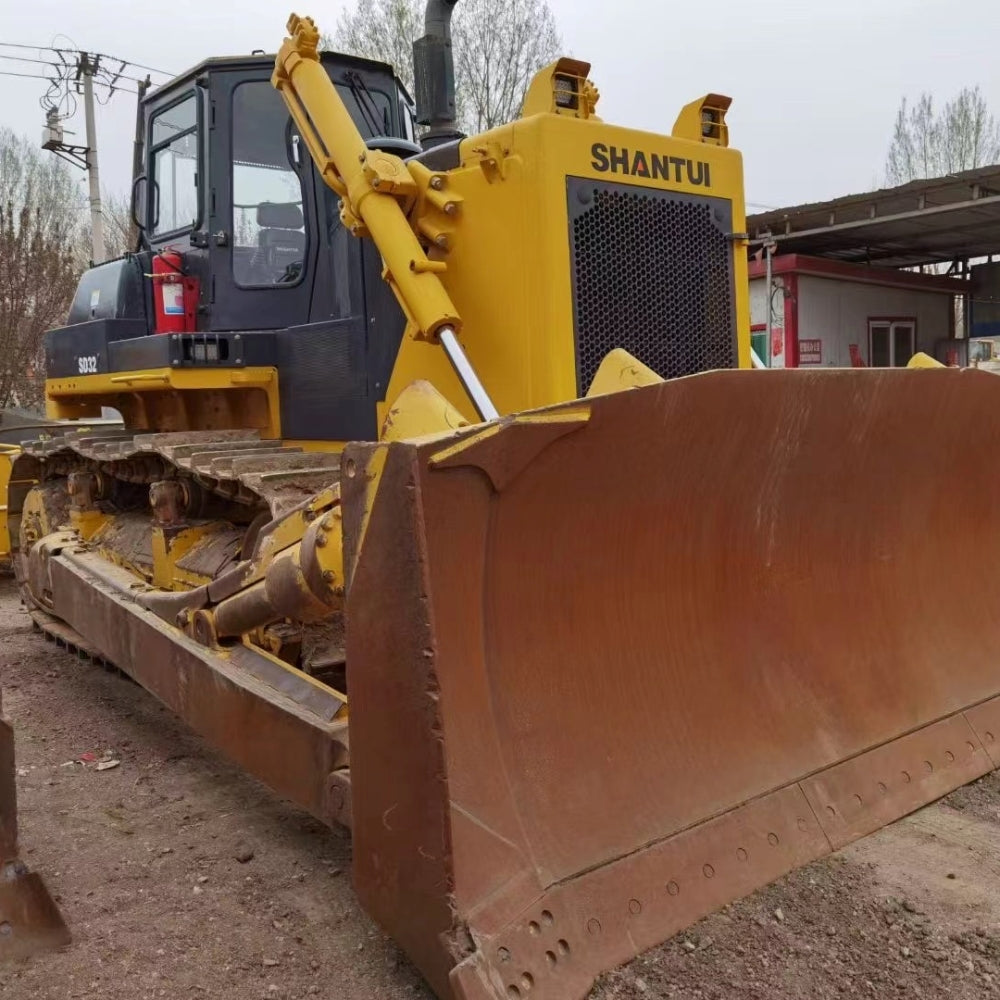

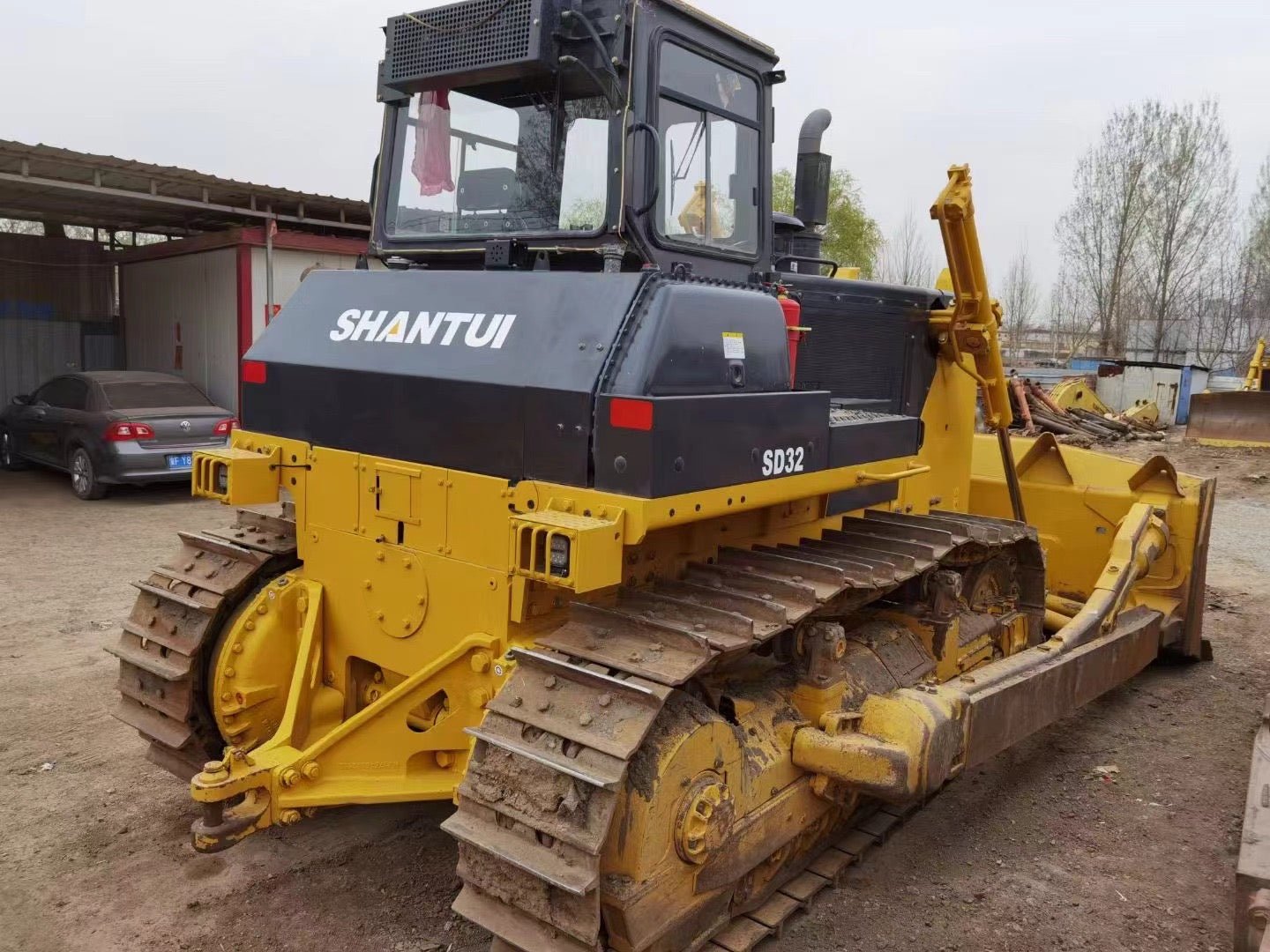

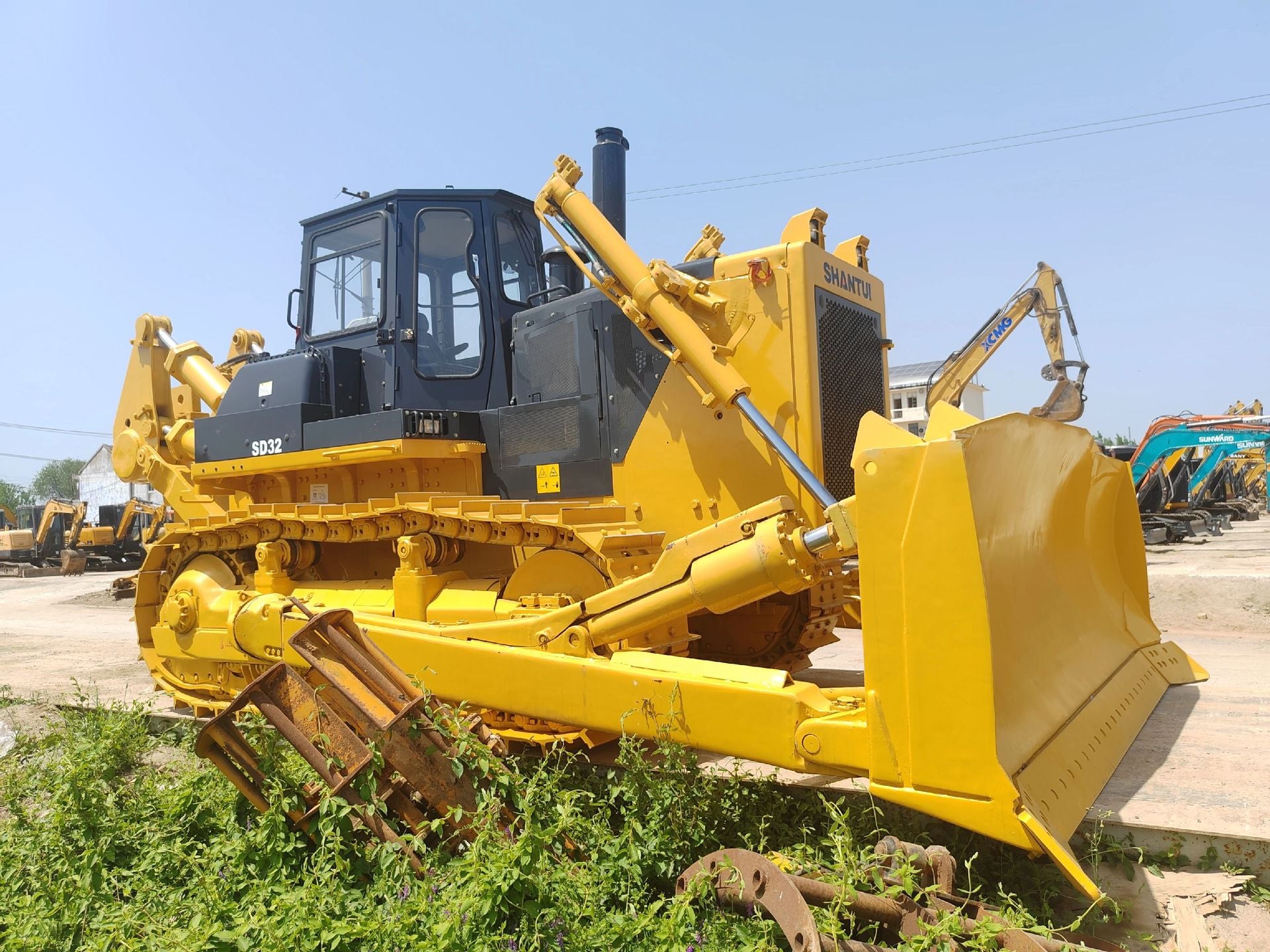

USED SHANTUI SD32

USED SHANTUI SD32

$32,000.00 USD
$32,000.00 USD
Sale Sold out
Parameter Details

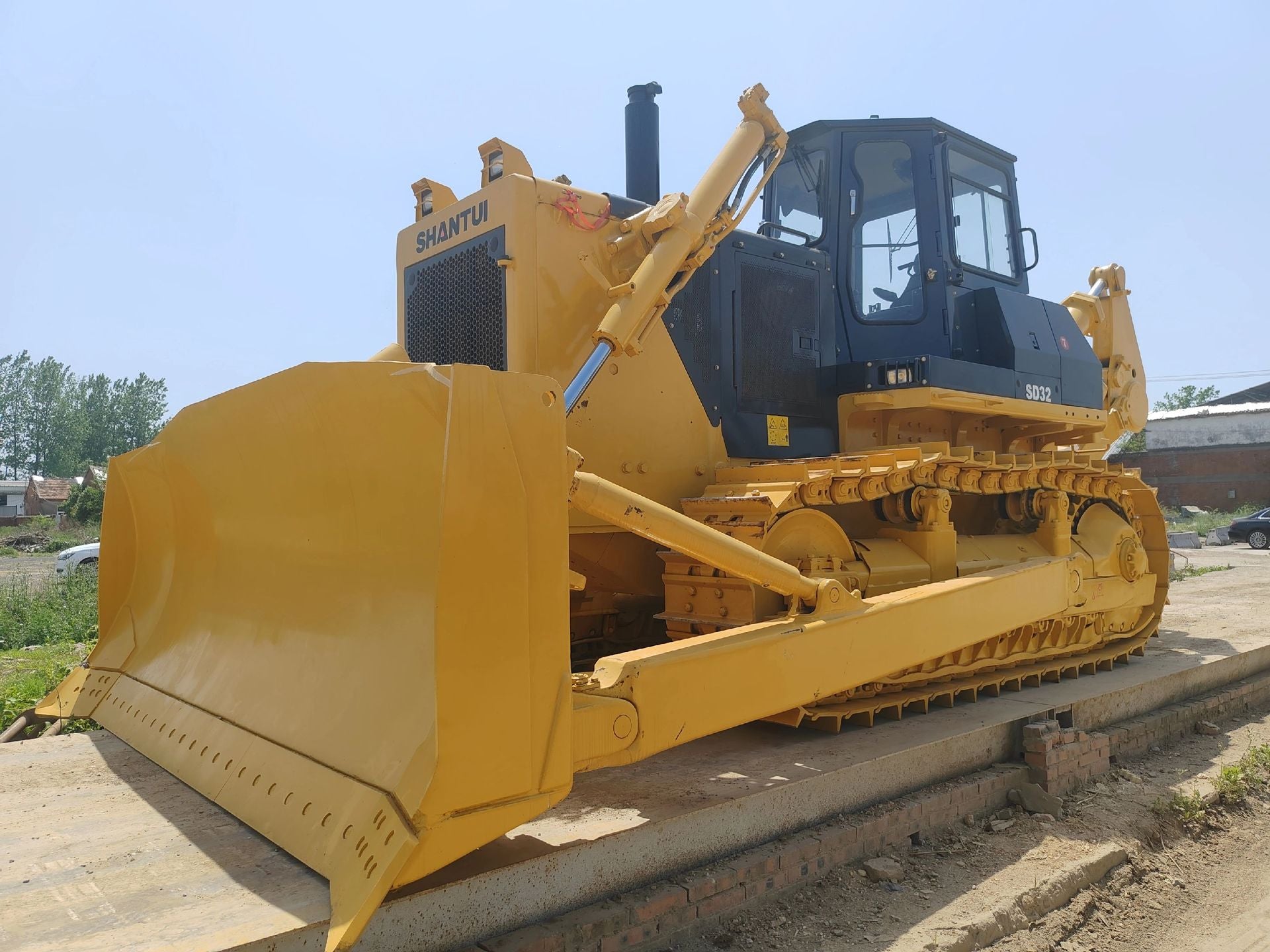

Model SHANTUI SD32 (standard configuration, power - shift crawler bulldozer, without ripper)

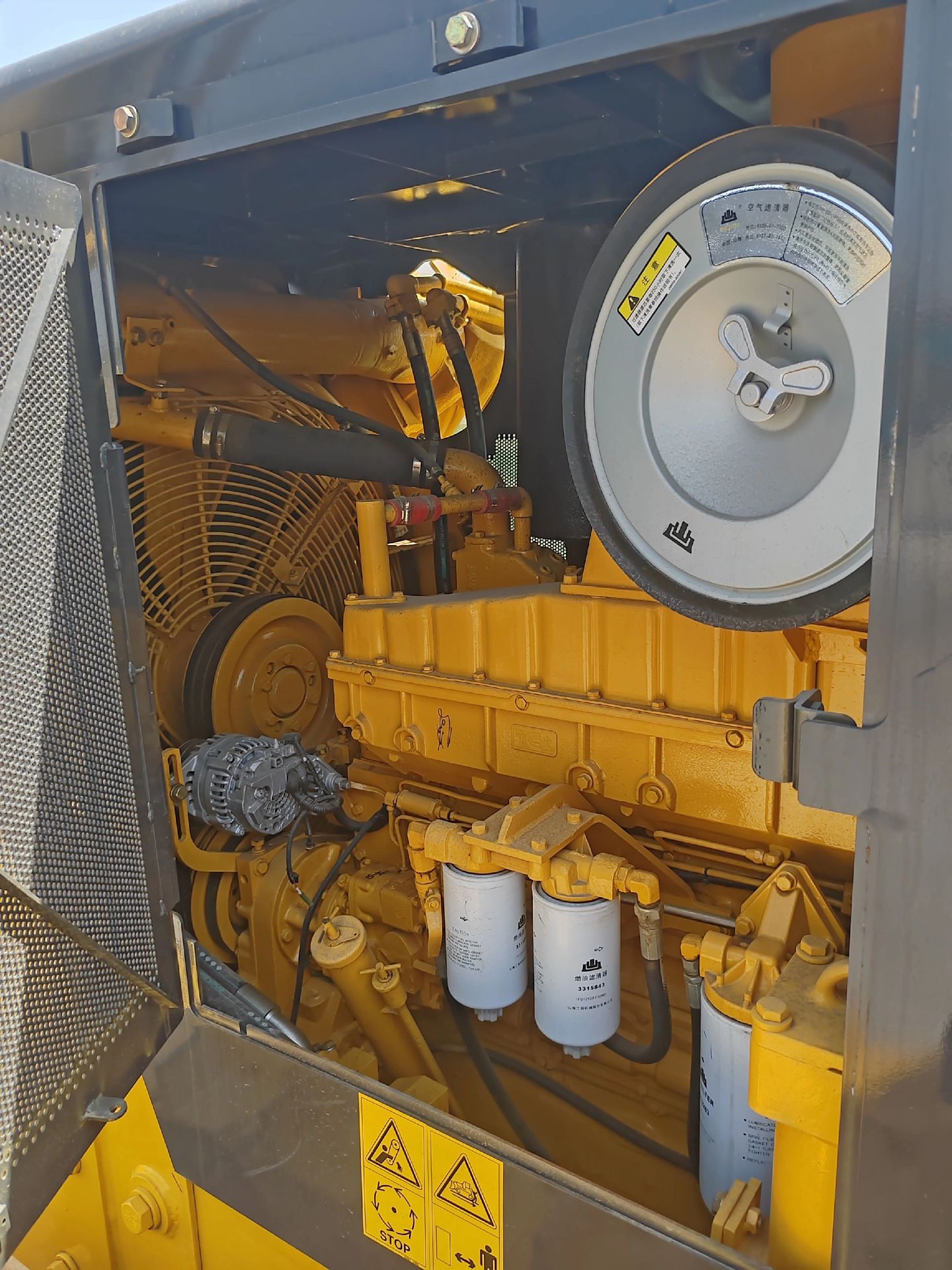

Engine Model: Cummins QSNT - C345 / Weichai WP12 (6 - cylinder, turbocharged diesel)

Rated Power: 257 kW (345 hp) @ 2000 rpm

Net Power: 243 kW (326 hp) @ 2000 rpm

Displacement: 12.54 L (WP12); 14.01 L (QSNT - C345)

Max Torque: 1550 N·m @ 1400 rpm

Emission Standard: EU Stage Ⅱ / China Non - road Ⅲ
Transmission Type: Hydrodynamic torque converter, planetary power - shift

Gears: 3 forward, 3 reverse

Max Travel Speed: 11.5 kph (7.15 mph) (forward 3rd); 13.5 kph (8.39 mph) (reverse 3rd)

Torque Converter: YJ480, 3 - element, single - stage, single - phase
Operating Weight 40,200 kg (88,626 lbs) (without ripper); 41,500 kg (91,492 lbs) (with 3 - shank ripper)

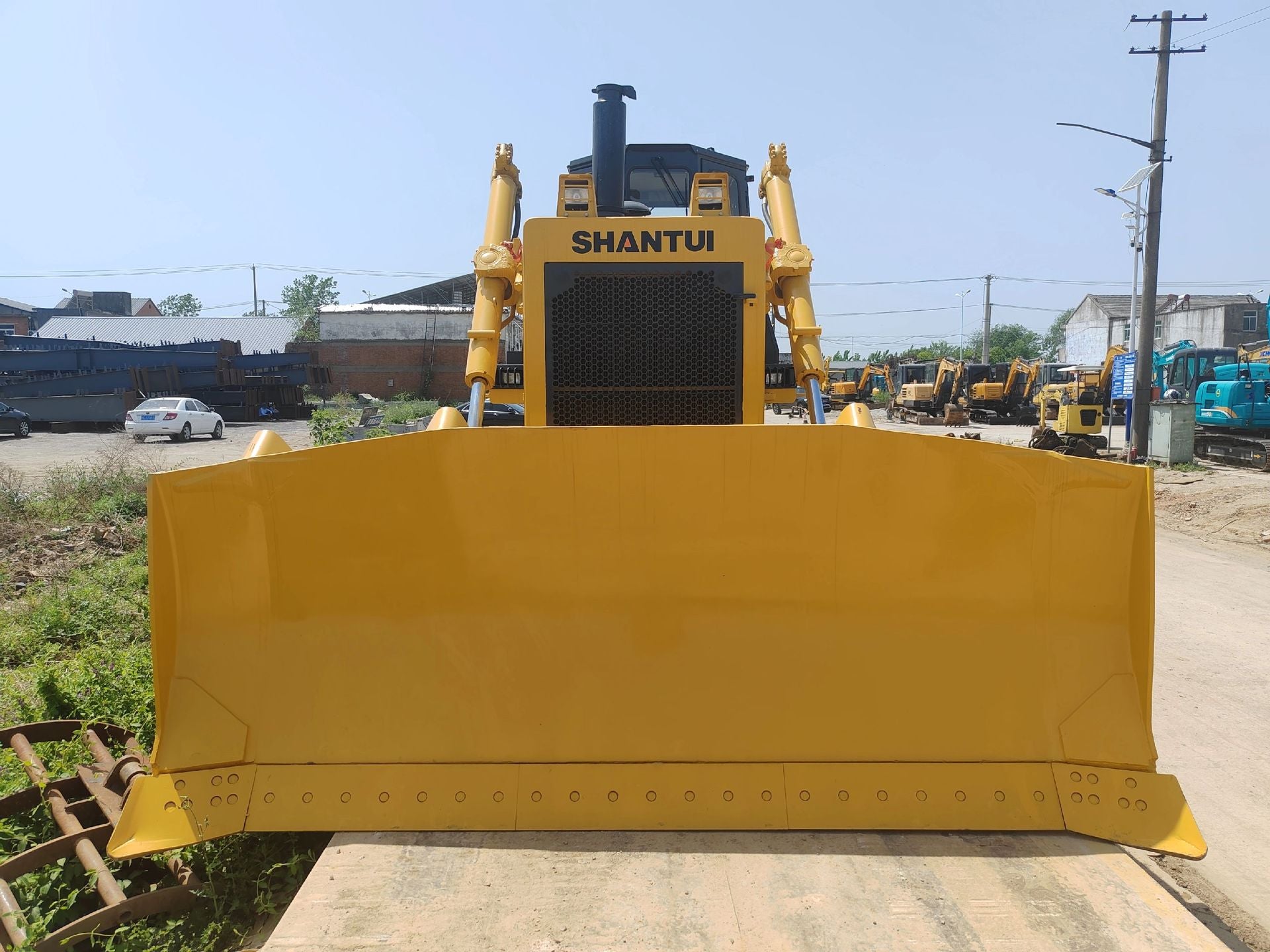

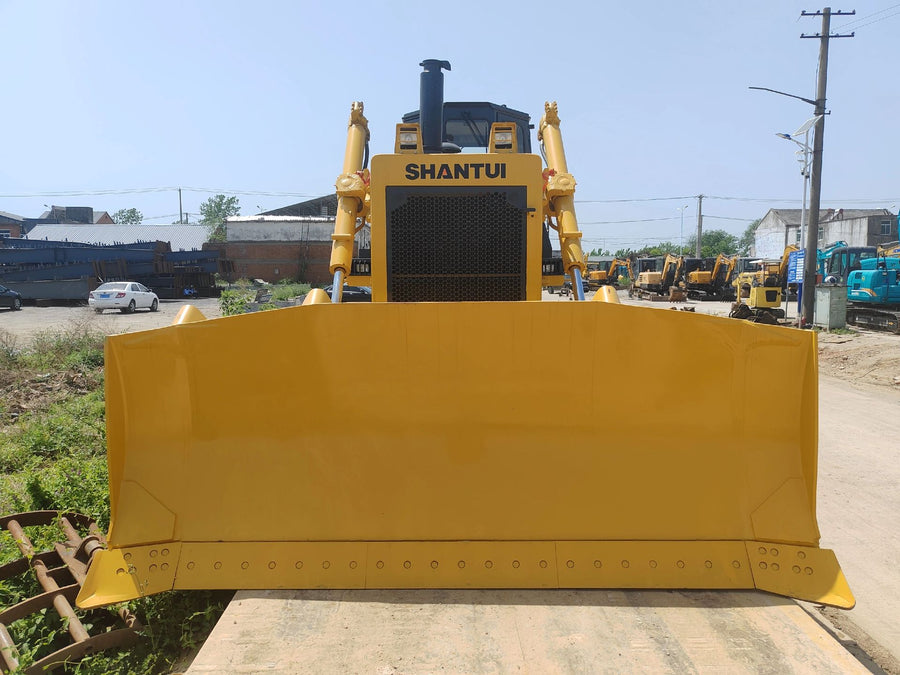

Blade Straight - tilt Blade: Capacity 10.0 m³ (13.08 yd³), Width×Height 4,130 mm×1,550 mm (13.55 ft×5.09 ft)

Semi - U Blade: Capacity 11.7 m³ (15.30 yd³), Width×Height 4,130 mm×1,600 mm (13.55 ft×5.25 ft)

Angle Blade: Capacity 6.2 m³ (8.11 yd³), Width×Height 4,130 mm×1,400 mm (13.55 ft×4.59 ft)

Max Digging Depth: 600 mm (1.97 ft); Max Lift Height: 1,350 mm (4.43 ft)

Angle Range: ±30°
Dimensions Length (without ripper): 8,650 mm (28.38 ft)

Width (over tracks, straight - tilt blade): 4,130 mm (13.55 ft)

Height (top of cab): 3,760 mm (12.34 ft)

Track Gauge: 2,140 mm (7.02 ft)

Ground Clearance: 500 mm (1.64 ft)

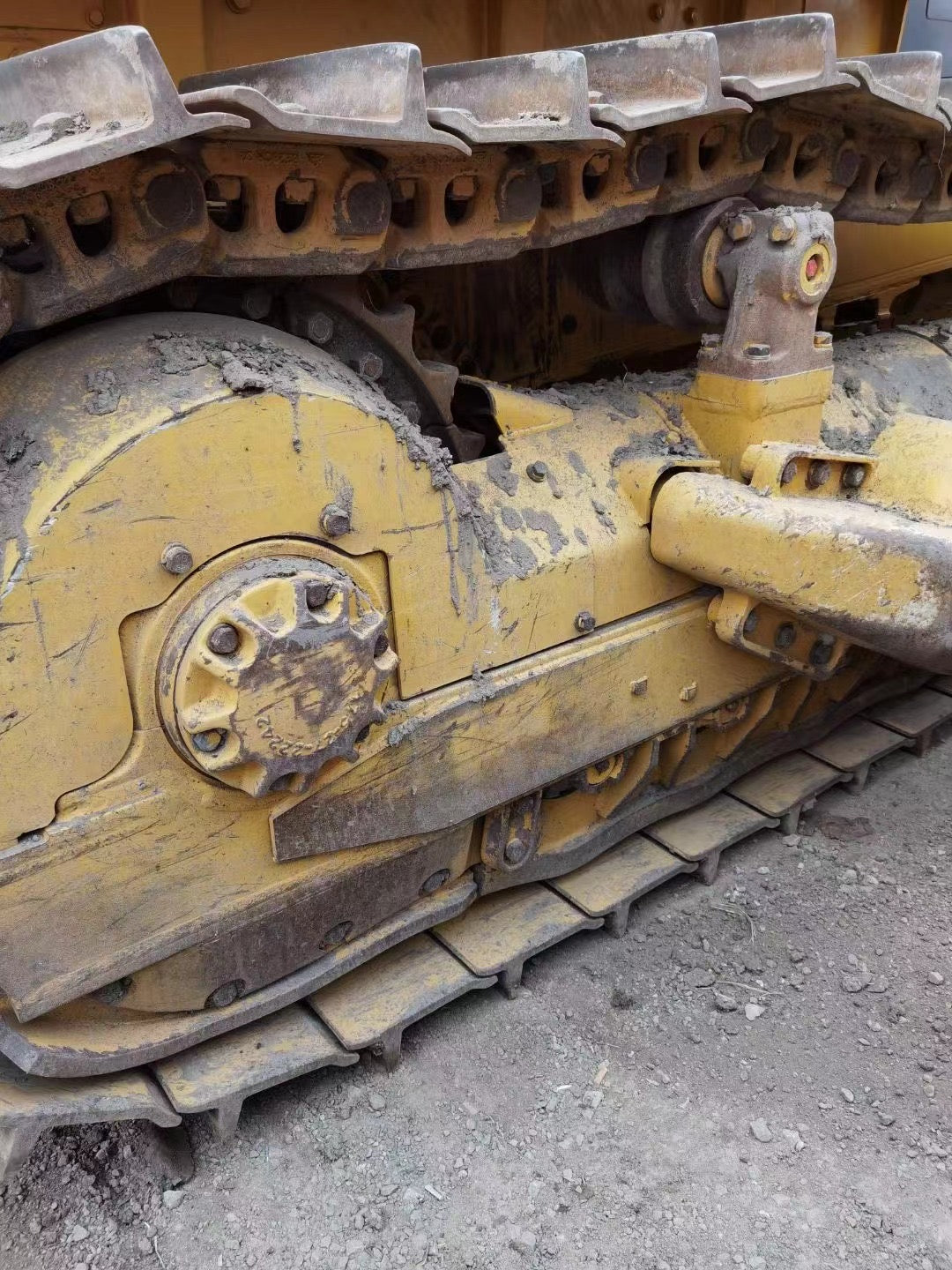

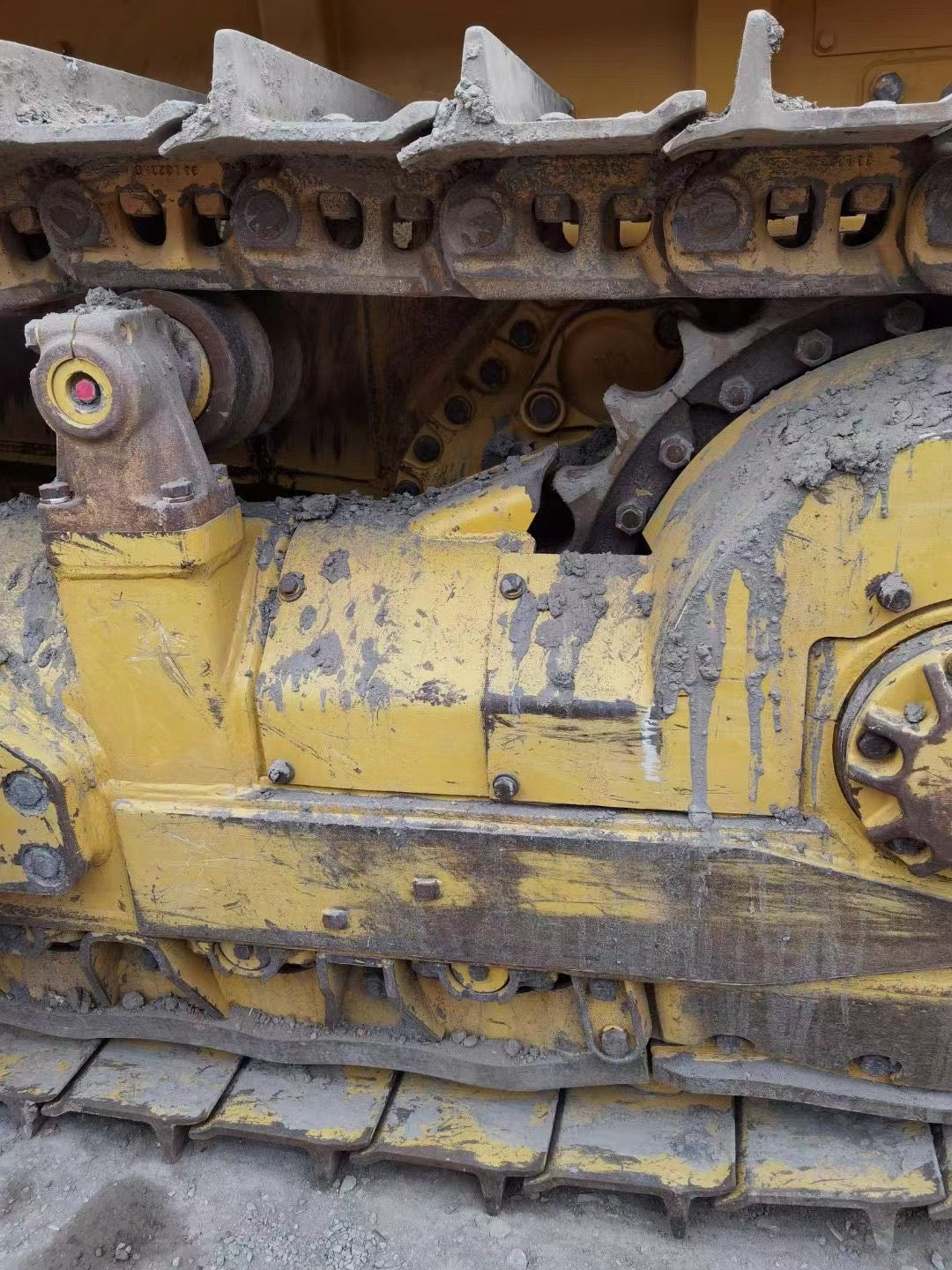

Undercarriage Track Shoe Width: 560 mm (22.05 in) (optional 610/660/710 mm)

Ground Contact Length: 3,150 mm (10.33 ft)

Ground Pressure: 97.7 kPa (14.17 psi)
Capacities Fuel Tank: 640 L (169.07 gal)

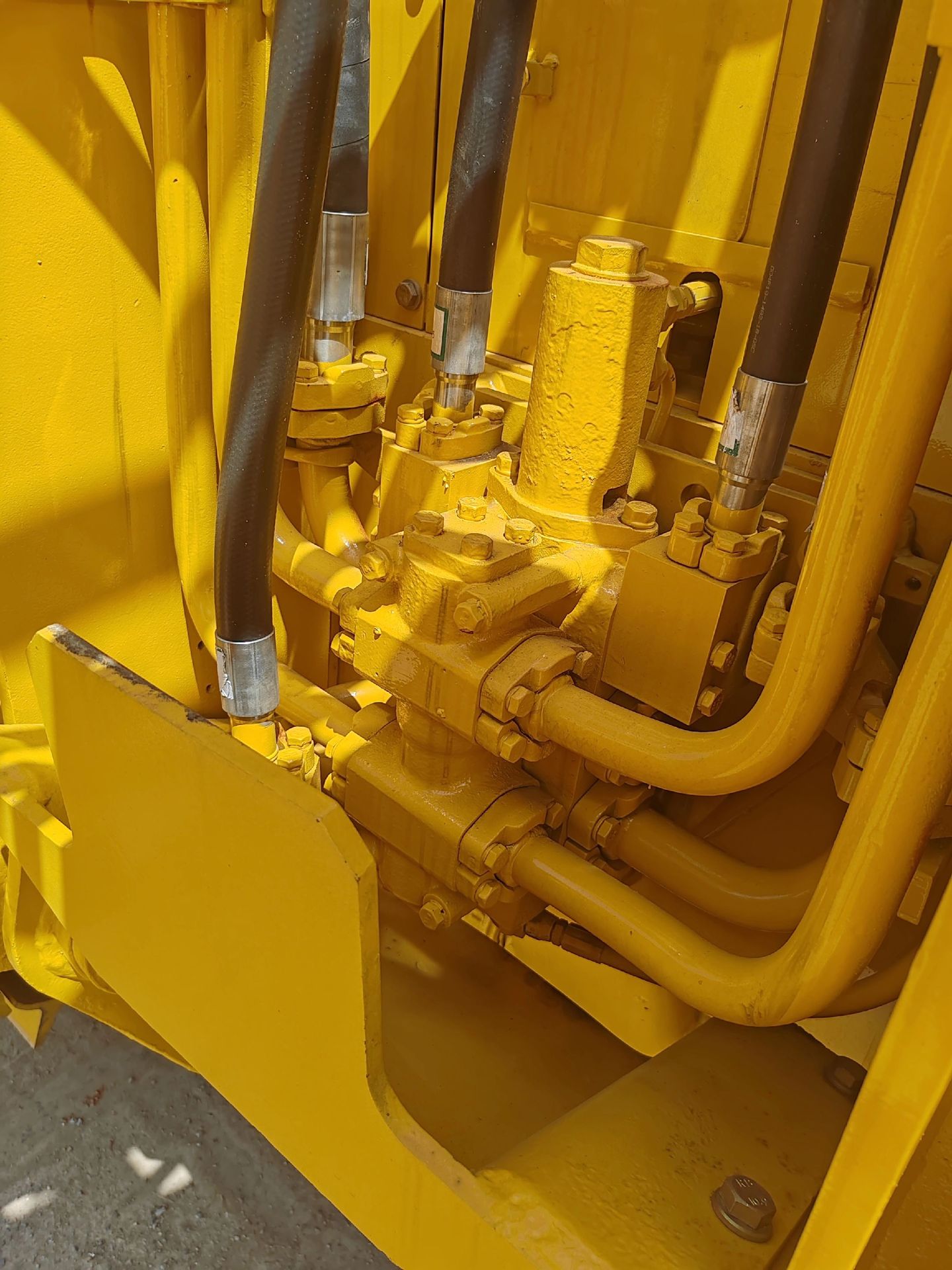

Hydraulic System: 160 L (42.27 gal)

Engine Oil: 48 L (12.68 gal)

Coolant: 120 L (31.70 gal)Shantui

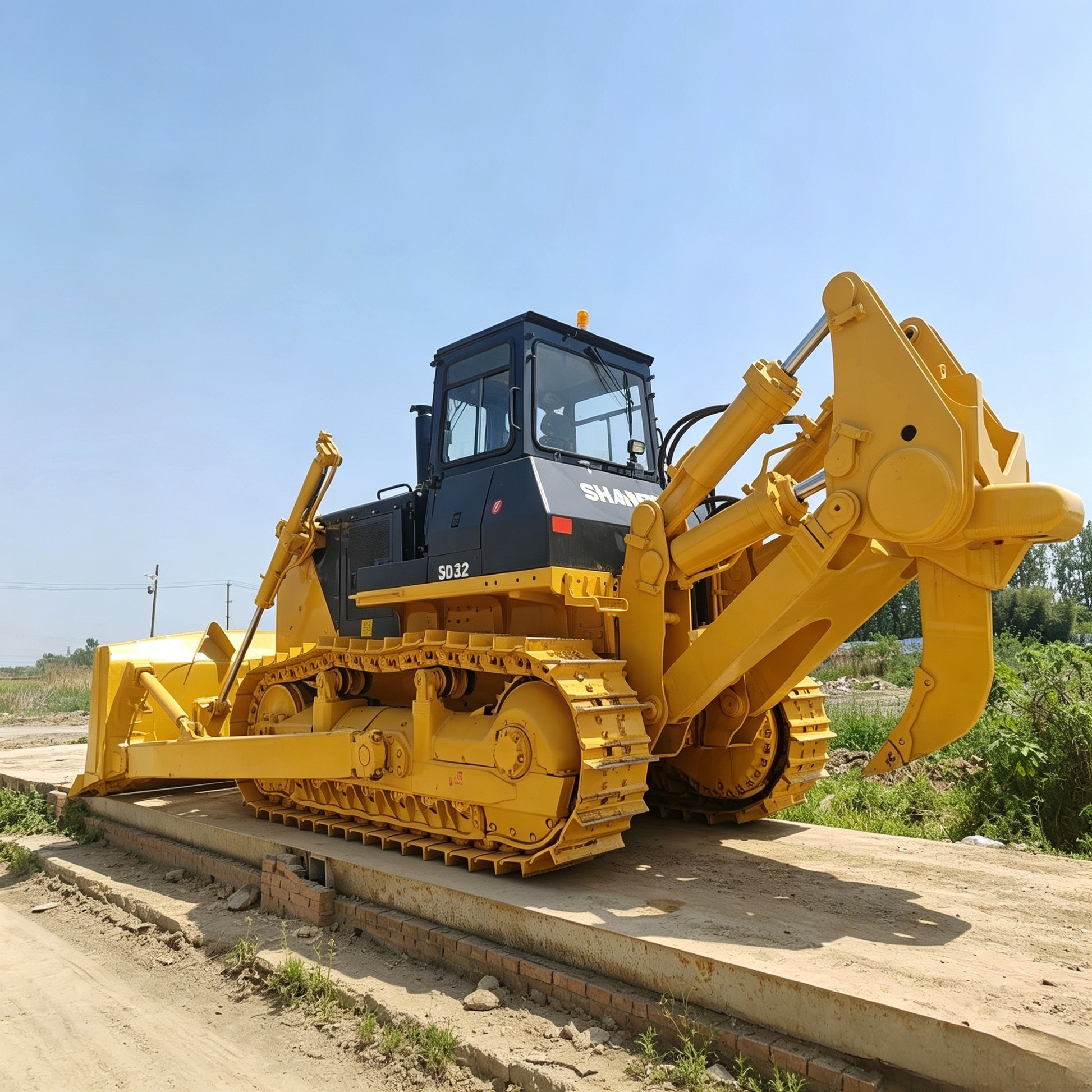

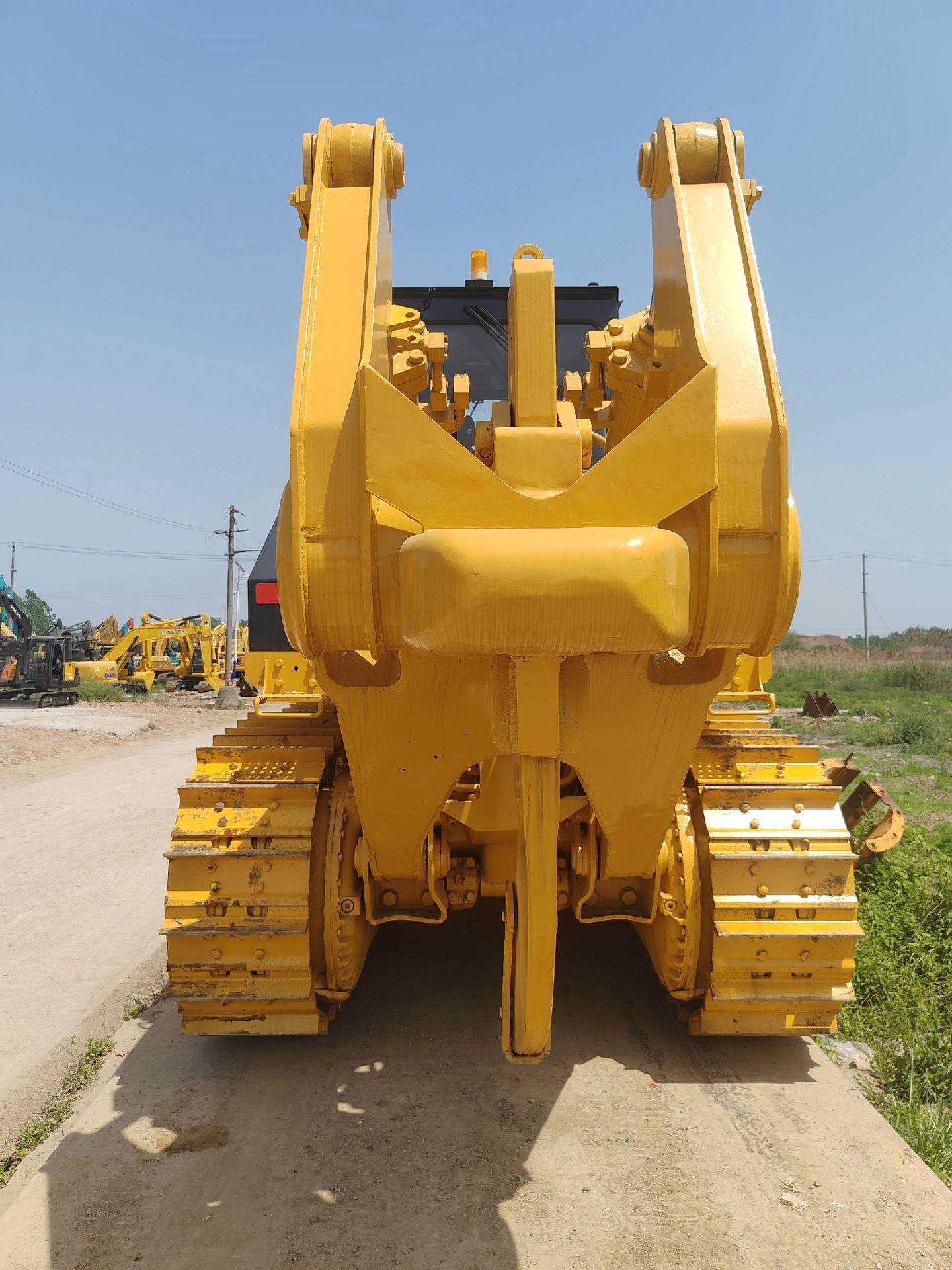

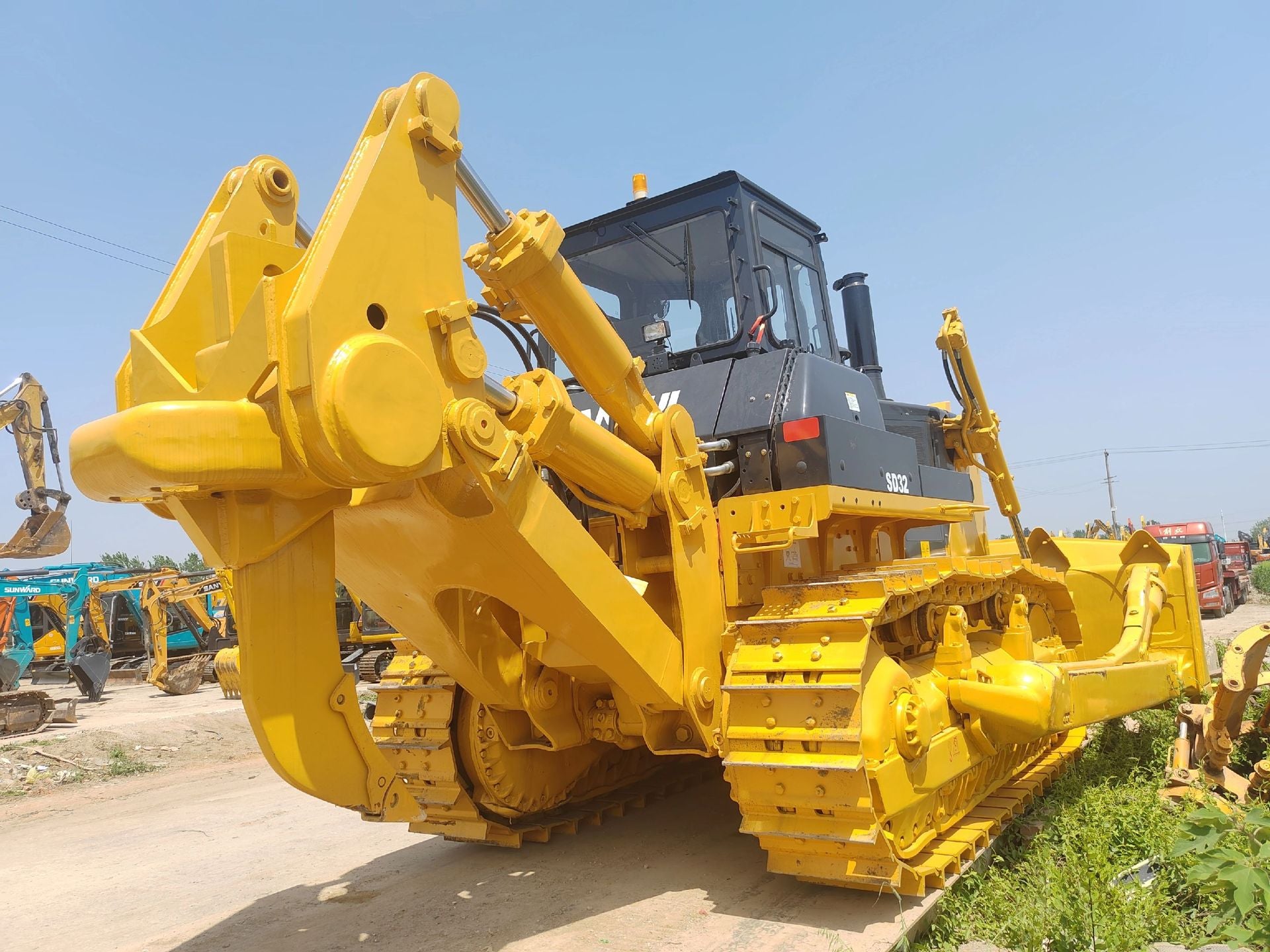

Ripper (Optional 3 - shank) Type: Parallelogram adjustable 3 - shank ripper

Max Digging Depth: 700 mm (2.30 ft)

Max Lift Height: 650 mm (2.13 ft)

Ripper Weight: 1,300 kg (2,866 lbs)
