SHANTUI

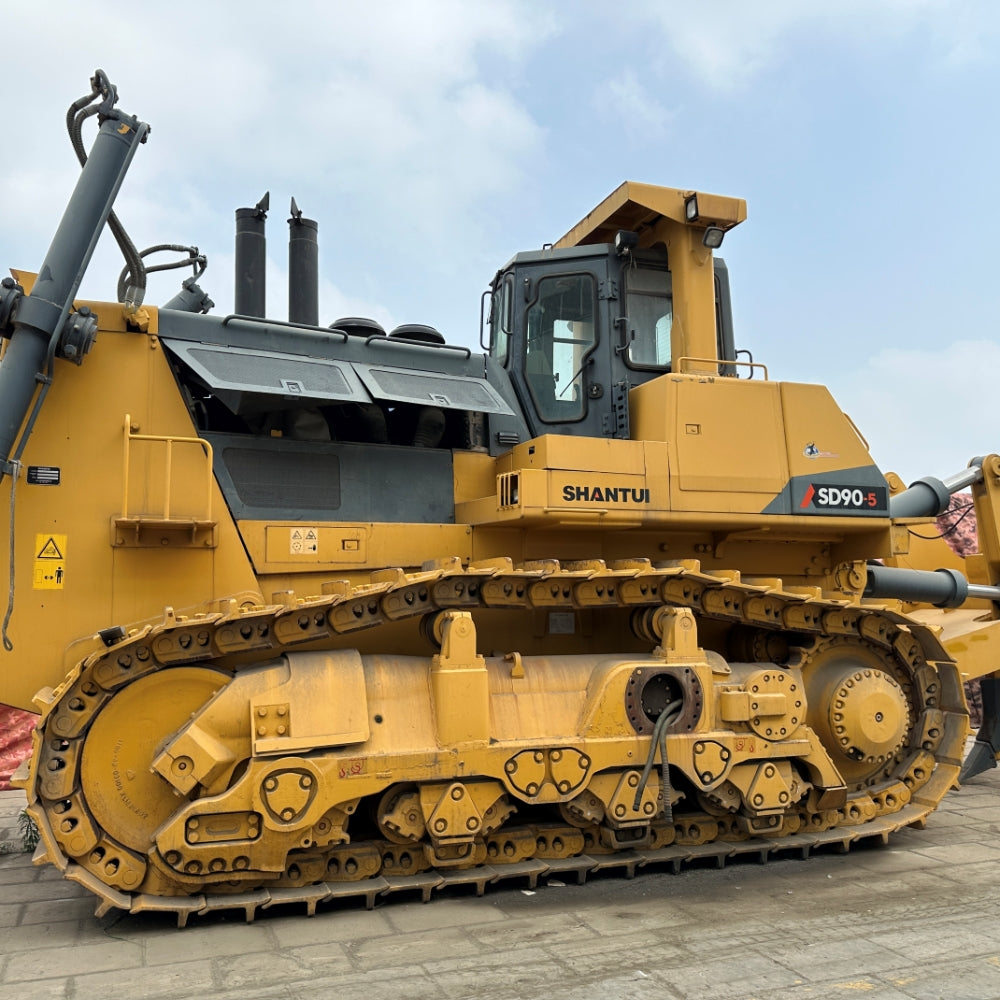

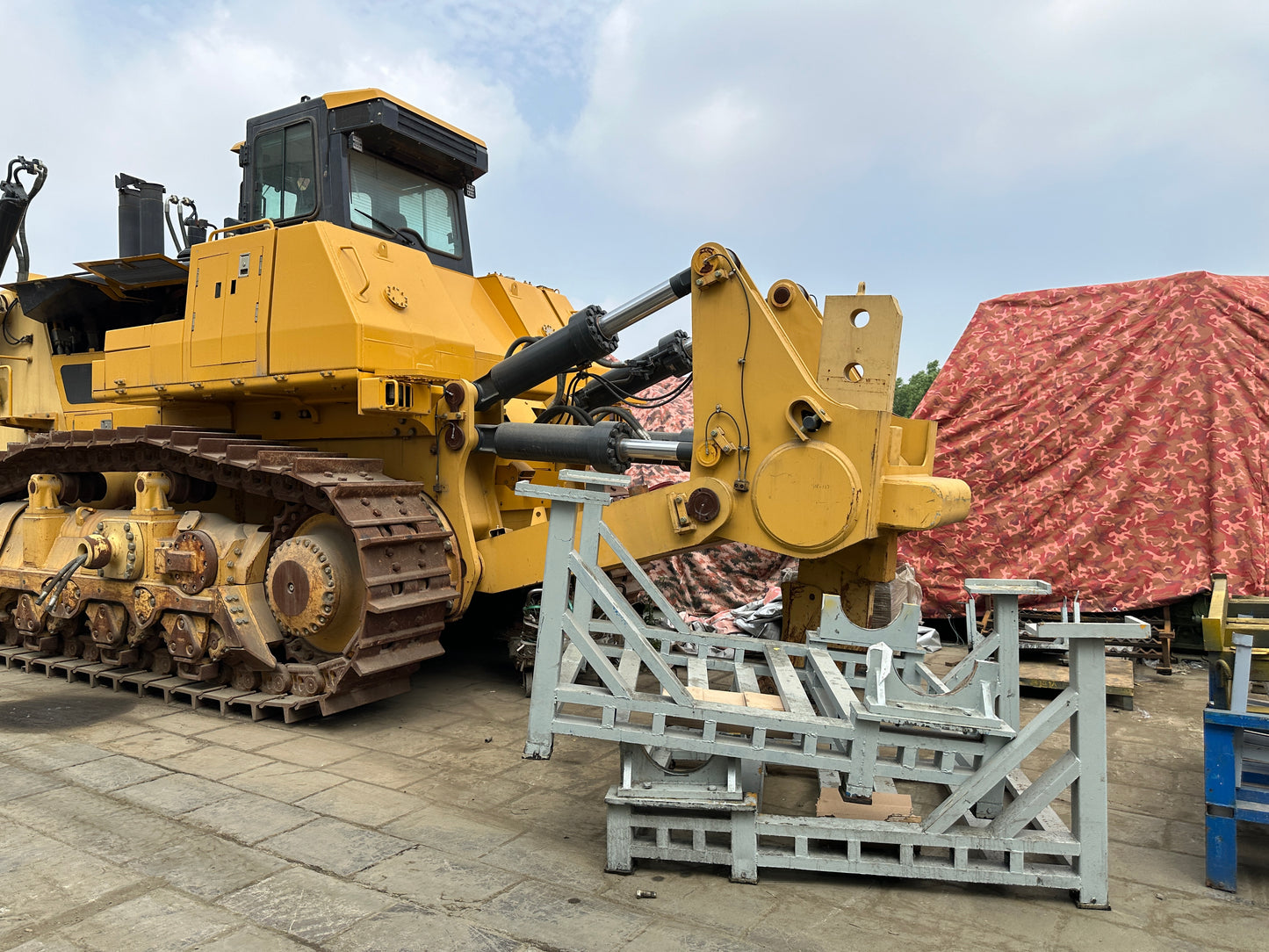

USED SHANTUI SD90

USED SHANTUI SD90

$55,000.00 USD
$55,000.00 USD
Sale Sold out

Parameter Details
Model SHANTUI SD90 (heavy - duty crawler bulldozer, with single - tooth ripper)
Engine Model: Cummins QST30 (12 - cylinder, V - type, turbocharged, electronically controlled diesel)

Rated Power: 708 kW (950 hp) @ 2100 rpm

Net Power: 671 kW (900 hp) @ 2100 rpm

Displacement: 30.5 L

Max Torque: 4191 N·m @ 1300 rpm

Emission Standard: EU Stage ⅢA / China Non - road Ⅲ
Transmission Type: Hydrodynamic torque converter (3 - element, single - stage, single - phase with lock - up clutch), planetary power shift

Gears: 3 forward, 3 reverse

Max Travel Speed: 10.9 kph (6.77 mph) (forward 3rd); 14.3 kph (8.89 mph) (reverse 3rd)

Forward Speeds: F1: 0 - 3.5 kph; F2: 0 - 6.3 kph; F3: 0 - 10.9 kph

Reverse Speeds: R1: 0 - 4.7 kph; R2: 0 - 8.4 kph; R3: 0 - 14.3 kph
Operating Weight 106,260 kg (234,263 lbs) (with single - tooth ripper)
Blade Semi - U Blade Capacity: 39 m³ (51.01 yd³)

Semi - U Blade Width×Height: 5,265 mm×1,900 mm

Max Digging Depth: 1,010 mm (3.31 ft)

Max Lift Height: 1,620 mm (5.31 ft)

Angle Range: ±30°
Dimensions Length (without ripper): 11,500 mm (37.73 ft)

Width (over tracks, semi - U blade): 5,265 mm (17.27 ft)

Height (top of cab): 4,590 mm (15.06 ft)

Track Gauge: 2,770 mm (9.09 ft)

Ground Clearance: 600 mm (1.97 ft)
Undercarriage Track Shoe Width: 710 mm (28 in) (optional 810 mm)

Ground Contact Length: 4,520 mm (14.83 ft)

Ground Pressure: 143.7 kPa (20.84 psi)
Capacities Fuel Tank: 1,638 L (432.7 gal)

Hydraulic System: 380 L (100.4 gal)

Engine Oil: 120 L (31.7 gal)

Coolant: 280 L (74 gal)
Ripper (Single - tooth, standard) Type: Heavy - duty single - tooth ripper

Max Digging Depth: 1,670 mm (5.48 ft)

Max Lift Height: 850 mm (2.79 ft)

Ripper Weight: 4,800 kg (10,582 lbs)
