SHANTUI

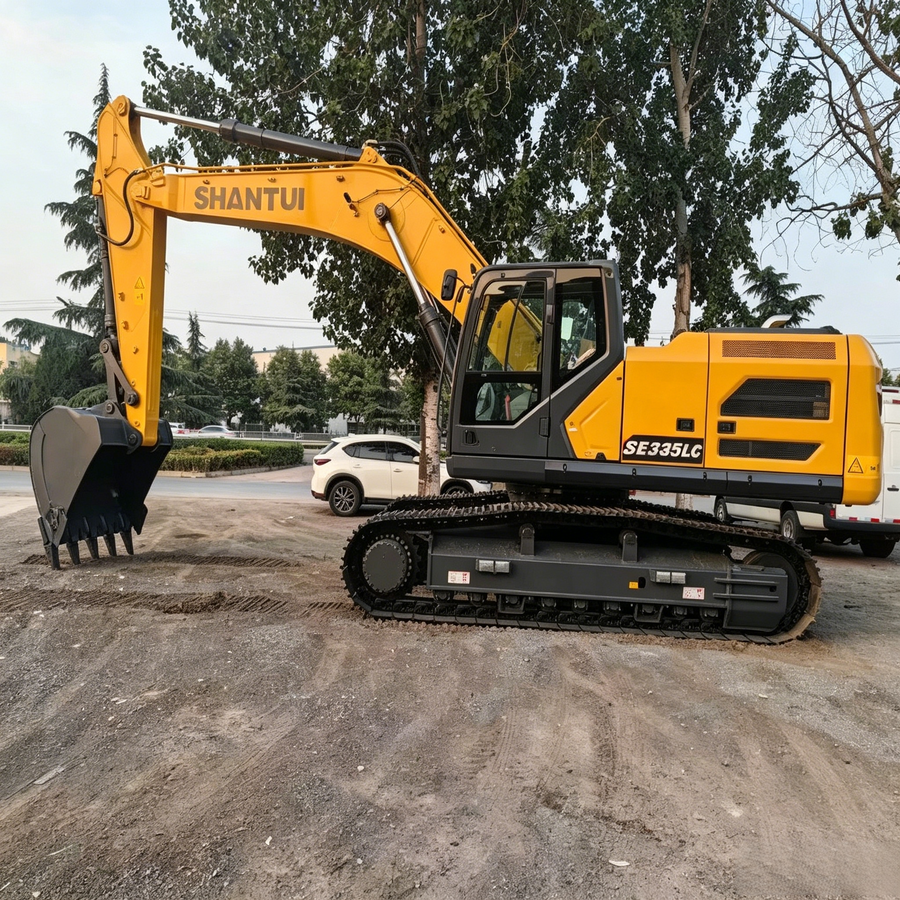

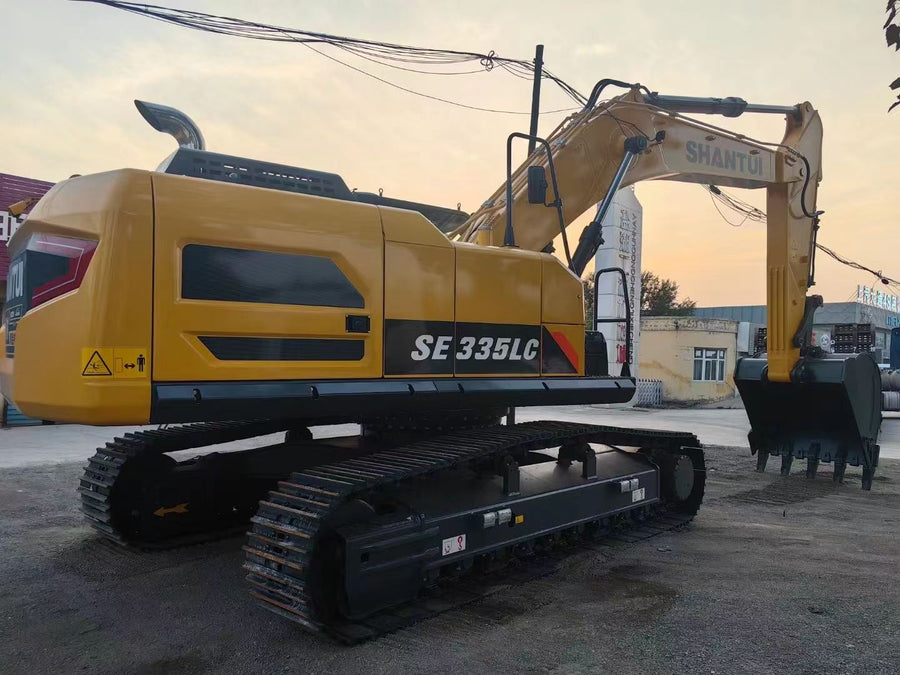

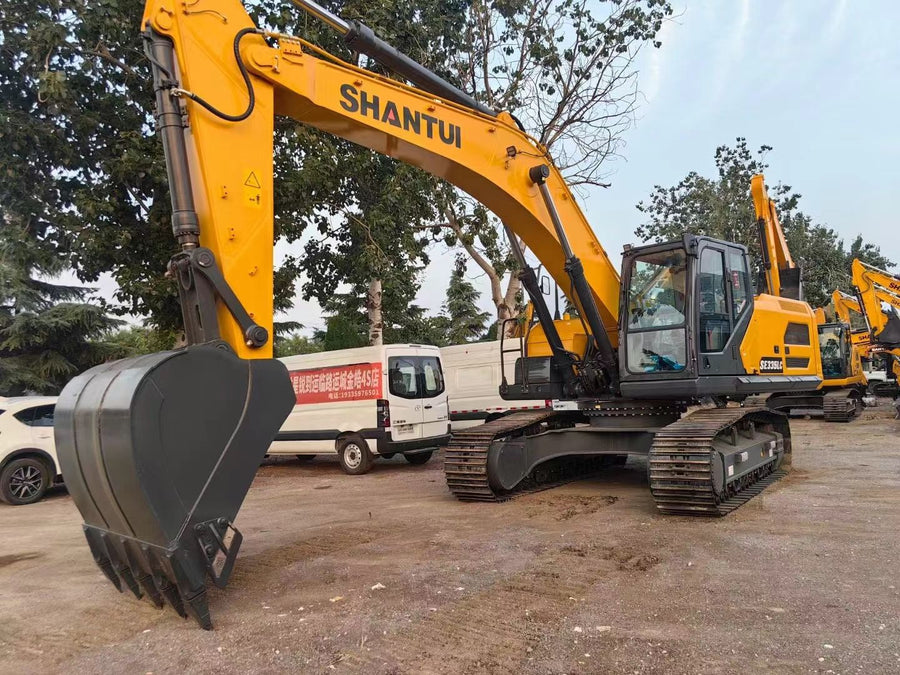

USED SHANTUI SE335LC

USED SHANTUI SE335LC

$30,000.00 USD
$30,000.00 USD
Sale Sold out
Parameter Unit Value
Operating Weight kg 33500
Standard Bucket Capacity m³ 1.6
Engine Model - Cummins QSL9
Rated Power kW/rpm 210/2000
Emission Standard - China Stage III
Displacement L 8.9
Swing Speed r/min 9.8
Travel Speed km/h 3.1/5.1
Gradeability % 70
Bucket Digging Force kN 225
Arm Digging Force kN 168
Ground Pressure kPa 54
Overall Transport Length mm 11180
Overall Width mm 3190
Overall Height (Cab Top) mm 3380
Track Shoe Width mm 700
Track Gauge mm 2590
Minimum Ground Clearance mm 550
Maximum Digging Radius mm 11850
Maximum Digging Depth mm 7960
Maximum Digging Height mm 11260
Maximum Dumping Height mm 7780
Fuel Tank Capacity L 600
Hydraulic Tank Capacity L 280
