| Model |

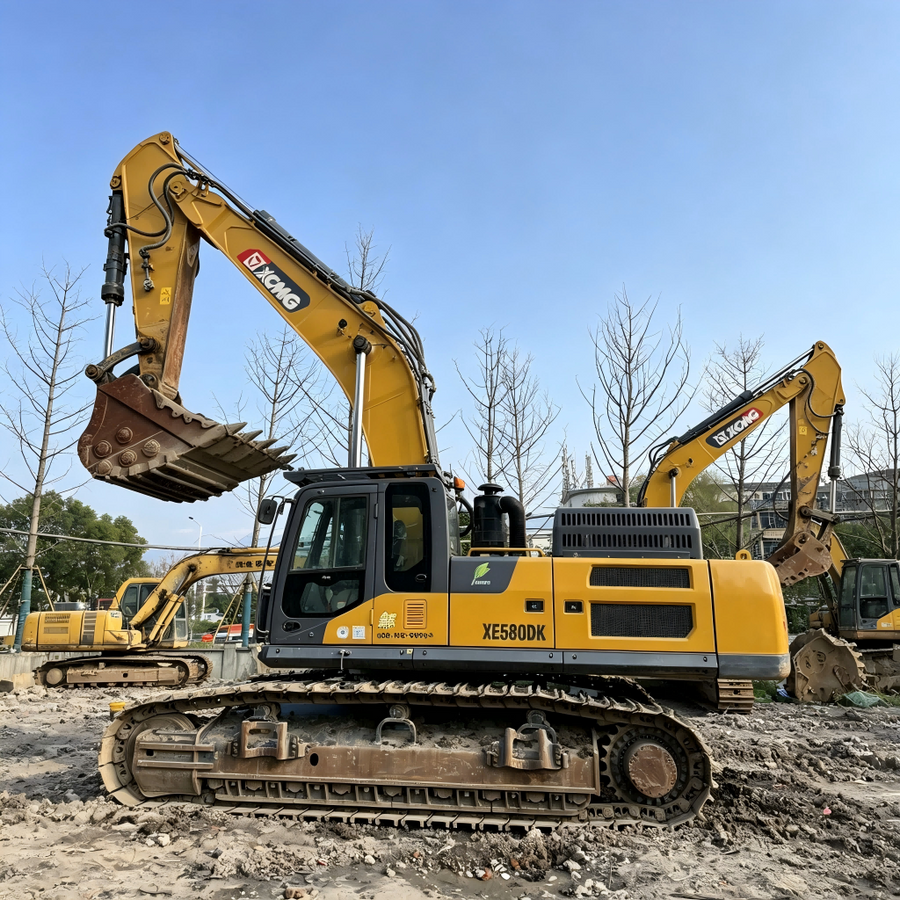

XCMG XE580DK (Mining-Reinforced Heavy Crawler Excavator) |
| Operating Weight |
54,000 kg |
| Standard Bucket Capacity |
3.2 m³ (rock bucket) |
| Optional Bucket Range |
3.0–3.6 m³ |

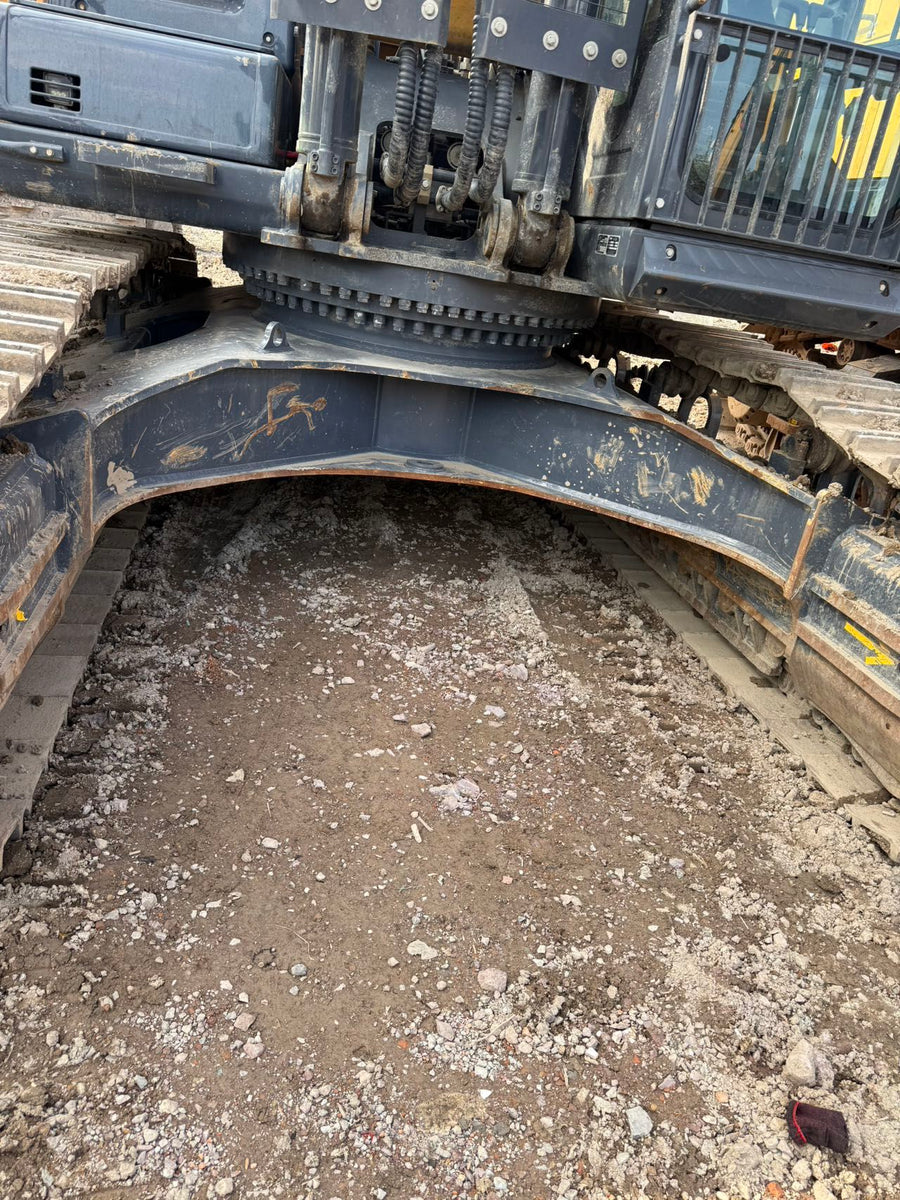

| Undercarriage |
Heavy-duty mining crawler, 600 mm track shoes |

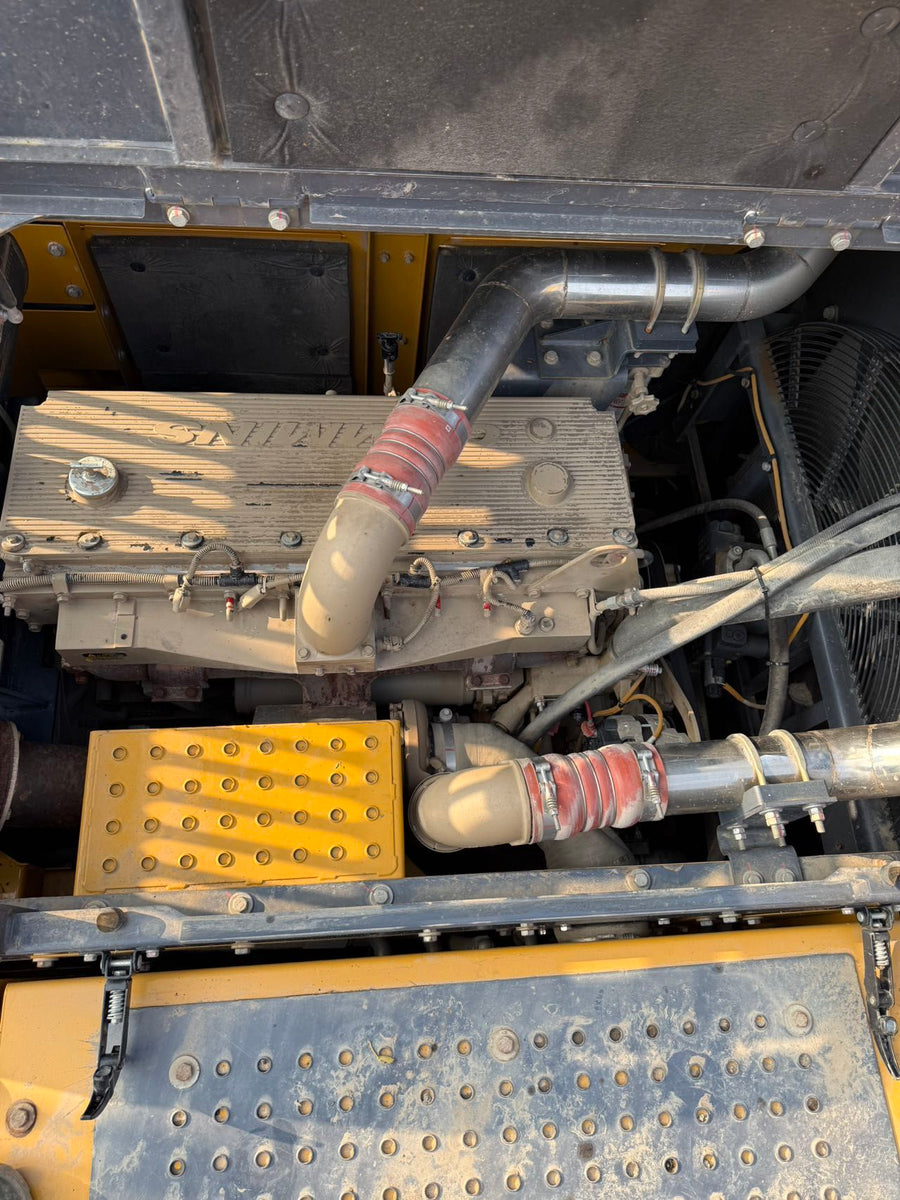

| Engine Model |
Cummins QSM11 / Weichai WP15 (optional) |
| Rated Power |
280 kW @ 2,000 rpm |
| Displacement |
11 L (Cummins QSM11) |
| Max Torque |
1,850 N·m @ 1,500 rpm |
| Emission Standard |
China Nonroad Stage III / Tier 3 |
| Fuel Tank Capacity |
725 L |
| Hydraulic Tank Capacity |
430 L |
| Bucket Digging Force |
330 kN |
| Arm Digging Force |
255 kN |
| Swing Torque |
210 kN·m |
| Swing Speed |
9.2 rpm |
| Travel Speed (Low / High) |
2.9 km/h / 5.2 km/h |
| Gradeability |
35° (70%) |
| Ground Pressure |
88 kPa |
| Max Digging Depth |
7,845 mm |
| Max Ground Reach |
12,066 mm |
| Max Digging Height |
10,848 mm |
| Max Dump Height |
7,569 mm |
| Min Swing Radius |
4,818 mm |

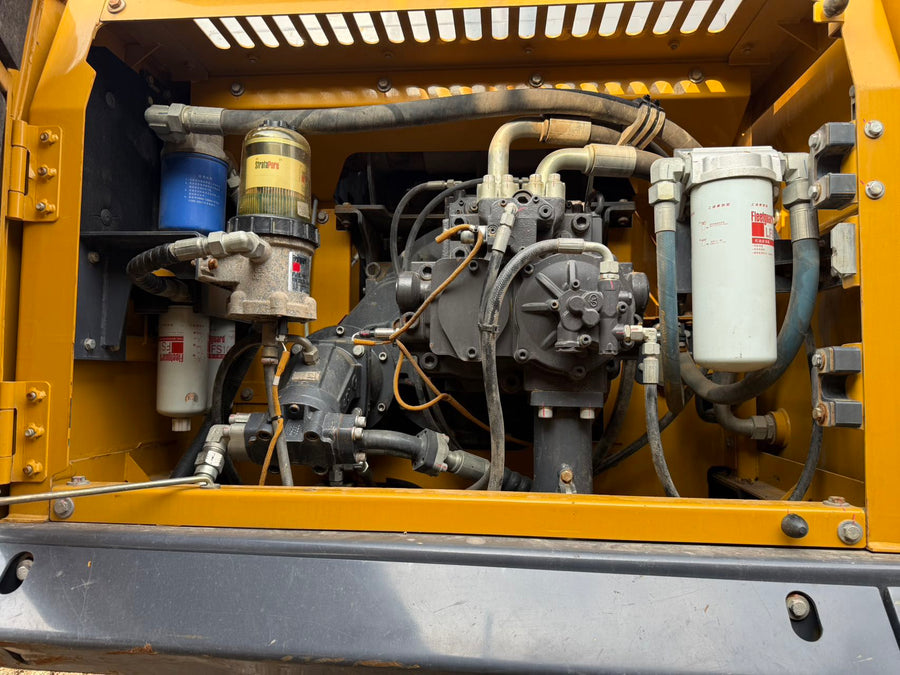

| Main Pump |
Dual variable displacement piston pumps |
| Hydraulic System Pressure |
34.3 MPa |
| Transport Dimensions (L×W×H) |
11,870 × 3,572 × 4,100 mm |
