| Model |

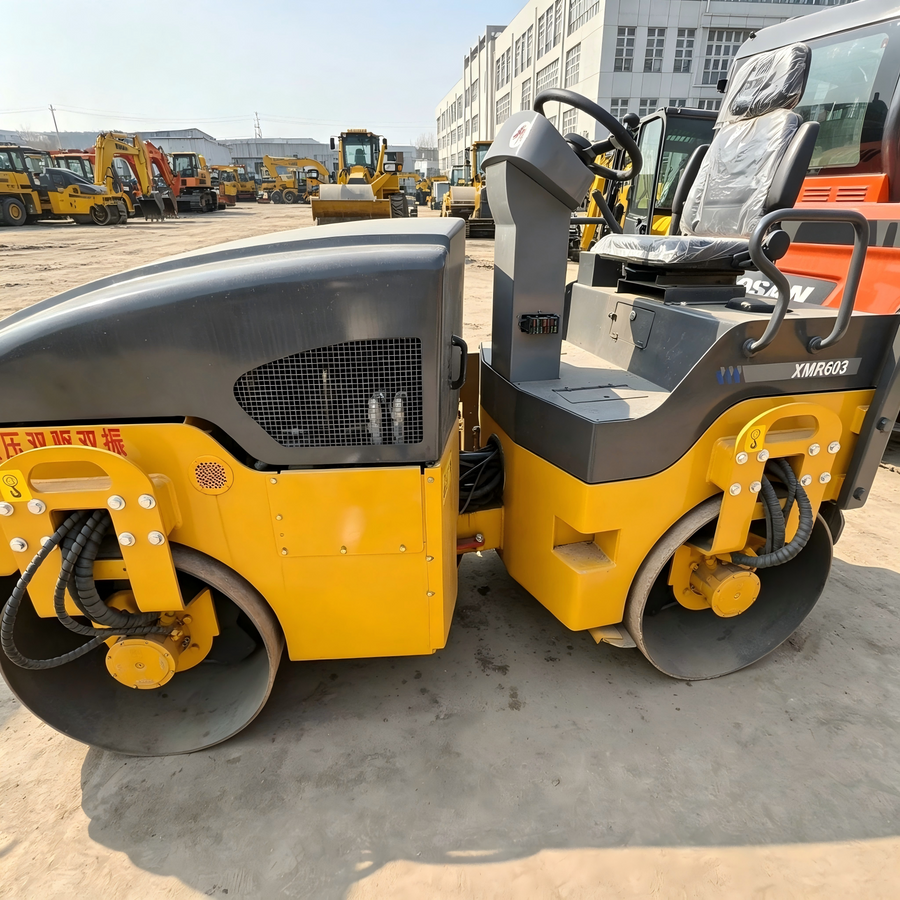

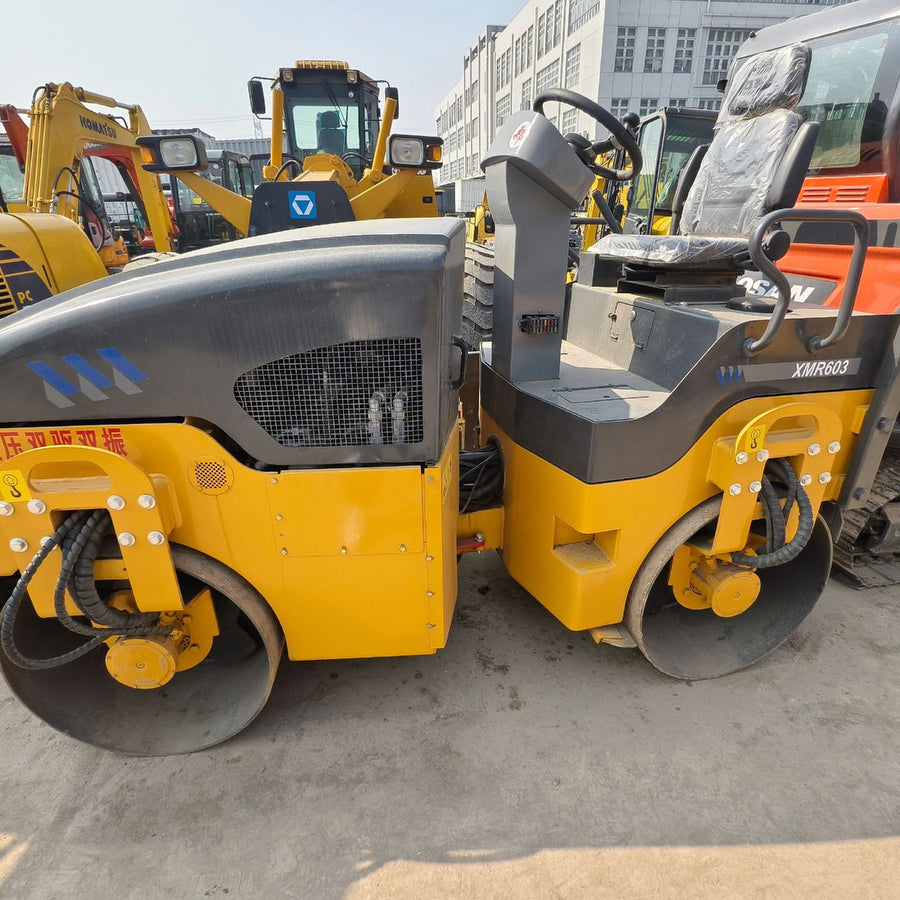

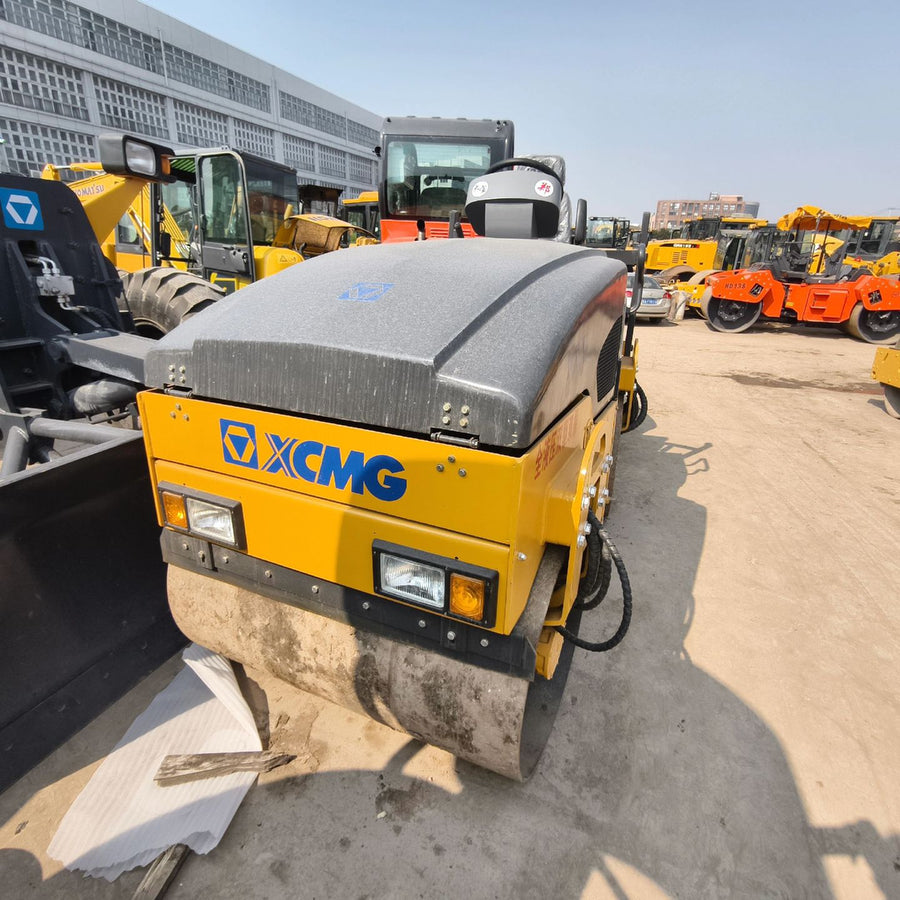

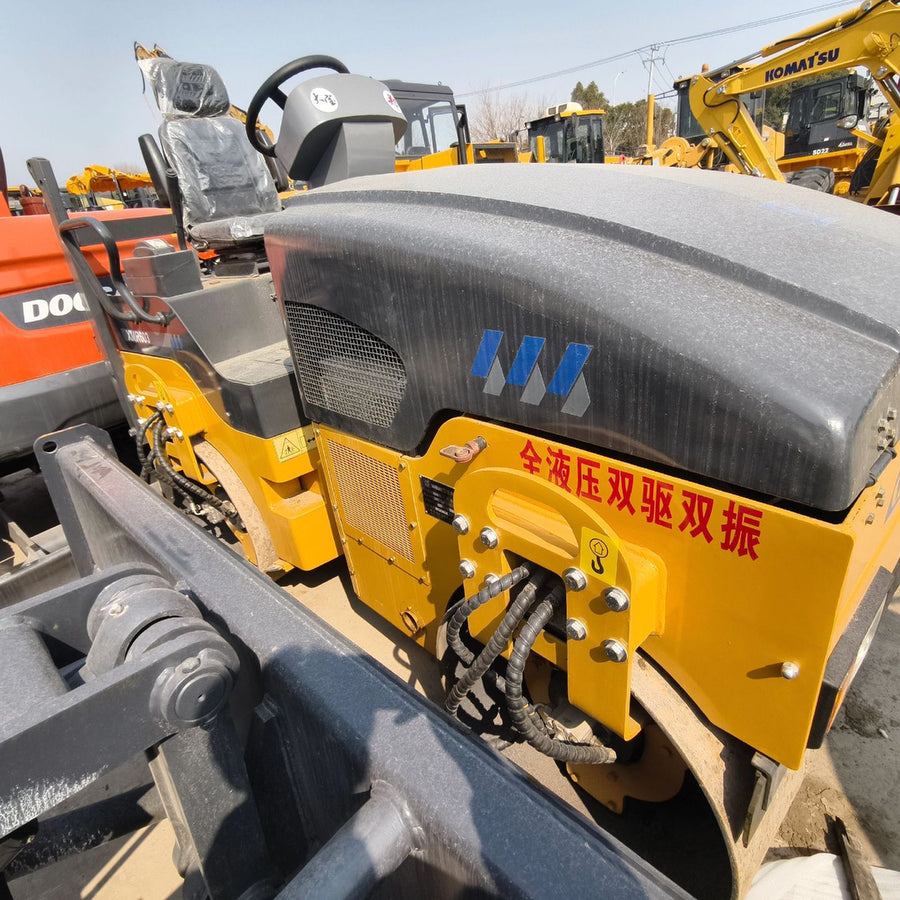

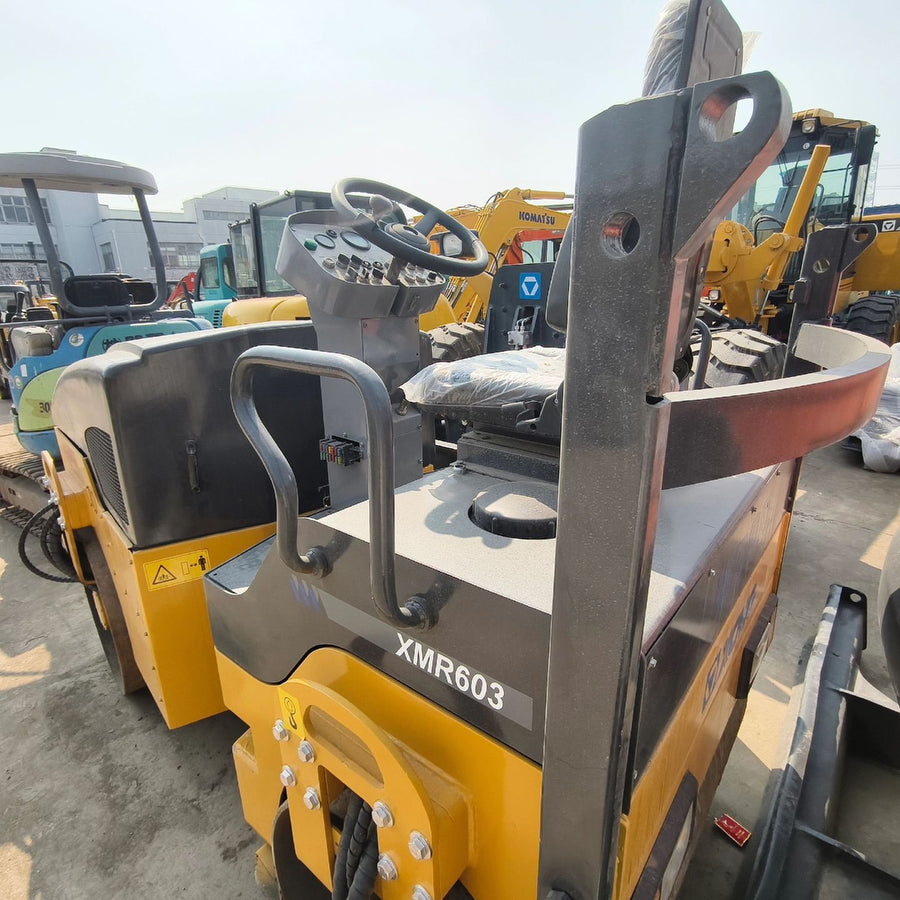

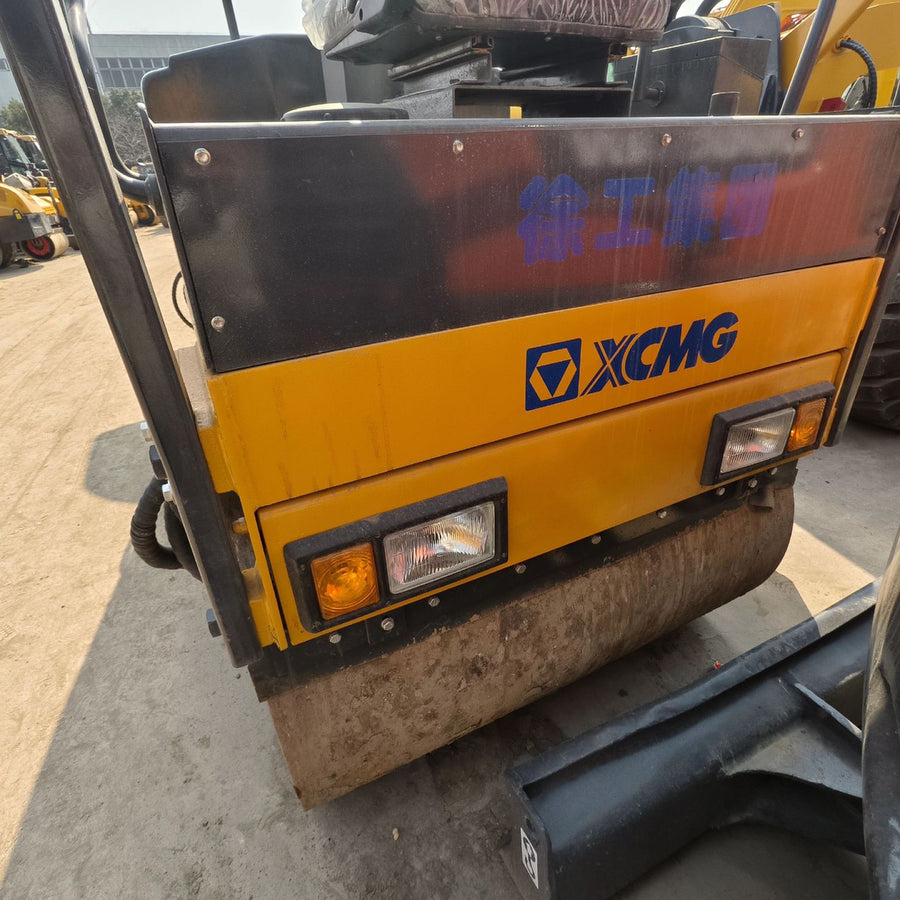

XCMG XMR603 (Double Drum Vibratory Roller) |
| Operating Weight |
6,000 kg (13,228 lb) |
| Compaction Width (Drum Width) |
1,300 mm (51.2 in) |

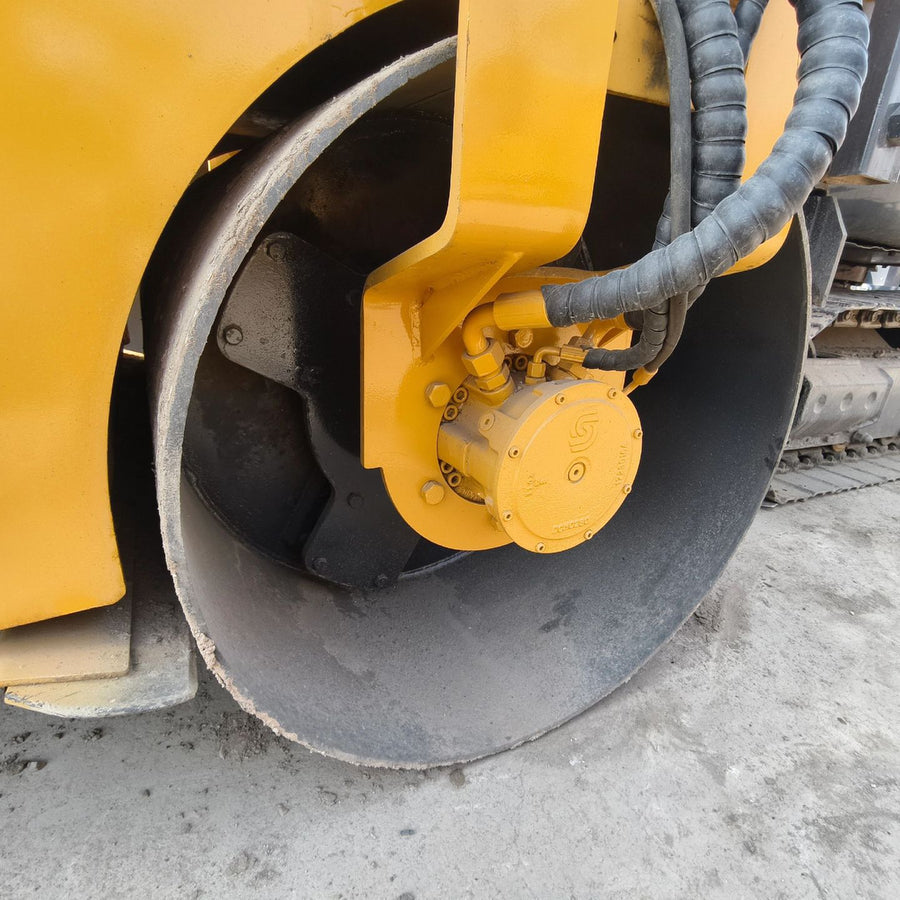

| Drum Diameter |
850 mm |
| Static Linear Load (Front/Rear) |
196 / 196 N/cm |
| Vibration Frequency (Dual) |
55 Hz / 48 Hz |
| Exciting Force |
60 kN |
| Nominal Amplitude |
0.58 mm / 0.48 mm |
| Engine Model |
Deutz TD2.9L4 |
| Rated Power |
55.4 kW / 74 hp @ 2,300 rpm |
| Emission Standard |
China National III / EU Stage IIIA |
| Travel Speed |
0–11 km/h (infinitely variable) |
| Max Gradeability |
37% |
| Wheelbase |
2,100 mm |
| Steering Angle |
±35° |
| Oscillation Angle |
±10° |
| Min. Turning Radius (Outer) |
2,480 mm |
| Ground Clearance |
355 mm |
| Overall Dimensions (L×W×H) |
2,950 × 1,430 × 2,850 mm |
| Fuel Tank Capacity |
45 L |
| Water Tank Capacity |
120 L |
| Braking System |
3-stage (neutral / emergency / parking) |
| ROPS |
Standard foldable ROPS |
