| Operating Weight |
16,000 kg (35,274 lb) |
| Static Linear Load |
376 N/cm |
| Compaction Width |
2,130 mm (83.9 in) |
| Drum Diameter |
1,523 mm (60.0 in) |

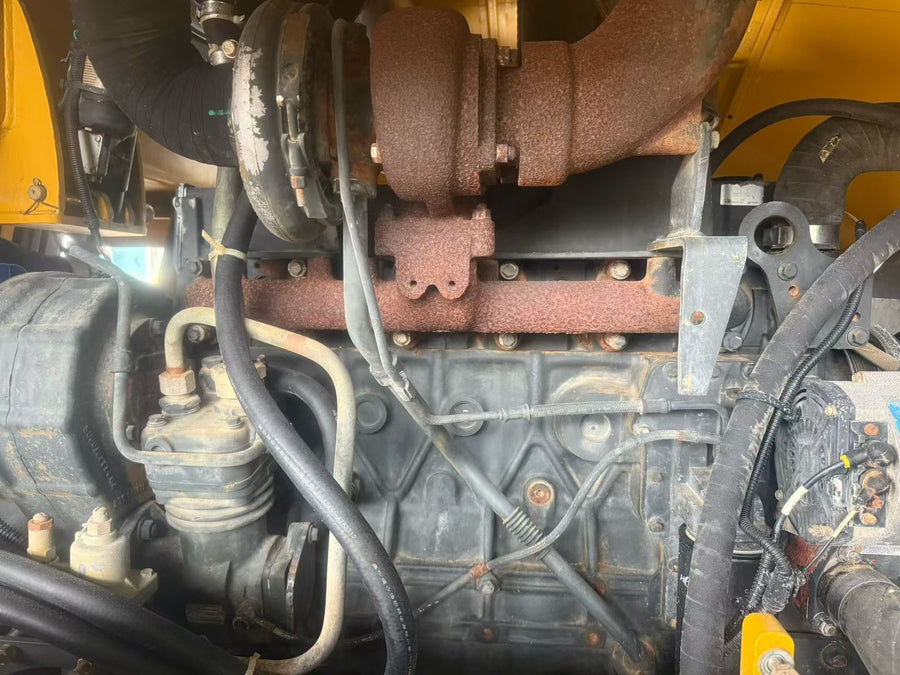

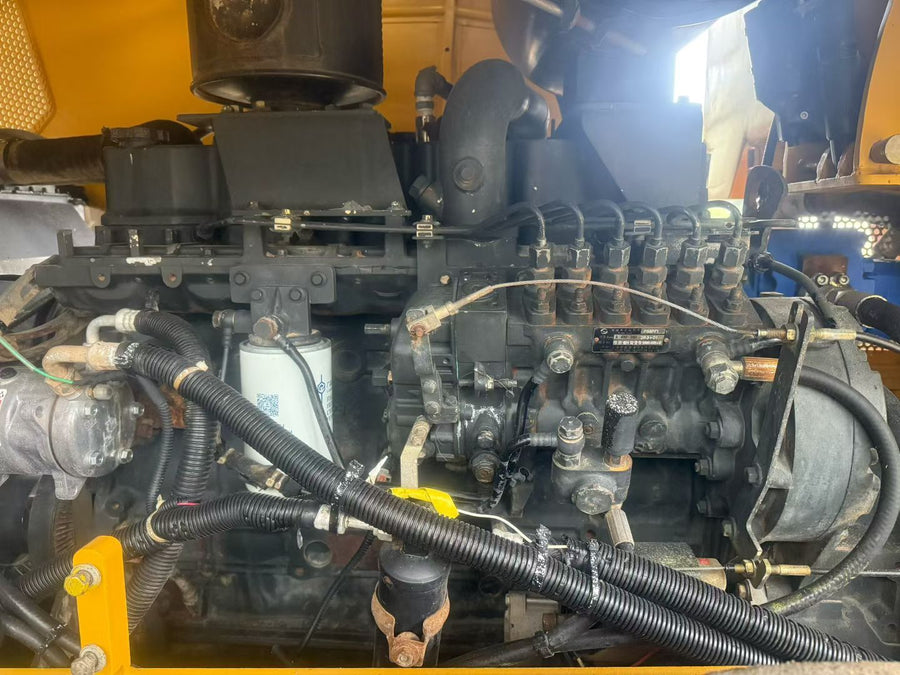

| Engine Model |
Shangchai SC4H140.1G2 (SDEC) |
| Rated Power |
103 kW / 140 hp @ 1,800 rpm |
| Emission Standard |
China National II / EU Stage II |
| Vibration Frequency |
28 / 33 Hz (dual frequency) |
| Nominal Amplitude |
1.9 / 0.95 mm (high/low) |
| Excitation Force |
290 / 200 kN (high/low) |
| Travel Speed |
0–12.2 km/h (2 gears) |
| Max Gradeability |
30% |
| Min. Turning Radius (Outer) |
6,800 mm |
| Overall Dimensions (L×W×H) |
6,150 × 2,300 × 3,200 mm |
| Fuel Tank Capacity |
200 L |
| Drive System |
Mechanical gearbox, 2-wheel drive |
| Application |
Highway, railway, airport, port, dam, gravel & soil compaction |
