XCMG

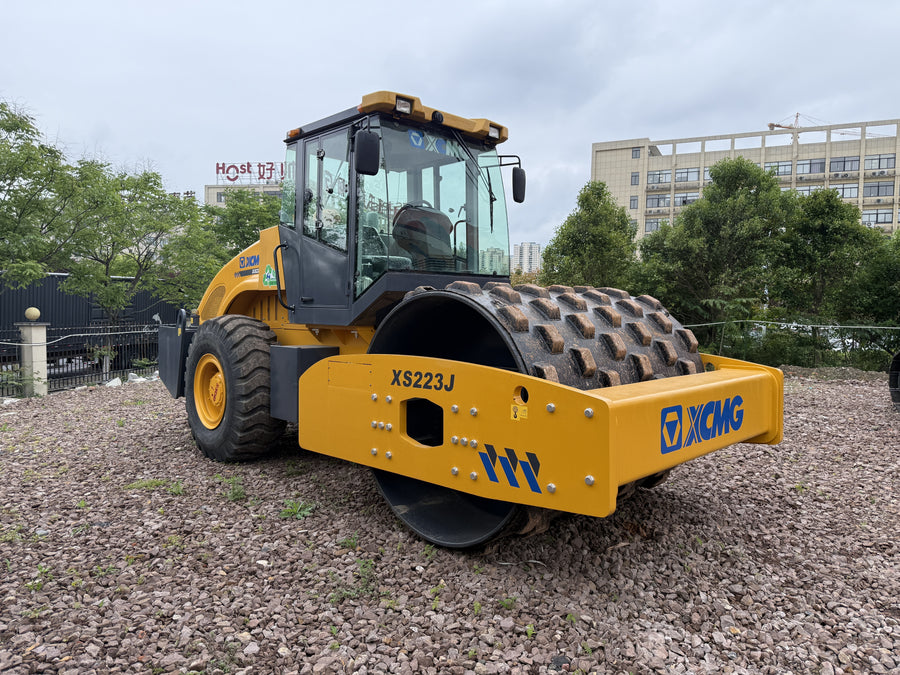

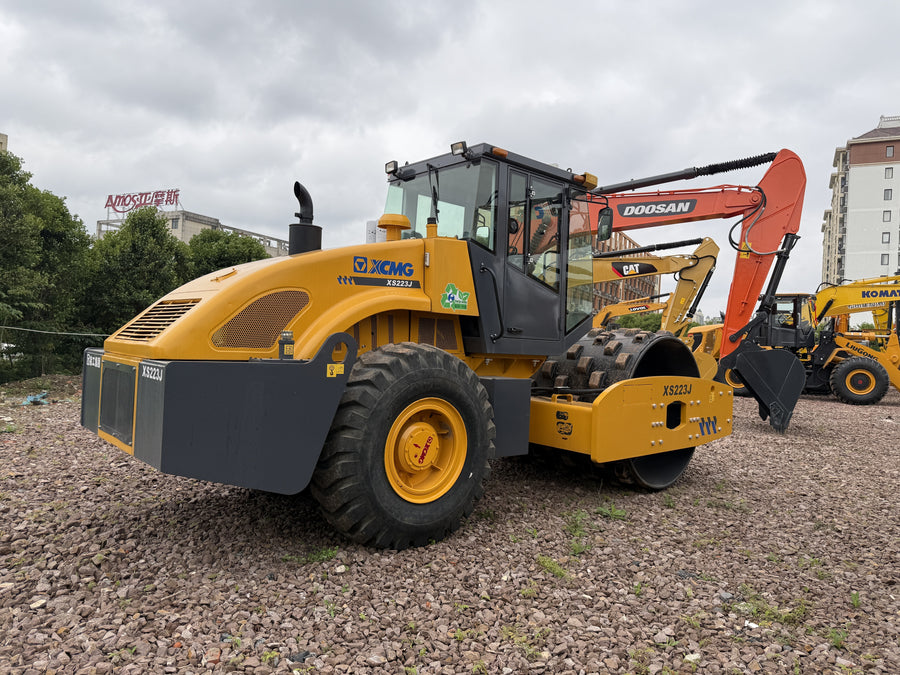

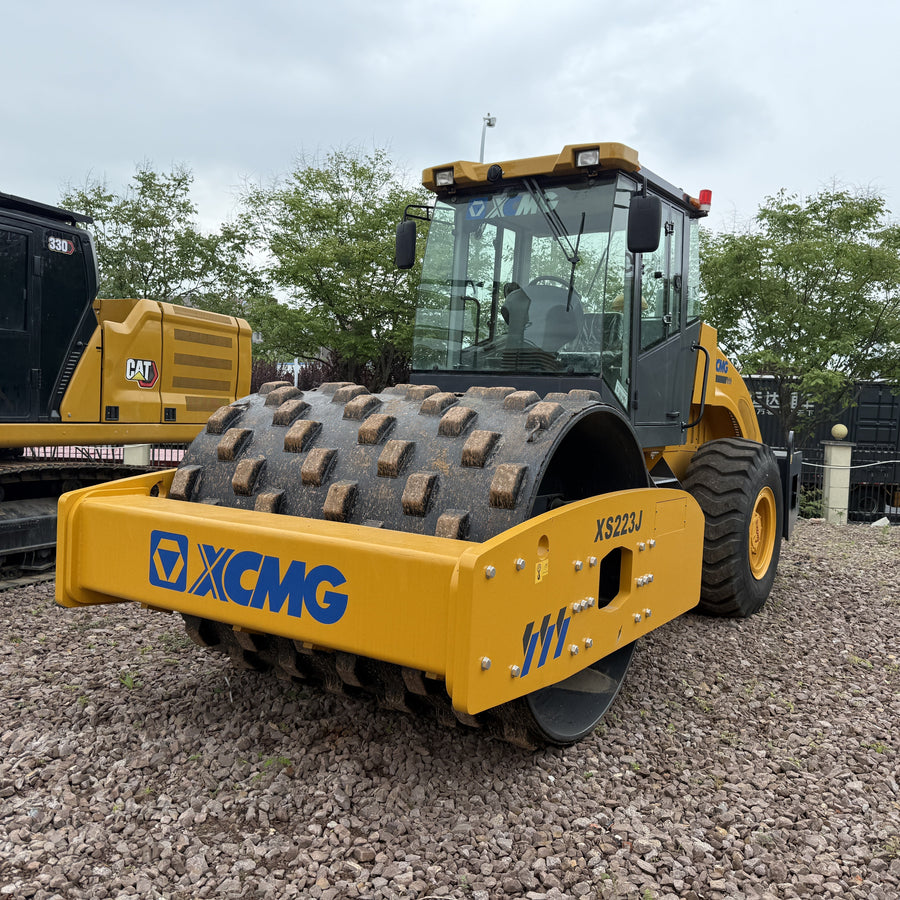

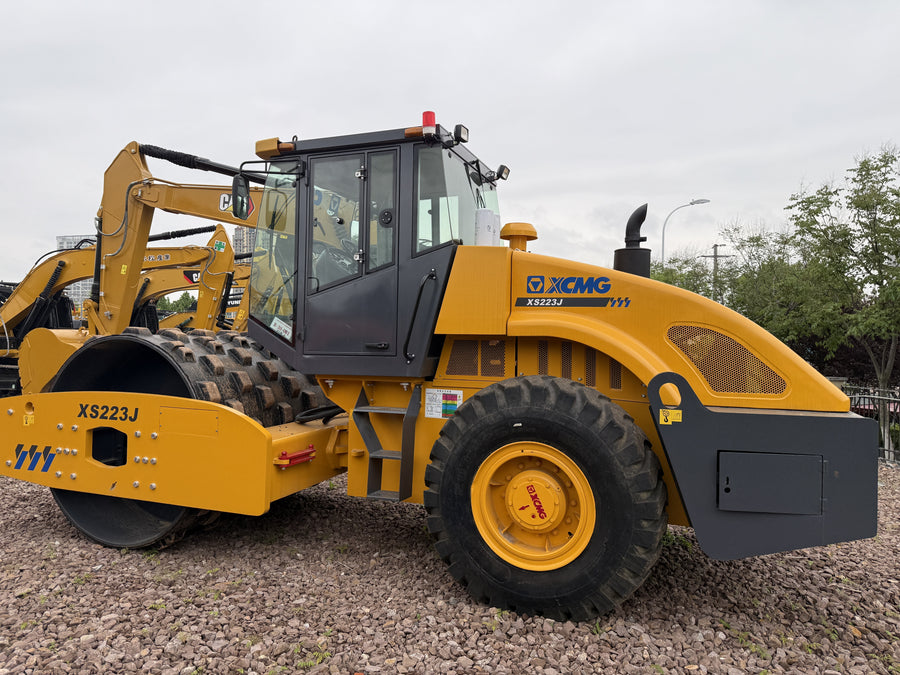

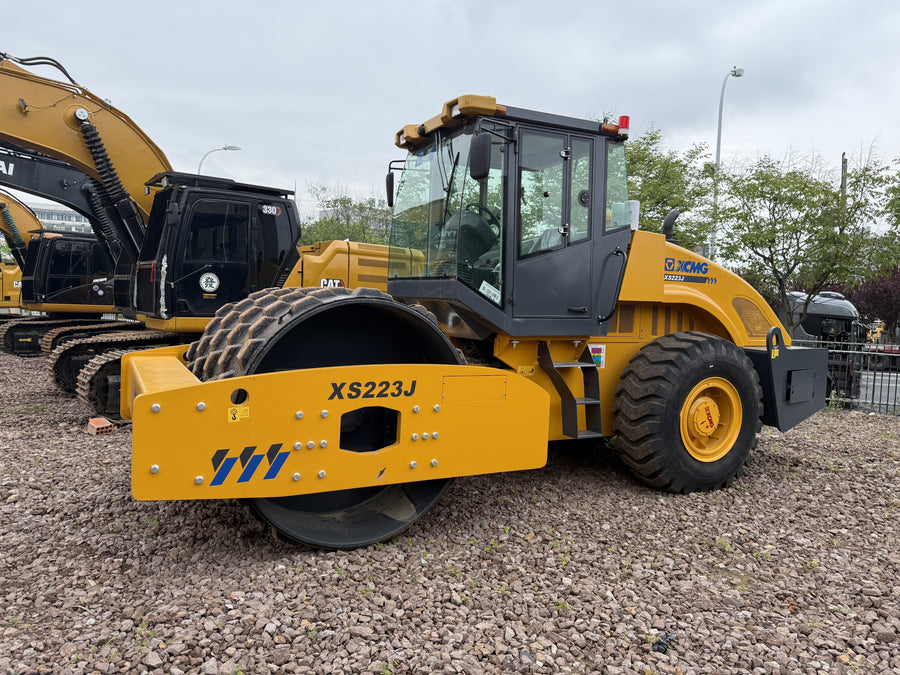

USED XCMG XS223J

$12,000.00 USD

Sale Sold out

Item	Parameter
Model	XS223J
Type	Single Drum Vibratory Roller
Operating Weight	22000 kg
Static Linear Load	516 N/cm
Vibration Frequency	28 / 33 Hz
Nominal Amplitude	1.86 / 0.93 mm
Centrifugal Force	374 / 290 kN
Drum Width	2130 mm
Drum Diameter	1600 mm
Engine Model	SC7H190.2G3 / SC8D185.2G2B1
Rated Power	140 kW / 188 HP @1800 rpm
Emission Standard	Tier 3 / Stage IIIA
Forward Speed	2.95 / 5.78 / 9.4 km/h
Reverse Speed	2.95 / 5.78 / 9.4 km/h
Gradeability (Vibrating)	30%
Steering Angle	±33°
Oscillation Angle	±11°
Min. Turning Radius	6500 mm
Overall Length	6320 mm
Overall Width	2390 mm
Overall Height	3200 mm
