CATERPILLAR

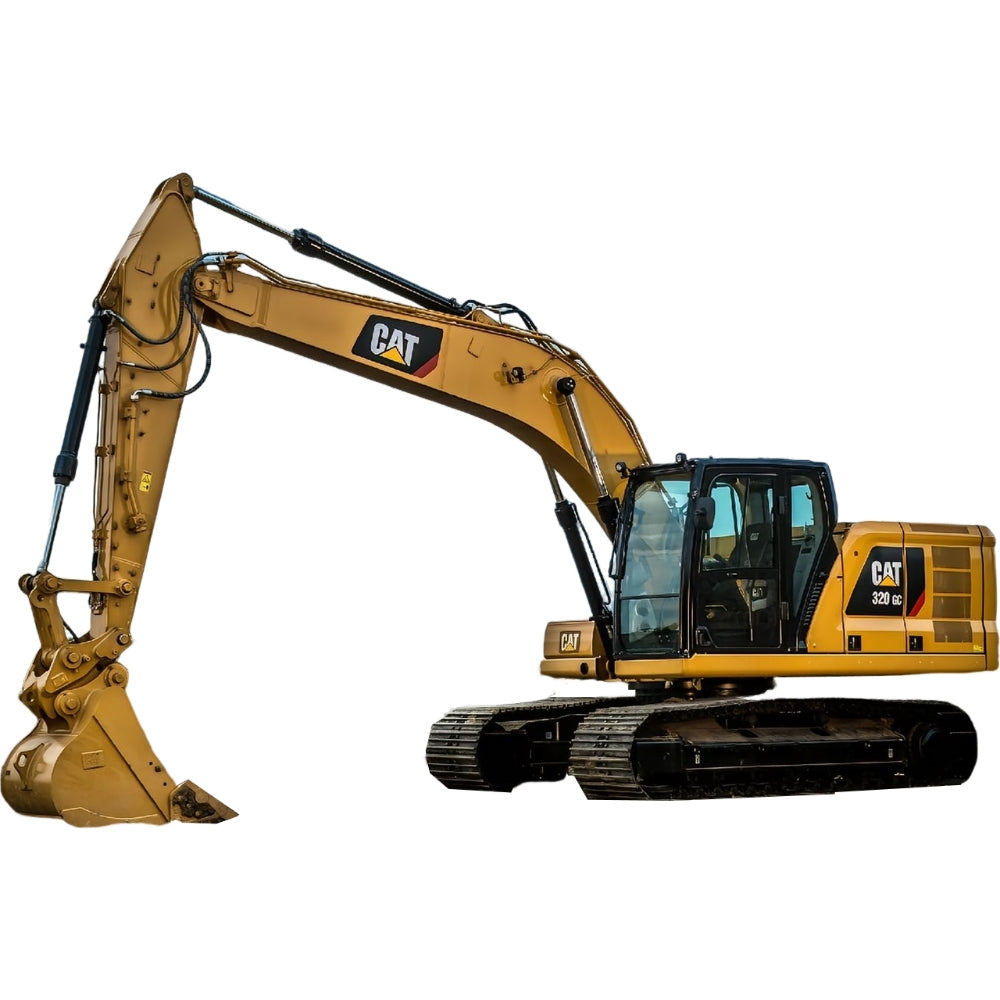

NEW CAT 320GC
NEW CAT 320GC
السعر العادي
$27,000.00 USD
السعر العادي
سعر البيع
$27,000.00 USD
كمية
تعذر تحميل معلومات توفر الاستلام
| Parameter | Details |
|---|---|
| Model | CAT 320GC Crawler Excavator |
| Operating Weight | 20,600 kg (standard configuration with cab, steel tracks, operator, full fuel tank, 5.7 m boom, 2.9 m stick, 1.0 m³ bucket and 600 mm track shoes) |
| Engine Model | CAT C4.4 (4-cylinder, 4-stroke, turbocharged, water-cooled diesel engine) |
| Displacement | 4.4 L |
| Rated Net Power | 109.1 kW (146 hp) @ 2,200 rpm (ISO 9249) |
| Rated Gross Power | 110 kW (148 hp) @ 2,200 rpm (ISO 14396) |
| Bucket Capacity | 1.0 m³ (standard GD bucket) |
| Travel Speed | 5.9 km/h (3.6 mph) |
| Swing Speed | 11.6 rpm |
| Max Digging Depth | 6,630 mm (5.7 m boom, 2.9 m stick) |
| Max Digging Height | 9,700 mm |
| Max Digging Radius | 9,860 mm |
| Hydraulic System | Open-Center, Dual Fixed Displacement Piston Pumps |
| Pump Flow | 442 L/min (2 × 221 L/min) @ 2,200 rpm |
| Max Operating Pressure (Equipment) | 350 bar (5,075 psi) |
| Max Operating Pressure (Travel) | 343 bar (4,974 psi) |
| Max Operating Pressure (Swing) | 250 bar (3,625 psi) |
| Max Bucket Digging Force | 150 kN (33,720 lbf) (ISO 10567) |
| Max Stick Digging Force | 100 kN (22,480 lbf) (ISO 10567) |
| Max Traction Force | 200 kN |
| Emission Standard | Tier 4 Final / EU Stage V |
| Fuel Tank Capacity | 345 L |
| Hydraulic Tank Capacity | 110 L |
| Track Shoe Width | 600 mm |
| Track Width | 2,200 mm |
| Tail Swing Radius | 2,750 mm |
