HYUNDAI

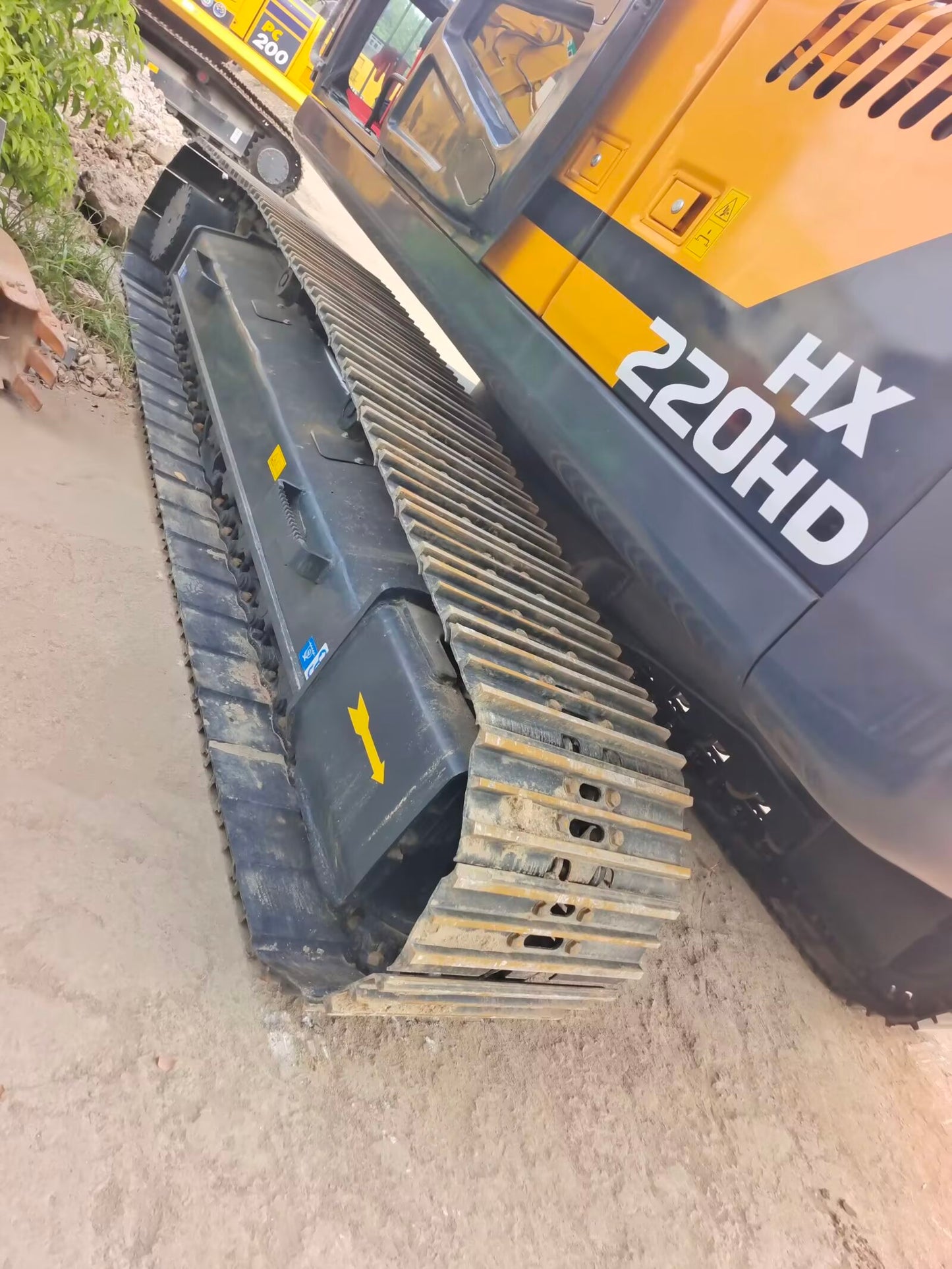

NEW HYUNDAI HX220HD

$29,000.00 USD

أُوكَازيُون نفذ

Parameter	Details
Model	HYUNDAI HX220HD (Heavy - Duty Crawler Excavator)
Operating Weight	22,200 kg
Engine Model	Hyundai 6BTAA - 5.9 (Cummins 6BTAA - 5.9)
Engine Power	110 kW (148 hp) @ 2,000 rpm
Max. Torque	64 kgf·m (627.6 N·m) @ 1,300 rpm
Standard Bucket Capacity	1.0 m³ (Optional 0.87-1.20 m³)
Boom Length	5,850 mm
Arm Length	2,920 mm
Overall Length	10,200 mm
Overall Width	3,030 mm
Overall Height	2,990 mm
Tail Swing Radius	2,940 mm
Min. Ground Clearance	470 mm
Max. Digging Depth	6,730 mm
Max. Digging Height	9,730 mm
Max. Digging Reach	9,980 mm
Max. Dumping Height	6,700 mm
Travel Speed (Low/High)	3.2 km/h / 5.7 km/h
Swing Speed	11.2 rpm
Max. Gradeability	35° (70%)
Bucket Breakout Force (ISO)	155 kN
Arm Tearout Force (ISO)	115 kN
Emission Standard	Tier 4 Final
Fuel Tank Capacity	340 L
Hydraulic Tank Capacity	160 L
Main Hydraulic Pump Flow	2 × 234 L/min
Engine Oil Capacity	25 L
Coolant Capacity	28 L
Urea Tank Capacity	40 L
