HYUNDAI

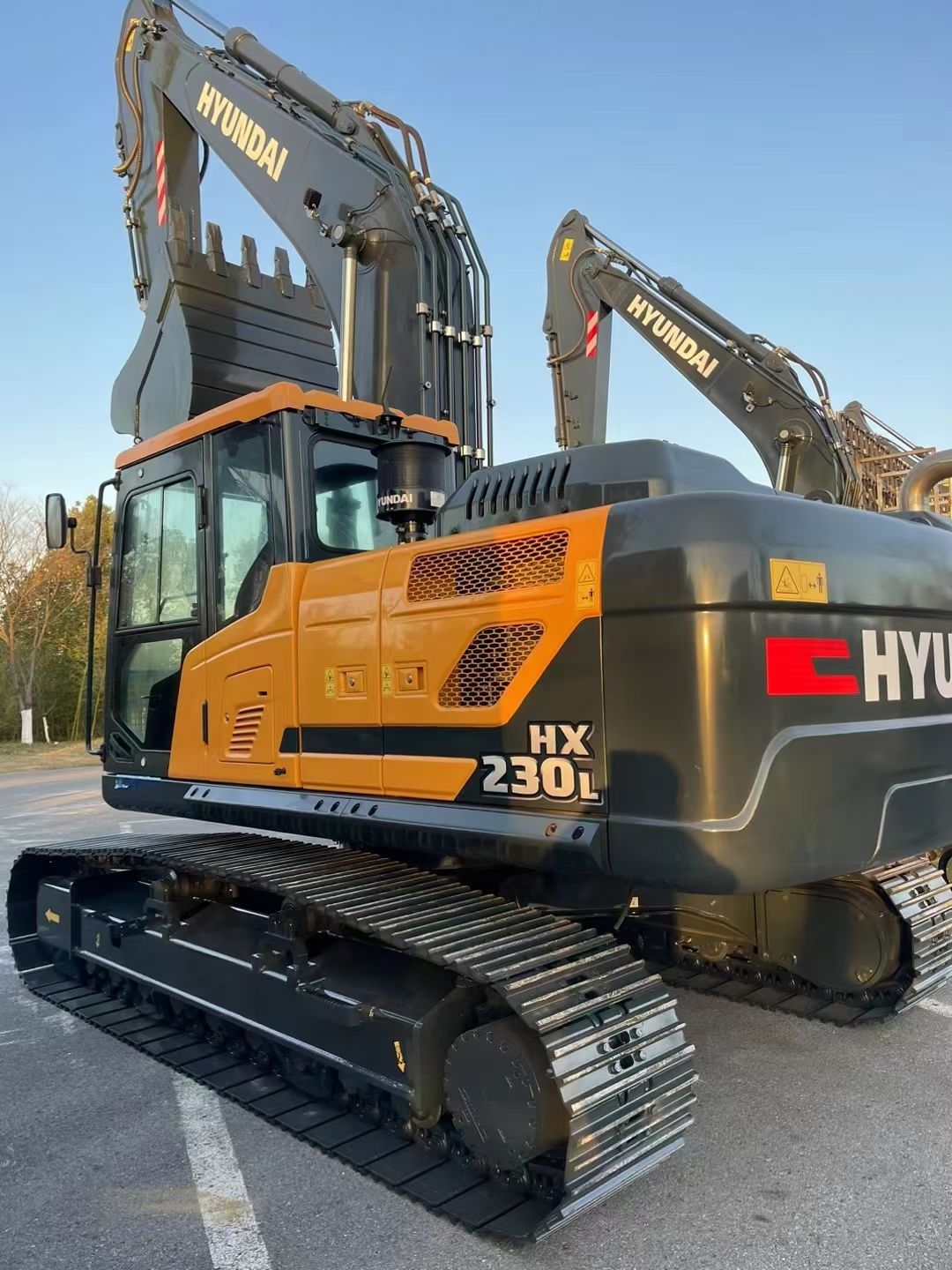

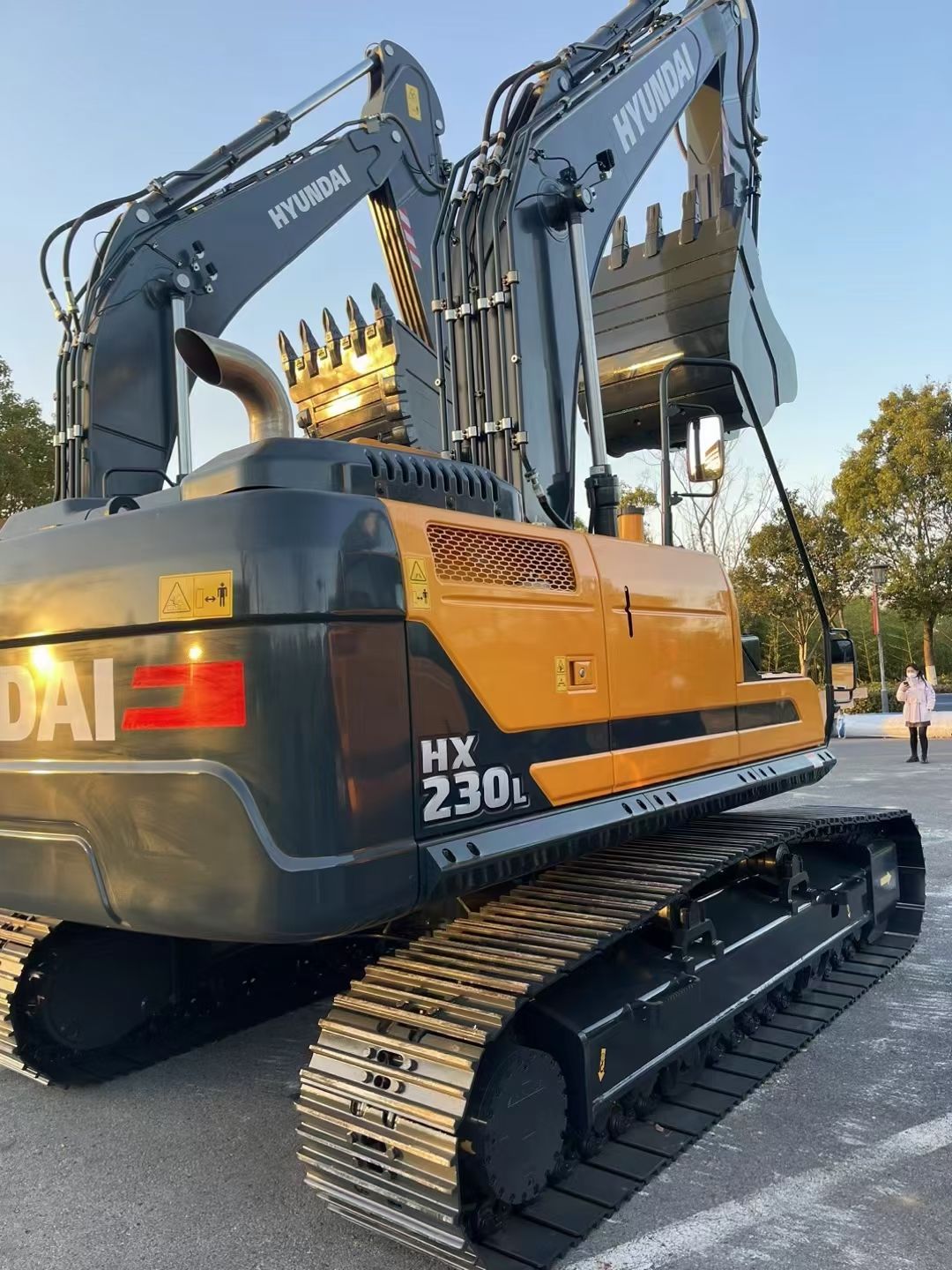

NEW HYUNDAI HX230L

$29,000.00 USD

أُوكَازيُون نفذ

Parameter	Details
Model	HYUNDAI HX230L (Crawler Excavator)
Operating Weight	23,800 kg
Engine Model	Cummins QSB6.7
Engine Power	125 kW (168 hp) @ 2,000 rpm
Max. Torque	746 N·m @ 1,200 rpm
Standard Bucket Capacity	1.2 m³ (Optional 1.0-1.4 m³)
Boom Length	5,680 mm
Arm Length	2,920 mm
Overall Length	9,560 mm
Overall Width	2,990 mm
Overall Height	3,030 mm
Tail Swing Radius	2,840 mm
Min. Ground Clearance	470 mm
Max. Digging Depth	6,740 mm
Max. Digging Height	9,445 mm
Max. Digging Reach	9,980 mm
Max. Dumping Height	6,780 mm
Travel Speed (Low/High)	3.6 km/h / 5.5 km/h
Swing Speed	11.6 rpm
Max. Gradeability	35° (70%)
Bucket Breakout Force (ISO)	158.0 kN
Arm Tearout Force (ISO)	120.0 kN
Emission Standard	Tier 4 Final/Euro Stage V
Fuel Tank Capacity	400 L
Hydraulic Tank Capacity	160 L
Main Hydraulic Pump Flow	2×234 L/min
