| Model |

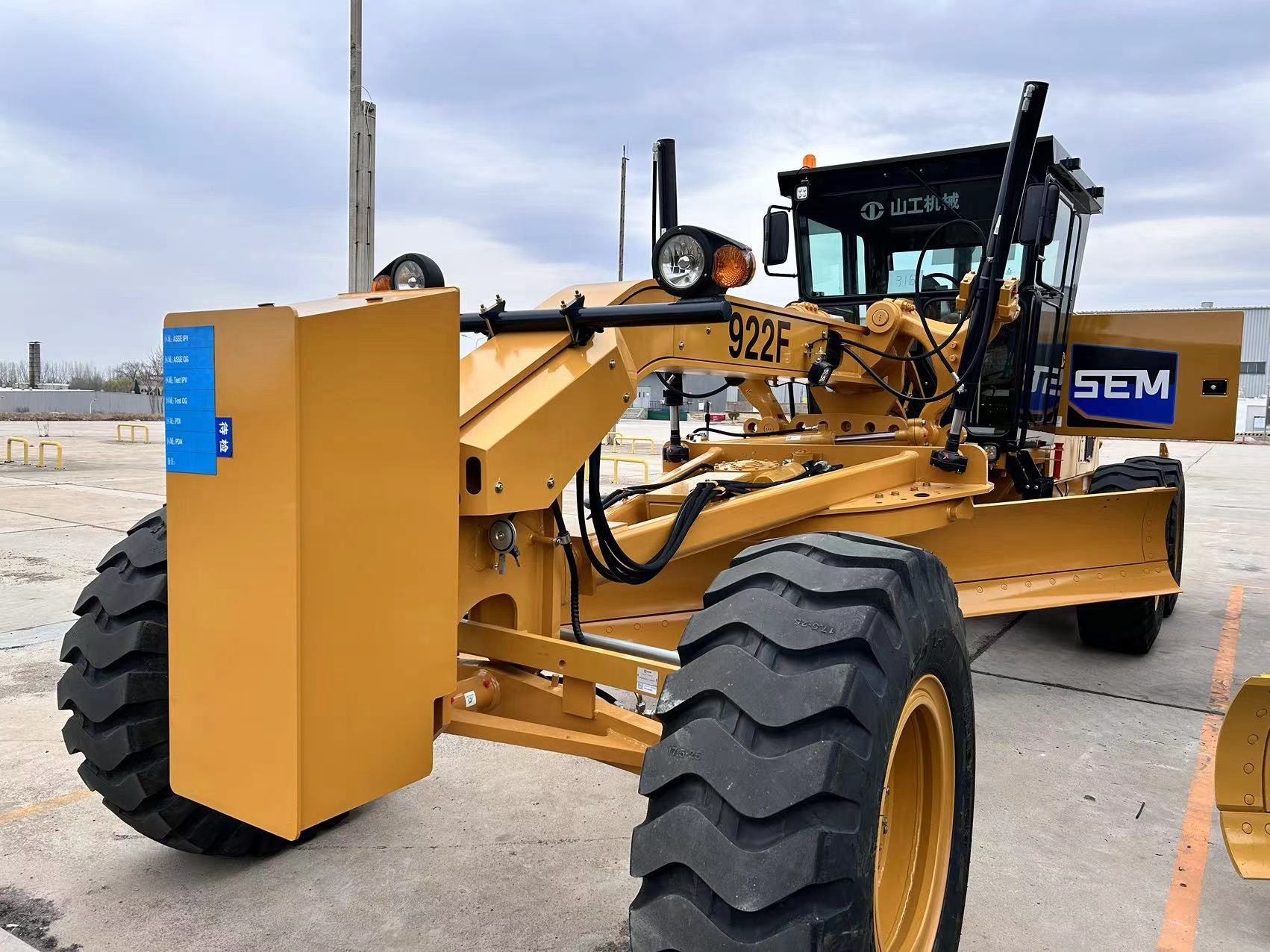

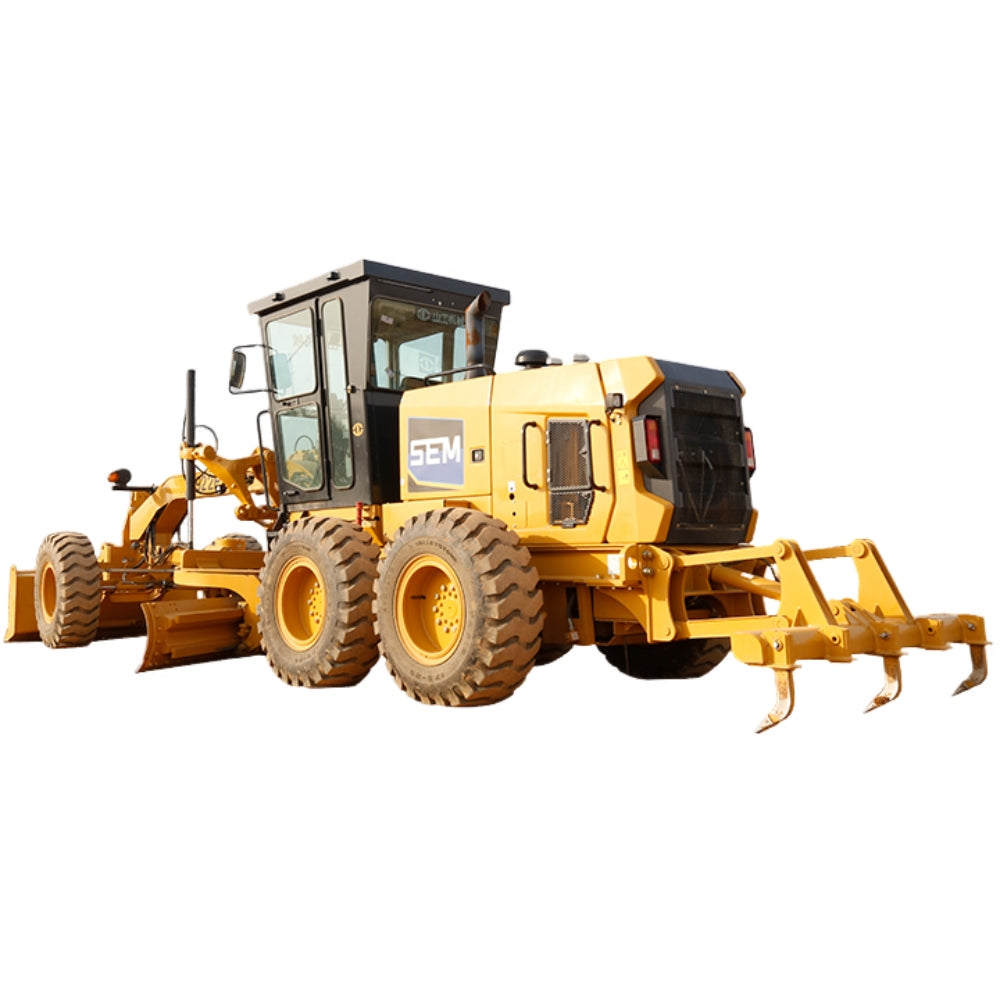

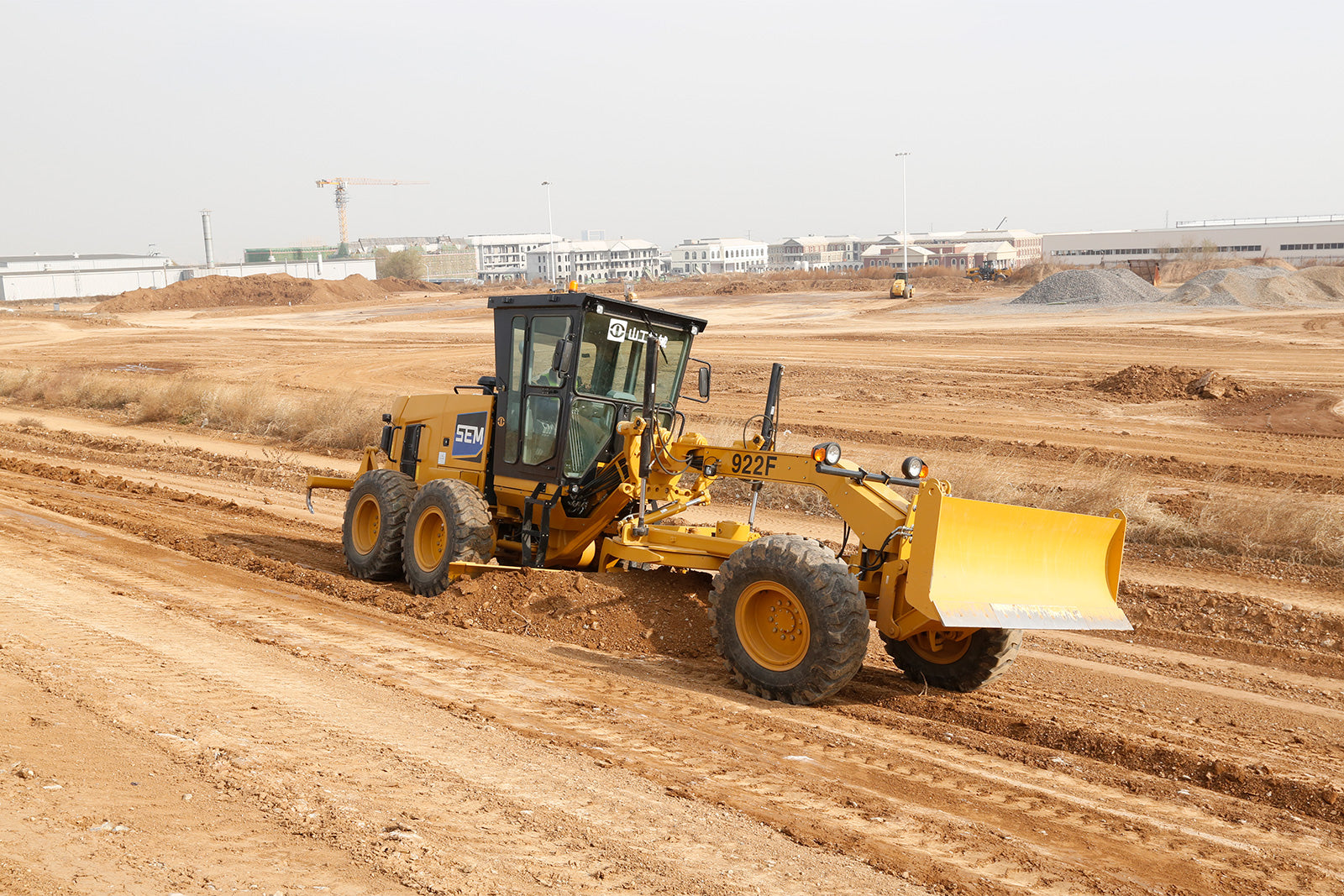

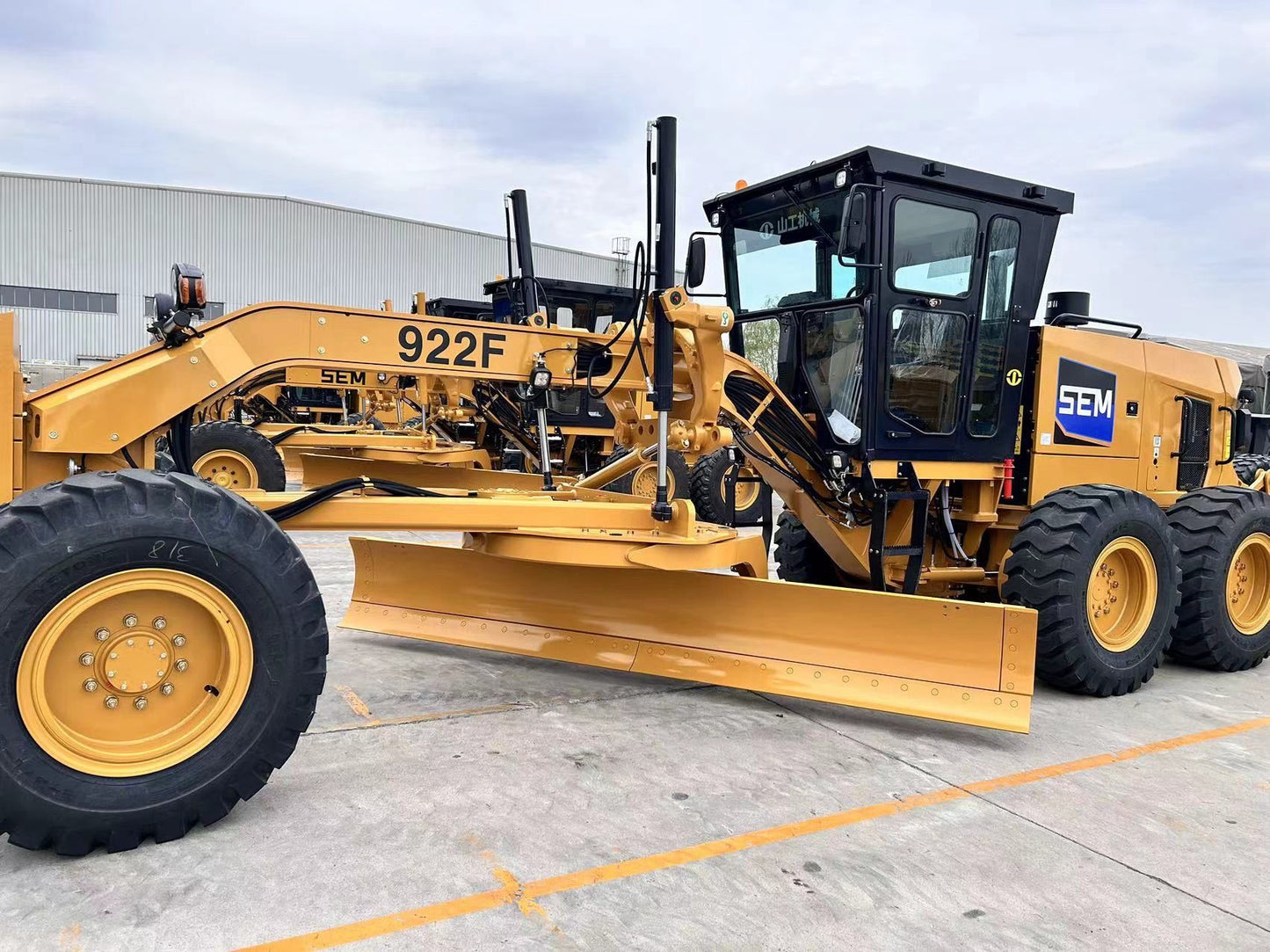

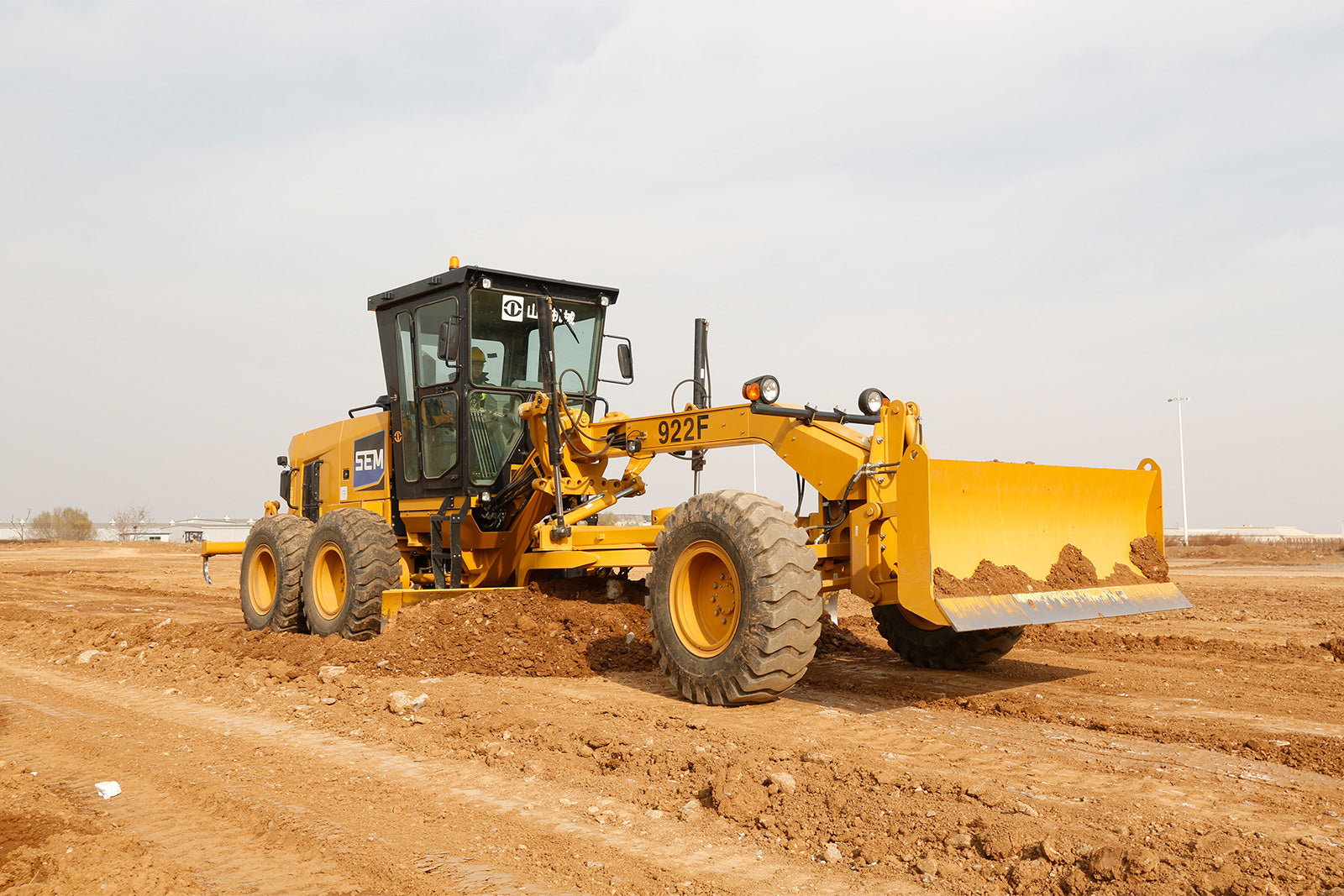

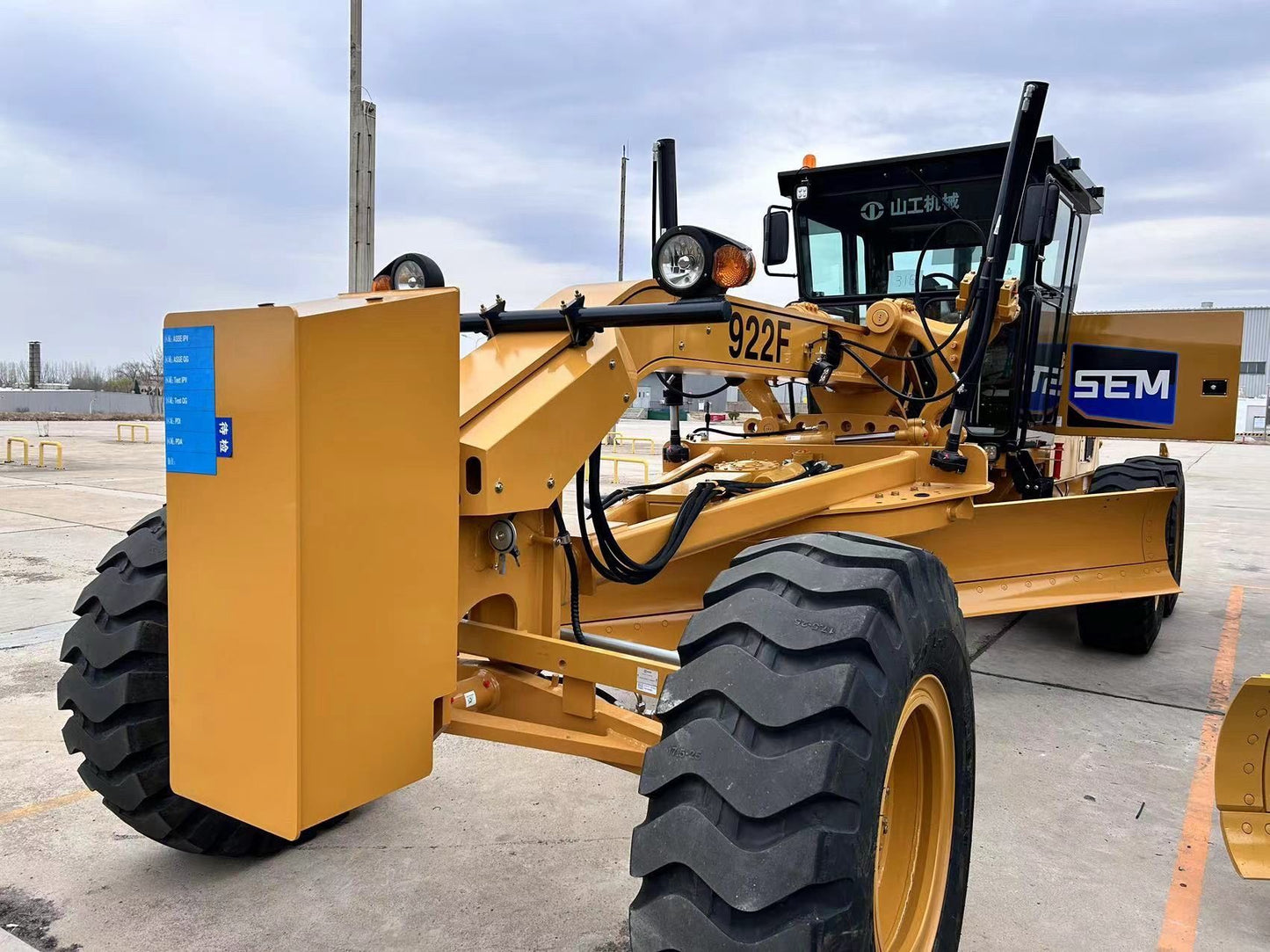

SEM 922F |
| Operating Weight |
16,722 kg (basic machine); 16,640 kg (with ROPS); 16,313 kg (without ROPS) |
| Overall Dimensions (L×W×H) |
8,785×2,630×3,140 mm (basic); 11,100×2,630×3,140 mm (overall) |
| Wheelbase |
6,140 mm |
| Engine Model |
SDEC SC9DF220G4/SC9D220G2 |
| Engine Manufacturer |
SDEC |
| Rated Power |
162 kW (220 HP) @ 2,200 rpm |
| Max. Torque |
920 N·m @ 1,400 rpm |
| Displacement |
8.8 L |
| Emission Standard |
China Stage 4/EPA Tier 2 |
| Transmission |
HangChi Powershift Torque Converter, 6 forward/3 reverse gears |
| Max. Forward Speed |
40 km/h |
| Max. Reverse Speed |
25 km/h |
| Max. Drawbar Traction |
99 kN |
| Frame Articulation Angle |
20° |
| Min. Turning Radius |
7.8 m |
| Blade Length |
4,300 mm (4,279×25×607 mm in detail) |
| Max. Blade Lift Height |
475 mm |
| Max. Cutting Depth |
715 mm |
| Tire Size |
17.5-25 12PR |
| Front/Rear Axle Load |
4,127 kg / 12,595 kg (24.7% / 75.3%) |
