| Model |

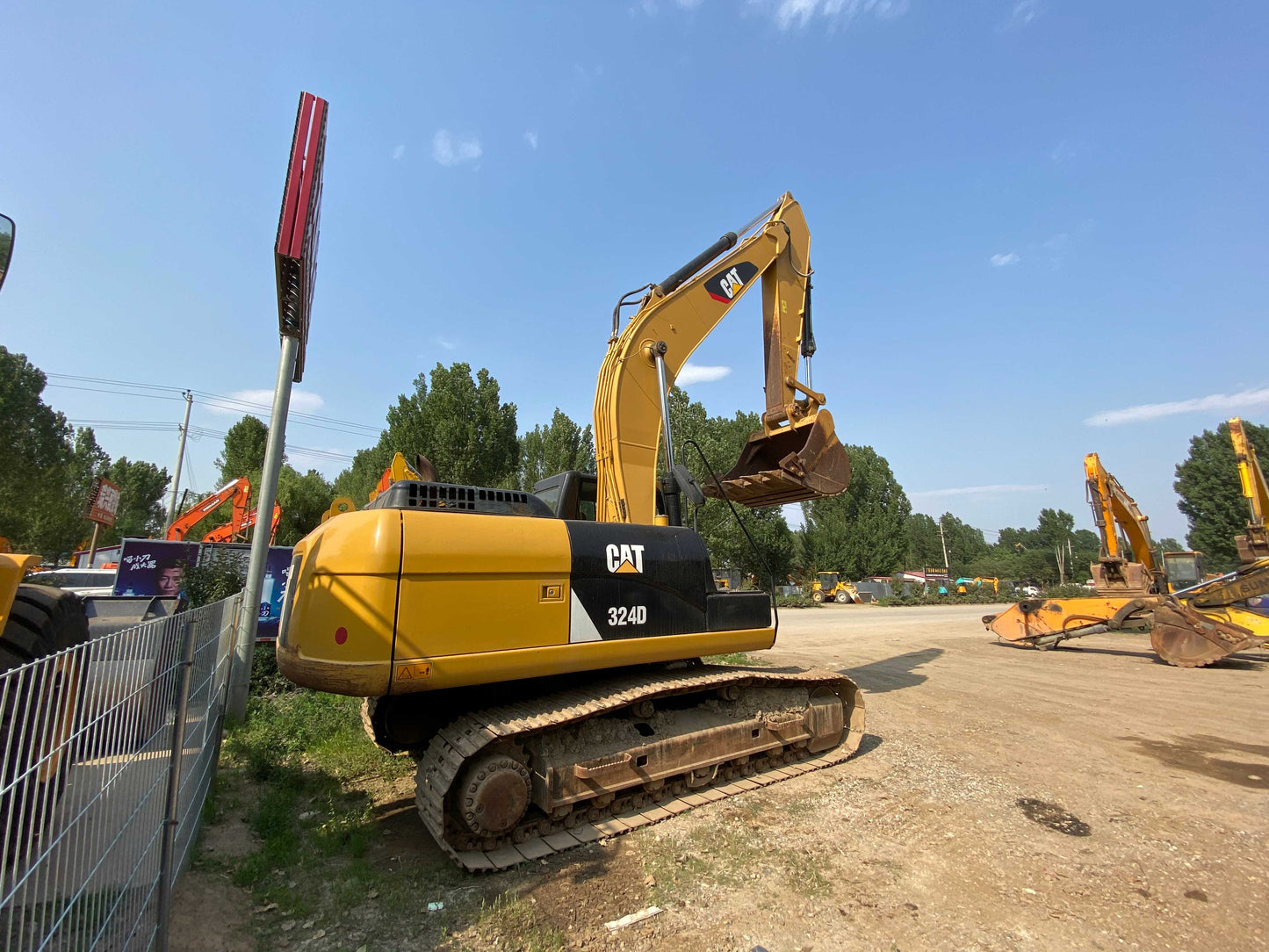

Cat 324D |
| Engine |
Cat C7 ACERT (turbocharged, aftercooled diesel) |
| Displacement |
7.2 L (7200 cc) |
| Rated Power |
140 kW (188 hp) @ 2000 rpm (net, ISO 9249) |
| Cylinder Bore × Stroke |
102 mm × 130 mm |
| Operating Weight |
24790 kg (54660 lb) |
| Bucket Capacity |
1.0–1.2 m³ (standard 1.1 m³) |
| Max. Digging Depth |
7320 mm (with 5.9 m boom & 2.95 m stick) |
| Max. Reach Along Ground |
10540 mm |
| Max. Loading Height |
7290 mm |
| Swing Speed |
9.6 rpm |
| Travel Speed |
3.5/5.5 km/h (two - speed) |
| Bucket Digging Force |
158 kN |
| Stick Digging Force |
115 kN |
| Hydraulic System Pressure |
Main: 35000 kPa; Travel: 35000 kPa; Swing: 24500 kPa; Pilot: 3900 kPa |
| Hydraulic Flow (Main Pumps) |
2×220 L/min (total 440 L/min) |
| Fuel Tank Capacity |
520 L |
| Hydraulic System Capacity (Including Tank) |
300 L |
| Engine Oil Capacity |
30 L |
